| Item | Hydraulic Cylinder |
|---|---|
| Body Material | Steel |
| Body Thread | 1 1/16"-12 |
| Cylinder Type | Threaded Body |
| Dimension A | 2.15" |
| Dimension B | 1.87" |
| Dimension D1 | 0.94" |
| Dimension E | 0.47" |
| Dimension E1 | 0.43" |
| Dimension F | 1 1/4" |
| Dimension F1 | 0.35" |
| Dimension J | 0.59" |
| Dimension T | 8/25" |
| Effective Push Area | 0.5 sq. in. |
| Extended Height | 2.15" |
| Function | Single Acting |
| Material | Steel |
| Material Of Construction | Steel |
|---|---|
| Max. Cylinder Capacity Advance | 2590 lbs. |
| Max. Operating Pressure | 5000 psi |
| Min. Hole Depth | 1.33" |
| Mounting Style | Manifold Mount |
| Oil Capacity Push | 0.14 cu. in. |
| Plunger Thread Size | 5/16"-24 |
| Plunger Type | Solid |
| Pressure Range | 580 psi to 5000 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Push Capacity @ 5000 Psi | 2590 lbf. |
| Retracted Height | 1.87" |
| Seal Material | Polyurethane, Buna N |
| Single Acting/double Acting | Single Acting |
| Stroke | 7/25" |
| Stroke Length | 1/4" |
| Type | Threaded Body |
| Height (cm) | 9.4 |
|---|---|
| Length (cm) | 11.68 |
| Width (cm) | 11.94 |
| HS Code | 8412210030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.3105 |
| Style | Model | Retracted Height | Stroke | Seal Material | Dimension A | Dimension D1 | Dimension E | Dimension T | Max. Cylinder Capacity Advance | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CSM271 | 1.33" | 7/25" | Buna N, Polyurethane | 1.61" | 0.47" | 0.19" | 0.19" | 380 lbs. | $233.76 | |

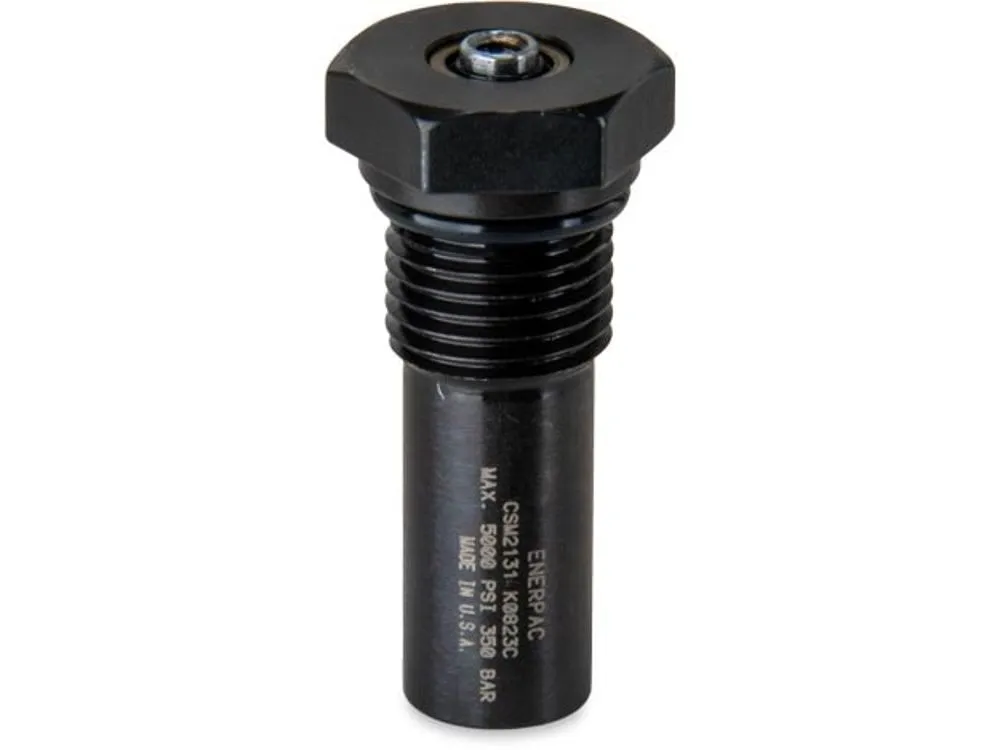

| B | CSM2131 | 1.71" | 0.51" | Polyurethane, Buna N | 2.22" | 0.47" | 0.19" | 0.19" | 380 lbs. | $242.67 | |
| C | CSM571 | 1.74" | 7/25" | Polyurethane, Buna N | 2.02" | 0.69" | 0.31" | 7/25" | 1190 lbs. | $269.73 | |
| D | CSM5131 | 2.07" | 0.51" | Polyurethane, Buna N | 2.58" | 0.69" | 0.31" | 7/25" | 1190 lbs. | $313.83 | |
| E | CSM10131 | 2.14" | 0.51" | Polyurethane, Buna N | 2 14/25" | 0.94" | 0.47" | 0.31" | 2590 lbs. | $342.44 |
