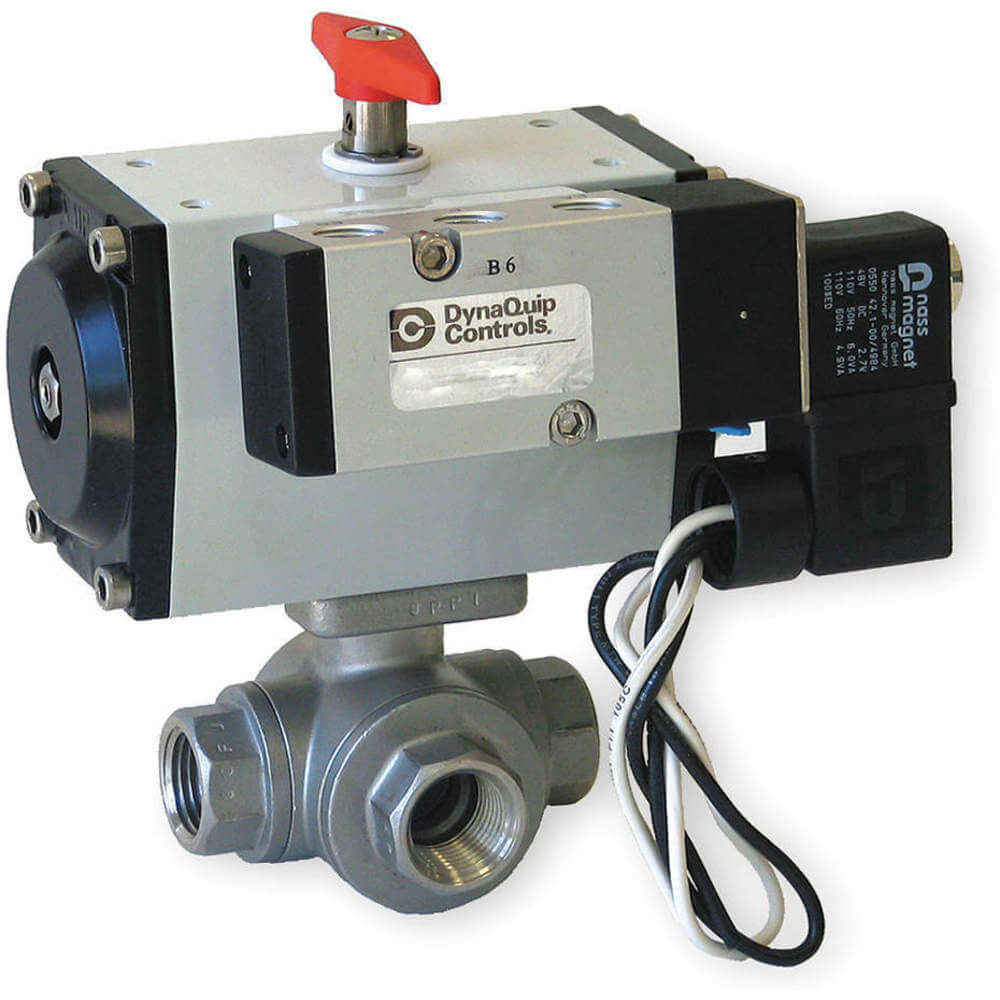

| Item | Pneumatic Actuated Ball Valve |
|---|---|
| Ball Material | Stainless Steel |
| Ball Valve Product Group | Actuated |
| Body Material | Stainless Steel |
| Body Style | Inline |
| Connection Type | FNPT |
| Grade | Grade 316 |
| Max. Inlet Pressure | 120 psi |
| Max. Pressure | 1500 psi CWP, 125 psi steam |
| Max. Steam Pressure | 125 psi |
| Mount | Direct |
|---|---|
| Number Of Pieces | 3 |
| Operation | Double Acting |
| Port | Full |
| Required Pressure | 80 psi |
| Seal Material | PTFE, RTFE |
| Seat Material | RTFE |
| Stem Grade | Grade 316 |
| Temp. Range | +14°F to +140°F |
| Height (cm) | 10.41 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 14.73 |
| HS Code | 8481809040 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 1.539 |
| Style | Model | Seal Material | Seat Material | Connection Type | Pipe Size | Operation | Max. Pressure | Number Of Pieces | Port | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PYSA3AJDA052A | FKM, PTFE | PTFE | FNPT x FNPT x FNPT | 1/2" | Double Acting | 1000 psi CWP, 125 psi | 1 | Diverter L Style | $1,429.16 | |
| A | PYSA4AJDA052A | FKM, PTFE | PTFE | FNPT x FNPT x FNPT | 3/4" | Double Acting | 1000 psi CWP, 125 psi | 1 | Diverter L Style | $1,495.56 | |
| A | PYSA5AJDA075A | FKM, PTFE | PTFE | FNPT x FNPT x FNPT | 1" | Double Acting | 1000 psi CWP, 125 psi | 1 | Diverter L Style | $2,328.63 | |
| A | PYSA7AJDA092A | FKM, PTFE | PTFE | FNPT x FNPT x FNPT | 1 1/2" | Double Acting | 800 psi CWP, 125 psi | 1 | Diverter L Style | $3,156.62 | |
| A | PYSA8AJDA105A | FKM, PTFE | PTFE | FNPT x FNPT x FNPT | 2" | Double Acting | 800 psi CWP, 125 psi | 1 | Diverter L Style | $4,764.54 | |
| A | PYSA3AJSR06412A | FKM, PTFE | RPTFE | FNPT x FNPT x FNPT | 1/2" | Spring Return Fail Closed | 1000 psi CWP, 125 psi | 1 | Diverter L Style | $1,710.17 | |
| A | PYSA4AJSR07510A | FKM, PTFE | PTFE | FNPT x FNPT x FNPT | 3/4" | Spring Return Fail Closed | 1000 psi CWP, 125 psi | 1 | Diverter L Style | $1,672.11 |
