| Item | Turning Toolholder |
|---|---|
| Ansi Code | Mcknr246E |
| Ansi Number | MCKNR24-6E |
| Clamp | CL-12 |
| Clamp Screw | XNS-510 |
| Cutting Application | Turning |
| Cutting Direction | Right Hand |
| Cutting Height | 1 1/2" |
| Features | Hardened To 44 Hrc |
| Head Length | 1 1/2" |
| Inscribed Circle | 3/4" |
| Insert Angle | 80° , Diamond |
| Insert Clearance Angle | 0° |
| Insert Holding Type | Clamp And Lock Pin |
| Insert Inscribed Circle | 3/4" |
| Insert Screw | NL-68 |
| Insert Size | 643 |
| Insert Style | RP_CNM |
|---|---|
| Iso Number | MCKNR246E |
| Lead Angle | 15° |
| Mounting Style | Multi Lock |
| Overall Length | 7" |
| Rake | Negative |
| Rake Angle | 7° |
| Shank | Square |
| Shank Height | 1 1/2" |
| Shank Material | Alloy Steel |
| Shank Width | 1 1/2" |
| Shim | ICSN-633 |
| Side Cutting Edge Angle | 15° |
| Style | MCKNR24-6E |
| Toolholder Style | MCKN |
| Type | CNMG Holder |
| Width Offset | 2" |
| Height (cm) | 5.72 |
|---|---|
| Length (cm) | 17.78 |
| Width (cm) | 5.72 |
| HS Code | 7318190000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.115 |
| Style | Model | Cutting Direction | Overall Length | Insert Holding Type | Type | Shank Height | Shank Width | Rake Angle | Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

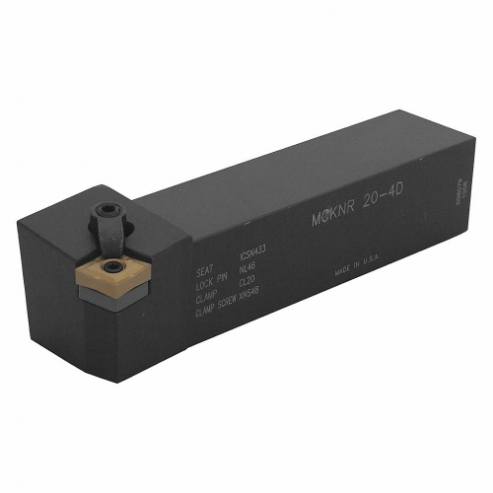

| A | MCKNR12-4B | Right Hand | 4 1/2" | Clamp And Lock Pin | CNMG Holder | 3/4" | 3/4" | 7° | MCKNR12-4B | $137.29 | |
| B | MCKNR16-4C | Right Hand | 5" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCKNR16-4C | $152.14 | |
| B | MCKNR16-4D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1" | 1" | 7° | MCKNR16-4D | $152.14 | |
| B | MCKNL16-4D | Left Hand | 6" | - | CNMG Holder | 1" | 1" | 7° | MCKNL16-4D | $152.14 | |
| B | MCKNR20-4D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNR20-4D | $160.81 | |
| B | MCKNL20-4D | Left Hand | 6" | - | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNL20-4D | $167.11 | |
| B | MCKNR20-5D | Right Hand | 6" | Clamp And Lock Pin | CNMG Holder | 1 1/4" | 1 1/4" | 7° | MCKNR20-5D | $200.56 |
