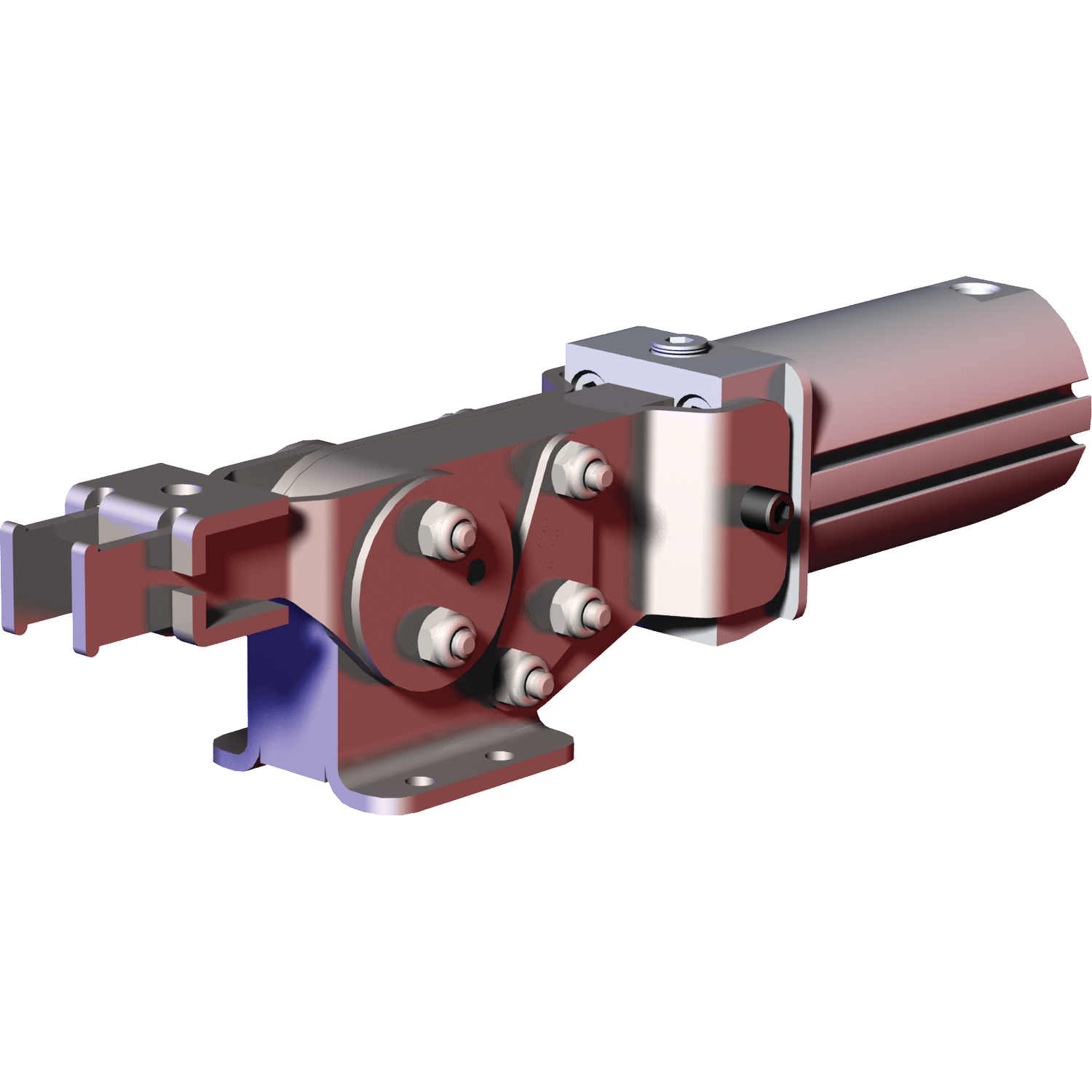

DESTACO 8021 Pneumatic Hold Down Toggle Clamp, Steel, 390 lb Capacity

Destaco 8021 pneumatic toggle clamp is ideal for quick clamping applications in the automotive and food & packaging industries. This pneumatic clamp is equipped with an air actuated cylinder featuring an input port for connecting to the compressed air source and then utilising the compressed air to apply clamping pressure for holding the workpiece in place. Destaco 8021 pneumatic clamp has over centre toggle action linkage combined with a pneumatic cylinder to provide a device that is easily adaptable for a wide variety of applications. It is completely self contained & requires just a single pressure source. The clamp is sensor ready for both round and T slot style sensors, and features an in built flow restriction system. This eliminates the need for external flow controls, thus ensuring smooth clamping. It features an enclosed design for MIG & spot welding in dirty environments and has a non pivoting cylinder that can easily be hard-piped into fixtures. This toggle clamp is actuated by a double acting pneumatic cylinder delivering a maximum clamping pressure of 145 psig at temperatures ranging between -14 & 194 degrees Fahrenheit, and is integrated with hardened bushings & pins at all pivot points for long service life. The clamp is capable of withstanding loads up to 450 lb and comes integrated with U bar clamping arms for keeping workpieces safely in place. Destaco 8021 pneumatic toggle clamp features a magnetic piston ring for accurate position sensing and an ergonomic handle grip for utmost operator comfort & reducing hand fatigue.

Destaco 8021 pneumatic toggle clamp is ideal for applications such as welding, grinding, assembling and light machining in the automotive and food & packaging industries.

• Destaco 8021 pneumatic toggle clamp features dual mounting surfaces that offer maximum flexibility.
• This pneumatic clamp is sensor ready to accommodate T slot or round sensors.
• It has a built in flow restriction system that eliminates the need for external flow controls.
• Destaco 8021 pneumatic hold down clamp has a magnetic piston ring that allows precise position sensing.
• The unit is self contained & requires only a pressure source for safety.
• This pneumatic toggle clamp features a large opening angle that ensures easy component removal.

• Destaco 810169: These extension cordsets and coupling nuts are designed to be mounted on cylinders having 4 mm round grooves. The round reed switches with quick disconnect cables are operated by a magnetic ring fixed on the clamp's cylinder.

• Destaco 8021 pull action latch clamp meets international standards like ISO 14001:2015 & ISO 9001:2015 to ensure environmental health, utmost user safety and efficient performance of the clamp.

• Destaco 8021 pneumatic hold down toggle clamp can be mounted using two bolts in the side mounting holes, to secure the mounting bracket when top mounting.
