Destaco 528-F | Vertical Hold Down Clamp, Front Mount Base, Solid Bar, 1000 lb

Specifications

Item	Horizontal Hold Down Clamp
Bar Width (in.)	0.87"
Base Length	1.77"
Base Width	2 1/4"
Clamp Arm Length	3 2/5"
Clamp Arm Style	Solid Bar
Clamp Bar Opening	180°
Handle	Vertical
Handle Opening	177°

Handle Style	Straight
Handle Type	Vertical
Height Under Clamp Arm	2.06"
Material	Steel
Mounting Base	Front Mount Flange
Overall Height	8 16/25"
Overall Length	6.91"
Toggle Lock Plus	No

Product Details

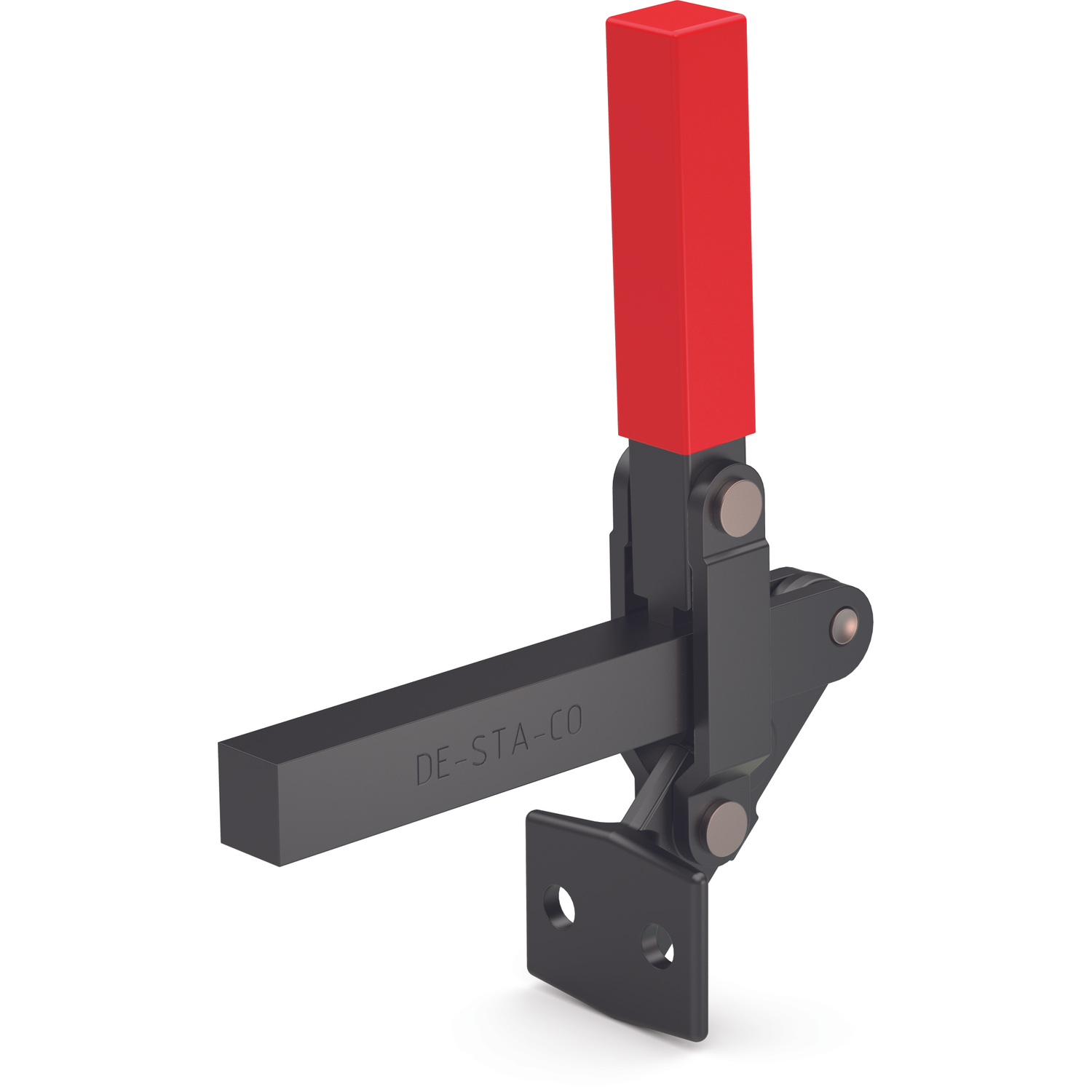

Vertical hold down clampspush the clamping arm or the attached spindle assembly against the workpieces by using a straight handle that is positioned perpendicular to the base (when in locked position). These manual clamps are ideal for applications requiring repeated clamping / detaching of the workpieces throughout the operations. Destaco 528 Seriesvertical hold down clamps are used to hold workpieces against flat surfaces for checking fixtures, light machining, assembly & welding operations. They feature a modifiable, solid clamping bar to accommodate diverse application requirements. Destaco 528-F hold down clamp is equipped with a front mount flange base for installation on vertical surfaces at the front side of the clamp. This clamp has steel construction with hardened steel bushings and pivot points for heavy-duty operation and minimising damage / wear due to abrasive conditions. Raptor Supplies also offers these 528 Series clamps in a variant with flange base for installation of the clamp on horizontal surfaces.

Shipping Information

Height (cm)	21.95
Length (cm)	17.55
Width (cm)	5.72

Country Of Origin	US
Weight (kg)	1.125

Uses

This Destaco 528-F vertical hold down clamp is used for welding, checking fixtures, light machining, assembly & testing and medium to heavy clamping applications in the aerospace, consumer goods, transportation, automotive and food & packaging industries.

Features

Destaco 528-F vertical hold down clamp is equipped with a front mount flange base for installation on the front vertical surface of the clamp.
It has heavy duty steel construction for strength, durability and provides a maximum holding capacity of 1000 lb.
This clamp has solid clamping bar that can be modified to handle varying application requirements.
It comes with a straight vertical handle that rotates 177 degrees to open the clamp bar up to 180 degrees.
The handle is brightly coloured (red) for greater visibility.
The clamp has 3.4 inch long clamp arm and 2.06 inch height under the clamp arm.
This clamp has a height of 2.06 inches and clamp arm length of 3.4 inches.

Standards and Approvals

Destaco 528-F vertical hold down clamp is equipped with a front mount flange base for installation on the front vertical surface of the clamp.
It has heavy duty steel construction for strength, durability and provides a maximum holding capacity of 1000 lb.
This clamp has solid clamping bar that can be modified to handle varying application requirements.
It comes with a straight vertical handle that rotates 177 degrees to open the clamp bar up to 180 degrees.
The handle is brightly coloured (red) for greater visibility.
The clamp has 3.4 inch long clamp arm and 2.06 inch height under the clamp arm.
This clamp has a height of 2.06 inches and clamp arm length of 3.4 inches.

Documentation

Frequently Asked Questions

What other variants of Destaco 528-F clamp are available on Raptor Supplies?

Raptor Supplies offers similar manual clamp variants having a flange base (528) for installation on horizontal surface of the clamp.

How do vertical hold down clamps work?

Vertical hold down clamps are manually operated using vertical handles / levers to move the clamping arms or the attached spindles against the workpieces and prevent them from moving mid-operation for secure clamping.

What is the difference between a vertical & horizontal toggle clamp?

The difference between vertical & horizontal toggle clamps can be easily noticed by the locking positioning of their clamp handles. Vertical clamp handles are vertically or perpendicularly positioned to the base in locked position, whereas the horizontal toggle clamps are positioned horizontally or parallel to the base.

What does holding capacity mean in terms of clamps?

The term "holding capacity" or the holding force indicates the capability of the clamp to hold down the equipment, workpiece or sheet metal on the assembly line or during other manufacturing processes.

How is clamping force different from the holding force / capacity?

Clamping force or exerting force denotes the actual force exerted by the clamp onto the workpieces for holding them. The measure of holding force or capacity indicates the ideal strength of the clamp measured during the clamp manufacturing process. The clamping force is generally lesser than the holding capacity, due to several factors like the position of spindles in the clamping bars and the opposing force applied on the clamp.

Does the red colour of the handle signify anything on Destaco clamps?

The red coloured handles alert the user about the location of the operating handle and where he should grab it.

Are Destaco clamps rust resistant?

Yes, all of the Destaco carbon steel clamps are zinc plated to resist & reduce wear & tear due to harsh industrial environments. Destaco also offers stainless steel clamps for applications requiring clamping in outdoor conditions.

Are Destaco clamps load-rated for hoisting and / or lifting applications?

Destaco clamps are not designed for hoisting or lifting applications and can only handle clamping requirements up to a certain maximum weight on their clamping arms.

Does Destaco deliver customised or special versions of their clamps according to customer requirements / applications?

Destaco can supply customised versions of clamps upon request. The customisations can range from a different colour of handles to the removal of the Destaco logo from the clamps.
