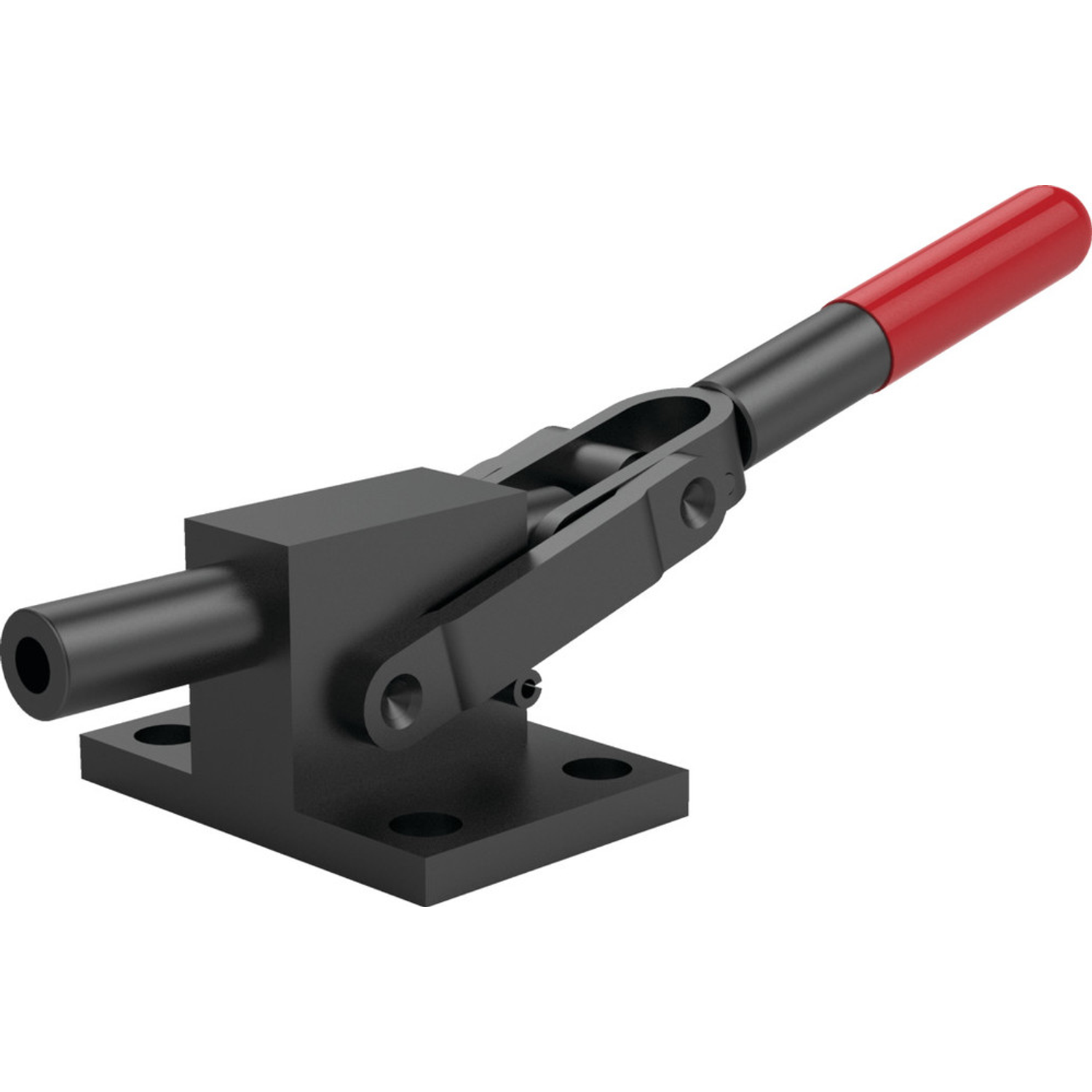

DESTACO 5131 Straight Line Action Clamp, 2500 lb Holding Capacity

Destaco 5131 straight line action clamp is used to apply clamping force sideways rather than from the top, to secure the workpiece in limited space applications. This straight line clamp can accommodate loads up to 2500 lb. The robust construction ensures extended life and durability. This Destaco straight line clamp features a compact design to reduce space requirement for clamp installation & operation, thereby increasing ease of use in confined spaces for both single part & mass production. The carbon steel body with black oxide finish and hardened plungers offers strength & durability, as well as prevents wear & tear caused due to abrasive environments. This straight line clamp features balanced construction for rigid holding and long life. It has through holes on the flanged base that allow the unit to be mounted to a worktable or flat surface. This clamp has an overall length of 7.37 inches, a maximum holding capacity of 2500 lb and a handle opening angle of 113 degrees. It is integrated with a lever handle that engages the plunger, which presses against a workpiece to hold it in place. This easy to operate push / pull handle easily moves the plunger of the clamp in and out along its axis. The ergonomic handle is slanted backwards to provide an adequate grip. Destaco 5131 straight line action clamp can be locked in two positions, allowing the operator to use the unit as either a push or pull clamp.

This Destaco 5131 straight line action clamp combines a variety of features, making it adaptable for applications such as assembly, welding & heavy duty production in the aerospace, automotive and food & packaging industries.

• Destaco 5131 straight line action clamp features a low profile design to reduce space requirement for clamp installation & operation.
• It incorporates a reverse acting mechanism (as the handle moves back and down to horizontal lock position, the plunger moves forward) to keep the handle out of the work zone.
• This unit features black oxide finish for structural rigidity.
• It is integrated with hardened plungers, steel pivot pins & bushings for extended life and durability.
• Destaco 5131 straight line action clamp comes with a handle that has an opening angle of 113 degrees and is slanted backwards to provide the operator with an adequate grip.
• It can be locked in two positions, allowing the operator to use it as either a push or pull clamp.

• Destaco 461203: These hex head spindle assemblies feature threaded bodies that aid in the quick & easy installation of Destaco 5131 straight line action clamp on flat surfaces / workbenches.
  These spindle assemblies can also be used to replace worn-out / damaged spindles to extend the service life of your clamps and reduce the risk of marring when rubber stoppers begin to wear away.

• Destaco 5131 straight line action clamp conforms to international standards like ISO 14001:2015 & ISO 9001:2015 for ensuring environmental health & safety, and efficient performance of the clamps.

• Destaco 5131 straight line action clamp features through holes on the flanged base that allows quick and secure mounting onto flat surfaces / workbenches using simple screwing.
• The unit can be removed and installed at a different location by simply unscrewing using a screwdriver.
