| Item | Vertical Hold Down Clamp |
|---|---|
| Bar Width (in.) | 0.51" |
| Clamp Arm Length | 3.13" |
| Clamp Arm Style | Solid Bar |
| Clamp Bar Opening | 89° |
| Handle | Vertical |
| Handle Opening | 159° |
| Handle Style | Straight |
| Height Under Clamp Arm | 2.14" |
|---|---|
| Holding Capacity | 700 lbs. |
| Material | Forged Steel |
| Mounting Base | Straight |
| Overall Height | 6.54" |
| Overall Length | 4.13" |
| Type | Vertical |

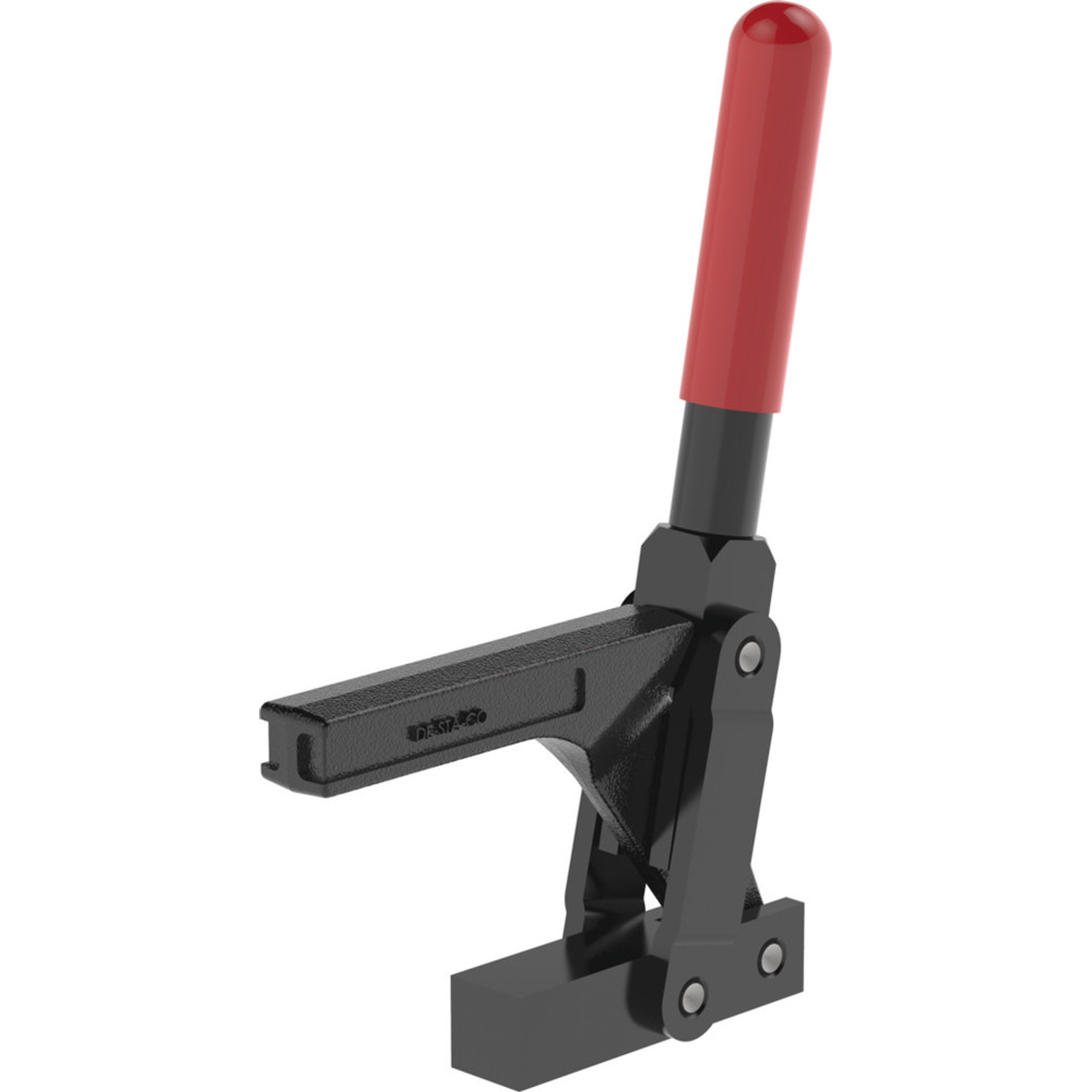

Destaco 5105-B vertical hold down toggle clamp is used in the aerospace, automotive and food & packaging industries for drilling, testing, gluing, woodworking, light machining and fixture checking. This vertical handle toggle clamp provides a stationary alternative to removable C clamps or spring clamps while securing materials to the work surface. It features a fixed design for securing & loosening materials without moving the clamp and has a straight base with mounting holes for easy & secure installation. Destaco 5105-B vertical hold down toggle clamp has a solid bar configured clamping arm for hassle free adjustments, and provides excellent handle clearance for maximum clamping. This vertical handle toggle clamp features forged alloy steel construction with black oxide finish for structural rigidity and corrosion resistance on exposed surfaces. Destaco 5105-B vertical hold down clamp comes equipped with ergonomic handle grips for added safety and precisely machined components having hardened & ground pivot pins & bushings for long service life. Destaco 5105-B vertical hold down clamp provides opening of clamp bar & handle up to 89 degrees & 159 degrees, respectively, and is capable of holding loads up to 700 lb.
| Height (cm) | 16.61 |
|---|---|
| Length (cm) | 10.49 |
| Width (cm) | 3.76 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.495 |
Destaco 5105-B vertical hold down toggle clamp is used for gluing, testing, drilling, woodworking, fixture checking and light machining in the aerospace, automotive and food & packaging industries.
Destaco vertical hold down clamps are specially designed for holding the workpiece stationary against a flat surface / workbench for various industrial applications like woodworking & metalworking.
After clamping, the clamping force can be adjusted by loosening / tightening the spindle nut.
The difference lies in the positioning of the clamp handle when the clamp is in the locked position. A vertical clamp handle is positioned vertically (perpendicular to the base) when in locked position, while in the case of a horizontal toggle clamp, it is positioned horizontally (parallel to the base).
The holding force or the holding capacity signifies the clamp's capability to hold down equipment or sheet metal on the assembly line or during similar manufacturing processes.
A coupling grease like Mobil XTC should be used when dealing with Destaco mechanical clamps, while the Magnalube G grease is great for use with pneumatic cylinder seals.
There is no such significance of the colour of the clamp's handle, as it only represents a recognisable area. This helps operators in finding the handle quickly & easily.
Yes, Destaco also supplies inductive sensors designed in accordance with IP65 standards to ensure protection from powerful hydraulic jets, dust & heavy rain.
Yes, Raptor Supplies provides Destaco spindles for hold down clamps, to replace worn out units and protect them from damage caused by abrasion / twisting / flexing.
Destaco vertical handle toggle clamps are available in steel, stainless steel and forged alloy steel variants.
| Style | Model | Clamp Bar Opening | Handle Opening | Bar Width (in.) | Base Length | Type | Handle | Handle Style | Clamp Arm Style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 5110-BR | 74° | 138° | 0.87" | - | Vertical | Vertical | Straight | Solid Bar | $158.69 | |
| B | 5105-BR | 89° | 159° | 0.51" | - | Vertical | Vertical | Straight | Solid Bar | $130.17 | |
| C | 5110-B | 74° | 138° | 0.87" | - | Vertical | Vertical | Straight | Solid Bar | $112.40 | |
| A | 5110-R | 74° | 138° | 0.87" | 2 1/2" | Vertical | Vertical | Straight | Solid Bar | $142.84 | |
| D | 5105-R | 89° | 159° | 0.51" | 1.62" | Vertical | Vertical | Straight | Solid Bar | $131.17 | |
| D | 5105 | 89° | 159° | 0.51" | 1.62" | Vertical | Vertical | Straight | Solid Bar | $78.33 | |
| D | 5110 | 74° | 138° | 0.87" | 2 1/2" | Vertical | Vertical | Straight | Solid Bar | $101.17 |
