| Item | Vertical Hold Down Clamp |
|---|---|
| Accommodates Workpiece Variation | No |
| Arm Length | 3 12/25" |
| Arm Style | Solid Bar |
| Base Mounting Style | Flange |
| Body Material | Steel |
| Clamp Arm Length | 5.06" |
| Clamp Arm Opening Angle | 99° |
| Clamp Bar Opening | 99° |
| Cover Material | Plastic |
| Fastener Thread Size | 1/4" |
| Handle Material | Steel With Plastic Cover |
| Handle Orientation | Vertical |
| Height Under Arm | 1 1/4" |
|---|---|
| Height Under Clamp Arm | 1.26" |
| Holding Capacity | 500 lbs. |
| Includes Locking Handle | No |
| Material | Steel |
| Maximum Holding Capacity | 500 lbf. |
| Mounting Base | Flange |
| Mounting Holes Center To Center (long Side) | 1 1/4" |
| Mounting Holes Center To Center (short Side) | 3/4" |
| Overall Depth | 6.93" |
| Overall Length | 4.86" |
| Overall Width | 1.73" |
| Toggle Lock Plus | No |
| Height (cm) | 12.78 |
|---|---|
| Length (cm) | 12.34 |
| Width (cm) | 4.39 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.396 |
| Style | Model | Base Mounting Style | Includes Locking Handle | Handle Orientation | Maximum Holding Capacity | Arm Style | Clamp Arm Opening Angle | Clamp Bar Opening | Height Under Arm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 210-SB | Bar | No | Vertical | 750 lbf. | Solid Bar | 103° | 103° | 2 1/5" | $71.41 | |

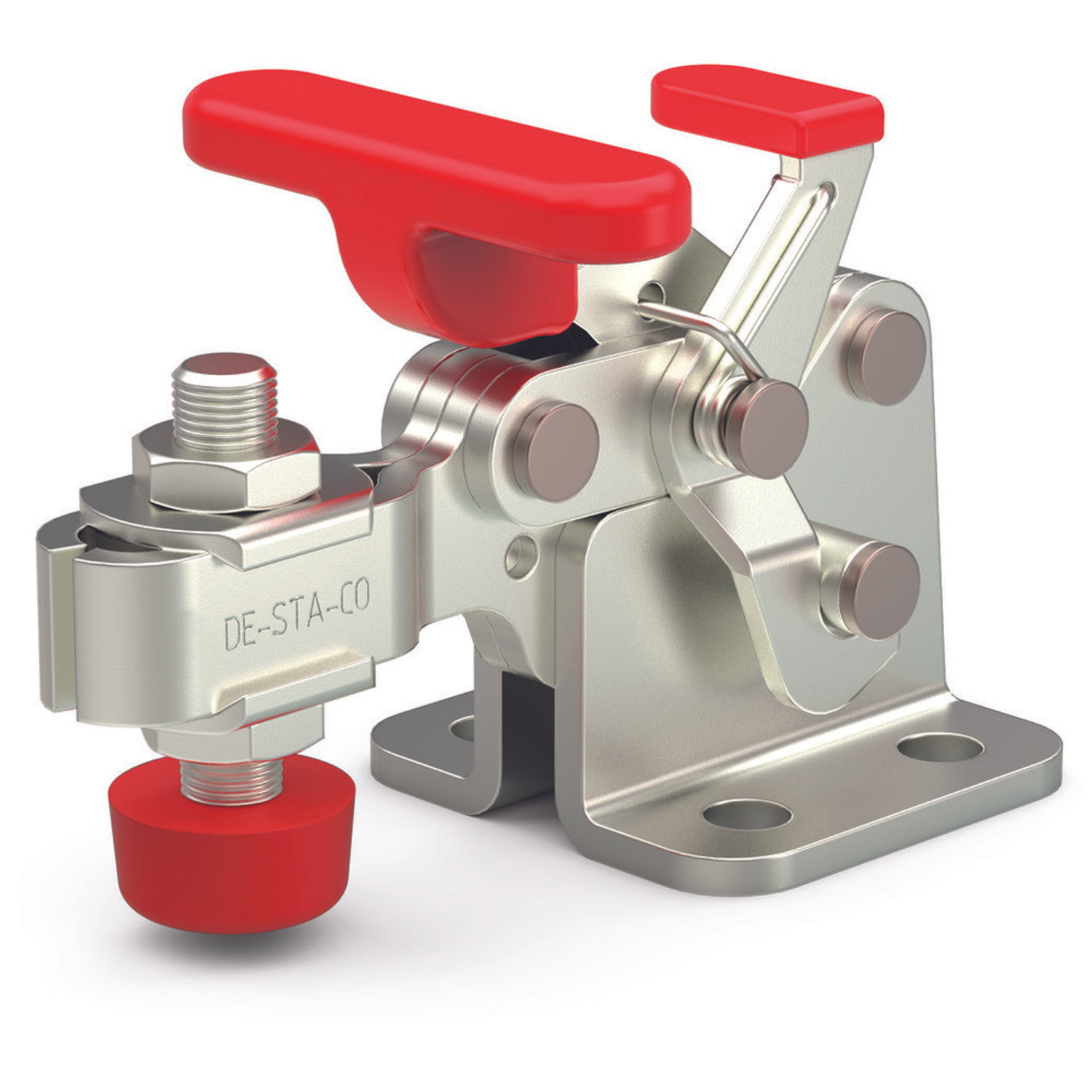

| B | 307-URSS | Flange | Yes | Horizontal | 350 lbf. | U Bar | 92° | 92° | 0.89" | $115.40 | |

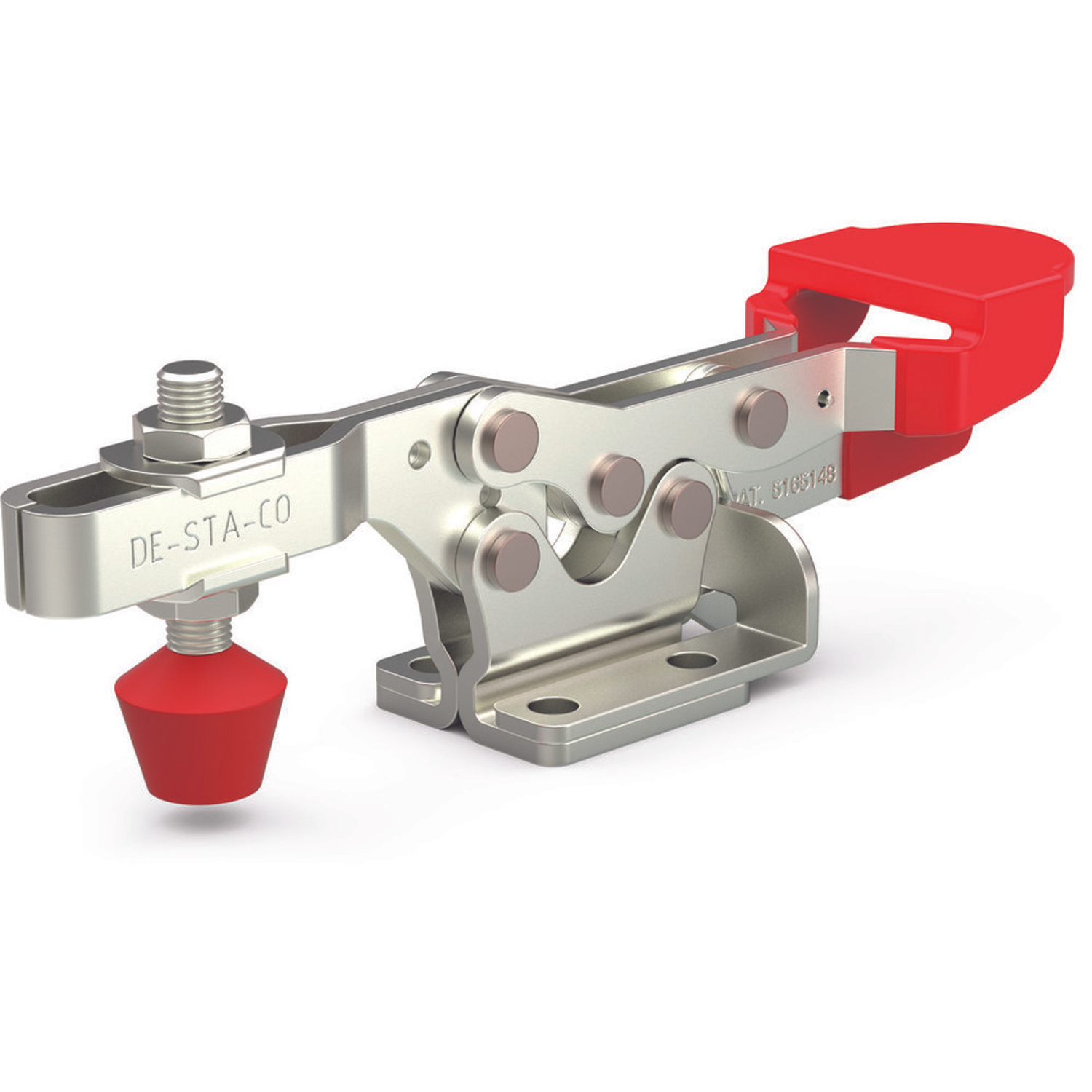

| C | 225-URSS | Flange | Yes | Horizontal | 500 lbf. | U Bar | 92° | 92° | 1.29" | $107.64 | |
| D | 2002-URSS | Flange | Yes | Vertical | 600 lbf. | U Bar | 75° | 75° | 0.95" | $93.74 | |
| E | 2007-URSS | Flange | Yes | Vertical | 1000 lbf. | U Bar | 76° | 76° | 1 1/4" | $118.33 | |

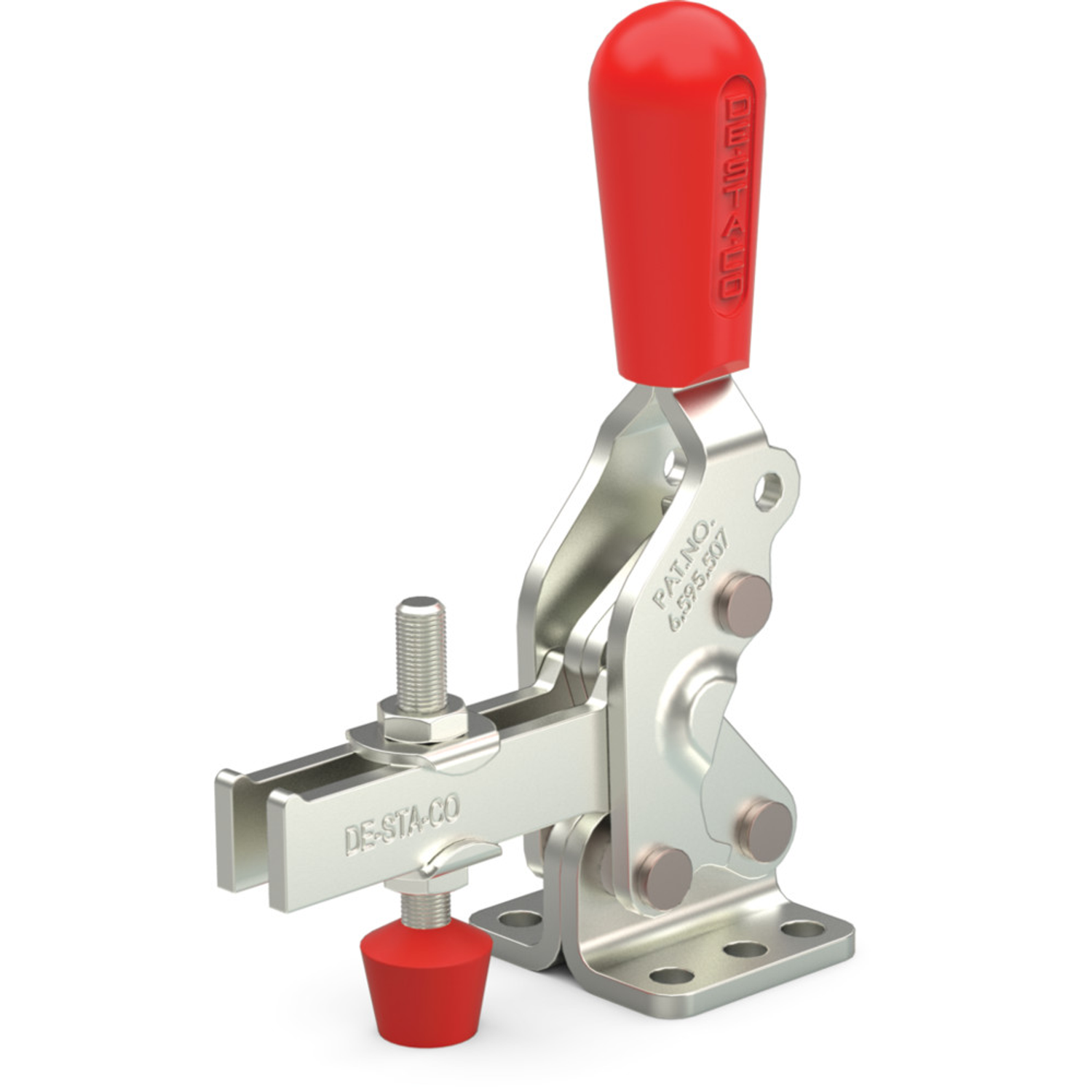

| F | 2002-USS | Flange | No | Vertical | 600 lbf. | U Bar | 75° | 75° | 0.95" | $71.41 | |
| G | 2007-USS | Flange | No | Vertical | 1000 lbf. | U Bar | 76° | 76° | 1 1/4" | $89.26 |
