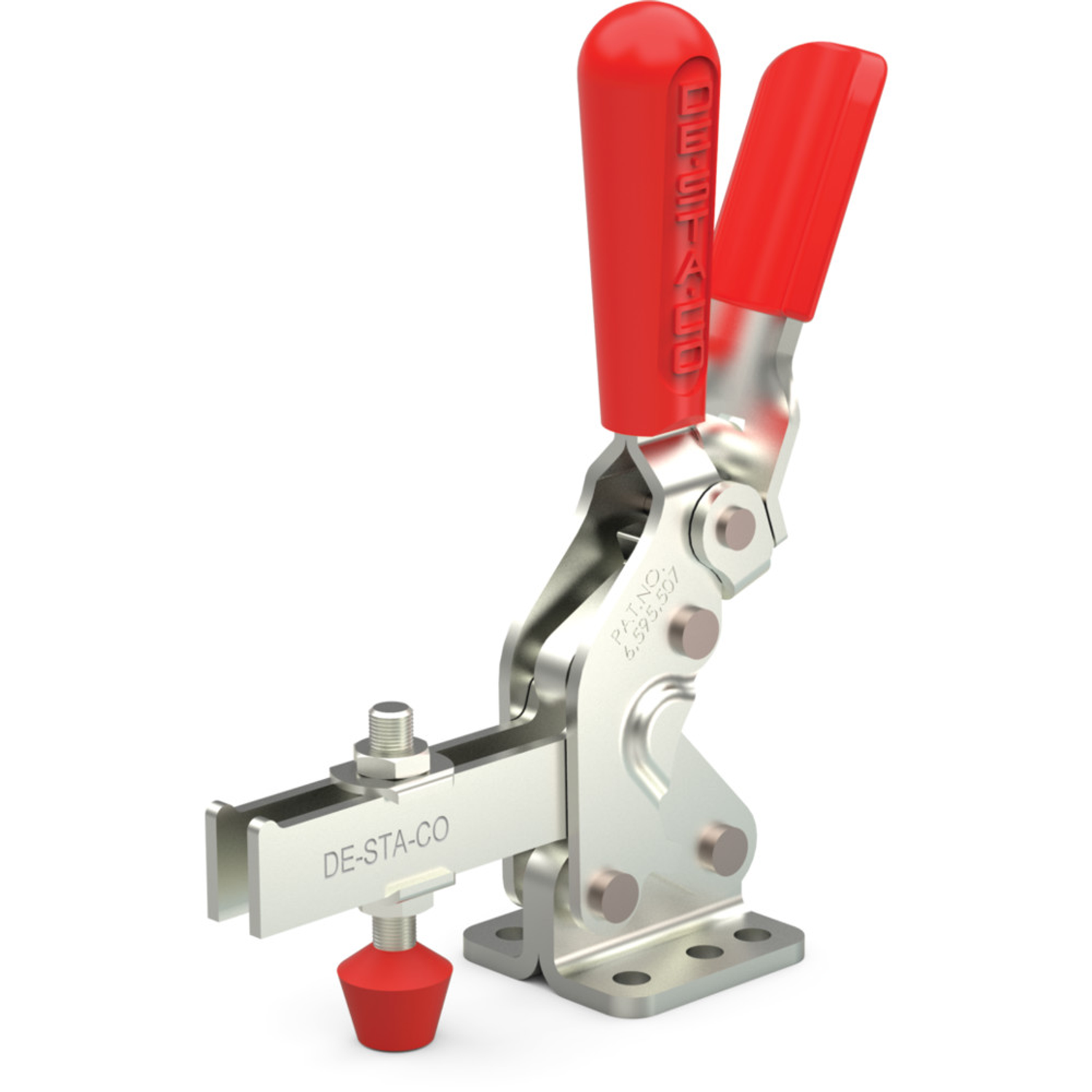

| Item | Vertical Hold Down Clamp |
|---|---|
| Accommodates Workpiece Variation | No |
| Arm Length | 2 22/25" |
| Arm Style | U Bar |
| Base Mounting Style | Flange |
| Body Material | Stainless Steel |
| Clamp Arm Length | 2 22/25" |
| Clamp Arm Opening Angle | 76° |
| Clamp Arm Style | U Bar |
| Clamp Bar Opening | 76° |
| Handle Orientation | Vertical |
| Height Under Arm | 1 1/4" |
| Height Under Clamp Arm | 1 1/4" |
| Holding Capacity | 1000 lbs. |
|---|---|
| Includes Locking Handle | Yes |
| Material | Stainless Steel |
| Maximum Holding Capacity | 1000 lbf. |
| Mounting Base | Flange |
| Mounting Holes Center To Center (long Side) | 1 1/4" |
| Mounting Holes Center To Center (short Side) | 1 1/4" |
| Overall Depth | 7.94" |
| Overall Length | 6 3/5" |
| Overall Width | 1.94" |
| Tip Material | Stainless Steel |
| Toggle Lock Plus | Yes |
| Height (cm) | 18.21 |
|---|---|
| Length (cm) | 16.76 |
| Width (cm) | 4.93 |
| Country Of Origin | TH |
|---|---|
| Weight (kg) | 0.54 |
| Style | Model | Base Mounting Style | Includes Locking Handle | Handle Orientation | Maximum Holding Capacity | Arm Style | Clamp Arm Opening Angle | Clamp Bar Opening | Height Under Arm | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 210-SB | Bar | No | Vertical | 750 lbf. | Solid Bar | 103° | 103° | 2 1/5" | $71.41 | |
| B | 307-URSS | Flange | Yes | Horizontal | 350 lbf. | U Bar | 92° | 92° | 0.89" | $115.40 | |
| C | 225-URSS | Flange | Yes | Horizontal | 500 lbf. | U Bar | 92° | 92° | 1.29" | $107.64 | |
| D | 2002-URSS | Flange | Yes | Vertical | 600 lbf. | U Bar | 75° | 75° | 0.95" | $93.74 | |
| E | 2002-USS | Flange | No | Vertical | 600 lbf. | U Bar | 75° | 75° | 0.95" | $71.41 | |
| F | 2007-USS | Flange | No | Vertical | 1000 lbf. | U Bar | 76° | 76° | 1 1/4" | $89.26 | |
| G | 207-L | Flange | No | Vertical | 500 lbf. | Solid Bar | 99° | 99° | 1 1/4" | $37.57 |
