| Item | Horizontal Hold Down Clamp |
|---|---|
| Accommodates Workpiece Variation | No |
| Arm Length | 0.95" |
| Arm Style | U BAR |
| Bar Width (in.) | 0.31" |
| Base Length | 0.94" |
| Base Mounting Style | Flange |
| Base Width | 0.94" |
| Body Material | Stainless Steel |
| Clamp Arm Length | 0.93" |
| Clamp Arm Opening Angle | 90° |
| Clamp Arm Style | High U Bar |
| Clamp Bar Opening | 90° |
| Fastener Thread Size | #8" |
| Handle Material | Stainless Steel With Plastic Cover |
| Handle Opening | 90° |
| Handle Orientation | Horizontal |
| Handle Style | Straight |
|---|---|
| Handle Type | Horizontal |
| Height Under Arm | 0.76" |
| Height Under Clamp Arm | 3/4" |
| Holding Capacity | 100 lbs. |
| Holding Capacity - Maximum | 100 lbf. |
| Includes Locking Handle | No |
| Material | Stainless Steel |
| Mounting Base | Flange |
| Mounting Holes Center To Center - Long Side | 0.63" |
| Mounting Holes Center To Center - Short Side | 0.63" |
| Overall Depth | 1.06" |
| Overall Height | 1.06" |
| Overall Length | 2.74" |
| Overall Width | 0.94" |
| Tip Material | Stainless Steel |
| Toggle Lock Plus | No |

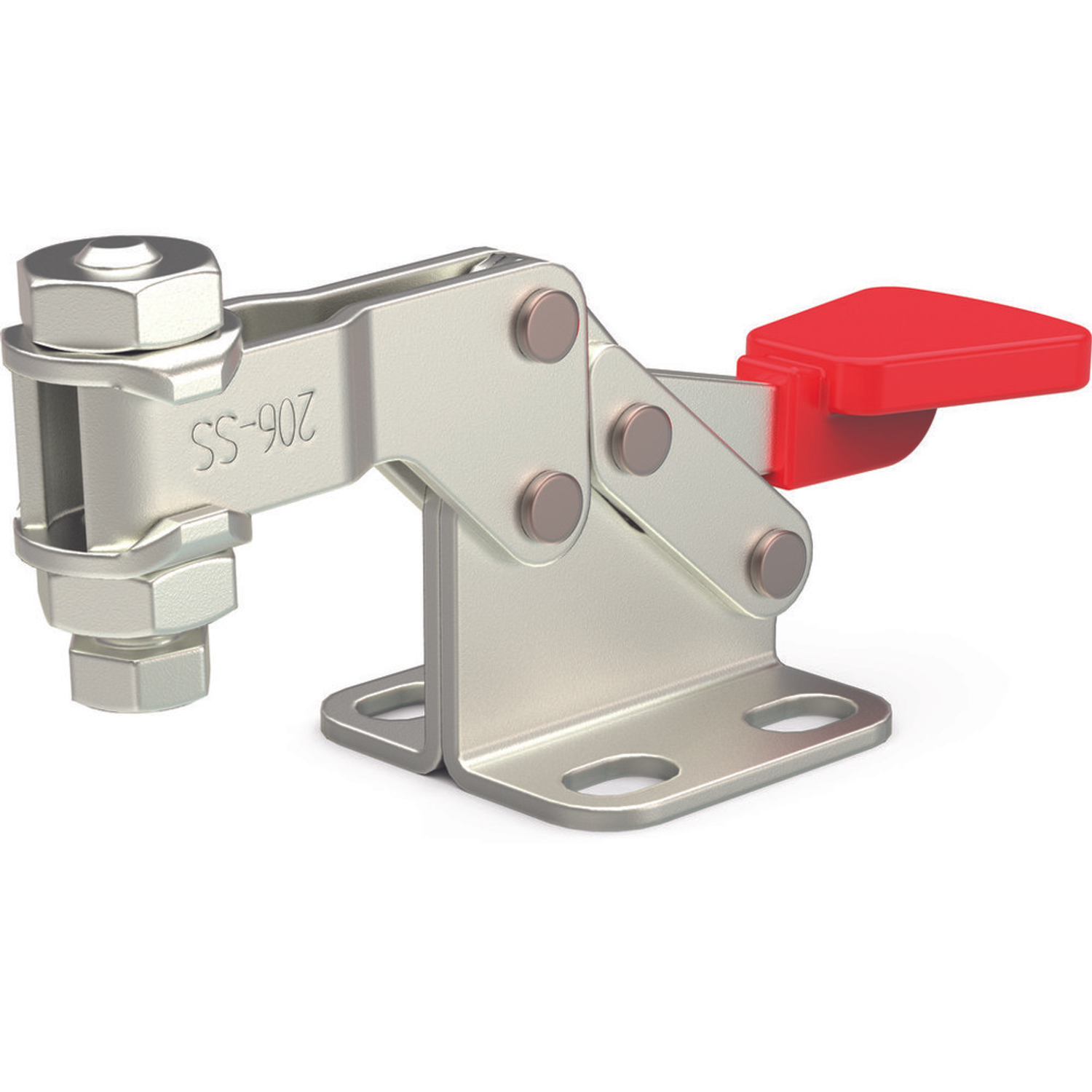

Destaco 206-HSS horizontal hold down clamp is designed for fastening materials / workpieces to a workbench in woodworking facilities. This hold down action clamp is a suitable choice for operations where there is a requirement to clamp / detach the workpiece repeatedly throughout the task. It features a U shaped bar that is designed for ensuring quick spindle adjustment (stainless steel hex head spindle). This feature enables the user to adjust the toggle clamp for various sized workpieces. This horizontal hold down clamp is designed for ensuring a long life cycle when using standard clamping arms and spindles. This clamp features a plastic grip handle to provide maximum leverage while clamping & ensure user comfort over prolonged usage. Destaco 206-HSS horizontal hold down toggle locking clamp features stainless steel construction that provides high impact strength & minimises damage / wear against harsh industrial environments. However, this toggle clamp is not recommended for welding & machining applications. Destaco 206 Series clamps are also offered in low U bar style design on Raptor Supplies.
| Height (cm) | 2.9 |
|---|---|
| Length (cm) | 2.69 |
| Width (cm) | 0.51 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 0.9 |
Yes, in addition to Destaco 206-HSS flanged base, high U bar variant, the brand also offers flanged base, low U bar style Destaco 206-SS horizontal clamps as well.
Destaco horizontal hold down action clamp feature a horizontally positioned handle and is suitable for holding the workpiece stationary against a flat surface / workbench for various industrial applications like woodworking & metalworking operations.
Some U bar style clamping arm clamps, such as Destaco 206-HSS manual hold down clamp, are manually operated using a handle / lever. This horizontal handle movement pushes the arm against the workpiece and prevents it from moving mid operation, thereby ensuring secure clamping.
The difference lies in the orientation of the clamp handle when it is in the locked position. A vertical clamp handle is vertically oriented (perpendicular to the base) when in locked position, while in the case of a horizontal toggle clamp, it is horizontally oriented (parallel to the base).
For ensuring smooth operation & durability of mechanical clamps, it is recommended to use a coupling grease like Mobil XTC.
The red coloured handles alert the user about the location of the operating handle and when he should grab it. The red colour has no additional advantage to the working of the clamps.
The holding capacity or the holding force depicts the clamp's capability to hold down the equipment or sheet metal on the assembly line or during any other manufacturing process.
Yes, carbon steel clamps from Destaco are zinc plated for withstanding & minimising wear against harsh industrial environments. For applications that require clamping in outdoor conditions, stainless steel clamps are also available.
