| Item | Vertical Hold Down Clamp |
|---|---|
| Accommodates Workpiece Variation | No |
| Arm Length | 3.51" |
| Arm Style | Solid Bar |
| Bar Width (in.) | 1.13" |
| Base Length | 2.53" |
| Base Mounting Style | Flange |
| Body Material | Steel |
| Clamp Arm Length | 3.51" |
| Clamp Arm Opening Angle | 78° |
| Clamp Arm Style | Solid Bar |
| Clamp Bar Opening | 78° |
| Fastener Thread Size | 5/16" |
| Handle | Vertical |
| Handle Material | Steel With Plastic Cover |
| Handle Opening | 66° |
| Handle Orientation | Vertical |
| Handle Style | Straight |
|---|---|
| Height Under Arm | 1.7" |
| Height Under Clamp Arm | 1.7" |
| Holding Capacity | 1400 lbs. |
| Includes Locking Handle | No |
| Material | Steel |
| Maximum Holding Capacity | 1400 lbf. |
| Mounting Base | Flange |
| Mounting Holes Center To Center - Long Side | 1.78" |
| Mounting Holes Center To Center - Short Side | 1.25" |
| Overall Depth | 9.08" |
| Overall Height | 9 2/25" |
| Overall Length | 6.09" |
| Overall Width | 2.62" |
| Toggle Lock Plus | No |
| Type | Vertical |

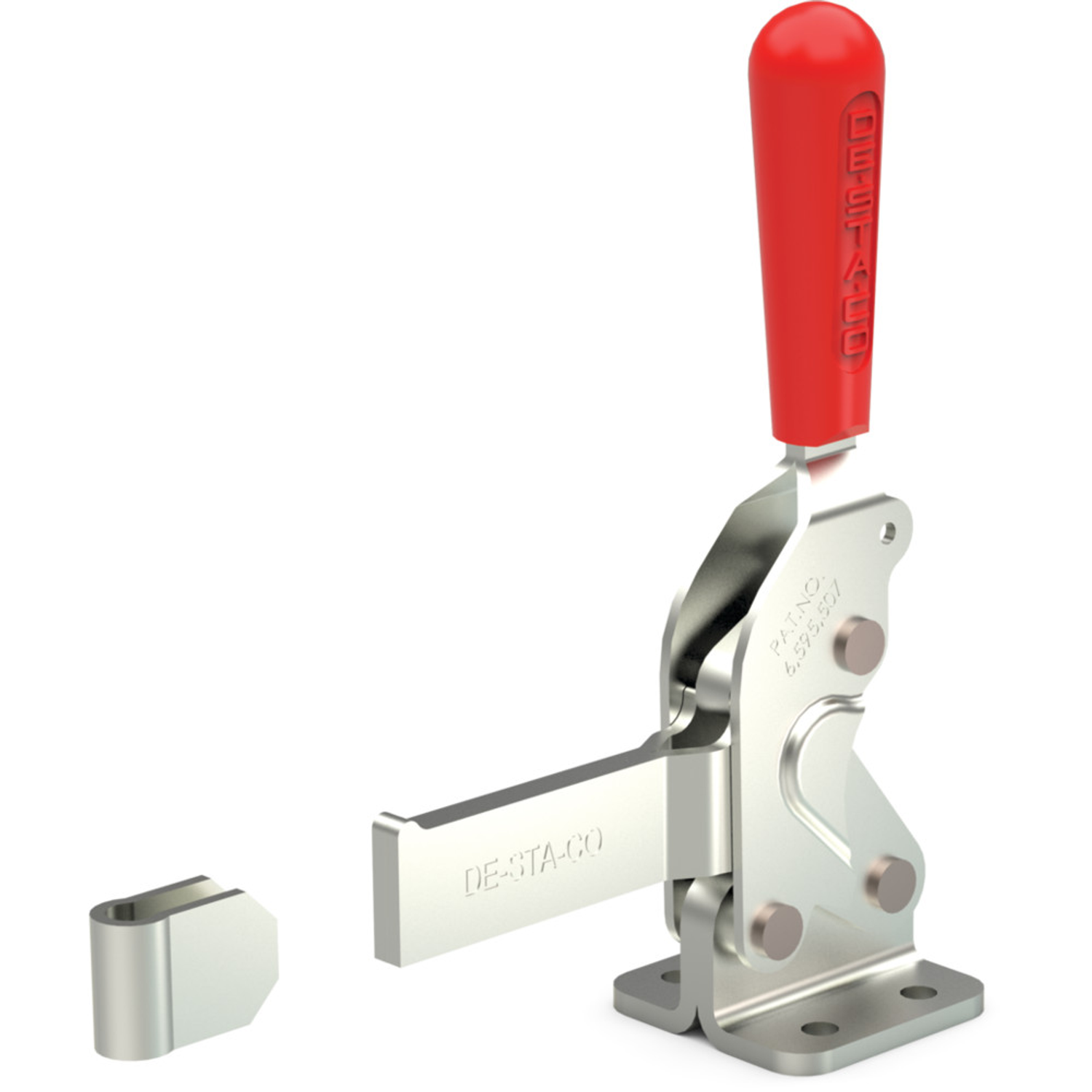

Destaco 2010-S vertical hold down clamp offers a stationary alternative to removable C clamps or spring clamps when securing materials to a work surface. This manual clamp holds workpieces in place using a lever handle that is pushed to the upright position when the clamp is engaged. The lever handle engages & releases the clamping head, to hold a workpiece on a worktable. It applies downward clamping force by increasing the applied load via toggle mechanisms and is ideal for fixture checking, assembling / testing, woodworking and light machining in the aerospace, automotive and food & packaging industries. This hold down toggle clamp features a low profile design for tight spaces and offers the flexibility to position the base, clamp arm & handle by welding them in the desired position. It comprises accurately machined components having hardened & ground pivot pins & bushings. This clamp can be used with a neoprene spindle for maximum holding force and ergonomic handle grip. Destaco 2010-S vertical hold down clamp features a flanged base with threaded holes for ease of installation. It is made of steel / stainless steel for resisting corrosion on exposed surfaces and is capable of withstanding loads up to 1400 lb. This clamp offers great hand clearance and can exhibit a maximum clamp bar opening angle of 78 degrees.
| Height (cm) | 17.78 |
|---|---|
| Length (cm) | 12.4 |
| Width (cm) | 5.18 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 1.17 |
Destaco 2010-S vertical hold down clamp is used for assembly, light duty clamping and woodworking applications in the aerospace, automotive and food & packaging industries.
Destaco vertical hold down clamps are designed for holding a workpiece stationary against a flat surface / workbench for various industrial applications like woodworking & metalworking.
The toggle clamp actuates against the workpiece and compresses or stretches the equipped linkages to keep the workpiece in a stationary position.
The holding force or holding capacity signifies the clamp's capability to hold down equipment or sheet metal on the assembly line or during manufacturing processes.
A coupling grease like Mobil XTC should be used when dealing with Destaco mechanical clamps, while the Magnalube G grease is great for use with pneumatic cylinder seals.
Yes, Raptor Supplies provides Destaco spindles for hold down clamps, to replace worn out units and protect from damage caused by abrasion / twisting / flexing.
The difference lies in the positioning of the clamp handle when the clamp is in the locked position. A vertical clamp handle is positioned vertically (perpendicular to the base) when in the locked position, while in the case of a horizontal toggle clamp, it is positioned horizontally (parallel to the base).
