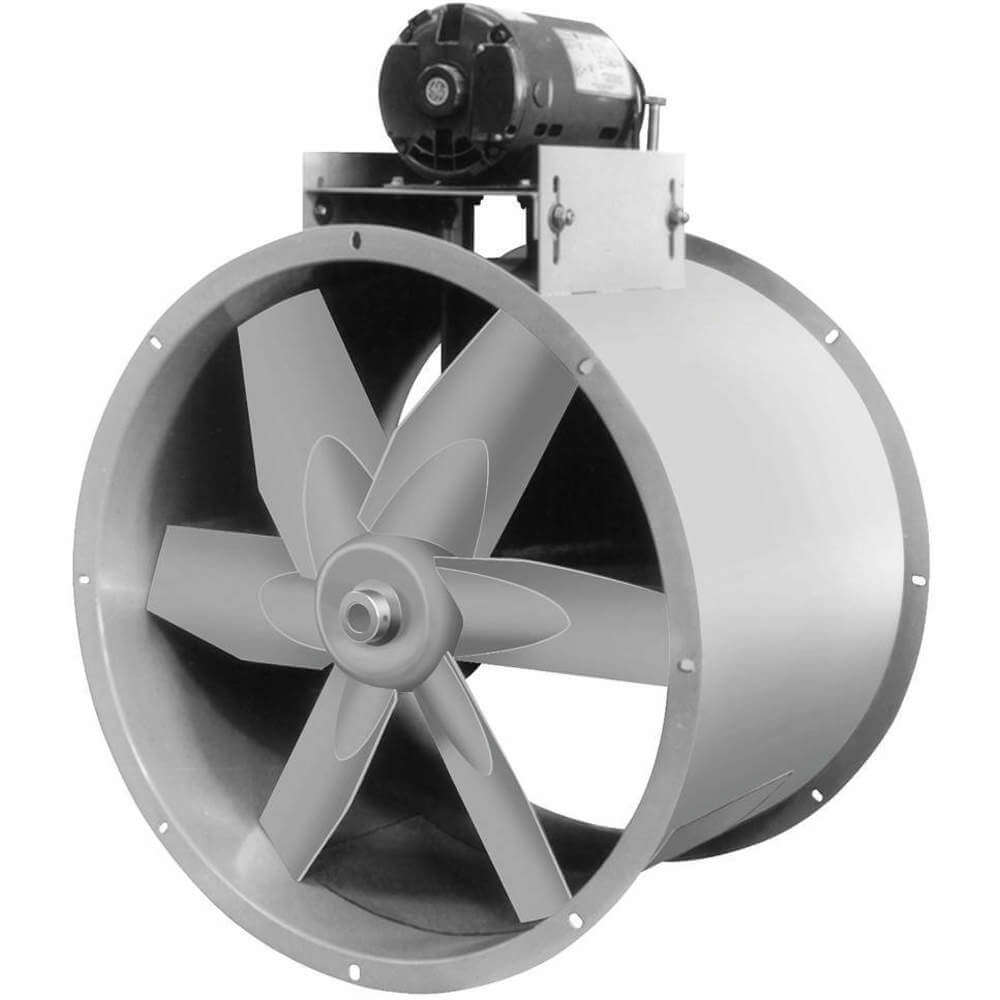

| Item | Tubeaxial Fan |
|---|---|
| Airflow @ 0.000 In Sp | 31260 CFM |
| Assembled/unassembled | Unassembled |
| Bearing Type | Ball |
| Blade Dia. | 48" |
| Blade Finish | Baked Enamel |
| Blade Material | Steel |
| Body Diameter | 48 5/8" |
| Bolt Circle Dia. | 0.312" |
| Bolt Circle Diameter | 50 1/4" |
| Brake Horsepower | 5 bhp |
| Cfm @ 0.000-in. Sp | 31260 CFM |
| Cfm @ 0.125-in. Sp | 30070 CFM |
| Cfm @ 0.250-in. Sp | 28745 CFM |
| Cfm @ 0.375-in. Sp | 25810 CFM |
| Cfm @ 0.500-in. Sp | 22170 CFM |
| Current | 20.5A |
| Dimension A | 51 3/4" |
| Dimension B | 28.312" |
| Dimension C | 48 1/2" |
| Dimension D | 36" |
| Dimension E | 0.312" |
| Drive Type | Belt Drive |
| Features | Corrosion Resistant Baked Enamel Coated Steel Blades, Dual Belt, Variable Pitch Drives |
| For Air Type | Emergency Smoke |
| Full Load Amps | 20.5A |
| Height | 64 3/4" |
| Housing Dia. W/mtg. Flange | 51 3/4" |
| Housing Dia. W/o Mtg. Flange | 48 1/2" |
| Housing Finish | Baked Enamel |
| Housing Material | Steel |
| Hz | 60 Hz |
| Includes | Belt Guard |
|---|---|
| Includes Motor & Drive Package | Yes |
| Max. Ambient Temp. | 200°F |
| Max. Bhp | 5 bhp |
| Max. Depth | 36" |
| Max. Motor Height | 12 1/2" |
| Maximum Fan Speed | 731 RPM |
| Maximum Inlet Air Temperature | 200°F |
| Maximum Noise Level @ 5 Feet | 64 sones |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hazardous Location Rating | Not Rated |
| Motor Horsepower | 5 hp |
| Motor Rpm | 1730 RPM |
| Motor Type | Capacitor Start/Run |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Nameplate Voltage | 230V AC |
| Number Of Blades | 5 |
| Number Of Speeds | 1 |
| Outlet Dia. | 48 5/8" |
| Overall Diameter | 51 3/4" |
| Overall Height | 64 3/4" |
| Overall Length | 36" |
| Phase | 1 |
| Propeller Shaft Diameter | 1 1/2" |
| Resistance Properties | Corrosion Resistant |
| Shaft Dia. | 1.437" |
| Smoke Control Maximum Temperature | 1000°F For 15 Min, 500°F For 4 Hrs. |
| Speed | 731 RPM |
| Width | 51 3/4" |
| Standards | AMCA, CULUS |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
| HS Code | 8414510010 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 197.298 |
| Style | Model | Blade Material | Housing Material | Number Of Blades | Bolt Circle Dia. | Cfm @ 0.000-in. Sp | Phase | Voltage | Motor Hp | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 166211A | Aluminum | Steel | 5 | 50 1/4" | - | - | - | - | $6,060.28 | |
| B | 166295 | Stainless Steel | Stainless Steel | 5 | 50 1/4" | - | - | - | - | $20,316.60 | |
| C | 166260 | Steel | Steel | 6 | 0.312" | - | - | - | - | $9,472.21 | |
| D | 7AG18 | Aluminum | Steel | 6 | 50 1/4" | 31260 CFM | 1 | - | 5 hp | $8,529.49 | |
| D | 7AG19 | Aluminum | Steel | 6 | 50 1/4" | 35365 CFM | 1 | - | 7 1/2 hp | $8,767.21 | |
| B | 7AG75 | Stainless Steel | Stainless Steel | 5 | 50 1/4" | 31260 CFM | 3 | 208-230/460V | - | $21,451.22 | |
| B | 7AG76 | Stainless Steel | Stainless Steel | 5 | 50 1/4" | 31260 CFM | 1 | - | - | $22,785.81 |
