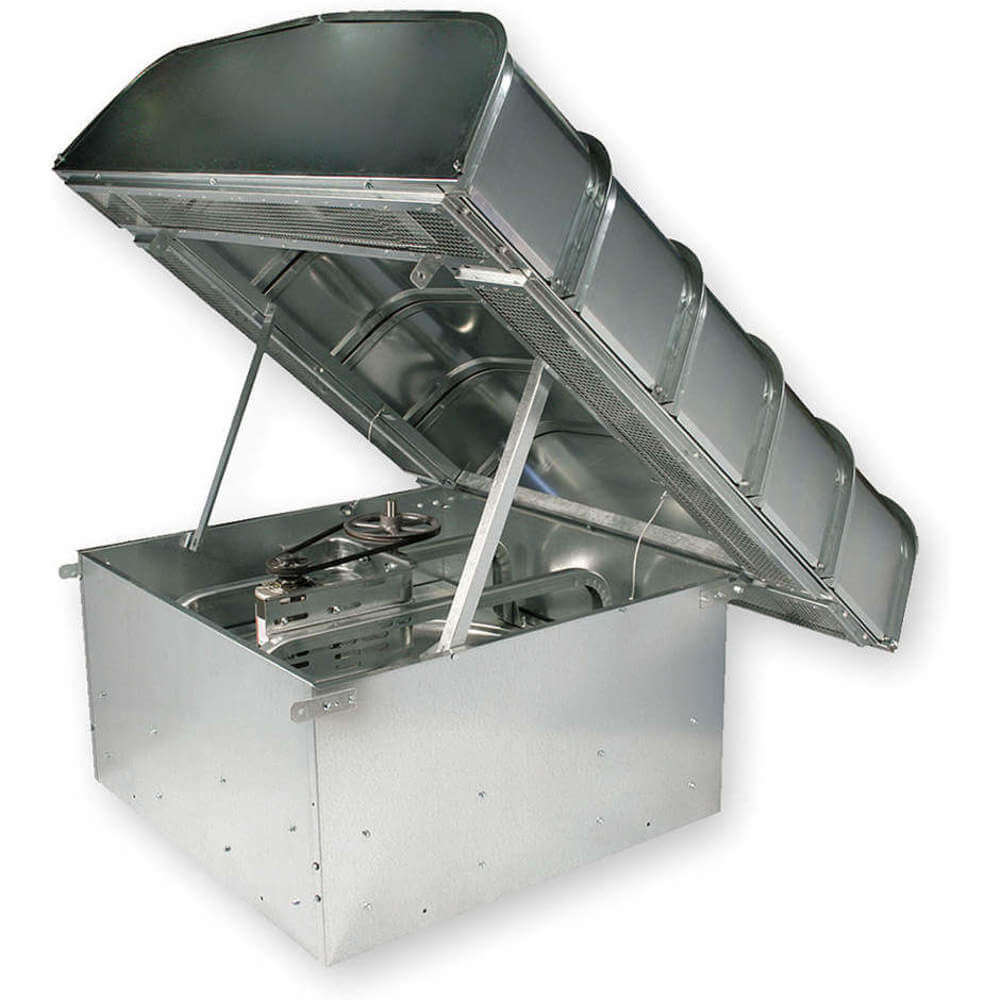

| Item | Supply Ventilator |
|---|---|
| Amps | 8.9-8/4A |
| Application | Factories, Large Facilities, Warehouses |
| Assembled/unassembled | Unassembled |
| Base Height | 26 1/2" |
| Base Length | 60 1/2" |
| Base Shape | Square |
| Base Width | 60 1/2" |
| Bearing Size | 1 1/4" |
| Bearing Type | Regreasable Pillow Block |
| Blade Dia. | 54" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Brake Hp | 3 9/20 bhp |
| Cfm @ 0.000-in. Sp | 25059 CFM |
| Cfm @ 0.125-in. Sp | 22881 CFM |
| Cfm @ 0.250-in. Sp | 20260 CFM |
| Compatible Curb Manufacturer Part Number | 3FLT6 |
| Compatible Damper Grainger Part Number | 5NKN7 |
| Damper Size | 54" x 54" |
| Drive Type | Belt Drive |
| Fan Speed | 429 RPM |
| Features | Strong And Weathertight Hood |
| For Air Type | Clean Air |
| Frame Finish | Galvanized |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Height | 42 1/2" |
| High-efficiency Motor | No |
| Hood Height | 25" |
| Hood Length | 96" |
| Hood Type | Hinged Hood |
| Hood Width | 96" |
| Housing Length | 60 1/2" |
| Housing Material | Steel |
|---|---|
| Housing Width | 60 1/2" |
| Includes | Drive Package, Hood |
| Includes Drive Package With Motor | Yes |
| Max. Ambient Temp. | 104°F |
| Max. Bhp | 3 9/20 bhp |
| Max. Depth | 96" |
| Max. Inlet Temp. | 104°F |
| Maximum Fan Speed | 429 RPM |
| Maximum Static Pressure | 0.25 in. wc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Horsepower | 3 hp |
| Motor Speed | 1740 RPM |
| Mount Type | Roof Curb |
| Mounting Location | Roof |
| Mounting Orientation | Horizontal |
| Mounting Position | Horizontal |
| Nameplate Voltage | 208/230/460V AC |
| Number Of Blades | 5 |
| Number Of Speeds | 1 |
| Overall Height | 42 1/2" |
| Overall Length | 96" |
| Overall Width | 96" |
| Phase | 3 |
| Propeller Material | Steel |
| Resistance Properties | Weather Resistant |
| Sound Level | 25 Sones @ 0 In. Sp And 5 Ft. |
| Speed Controllable | No |
| Supply Airflow @ 0.000 In Sp | 25059 CFM |
| Type | Axial Belt Drive Downblast |
| Voltage | 208-230/460V |
| Width | 96" |
| Standards | UL/CUL 705 |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
| HS Code | 8414599080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 431.46 |
