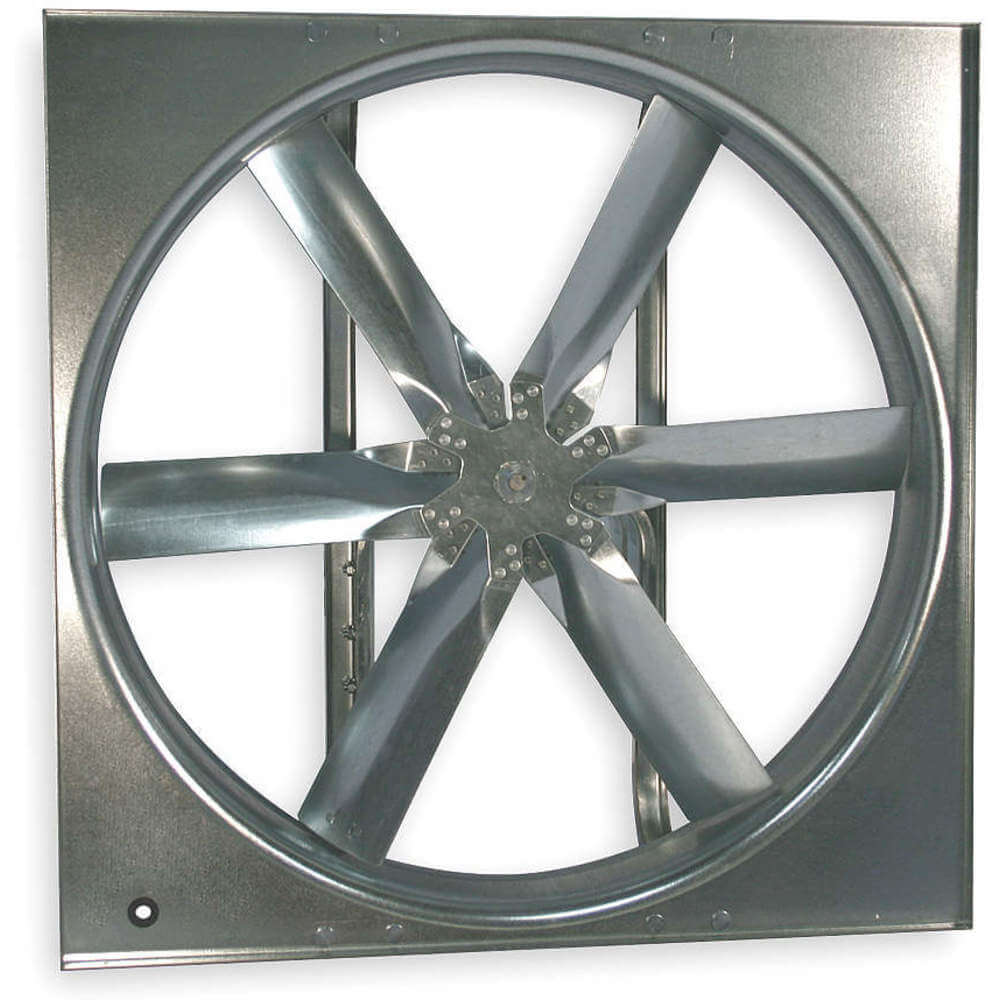

| Item | Supply Fan w/Drive Package |
|---|---|
| Assembled | Unassembled |
| Assembled/unassembled | Unassembled |
| Bearing Size | 1" |
| Bearing Type | Sealed Pillow Block |
| Blade Dia. | 36" |
| Blade Finish | Galvanized |
| Blade Material | Steel |
| Cfm @ 0.000-in. Sp | 15253 CFM |
| Cfm @ 0.125-in. Sp | 13798 CFM |
| Cfm @ 0.250-in. Sp | 12111 CFM |
| Cfm @ 0.375-in. Sp | 9875 CFM |
| Drive Package Included | Yes |
| Drive Package With Motor Included | Yes |
| Drive Type | Belt Drive |
| Exhaust/supply Fan Item | Supply Fan |
| Fan Rpm | 694 RPM |
| Fan Speed | 694 RPM |
| Fan Style | Panel |
| Flange Depth | 1" |
| Flange Width | 40" |
| For Cut-out Height | 38 1/2" |
| For Cut-out Length | 38 1/2" |
| For Cut-out Width | 38 1/2" |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Full Load Amps | 3.2A |
| Height | 40" |
| Includes | Drive Package |
| Includes Dehumidistat | No |
| Includes Grill | No |
| Includes Motor | Yes |
|---|---|
| Max. Ambient Temp. | 104°F |
| Max. Bhp | 1 1/5 bhp |
| Max. Depth | 23 1/4" |
| Max. Inlet Temp. | 104°F |
| Maximum Noise Level | 21 sones |
| Motor Horsepower | 1 hp |
| Motor Insulation | Class F |
| Motor Speed | 1760 RPM |
| Mounting Orientation | Horizontal, Vertical |
| Mounting Position | Horizontal/Vertical |
| Noise Level @ 0.000 In Sp @ 5 Ft | 21 sones |
| Number Of Blades | 6 |
| Number Of Fans | 1 |
| Number Of Shutters | 0 |
| Number Of Speeds | 1 |
| Outside Dia. | 40" |
| Overall Depth | 23 1/4" |
| Overall Dia. | 40" |
| Overall Height | 40" |
| Overall Width | 40" |
| Phase | 3 |
| Shaft Dia. | 1" |
| Speed Controllable | No |
| Vent Design | Ductless |
| Ventilation Type | Supply |
| Venturi Clearance Dia. | 36 3/8" |
| Venturi Dia. | 36 1/2" |
| Voltage | 208-230/460V |
| Width | 40" |
| Height (cm) | 2.54 |
|---|---|
| Length (cm) | 2.54 |
| Width (cm) | 2.54 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 58.2975 |
| Style | Model | Fan Speed | Cfm @ 0.000-in. Sp | Cfm @ 0.125-in. Sp | Fan Duty Rating | Voltage | Cfm @ 0.250-in. Sp | Sones @ 0.125-in. Sp @ 5 Ft. | Sones @ 0.000-in. Sp @ 5 Ft. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7AC61 | 343 RPM | 30129 CFM | 26014 CFM | Medium | 208-230/460V | - | 16.5 sones | 17.3 sones | $4,586.69 | |
| A | 7AC63 | 371 RPM | 32589 CFM | 28800 CFM | Medium | 115/208-230V | 22253 CFM | 18.8 sones | - | $4,878.45 | |
| A | 7AC65 | 371 RPM | 32589 CFM | 28800 CFM | Medium | 208-230/460V | 22253 CFM | 18.8 sones | - | $4,710.74 | |
| A | 7AC68 | 429 RPM | 37683 CFM | 34407 CFM | Medium | 208-230/460V | 30466 CFM | - | - | $5,280.06 | |
| A | 7AC70 | 507 RPM | 44535 CFM | 41763 CFM | Medium | 208-230/460V | 38990 CFM | 39 sones | - | $5,125.14 | |
| B | 7AC72 | 485 RPM | 48356 CFM | 44215 CFM | Heavy | 208-230/460V | 39274 CFM | 35 sones | - | $7,949.21 | |
| B | 7AC74 | 555 RPM | 55335 CFM | 51712 CFM | Heavy | 208-230/460V | 48133 CFM | 45 sones | - | $8,422.94 |
