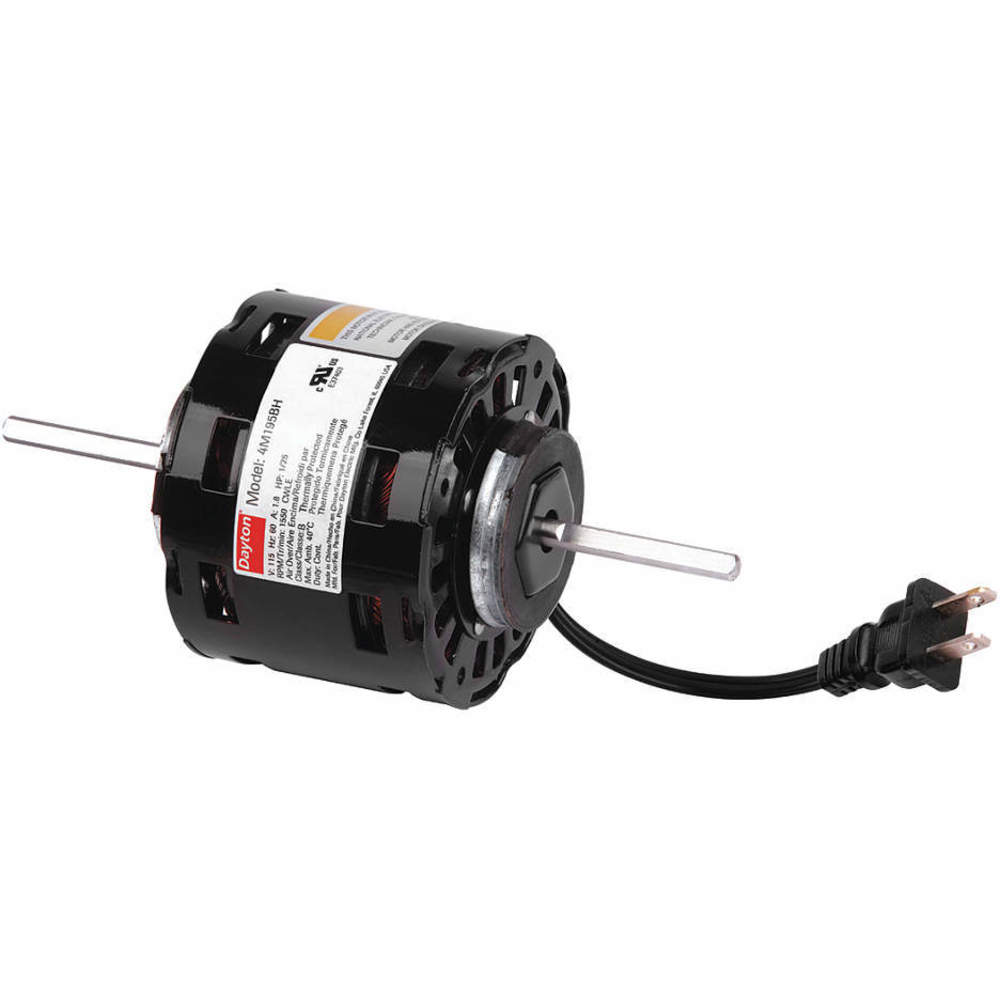

| Item | HVAC Motor |
|---|---|
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Capacitor Required | No |
| Cord Length | 10" |
| Duty Cycle | Continuous |
| Frame | 3.3" |
| Frequency | 60 Hz |
| Full Load Amps | 1.8A |
| Hp | 1/25 hp |
| Includes | 8-1/2" Cordset, Double Shaft Motor |
| Insulation Class | Class B |
| Length Less Shaft | 4 15/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Type | Ring |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Lead End |
|---|---|
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Ring |
| Mounting Type | Cushion Ring |
| Nameplate Rpm | 1550 RPM |
| No. Of Shafts | 2 |
| No. Of Speeds | 1 |
| Phase | 1 |
| Plug Type | 2 Prong Non-Polarized |
| Service Factor | 1 |
| Shaft Dia. | 1/4" |
| Shaft Length | 2 3/8" |
| Shaft Type | Double Flat |
| Stud Location | Both Ends |
| Stud Pattern | 2 7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V AC |
| Standards | CSA CERTIFIED, UL RECOGNIZED |
| Height (cm) | 9.65 |
|---|---|
| Length (cm) | 23.37 |
| Width (cm) | 14.48 |
| HS Code | 8501106020 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 1.305 |
| Style | Model | Voltage | Hp | Phase | Frequency | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 71732300M | 230V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 1A | Shaded Pole | $155.46 | |
| B | 71636952M | 115V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Open Air Over | 2.1A | Shaded Pole | $196.03 | |
| C | 71632454M | 115V AC | 1/20 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 1.8A | Shaded Pole | $167.56 | |
| D | 71632379M | 115V AC | 1/15 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | $196.50 | |
| E | 71626626M | 115V AC | 1/8 hp | 1 | 60 Hz | Extended Studs | - | 1.3A | Permanent Split Capacitor | $200.46 | |
| F | 71632766M | 115V AC | 1/15 hp | 1 | 60 Hz | Extended Studs | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | $200.56 | |
| G | 71632768M | 115V AC | 1/15 hp | 1 | 60 Hz | Cradle Base | Totally Enclosed Fan Cooled | 2.3A | Shaded Pole | $253.40 |
