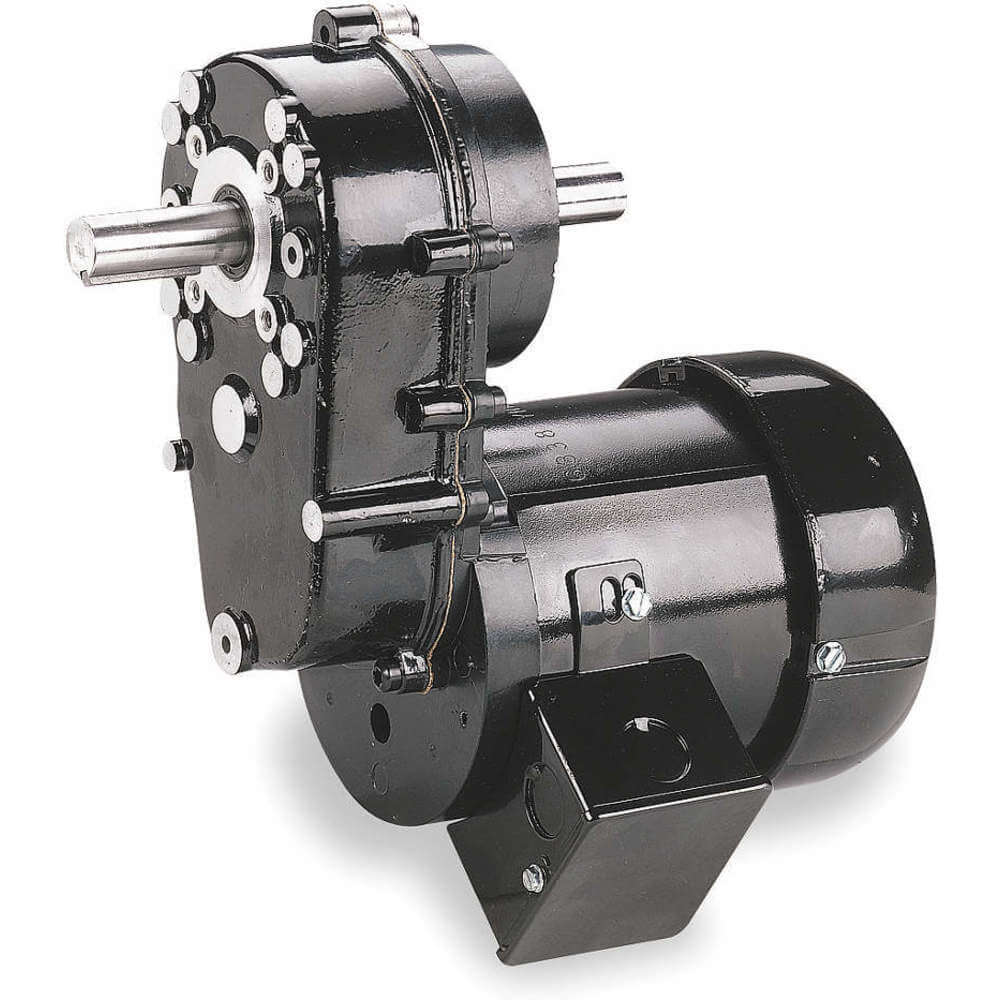

| Item | AC Gearmotor |
|---|---|
| Amps | 2.35/1.25A |
| Base To Center Of Shaft | 1.69" |
| Bearing Type | Needle On Case, Ball On Motor |
| Brake Type | None |
| Capacitor Required | Yes |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.35/1.25A |
| Gear Case Material | Die Cast Aluminium |
| Gear Ratio | 30:1 |
| Gearmotor Mounting Position | All Angle |
| Gearmotor Shaft Orientation | Right Angle |
| Gearmotor Shaft Type | Single Right |
| Housing Material | Die Cast Aluminium |
| Includes Capacitor | Capacitor Included |
| Input Hp | 1/4 hp |
| Inverter Rated | No |
| Inverter Rating | 301 |
| Keyway Depth | 1/8" |
| Keyway Width | 3/16" |
| Lubrication | Oil Filled |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Torque | 130 lbs.-in. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Thermal Protection | None |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 3" |
| Mount Hole Center-to-center Width | 3 1/4" |
| Mount Type | Any Position |
|---|---|
| Mounting | All Position |
| Mounting Orientation | Any Angle |
| Nameplate Rpm | 55 RPM |
| Nameplate Rpm Range | 51-75 RPM |
| No. Of Output Shafts | 1 |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115/230V AC |
| Output Direction | Right Hand |
| Output Location | Right Hand |
| Output Shaft Dia. | 5/8" |
| Output Shaft Diameter | 5/8" |
| Output Shaft Height | 1.69" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6" |
| Overall Length | 10.31" |
| Overall Width | 5.63" |
| Overhung Load | 200 lbs. |
| Overhung Load Capacity | 200 lbs.-ft. |
| Phase | 1 |
| Rotation | CW/CCW |
| Rpm @ 50 Hz | 48 RPM |
| Rpm Range | 51-75 RPM |
| Seal Type | Lip Type on Input, Output Shaft |
| Seals | Lip Type On Input, Output Shaft |
| Shaft Dia. | 5/8" |
| Shaft Orientation | Right Angle |
| Thermal Protection | No |
| Type | Permanent Split Capacitor |
| Standards | C-UL RECOGNIZED, UL RECOGNIZED |
| Height (cm) | 15.24 |
|---|---|
| Length (cm) | 26.19 |
| Width (cm) | 14.3 |
| HS Code | 8501404020 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 8.1 |
