| Item | Electric Operated Drum Pump |
|---|---|
| Action Type | Centrifugal |
| Cord Length | 16 ft. |
| Def Compatible | No |
| Diesel Exhaust Fluid Compatible | No |
| Discharge Connection Type | Tri Clamp |
| Discharge Tube Inside Dia. | 1" |
| Discharge Tube Outlet I.d. | 1" |
| Discharge Tube Outlet O.d. | 1 1/2" |
| Discharge Tube Outside Dia. | 1 1/2" |
| Display Qty | 1 |
| Duty Cycle | Intermittent |
| Flow Rate | 32 GPM |
| Food Grade | Yes |
| For Container Size | 55 gal. |
| For Container Type | Drum |
| For Media Type | Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Glycerin, Hydraulic Oil, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water |
| For Use With | SP-ENC-2-V/ SP-8600-39 |
| Frequency | 50/60 Hz |
| Full Load Amps | 5A |
| Gasket Material | Buna N |
| Grade | Grade 316L |
| Height | 53" |
| Hose Inside Dia. | 1" |
| Housing Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Includes | Suction Tubes |
| Includes Bung Adapter | No |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
| Includes Suction Tube | Yes |
| Inlet Size | 1 5/8" |
| Length | 53" |
| Material Grade | Grade 316 Stainless Steel |
| Max. Flow Rate | 35 GPM |
| Max. Flow Rate For Oil | 7 GPM |
| Max. Flow Rate For Water | 32 GPM |
| Max. Fluid Temp. | 175°F |
| Max. Head | 30 ft. |
| Max. Head - Pumps | 36 ft. |
| Max. Head Pressure | 16 psi |
|---|---|
| Max. Oil Flow | 7 GPM |
| Max. Outlet Pressure | 16 psi |
| Max. Pressure | 16 psi |
| Max. Temp. | 175°F |
| Max. Viscosity | 1000 cPS |
| Media Type | Acetic Acid, Ammonia, Ammonium Hydroxide, Antifreeze, Calcium Chloride, Citric Acid, Ethylene Glycol, Glycerin, Hydraulic Oil, Methyl Chloride, Motor Oil, Nitric Acid, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Trichlorethylene, Water |
| Metered | No |
| Motor Enclosure | Tefc |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Hp | 1 1/10 hp |
| Motor Speed | 10000 RPM |
| Motor Type | Electric AC Brush |
| Noise Level | 88 dB |
| Nominal Voltage | 220V AC |
| Outlet Size | 1 1/4" |
| Outlet Type | Tri Clamp |
| Overall Length | 53" |
| Phase | 1 |
| Plug Type | CEE 7/7 |
| Power Source | Electric |
| Pump Package Type | Basic Pump Without Discharge Hose |
| Runs Dry | Yes |
| Seal Material | Sealless |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube I.d. | 1 3/8" |
| Suction Tube Inside Dia. | 1 3/8" |
| Suction Tube Length | 39" |
| Suction Tube Material | Stainless Steel |
| Suction Tube O.d. | 1 5/8" |
| Suction Tube Outside Dia. | 1 5/8" |
| Suction Tube Type | Impeller |
| Thermal Protection | Yes |
| Variable Speed | Yes |
| Voltage Rating | 220V AC |
| Wetted Material | Stainless Steel, PTFE |
| Wetted Material Grade | Grade 316L |
| Wetted Materials | 316L Stainless Steel, PTFE |
| Height (cm) | 27.43 |
|---|---|
| Length (cm) | 114.81 |
| Width (cm) | 32.26 |
| HS Code | 8413702090 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 12.5235 |
| Style | Model | For Container Size | Max. Flow Rate | Max. Viscosity | Food Grade | Diesel Exhaust Fluid Compatible | Max. Temp. | Inlet Size | Includes Discharge Hose | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

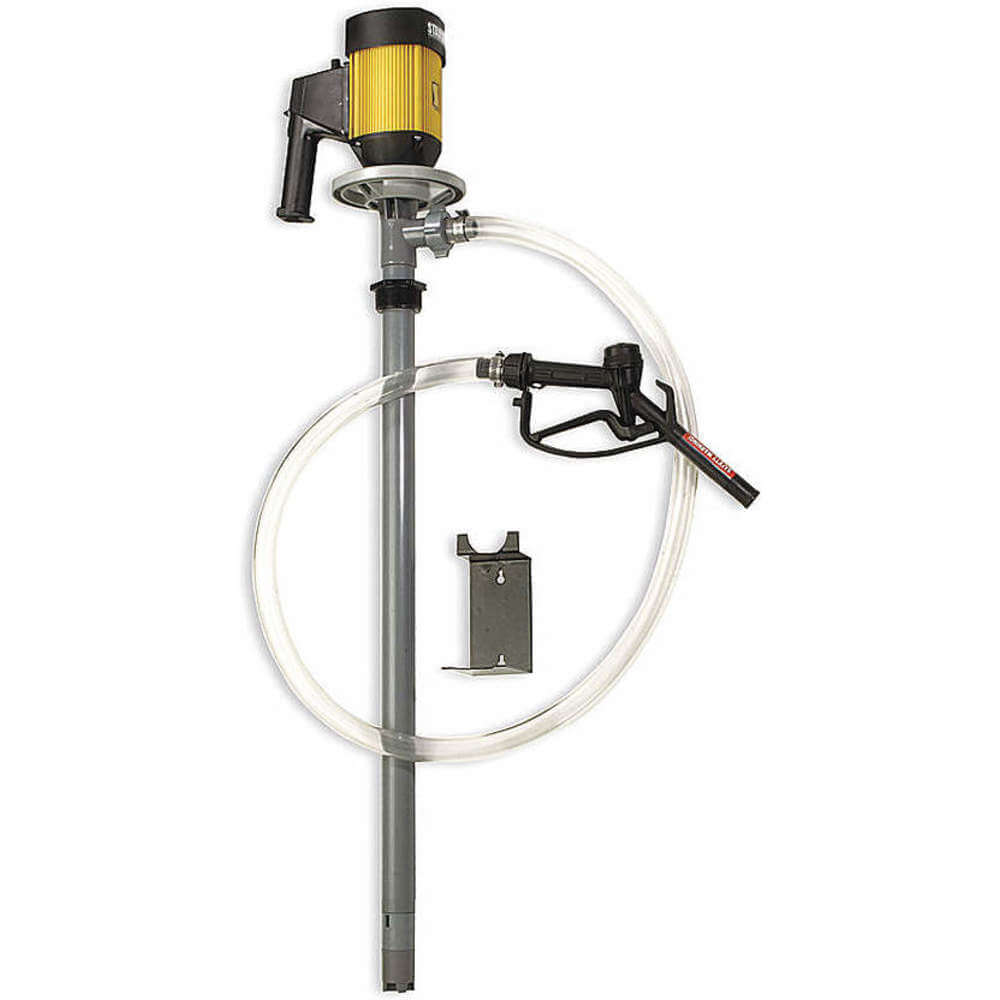

| A | 1DLP4 | 55 gal. | 32 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | $2,038.36 | |

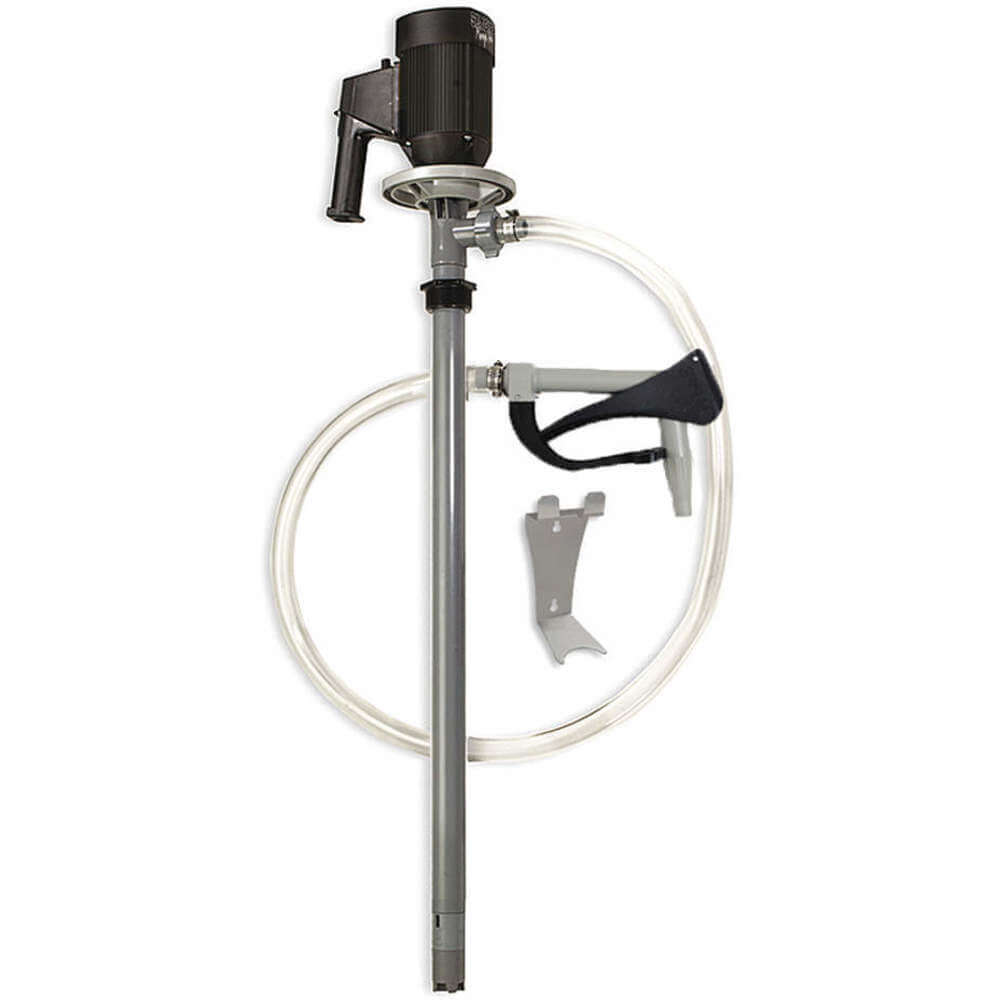

| B | 1DLP5 | 55 gal. | 15 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | $2,218.27 | |

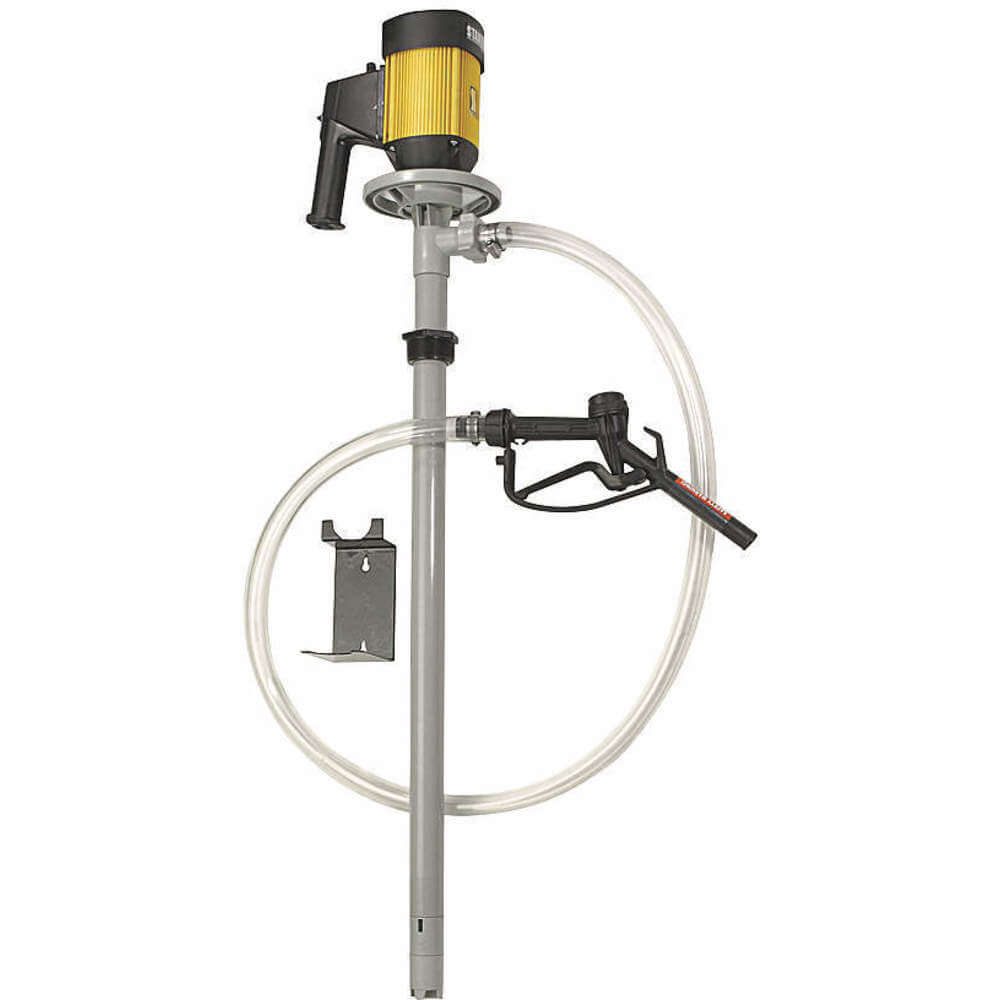

| C | 1DLP8 | 55 gal. | 15 GPM | 1500 cPS | No | No | 130°F | 1 3/5" | Yes | $1,986.11 | |
| D | 1DLR1 | 55 gal. | 15 GPM | 1500 cPS | No | No | 175°F | 1 3/5" | Yes | $3,034.49 | |

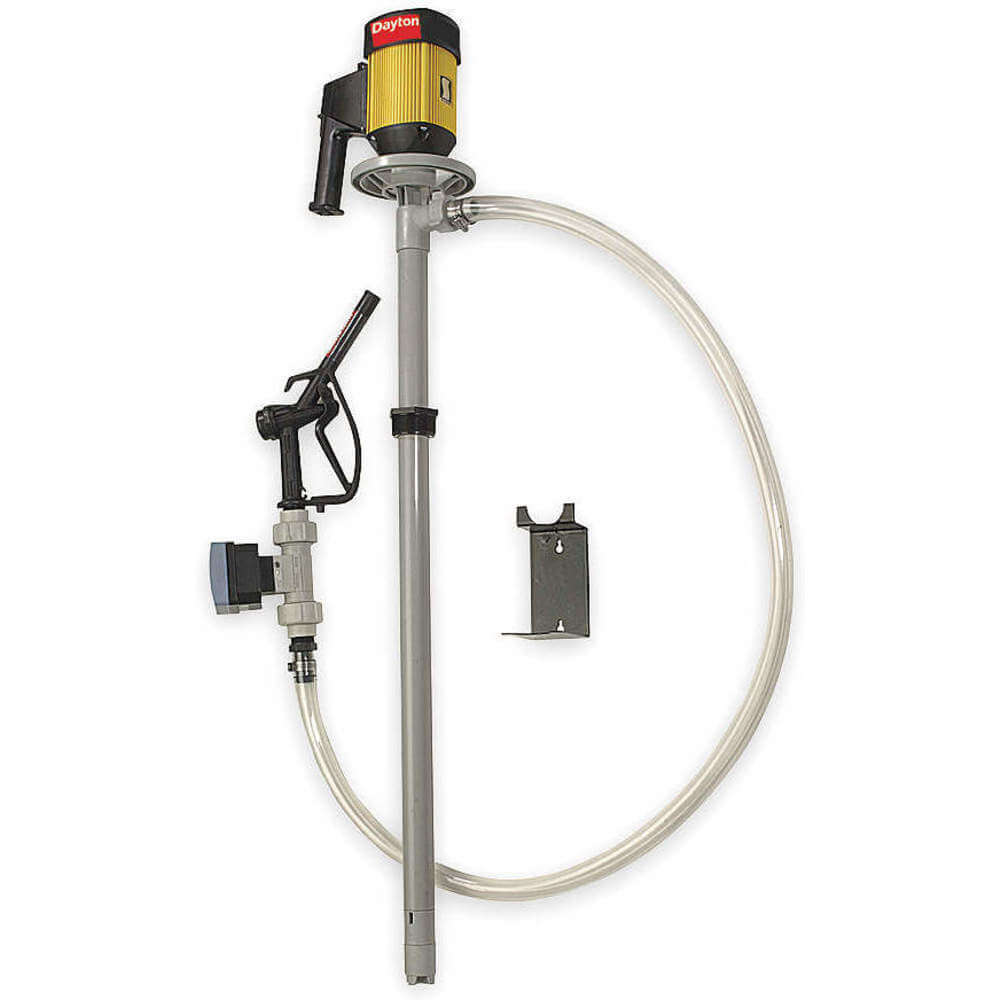

| E | 1DLR3 | 55 gal. | 13 GPM | 300 cPS | No | - | 130°F | 1 3/5" | Yes | $4,457.31 | |

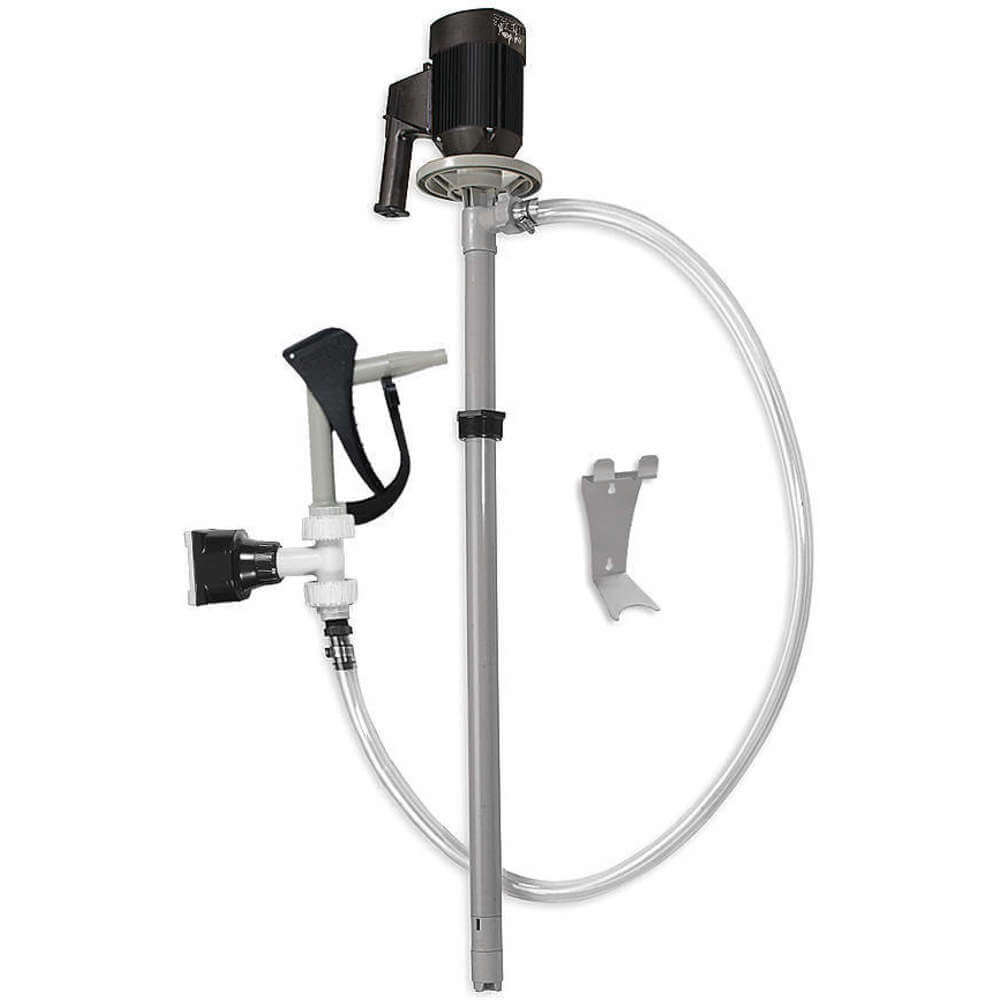

| F | 1DLR4 | 55 gal. | 13 GPM | 300 cPS | No | No | 130°F | 1 3/5" | Yes | $4,954.70 | |

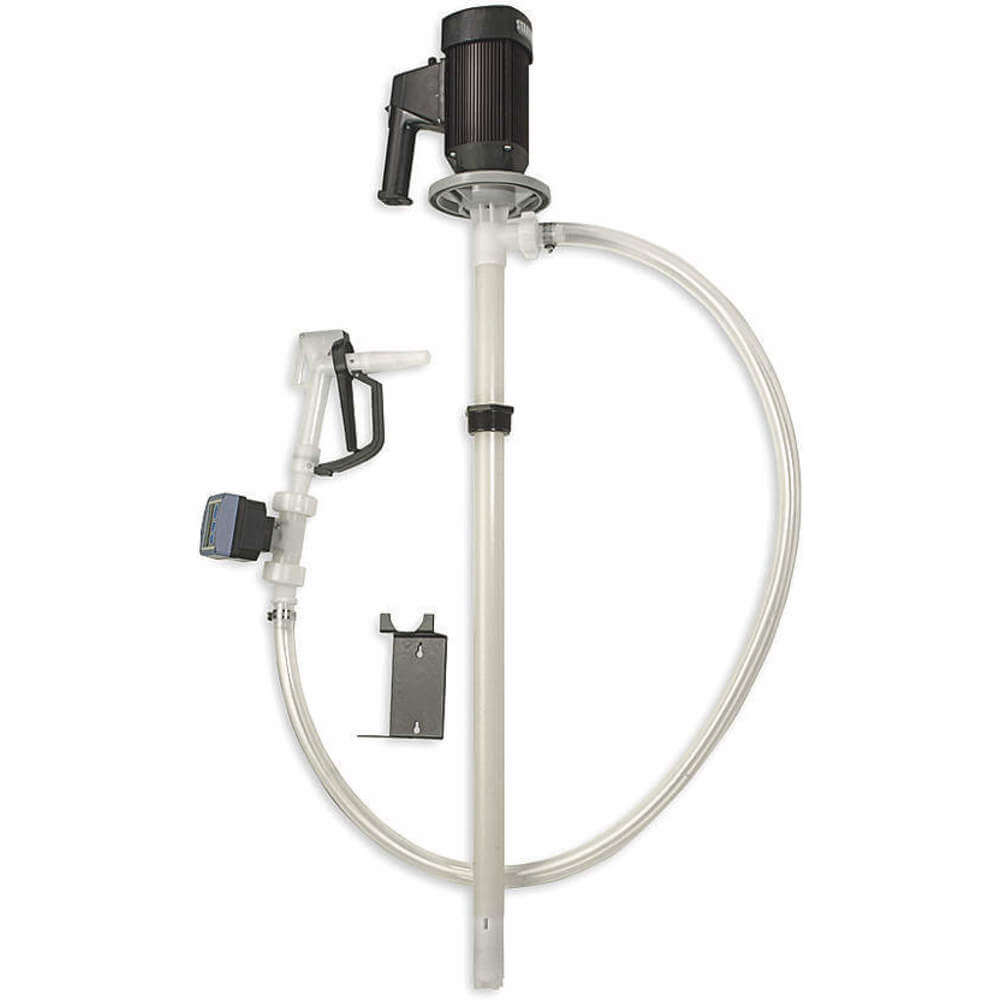

| G | 1DLR5 | 55 gal. | 13 GPM | 300 cPS | No | No | 175°F | 1 3/5" | Yes | $8,373.91 |
