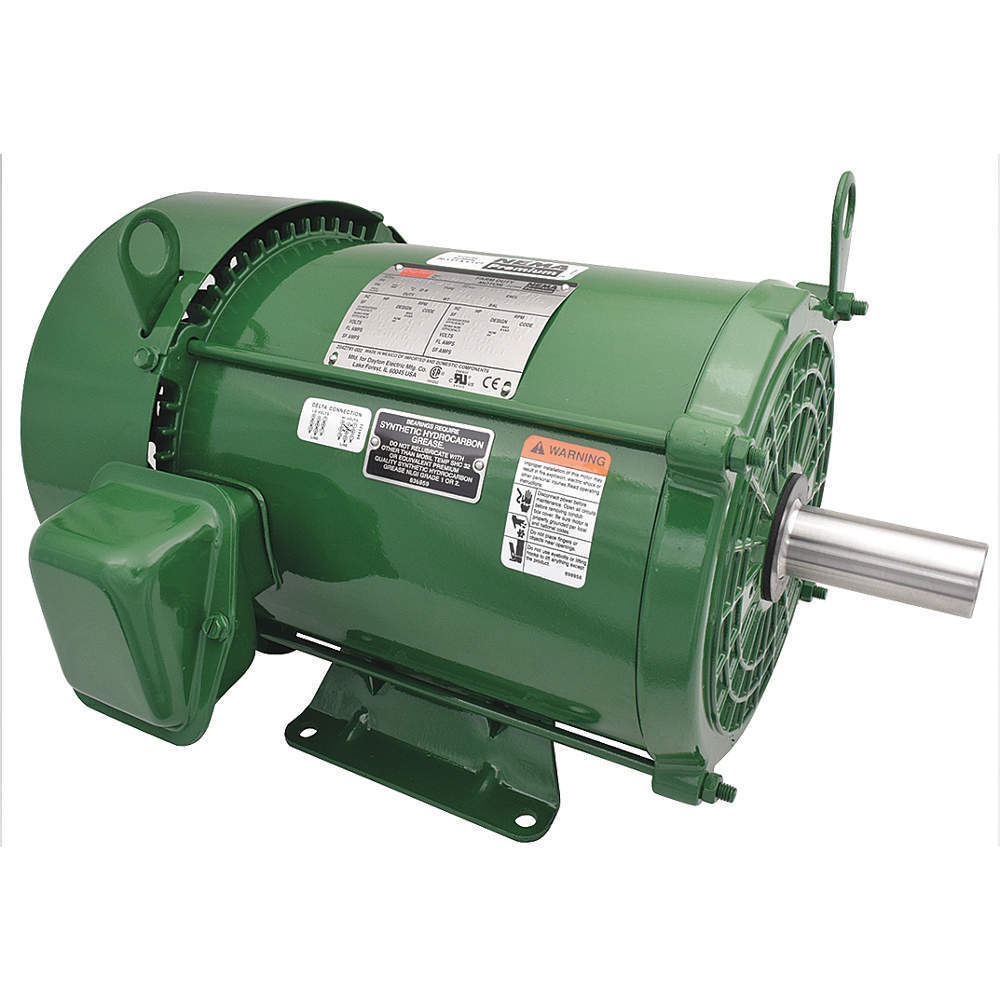

| Item | General Purpose Farm Duty Motor |
|---|---|
| Application | Farm Duty |
| Bearing Type | Ball |
| Bearings | Ball |
| Color | Dayton Green , Gray |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 89.5% |
| Efficiency Group | Premium |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Full Load Amps | 12.5/6.2A |
| Hp | 5 hp |
| Hz | 50/60 Hz |
| Includes | Shaft Slinger, Gasketed Conduit Box, Shaft Key |
| Insulation Class | Class F |
| Length Less Shaft | 13 1/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Sub Application | General Purpose Farm |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1755 RPM |
| Nominal Efficiency | 89.5% |
| Number Of Speeds | 1 |
| Overall Length | 15 7/8" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Shaft Type | Keyed |
| Thermal Protection | None |
| Voltage | 230/460V AC |
| Motor Thermal Protection | None |
| standard | CSA CERTIFIED (258525), UL RECOGNIZED (E47479) |
| Height (cm) | 35.31 |
|---|---|
| Length (cm) | 47.24 |
| Width (cm) | 34.54 |
| HS Code | 8501524000 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 39.015 |
| Style | Model | Voltage | Hp | Frame | Nameplate Rpm | Motor Service Factor | Service Factor | Frame Material | Overall Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1EJR3BG | 208-230/460V AC | 1/3 hp | 56 | 1765 RPM | 1.25 | 1.25 | Rolled Steel | 11 11/16" | $424.29 | |
| B | 1EJR4BG | 208-230/460V AC | 1/2 hp | 56 | - | - | 1.25 | Steel | 11 11/16" | $520.19 | |
| A | 1EJR5BG | 208-230/460V AC | 3/4 hp | 56 | 1745 RPM | 1.25 | 1.25 | Steel | 11 11/16" | $614.21 | |
| C | 35Z916 | 230/460V AC | 1 hp | 143-5T/56HZT | 1755 RPM | 1.25 | 1.25 | Rolled Steel | 13" | $1,124.52 | |
| D | 35Z917 | 230/460V AC | 1 1/2 hp | 143-5T/56HZT | 1755 RPM | 1.25 | 1.25 | Rolled Steel | 13" | $1,064.05 | |
| E | 35Z918 | 230/460V AC | 2 hp | 143-5T/56HZ | 1750 RPM | 1.25 | 1.25 | Rolled Steel | 13" | $1,165.25 | |
| F | 35Z919 | 230/460V AC | 3 hp | 182T | 1765 RPM | 1.15 | 1.15 | Rolled Steel | 14 7/8" | $1,591.02 |
