| Item | General Purpose Motor |
|---|---|
| Ambient Temp. | 104°F |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 82.9% |
| Efficiency Group | Premium |
| Frame | 56H |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 17.8/9.2-8.9A |
| Green Certification Or Other Recognition | Energy Aware |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Hp | 2 hp |
| Includes | Start/Run Capacitors |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | Premium Efficient |
|---|---|
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.9% |
| Number Of Speeds | 1 |
| Overall Length | 11 15/16" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Standards | Ul (E37403) |
| Thermal Protection | Manual |
| Voltage | 115/208-230V AC |
| Height (cm) | 34.29 |
|---|---|
| Length (cm) | 50.8 |
| Width (cm) | 32.51 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 16.632 |
| Style | Model | Voltage | Hp | Service Factor | Nameplate Rpm | Full Load Amps | Mounting Type | Frame | Thermal Protection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 103805.00 | 115/208-230V AC | 1/2 hp | 1.25 | 3450 RPM | 4.4/2.4-2.2A | Rigid Base | 48 | Automatic | $872.06 | |
| B | 30PT69 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Cradle Base | 56 | Automatic | $679.91 | |
| B | 30PT70 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Cradle Base | 56 | None | $809.41 | |

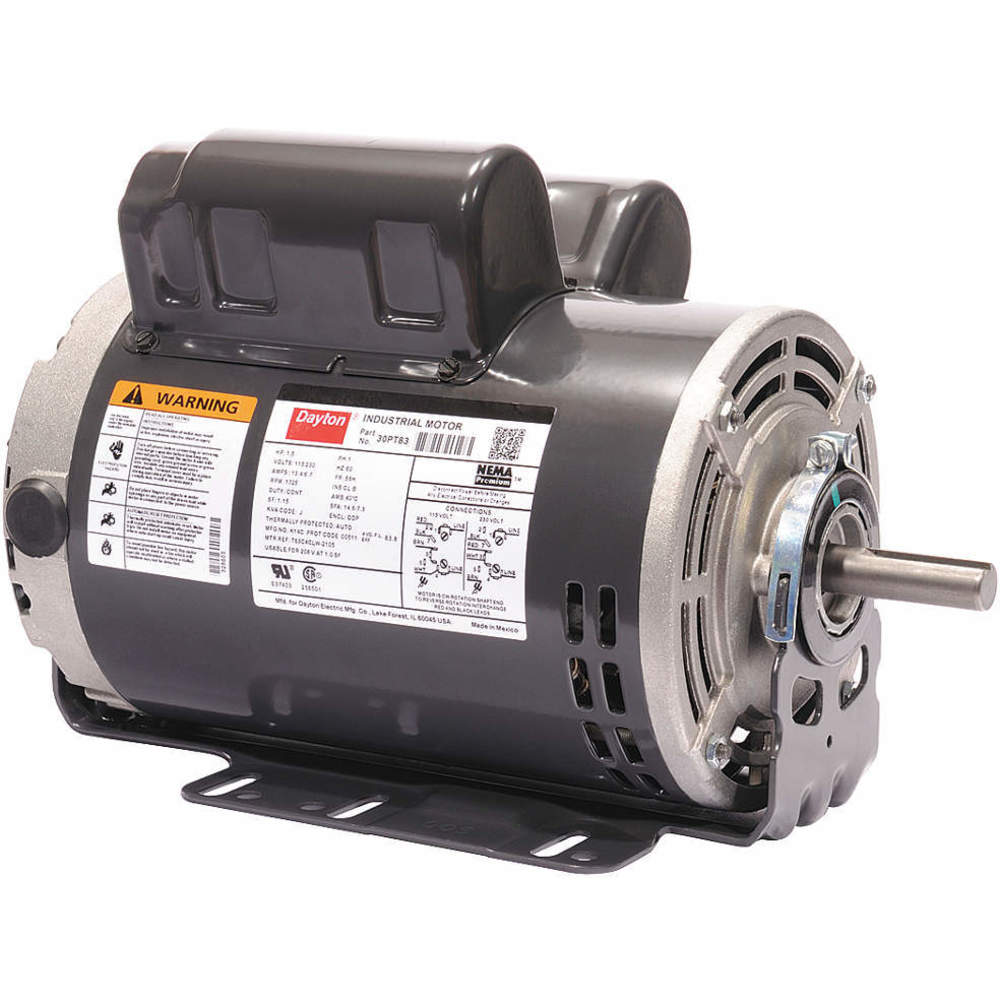

| C | 30PT71 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Cradle Base | 56H | Automatic | $755.78 | |

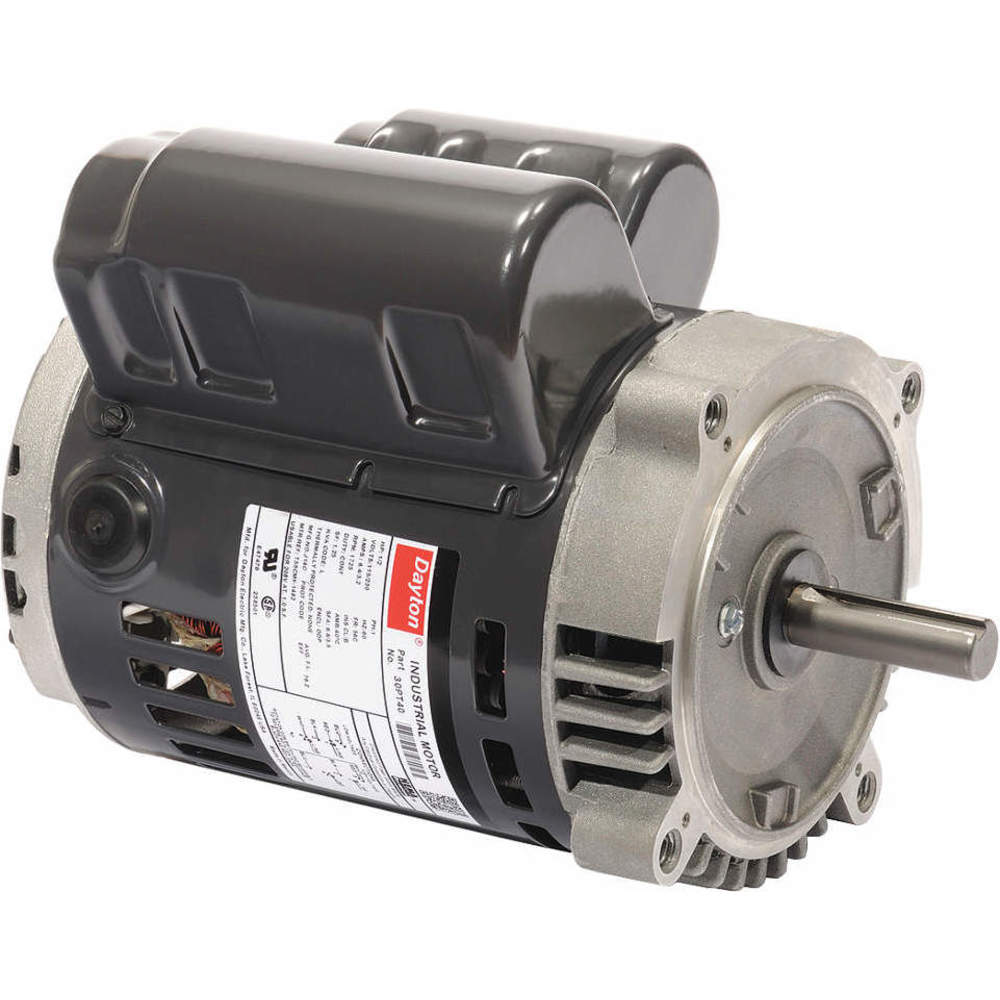

| D | 30PT38 | 115/230V AC | 1/4 hp | 1.35 | 1725 RPM | 3.1/1.5A | Face | 56C | None | $481.96 | |
| D | 30PT40 | 115/230V AC | 1/2 hp | 1.25 | 1725 RPM | 5/2.6A | Face | 56C | None | $781.76 | |

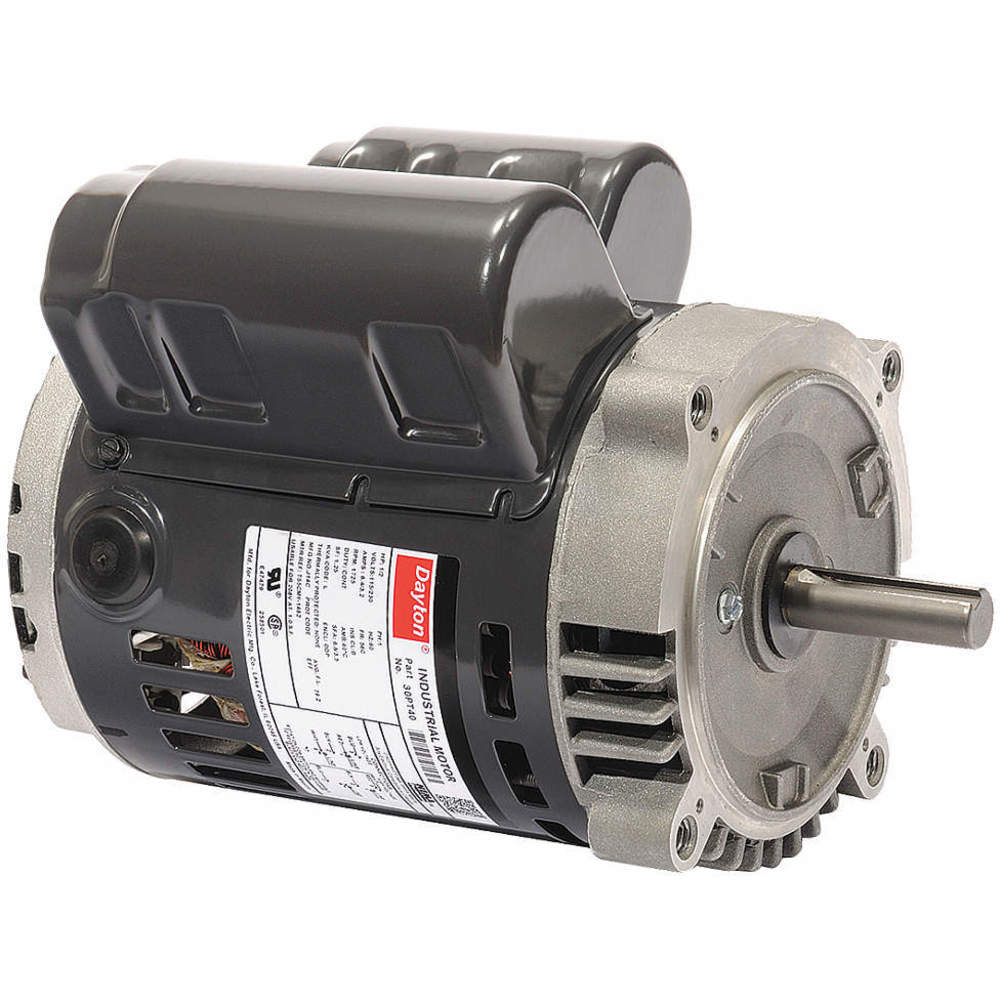

| E | 30PT41 | 115/230V AC | 3/4 hp | 1.25 | 1725 RPM | 7/3.5A | Face | 56C | None | $870.34 |
