| Item | Speed Reducer |
|---|---|
| Application | Speed Reducer |
| Bearing Type | Tapered Roller |
| Dimension U | 1" |
| Duty | Standard |
| Finish | Epoxy Paint |
| Gear Material | Steel |
| Gear Ratio | 181 |
| Gear Type | Worm |
| Housing Material | Cast Aluminum |
| Input Rpm | 1750 RPM |
| Max. Input Hp | 1 hp |
| Mounting Type | Unit Mount |
| Nominal Output Rpm | 96 RPM |
| Number Of Stages | 1 |
| Output Shaft Dia. | 3/4" |
| Output Shaft Type | Round |
|---|---|
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Overhung Load | 700 lbs. |
| Phase | 1 |
| Pinion Material | Hardened Steel |
| Reducer Model No. | 84259 |
| Rotation | CW/CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Single/double Output | Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | Indirect Drive |
| Voltage | 24-277V |
| Worm Center Distance | 2.06" |
| Worm Gear Material | Bronze |
| Height (cm) | 25.4 |
|---|---|
| Length (cm) | 25.4 |
| Width (cm) | 25.91 |
| HS Code | 8483405010 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 5.67 |
| Style | Model | Output Shaft Type | Worm Center Distance | Gear Ratio | Max. Input Hp | Overhung Load | Output Shaft Dia. | Rotation | Housing Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

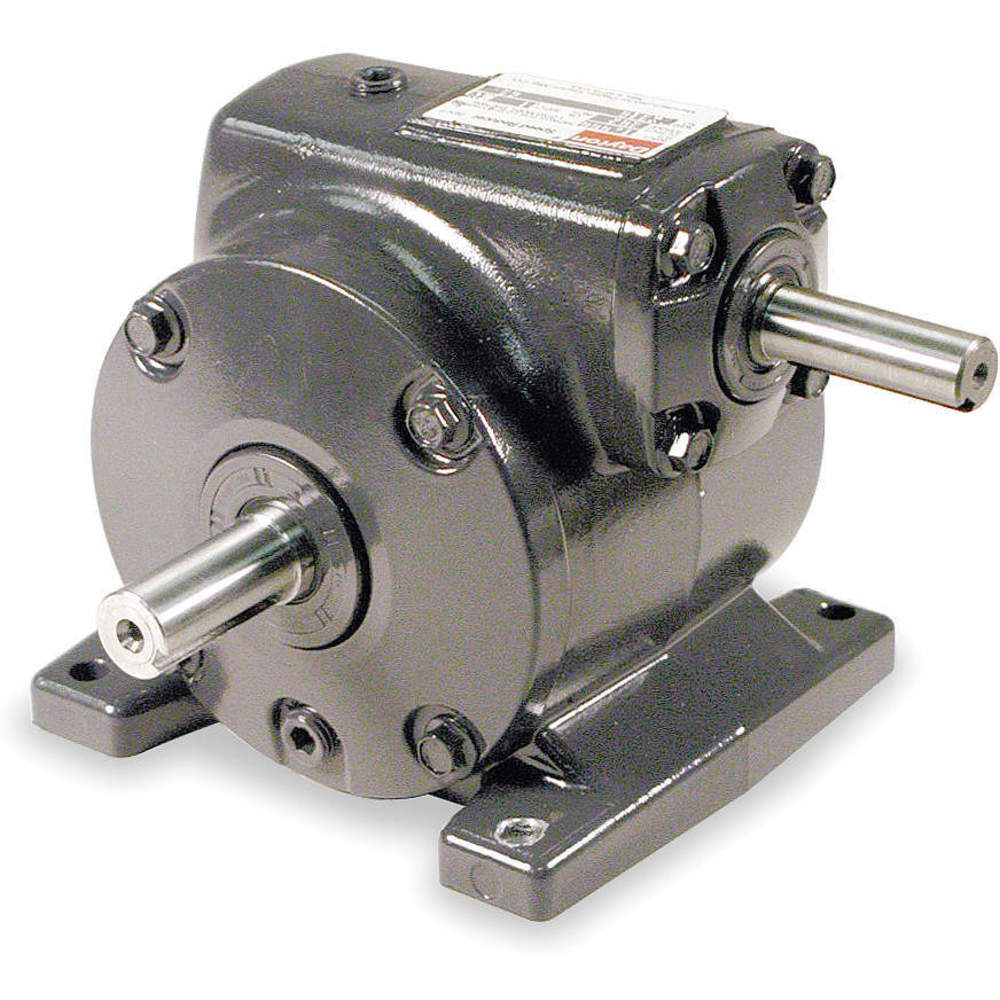

| A | 2Z306 | Round | 2.06" | 581 | 3/10 hp | 700 lbs. | 3/4" | CW/CCW | Cast Aluminum | $889.08 | |
| A | 2Z307 | Round | 2.06" | 391 | 1/2 hp | 700 lbs. | 3/4" | CW/CCW | Cast Aluminum | $889.08 | |
| A | 2Z308 | Round | 2.06" | 261 | 3/4 hp | 700 lbs. | 3/4" | CW/CCW | Cast Aluminum | $889.08 | |
| A | 2Z310 | Round | 2.06" | 111 | 1 hp | 700 lbs. | 3/4" | CW/CCW | Cast Aluminum | $746.24 | |

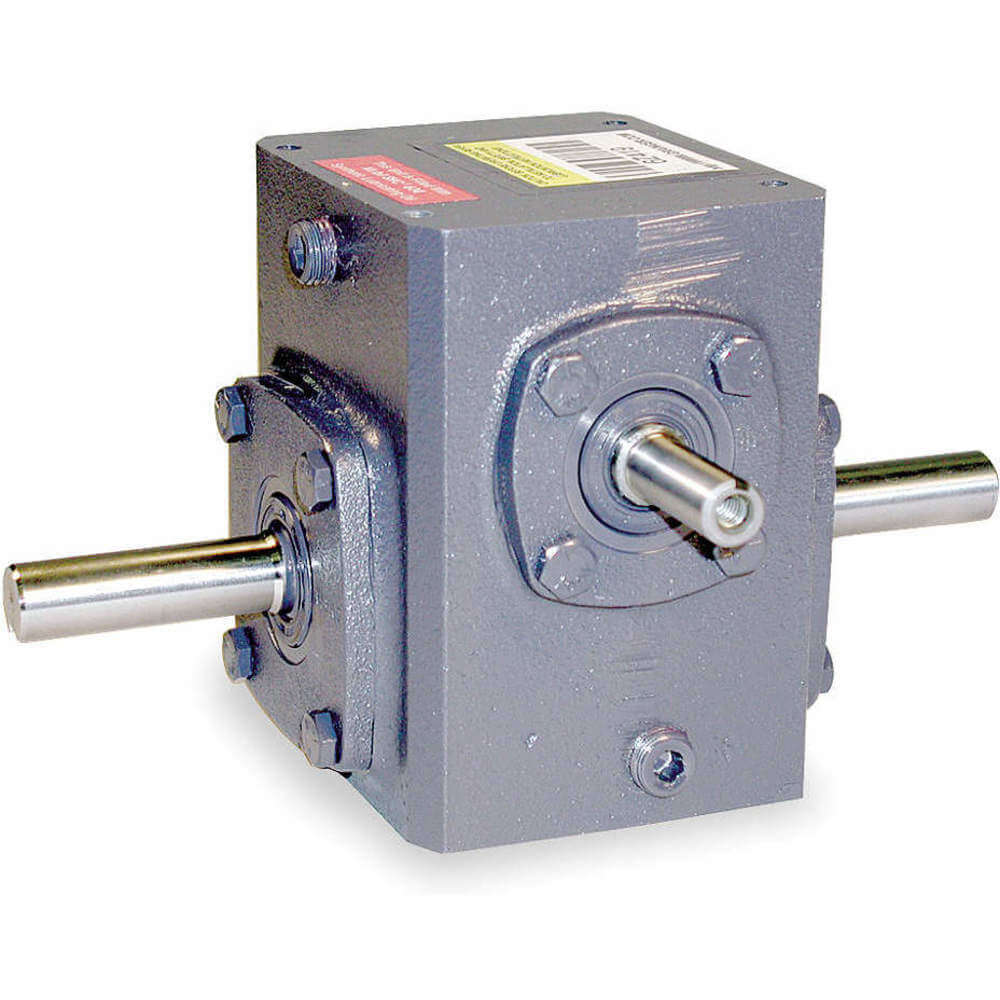

| B | 6Z419 | Keyed | 1.33" | 601 | 1/4 hp | 275 lbs. | 5/8" | CW/CCW | Cast Iron | $657.51 | |
| B | 6Z420 | Keyed | 1 3/4" | 601 | 3/10 hp | 700 lbs. | 7/8" | CW/CCW | Cast Iron | $716.47 | |
| B | 6Z421 | Keyed | 2.06" | 601 | 1/2 hp | 700 lbs. | 1" | Forward, Reversible | Cast Iron | $809.41 |
