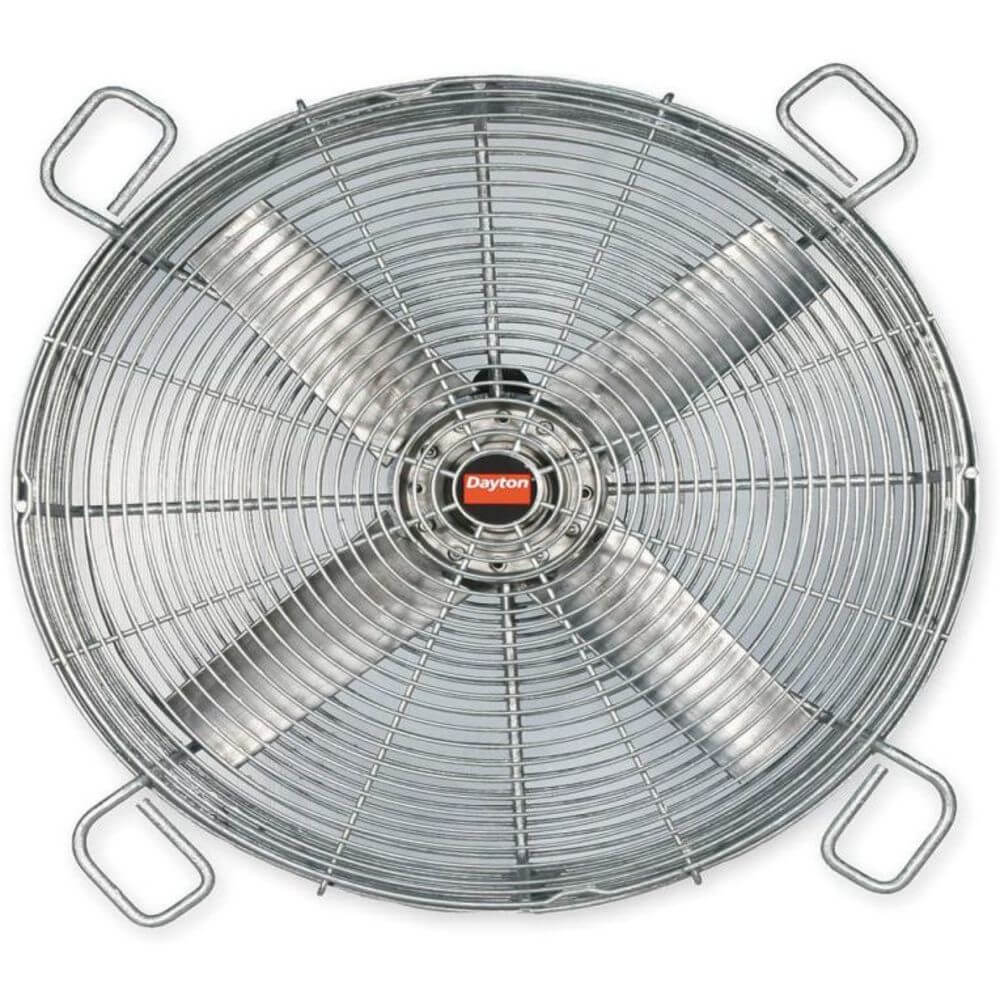

| Item | Transformer Cooling Fan |
|---|---|
| Air Flow Rate | 6600 CFM |
| Amps | 4.1/2.1A |
| Bearing Type | Ball |
| Blade Dia. | 20" |
| Blade Material | Cast Aluminum |
| Depth | 13 5/16" |
| Dimension A | 23" |
| Dimension B Max. | 21 1/4" |
| Dimension B Min. | 17 3/4" |
| Dimension C Max. | 18 1/2" |
| Dimension C Min. | 18 1/2" |
| Environmental Applications | Equipment Cooling |
| Fan Cord Length | 15 ft. |
| Fan Item | Transformer Cooling Fan |
| Fan Mounting Type | Guard Mount |
| Fan Phase | 1 |
| Frame | 48Y Yoke Mount |
| Guard Material | Steel |
| Guards | Steel |
| Height | 23" |
| Hp | 1/2 hp |
|---|---|
| Hz | 60 Hz |
| Includes | 15 ft. Weatherproof Power Cord |
| Max. Ambient Temp. | 104°F |
| Max. Depth | 13.312" |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Hp | 1/2 hp |
| Motor Insulation | Class B |
| Motor Rpm | 1725 RPM |
| Motor Type | Permanent Split Capacitor |
| Mount | Guard Mount |
| Mount Type | Guard Mount |
| Mounting Eye O.c. | 17 3/4" |
| Number Of Blades | 4 |
| Phase | 1 |
| Power Cord Length | 15 ft. |
| Rpm | 1725 RPM |
| Voltage | 115/230V AC |
| Width | 23" |
| Standards | FANS INCLUDE WEATHERPROOF 15-FT UL RECOGNIZED POWER CORD, |
| Height (cm) | 47.24 |
|---|---|
| Length (cm) | 60.45 |
| Width (cm) | 60.45 |
| HS Code | 8414596090 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 24.255 |
| Style | Model | Motor Rpm | Mount | Air Flow Rate | Voltage | Frame | Height | Max. Depth | Dimension A | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 13F050 | 1140 RPM | Guard Mount | 3100 CFM | 115/230V AC | 48Y Yoke Mount | 19" | 13.312" | 19" | $1,199.31 | |
| A | 13F051 | 1140 RPM | Guard Mount | 4600 CFM | 115/230V AC | 48Y Yoke Mount | 23" | 13.312" | 23" | $1,424.38 | |
| A | 13F052 | 1140 RPM | Guard Mount | 6800 CFM | 115/230V AC | 48Y Yoke Mount | 27" | 13.312" | 27" | $1,528.51 | |
| A | 13F053 | 1725 RPM | Guard Mount | 4590 CFM | 208-230/460V AC | 48Y Yoke Mount | 19" | 13.312" | 19" | $1,185.90 | |
| A | 13F054 | 1725 RPM | Guard Mount | 5000 CFM | 208-230/460V AC | 48Y Yoke Mount | 23" | 13.312" | 23" | $1,407.61 | |
| A | 13F055 | 1725 RPM | Guard Mount | 7000 CFM | 208-230/460V AC | 48Y Yoke Mount | 27" | 13.312" | 27" | $1,508.38 | |
| A | 13F056 | 1140 RPM | Guard Mount | 3100 CFM | 208-230/460V AC | 48Y Yoke Mount | 19" | 13.312" | 19" | $1,138.86 |
