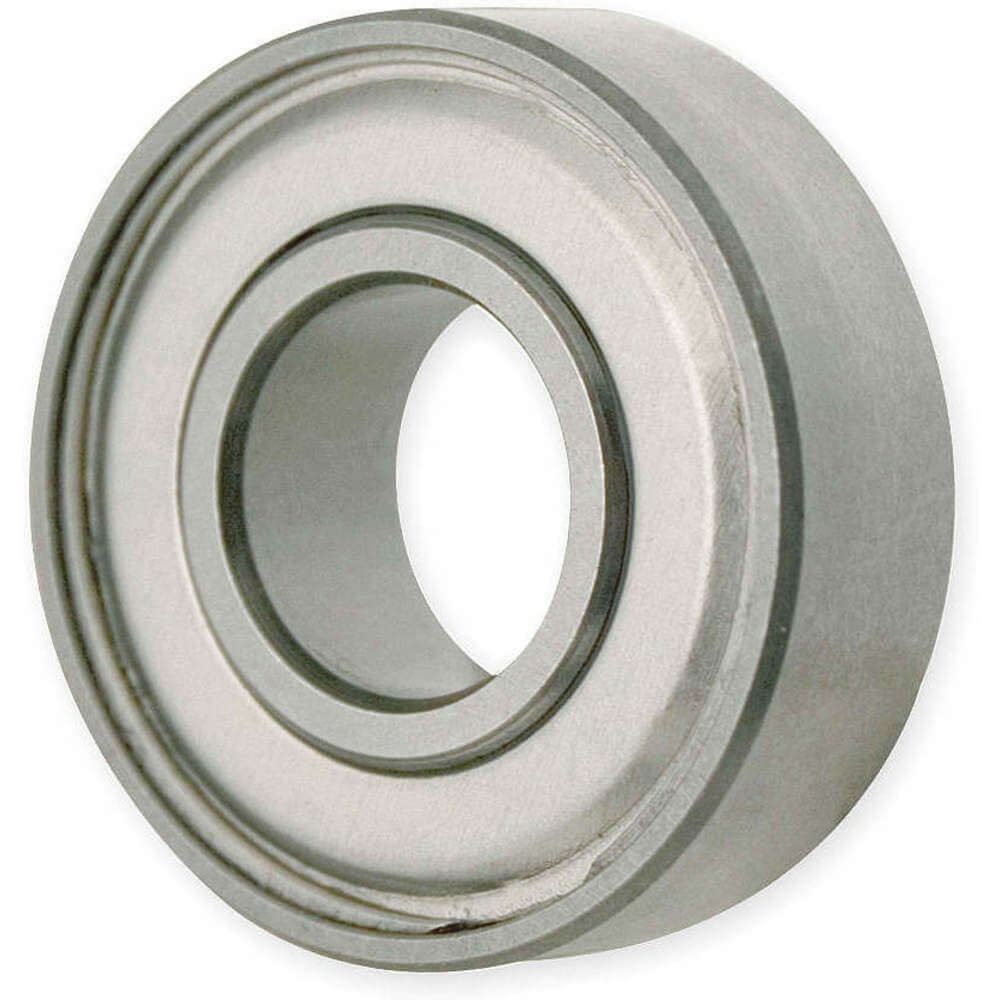

| Item | Radial Ball Bearing |
|---|---|
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Application | Radial And Thrust Load Application |
| Bearing Finish | Chrome Plated |
| Bearing Industry No. | 6304 |
| Bearing Material | Steel |
| Bearing Type | Double Sealed |
| Bore Dia. | 20 mm |
| Bore Diameter Tolerance | -10 µm to 0 µm |
| Cage Finish | Chrome |
| Cage Material | Alloy Steel |
| Closure | Double Sealed |
| Closure & Seal Type | Double Sealed, Non Contact Seal |
| Dynamic Load Capacity | Not Available |
| Includes Retaining Ring | No |
| Lubricant Material | Grease |
| Lubrication | Grease |
|---|---|
| Max. Speed | 14000 RPM |
| Number Of Rows | 1 |
| Outer Ring Width | 15 mm |
| Outside Dia. | 52 mm |
| Outside Diameter Tolerance | -13 µm to 0 µm |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy Steel |
| Seal Material | Nitrile Rubber |
| Seal Type | Non-Contact |
| Seal/shield Type | Double Sealed |
| Shield Material | Stainless Steel |
| System Of Measurement | Metric |
| Width | 15 mm |
| Height (cm) | 0.25 |
|---|---|
| Length (cm) | 17.78 |
| Width (cm) | 10.16 |
| HS Code | 8482105048 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 0.135 |
| Style | Model | Closure | Bore Dia. | Outside Dia. | Cage Material | Outer Ring Width | Max. Speed | Shield Material | Static Radial Load Capacity | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1ZGB8 | Double Shielded | 1/8" | 3/8" | Steel | 0.156" | 56000 RPM | Alloy Steel | 49 lbf. | $5.70 | |
| A | 1ZGB9 | Double Shielded | 1/8" | 1/2" | Steel | 0.171" | 53000 RPM | Alloy Steel | 51 lbf. | $5.67 | |
| A | 1ZGC1 | Double Shielded | 0.187" | 1/2" | Steel | 0.196" | 43000 RPM | Alloy Steel | - | $6.44 | |
| A | 1ZGC2 | Double Shielded | 1/4" | 5/8" | Steel | 0.196" | 38000 RPM | Alloy Steel | - | $6.44 | |
| A | 1ZGC3 | Double Shielded | 1/4" | 3/4" | Steel | 0.281" | 36000 RPM | Alloy Steel | 199 lbf. | $5.84 | |
| A | 1ZGC4 | Double Shielded | 3/8" | 7/8" | Steel | 0.281" | 32000 RPM | Alloy Steel | 315 lbf. | $7.40 | |
| A | 1ZGC5 | Double Shielded | 1/2" | 1 1/8" | Steel | 0.312" | 13000 RPM | Alloy Steel | 504 lbf. | $8.67 |
