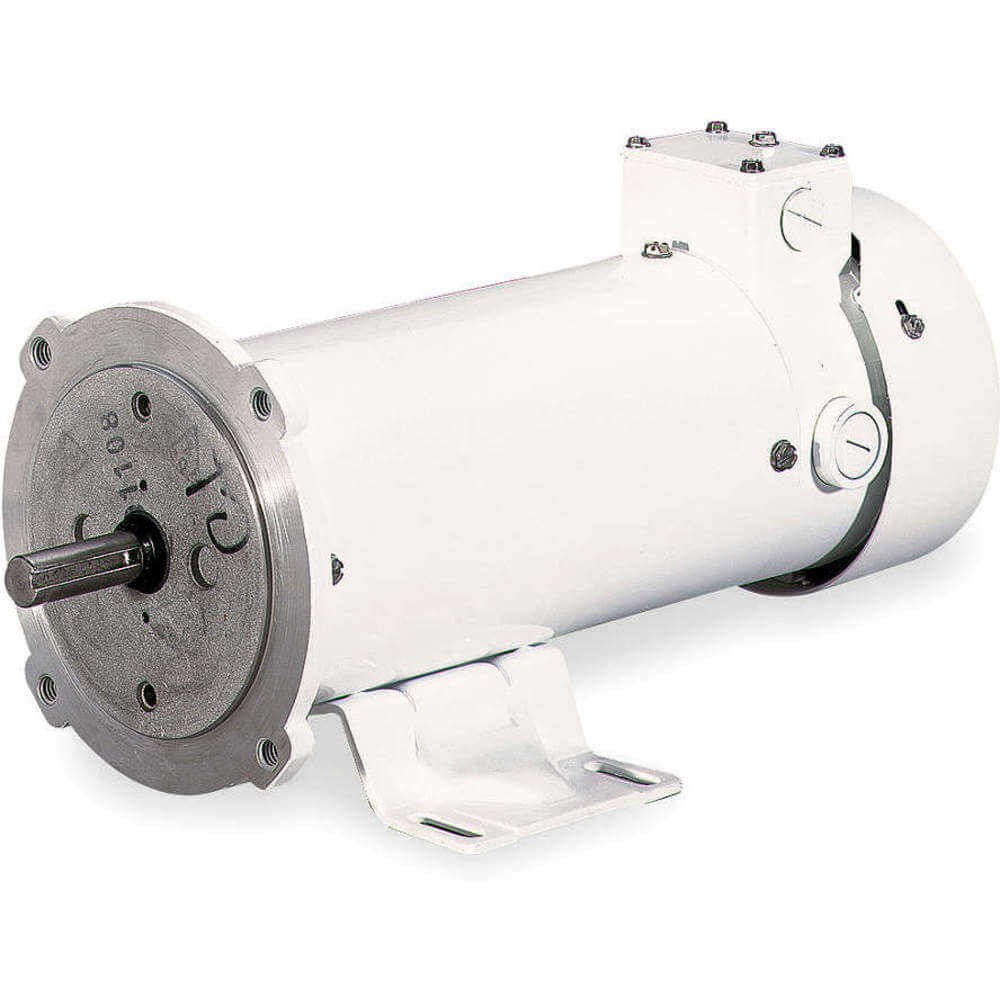

| Item | Washdown DC Motor |
|---|---|
| Ambient Temp. | 104°F |
| Bearing Type | Ball |
| Color | White |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | Epoxy Coated |
| Frame | 56C |
| Frame Material | Steel |
| Full Load Amps | 10A |
| Full Load Torque | 36.6 lbs.-in. |
| Hp | 1 hp |
| Insulation Class | Class H |
| Length | 17" |
| Motor Application | Washdown |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
|---|---|
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nema Design | H |
| No. Of Speeds | 1 |
| Removable Base | Yes |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 90V DC |
| Motor Thermal Protection | None |
| Height (cm) | 22.86 |
|---|---|
| Length (cm) | 52.32 |
| Width (cm) | 18.54 |
| HS Code | 8501316000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 17.1 |
