| Item | Dc Speed Control |
|---|---|
| Accepts Tach Feedback | No |
| Current/torque Limit | Adjustable |
| Dc Input Voltage | 24-36V |
| Dc Speed Control | PWM |
| Depth | 1.7" |
| Enclosure | Chassis |
| Enclosure Type | Open |
| External Switches | None |
| Follower Circuit | No |
| Frame | NEMA 4X |
| Height | 7" |
| Higher Voltage Motor Output Power | 1/4 hp to 1/2 hp |
| Hp @ Higher Voltage | 1/4 hp to 1/2 hp |
| Hp @ Lower Voltage | 1/8 hp to 1 hp |
| Input Voltage | 24/36V |
| Ir Compensation | Adjustable |
| Length | 7" |
| Linear Acceleration | 0 sec. to 10 sec. |
| Lower Voltage Motor Output Power | 1/8 hp to 1 hp |
|---|---|
| Max. Amps | 40A |
| Max. Linear Acceleration | 10 sec. |
| Max. Linear Deceleration | 0.5 sec. |
| Minimum Linear Acceleration | 0 sec. |
| Mounting Type | Chassis |
| Operating Temp. | -10°C to +45°C |
| Output Voltage | 24-36V DC |
| Overall Depth | 1.7" |
| Overall Height | 7" |
| Overall Width | 3.7" |
| Product Type | Dc Speed Control |
| Rotation | Single Direction |
| Series | Series 65 |
| Speed Control | PWM |
| Speed Range | 30:1 |
| Speed Regulation | +/-1% Of Base Speed |
| Standards | RoHS |
| Width | 3.7" |
| Height (cm) | 6.35 |
|---|---|
| Length (cm) | 20.32 |
| Width (cm) | 12.19 |
| HS Code | 8504404000 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.504 |
| Style | Model | Input Voltage | Output Voltage | Max. Amps | Rotation | Enclosure Type | External Switches | Overall Width | Overall Depth | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

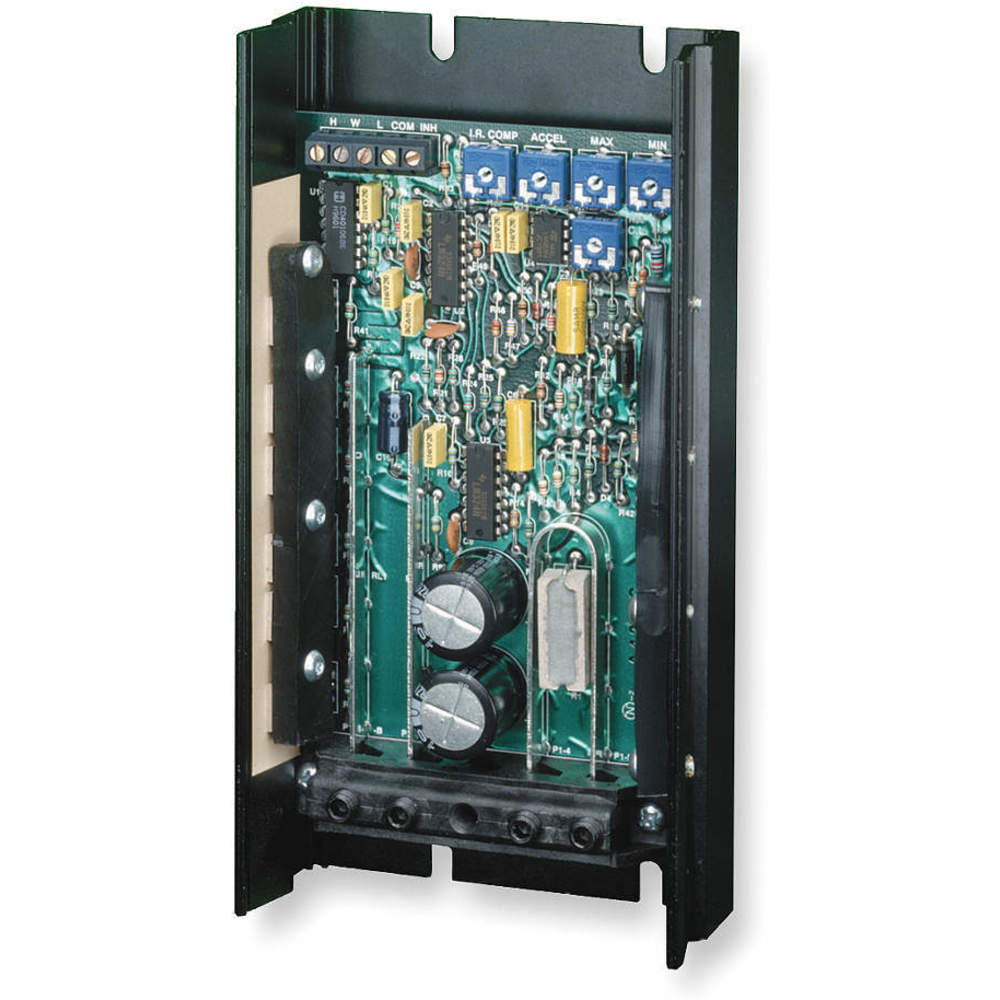

| A | 65E40-12 | 12V | 12V DC | 40A | Single Direction | Open | None | 3.7" | 1.7" | $691.10 | |

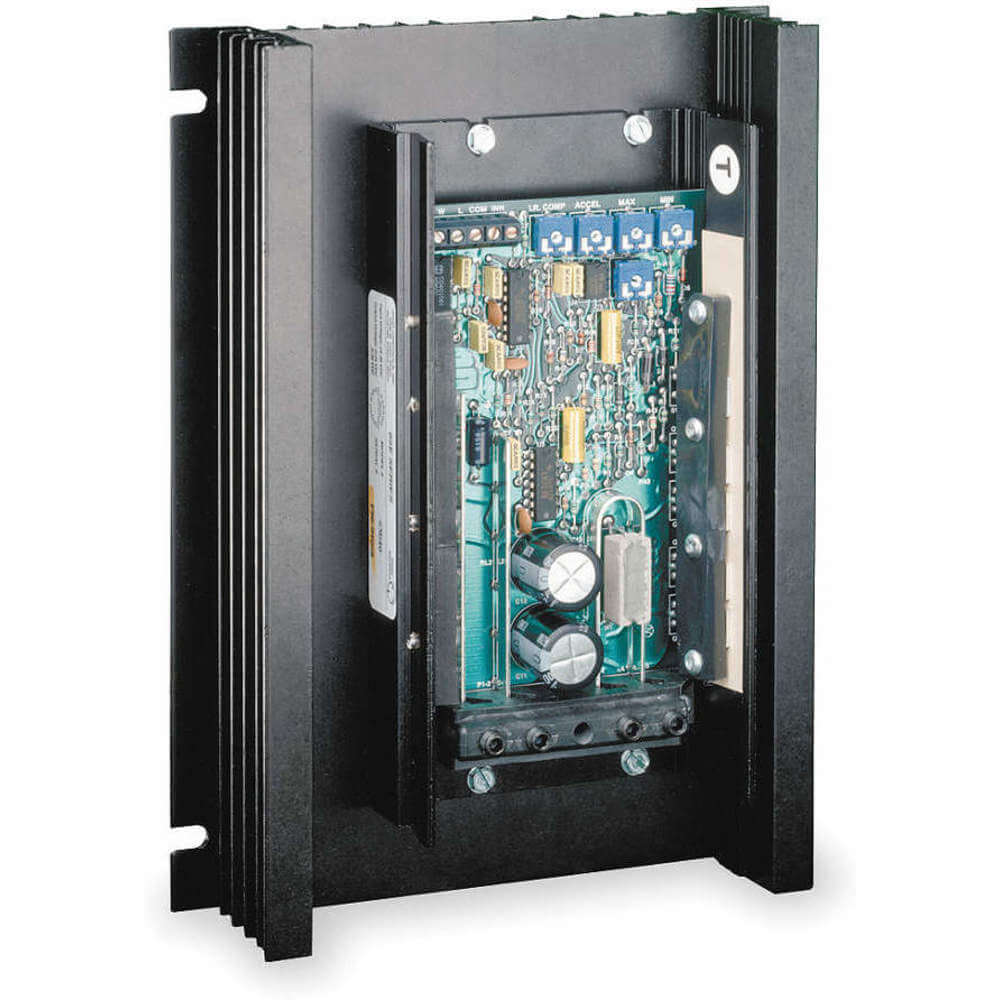

| B | 65E60-12 | 12V | 12V DC | 60A | Single Direction | Open | None | 6.7" | 2.27" | $713.03 | |
| B | 65E60 | 24-36V | 24-36V DC | 60A | Single Direction | Open | None | 6.7" | 2.27" | $695.19 | |

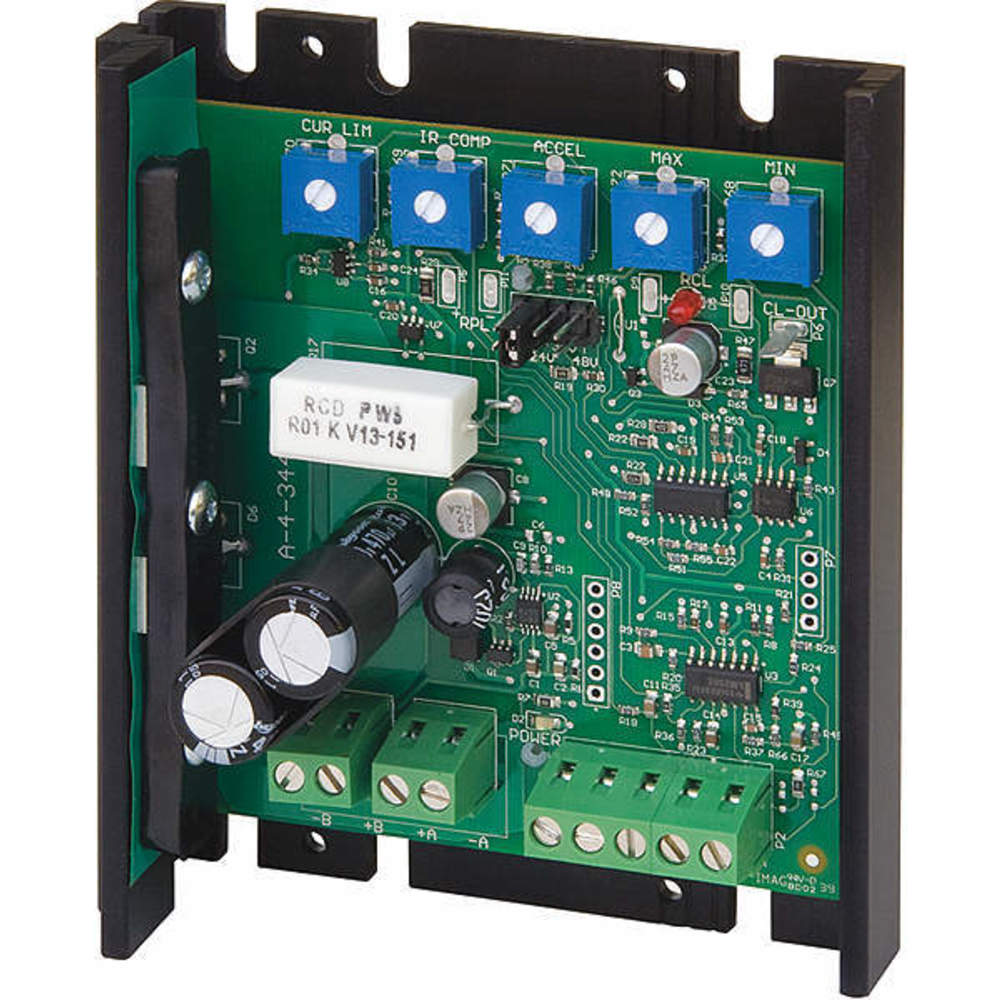

| C | 65E10C | 12-48V | 12-48V DC | 10A | Single Direction | Open | None | 3.62" | 1.3" | $495.97 | |

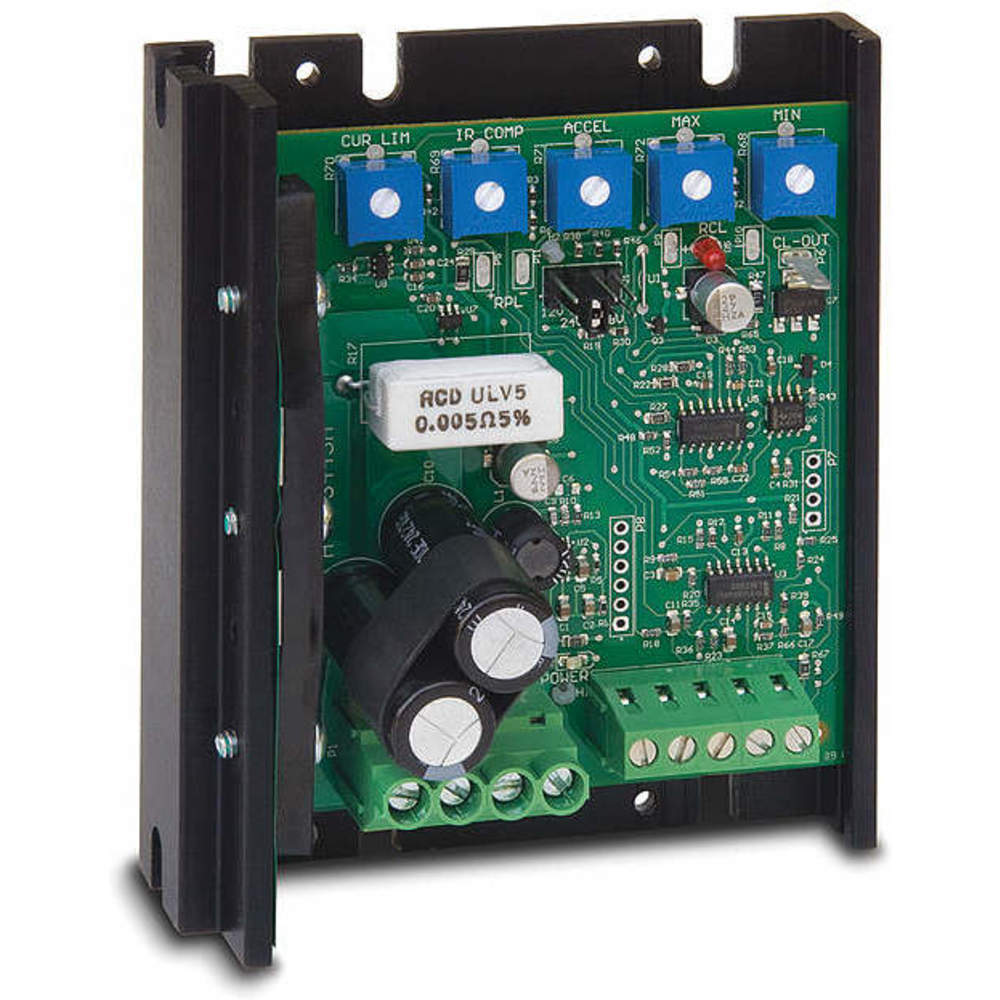

| D | 65E20C | 12-48V | 12-48V DC | 20A | Single Direction | Open | None | 3.62" | 1.3" | $589.23 | |

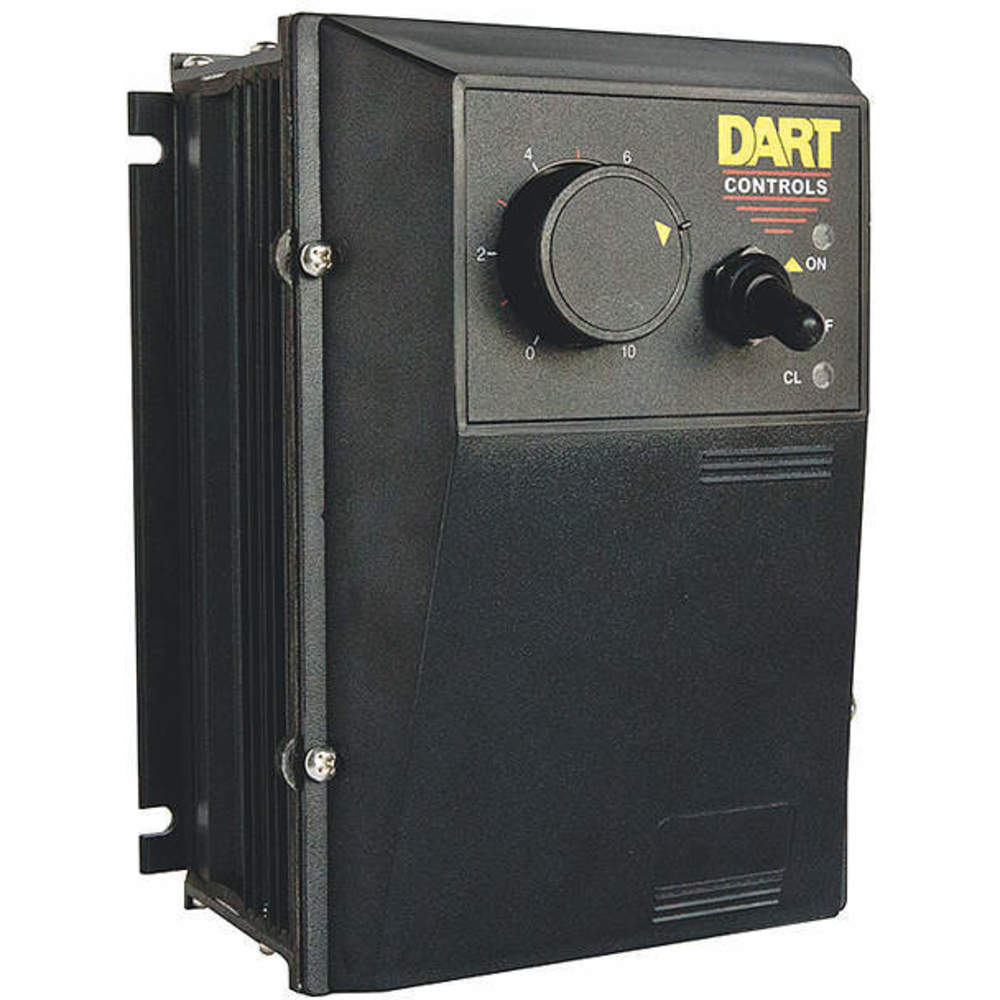

| E | 65E10E | 12-48V | 12-48V DC | 10A | Single Direction | Enclosed | On/Off | 5.53" | 4.78" | $844.72 | |
| F | 65E20E | 12-48V | 12-48V DC | 20A | Single Direction | Enclosed | On/Off | 5.53" | 4.78" | $890.63 |
