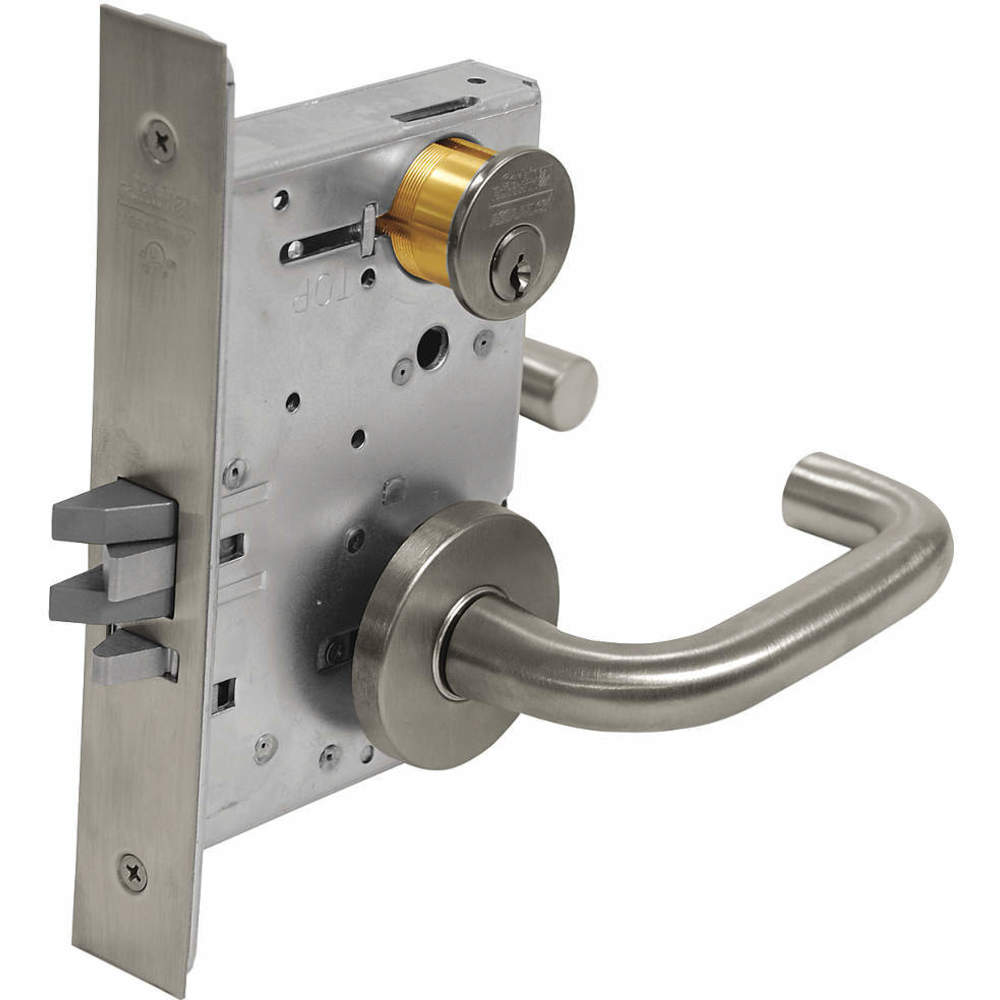

| Item | Heavy Duty Mortise Lockset |
|---|---|
| Ada Compliant | Yes |
| Ansi Grade | Grade 1 |
| Ansi Lockset Function | Passage, Closet |
| Backset | 2 3/4" |
| Bolt Type | Latch Bolt |
| Case Material | Steel |
| Case Size | 5 7/8" x 15/16" x 4" |
| Door Thickness - Maximum | 4" |
| Door Thickness - Minimum | 1 3/8" |
| Features | Integrates With Access Control Platforms |
| Finish | Satin Chrome |
| Fire Rating | 3 hrs. |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets, Storeroom Lever Locksets |
| Hand Orientation | Non Handed |
| Includes Core | No |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Keyway Type | Not Available |
| Knob/handle Material | Steel |
| Ligature Resistance | Not Ligature Resistant |
| Location Type | Commercial |
| Lock Assembly Type | Mortise |
|---|---|
| Lockset Function Ansi Code | F01 |
| Lockset Handle Type | Lever |
| Lockset Style | Nsm Lever |
| Lockset Type | Mechanical |
| Number Of Keys | 0 |
| Number Of Pins | 6 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 1 |
| Properties | Vandal Resistant |
| Required Door Thickness | 1 3/4" |
| Strike Dim. | 1 1/4" x 4 7/8" |
| Strike Plate Height | 4 7/8" |
| Strike Plate Lip Length | 1 1/8" |
| Strike Plate Thickness | 1 1/4" |
| Strike Type | Straight Lip |
| Style | Newport |
| Trim Plate Shape | Rectangular |
| Trim Style | Escutcheon |
| Ul Fire Rating | UL10C |
| Visual Indicator Message | No Message |
| Standards | ANSI/BHMA A156.13, ASTM E330, CUL LISTED, EPD, UL LISTED |
| Height (cm) | 12.45 |
|---|---|
| Length (cm) | 24.89 |
| Width (cm) | 18.8 |
| HS Code | 8301406030 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 2.52 |
| Style | Model | Style | Finish | Key Type | Keyway Type | Required Door Thickness | Backset | Fire Rating | Number Of Pins | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ML2010 LWA 630 | Round | Satin Stainless Steel | Not Keyed | Not Available | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $901.49 | |
| B | ML2030 LWA 630 | Round | Satin Stainless Steel | Not Keyed | Not Available | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $1,037.28 | |
| C | ML2051 LWA630 | Round | Satin Stainless Steel | Keyed Different | L4 | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $1,157.88 | |
| D | ML2052 LWA 630 | Round | Satin Stainless Steel | Keyed Different | L4 | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $1,206.29 | |
| D | ML2055 LWA 630 | Round | Satin Stainless Steel | Keyed Different | L4 | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $1,122.48 | |
| D | ML2057 LWA 630 | Round | Satin Stainless Steel | Keyed Different | L4 | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $1,130.31 | |
| E | ML2010 NSA 626 | Flat | Satin Chrome | Not Keyed | Not Available | 1 3/4" | 2 3/4" | 3 hrs. | 6 | $1,266.56 |
