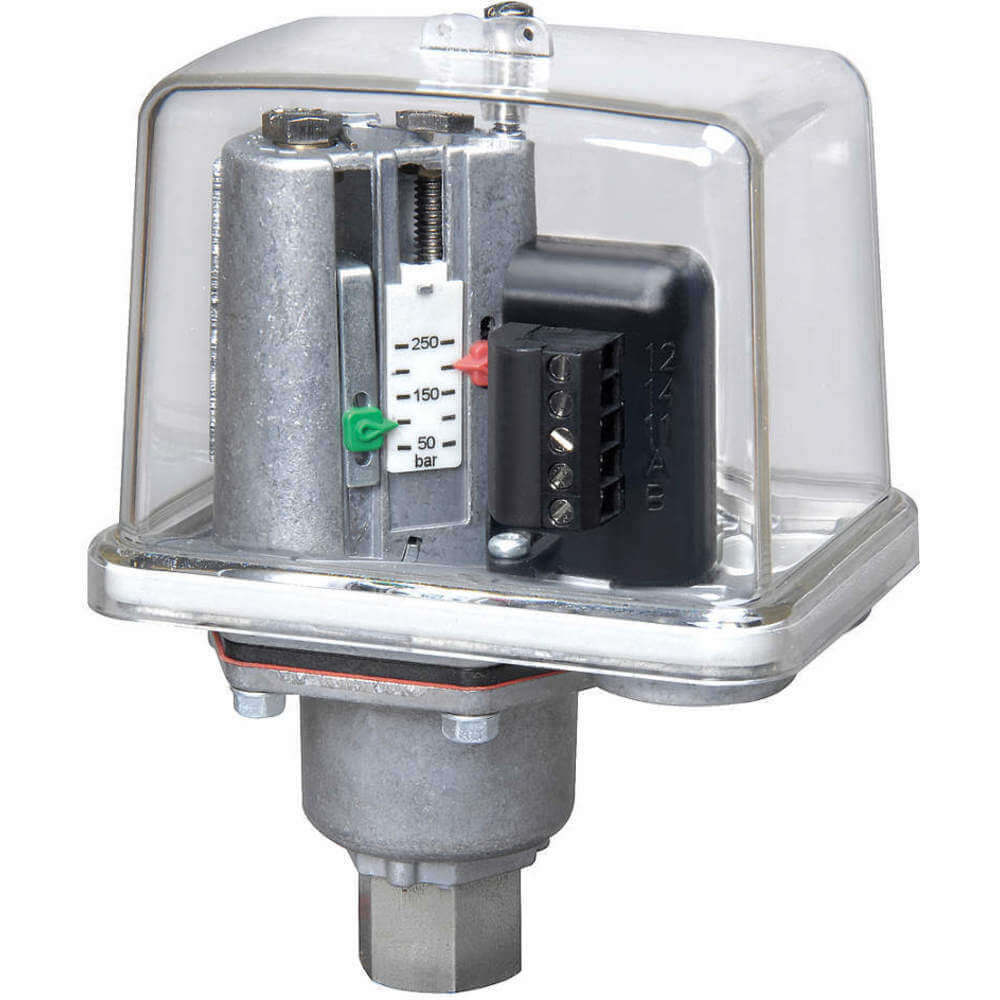

| Item | Pressure Switch |
|---|---|
| Ac Contact Rating | 10A @ 230V |
| Action Type | Standard/Reverse |
| Actuation Type | Diaphragm |
| Burst Pressure | 580 psi |
| Contact Form | SPDT |
| Dc Contact Rating | 6A @ 12V Pilot Duty |
|---|---|
| Differential | 1 psi to 28 psi |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Operating Temp. Range | -40°F to +160°F |
| Range | 0.6 psi to 29 psi |
| Standards | CSA C22.2, DIN 40 050/IEC 529, UL 508 |
| Height (cm) | 8.64 |
|---|---|
| Length (cm) | 15.75 |
| Width (cm) | 10.92 |
| HS Code | 8536509065 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 0.495 |
| Style | Model | Ac Contact Rating | Actuation Type | Burst Pressure | Contact Form | Hp @ 1 Phase - 120v | Operating Temp. Range | Hp @ 1 Phase - 240v | Contact Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | MDR-F 4H-S E4 | 10A @ 230V | Diaphragm | 580 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $216.10 | |
| A | MDR-F 8H-S E4 | 10A @ 230V | Diaphragm | 580 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $219.54 | |
| A | MDR-F 10H-S E4 | 10A @ 230V | Diaphragm | 580 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $221.24 | |
| A | MDR-F 16H-S E4 | 10A @ 230V | Diaphragm | 696 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $237.31 | |
| A | MDR-F 32H-S E4 | 10A @ 230V | Diaphragm | 928 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $262.51 | |
| B | MDR-F 60HH-S E4 | 10A @ 230V | Piston | 1740 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $311.33 | |
| B | MDR-F 120HH-S E4 | 10A @ 230V | Piston | 3480 psi | SPDT | 1/2 hp | -40°F to +160°F | - | - | $351.73 |
