| Item | Hydraulic Gear Pump |
|---|---|
| Cover Material | Aluminum, Cast Iron |
| Discharge Connection Size | 10" |
| Displacement | 0.36 cu. in./rev. |
| Displacement Per Revolution | 0.36 cu. in./rev. |
| End Cap Material | Aluminum, Cast Iron |
| Features | 5/8 In Key Shaft |
| Gpm @ 1800 Rpm & 1000 Psi | 2.8 GPM |
| Gpm @ 3600 Rpm & 1000 Psi | 5.61 GPM |
| Housing | Aluminum |
| Housing Material | Aluminum |
| Intake Connection | 12" Sae |
| Length | 3.87" |
| Max. Continuous Pressure | 3000 psi |
| Max. Intermittent Pressure | 3650 psi |
| Max. Speed | 3600 RPM |
|---|---|
| Media Intake Connection Size | 12" |
| Media Intake Connection Type | SAE |
| Motor Speed (maximum) | 3600 RPM |
| Motor Speed (minimum) | 2000 RPM |
| Mounting Type | 2 Bolt Sae A |
| Nominal Gpm @ 1200 Rpm | 1.87 GPM |
| Oil Temperature (maximum) | 175°F |
| Overall Length | 3.9" |
| Overall Width | 5.1" |
| Ports (inlet) | 12 |
| Ports (outlet) | 10 |
| Rotation | CCW |
| Shaft Outer Diameter | 5/8" |
| Shaft Type | Keyed |
| Height (cm) | 16.51 |
|---|---|
| Length (cm) | 17.78 |
| Width (cm) | 16.76 |
| Country Of Origin | CN |
|---|---|
| Weight (kg) | 3.6675 |
| Style | Model | Displacement | Max. Continuous Pressure | Gpm @ 1800 Rpm & 1000 Psi | Gpm @ 3600 Rpm & 1000 Psi | Max. Intermittent Pressure | Nominal Gpm @ 1200 Rpm | Overall Length | Rotation | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

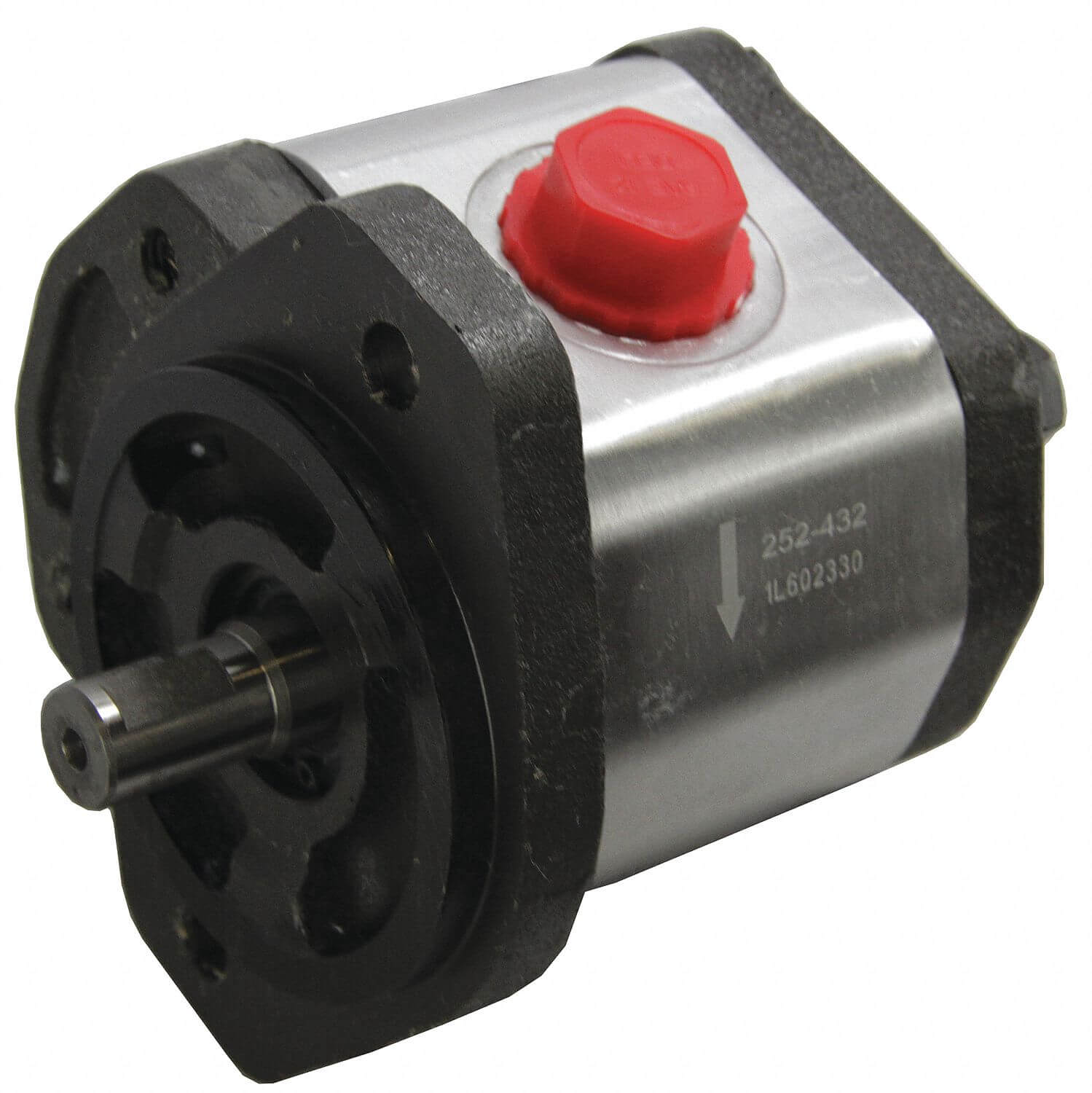

| A | CB2A-F11SFA | 0.73 cu. in./rev. | 3000 psi | 5.68 GPM | 11.3 GPM | 3650 psi | 3.79 GPM | 4.1" | CCW | $252.90 | |
| A | CB2A-F7SFA | 0.48 cu. in./rev. | 3000 psi | 2.49 GPM | 7.48 GPM | 3650 psi | 2.49 GPM | 3.8" | CCW | $268.56 | |
| B | CBD-F310-A-P-A | 0.61 cu. in./rev. | 3000 psi | 4.75 GPM | 9.5 GPM | 3650 psi | 3.16 GPM | 4.1" | CCW | $461.60 | |
| B | CBD-F330-A-P-A | 1.22 cu. in./rev. | 2900 psi | 9.5 GPM | 19.01 GPM | 2900 psi | 6.33 GPM | 4.7" | CCW | $496.33 | |

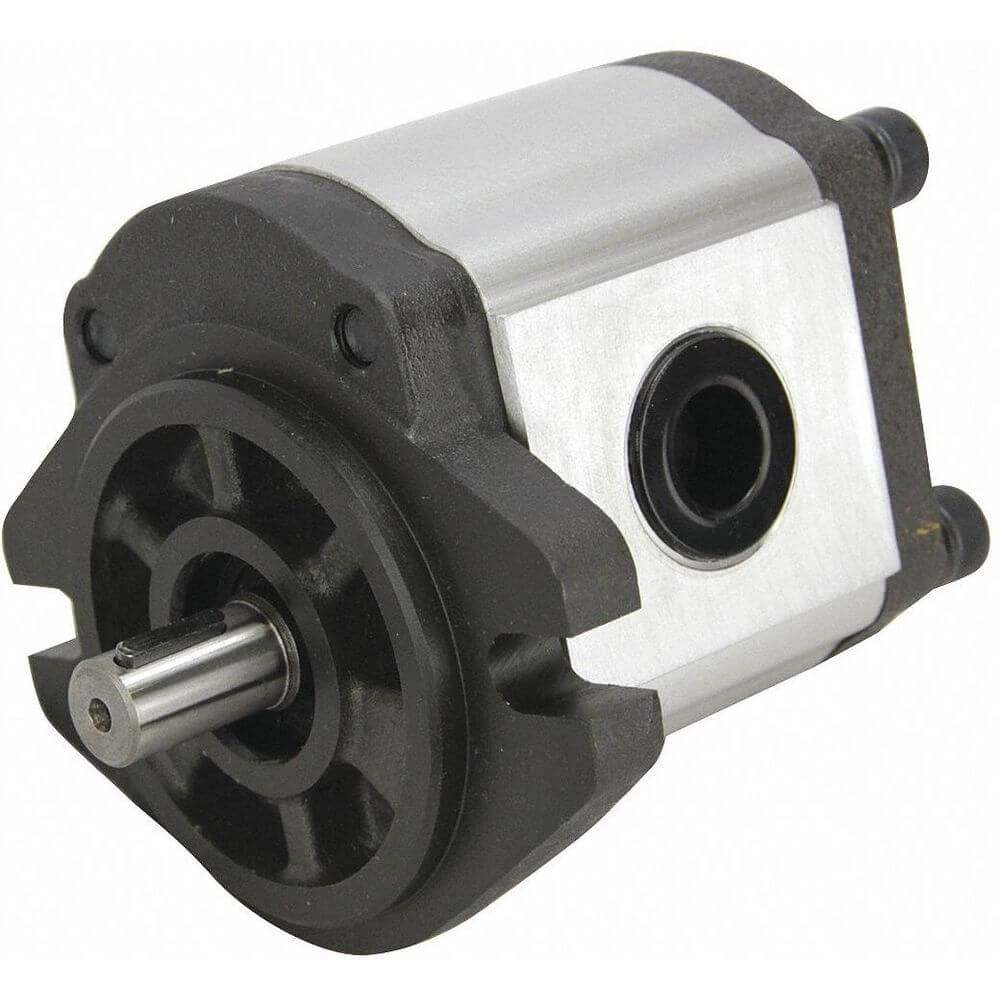

| C | CBD-F314-A-P-A | 0.85 cu. in./rev. | 3000 psi | 6.62 GPM | 13.24 GPM | 3650 psi | 4.41 GPM | 4.4" | CCW | $452.24 |
