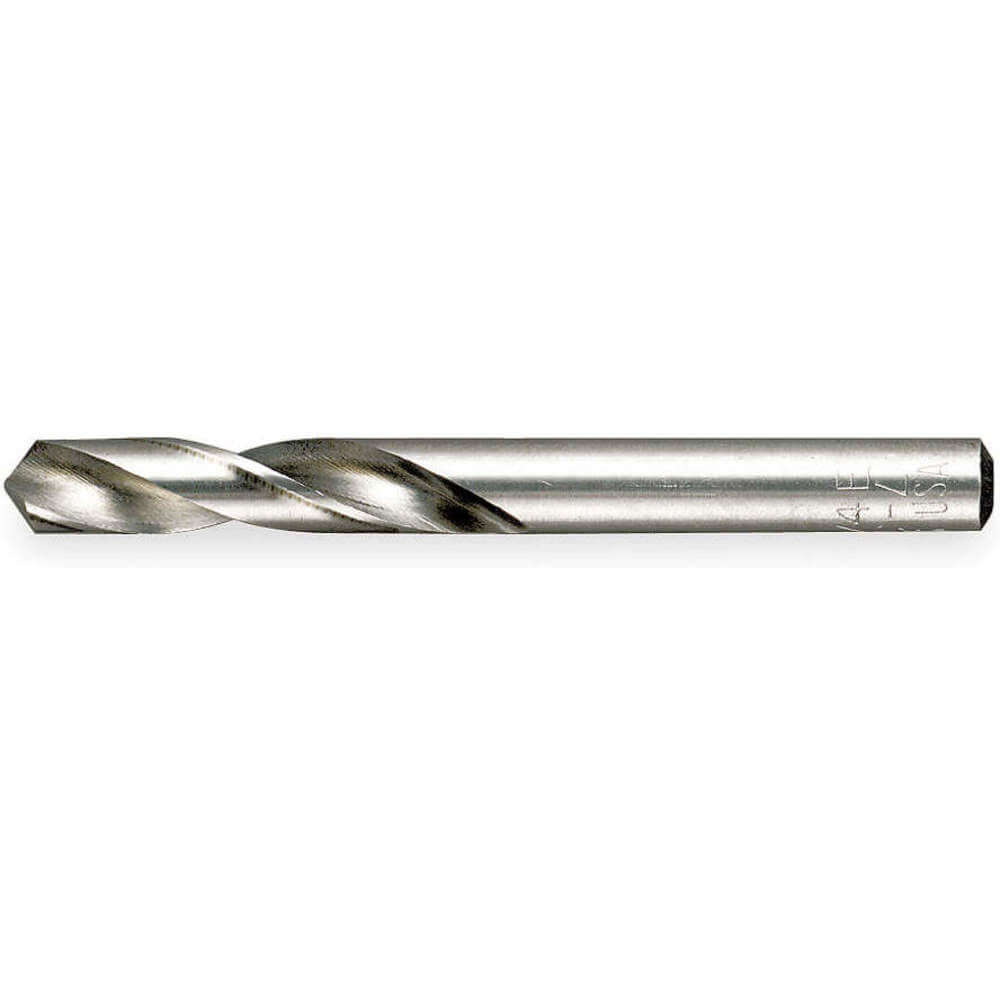

| Item | Screw Machine Drill |
|---|---|
| Application | For Alloy And Carbon Steels And Cast Iron |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.272 |
| Depthdia. Ratio | 4Xd |
| Dimension Type | Letter |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | Bright |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 118° |
| Drill Bit Point Type | Conventional Point |
| Drill Bit Size | I |
| Drill Diameter Tolerance | -0.001" to 0" |
| Drill Length Class | Screw Machine Length |
| Drill Point | 118° |
| Finish | Bright |
| Finish - Machining | Bright (Uncoated) |
| Flute Length | 1 1/2" |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 28° |
| Left/right Hand | Right |
| Letter Size | I |
|---|---|
| List Number | 157 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machining | General Purpose |
| Max. Drilling Depth | 1 1/2" |
| Number Of Flutes | 2 |
| Number Of Pieces | 1 |
| Overall Length | 2 11/16" |
| Point Angle | 118° |
| Point Type | Conventional Point |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Primary Material Application Iso Code | K, N, P |
| Shank Dia. | 0.272" |
| Shank Diameter | 17/64" |
| Shank Length | 1 3/16" |
| Shank Type - Machining | Straight |
| Size | I |
| Spiral Direction | Right Hand |
| Standards | Not Rated |
| System Of Measurement | Letter |
| Type | Standard |
| Height (cm) | 3.81 |
|---|---|
| Length (cm) | 8.55 |
| Width (cm) | 0.76 |
| HS Code | 8207502080 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 0.0023 |
| Style | Model | Overall Length | Flute Length | Decimal Equivalent | Drill Bit Size | Shank Dia. | Point Type | Finish | Dimension Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

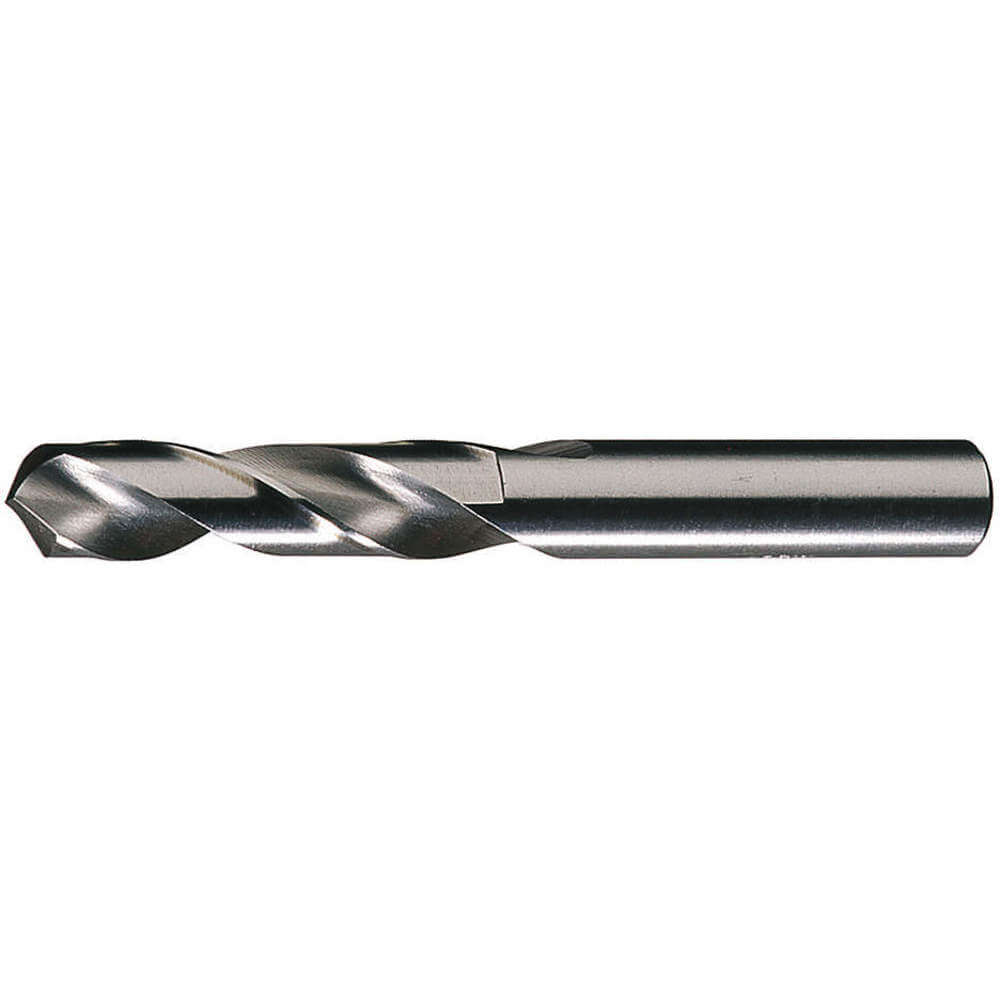

| A | 48504 | 1 5/8" | 5/8" | 0.0625 | 1/16" | 1.587 mm | General Purpose | Bright | Fractional Inch | $3.10 | |
| A | 48505 | 1 11/16" | 11/16" | 0.0781 | 5/64" | 1.984 mm | General Purpose | Bright | Fractional Inch | $3.14 | |
| A | 48506 | 1 3/4" | 3/4" | 0.0938 | 3/32" | 2.381 mm | General Purpose | Bright | Fractional Inch | $3.24 | |
| A | 48507 | 1 13/16" | 13/16" | 0.1094 | 7/64" | 2.779 mm | General Purpose | Bright | - | $3.14 | |
| A | 48508 | 1 7/8" | 7/8" | 0.125 | 1/8" | 3.175 mm | General Purpose | Bright | Fractional Inch | $3.33 | |
| A | 48509 | 1 15/16" | 15/16" | 0.1406 | 9/64" | 3.571 mm | General Purpose | Bright | Fractional Inch | $3.09 | |
| A | 48510 | 2 1/16" | 10" | 0.1562 | 5/32" | 3.967 mm | General Purpose | Bright | Fractional Inch | $3.59 |
