| Item | Pipe Plug |
|---|---|
| Application | Stack Testing |
| For Maximum Pipe Inside Diameter | 8.03" |
| For Minimum Pipe Inside Diameter | 7.7" |
| For Pipe Size | 8" |
| Handle Material | Zinc |
| Head Type | Wing Nut |
| Included Water Fill Port/hose | Not Included |
| Material | ABS |
| Maximum Back Pressure | 17 psi |
| Maximum Back Pressure (air) | 17 psi |
| Maximum Back Pressure (water) | 40 Ft. Of Head |
|---|---|
| Nominal Size | 8" |
| Overall Height | 3 3/4" |
| Plate Material | ABS |
| Plug Length | 3 3/4" |
| Plug Seal Location | End Of Pipe |
| Plug Seal Material | Natural Rubber |
| Plug Type | Mechanical |
| Range | 7.7" to 8.03" |
| Series | ECON-O-GRIP Series |
| Test Plug Weight | 3 lbs. |
| Height (cm) | 19.68 |
|---|---|
| Length (cm) | 48.26 |
| Width (cm) | 9.52 |
| HS Code | 4016991500 |
|---|---|
| Country Of Origin | CH |
| Weight (kg) | 1.179 |
| Style | Model | For Pipe Size | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Nominal Size | Range | Application | Plug Length | Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

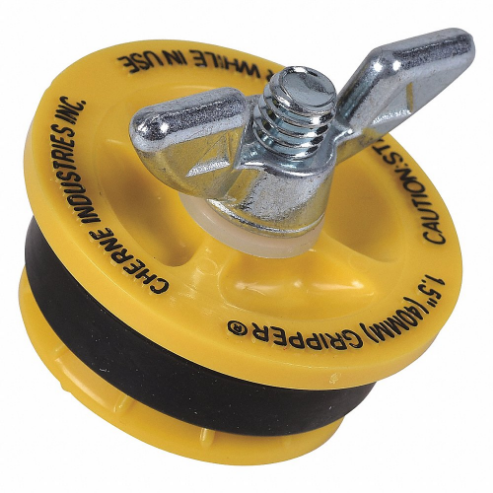

| A | 270210 | 1 1/2" | 1 12/25" | 1.65" | 1 1/2" | 1.48" to 1.65" | Stack Testing | 1 3/4" | 1 3/4" | $10.81 | |

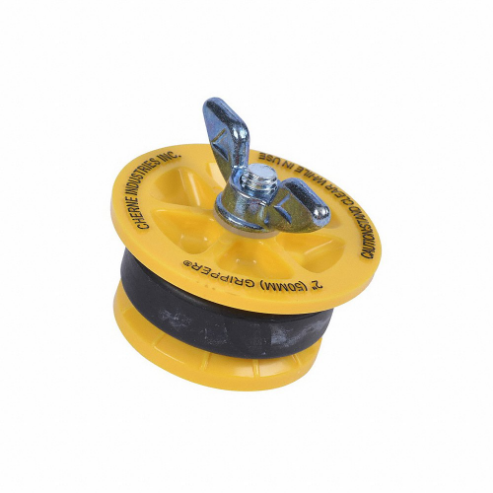

| B | 270229 | 2" | 1.9" | 2.17" | 2" | 1.9" to 2.17" | Stack Testing | 1.87" | 1.87" | $12.34 | |

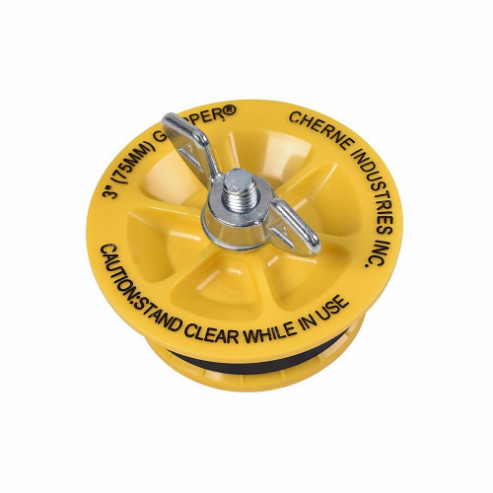

| C | 270237 | 3" | 2 4/5" | 3.1" | 3" | 2.8" to 3.1" | Stack Testing | 2 1/2" | 2 1/2" | $15.13 | |
| D | 270245 | 4" | 3 4/5" | 4.06" | 4" | 3.8" to 4.06" | Stack Testing | 2 1/2" | 2 1/2" | $17.94 | |
| E | 270261 | 6" | 5.77" | 6 2/25" | 6" | 5.77" to 6.08" | Bypass | 3 3/4" | 3 3/4" | $56.29 |
