| Item | Square Flange Pool Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Conduit Box Position | F1 |
| Design | Two Compartment |
| Dia. | 5 3/5" |
| Diameter | 5 3/5" |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Type | Open Dripproof |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 11.2A |
| Height | 11" |
| Hp | 2 1/2 hp |
| Insulation Class | Class B |
| Length | 14 9/16" |
| Length Less Shaft | 13 11/16" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Efficiency Group | High Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
|---|---|
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Face |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 14 9/16" |
| Phase | 1 |
| Rpm | 3450 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1" |
| Shaft Material | Stainless Steel |
| Shaft Type | Threaded |
| Standards | Csa, Ul |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 24.13 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 32 |
| Style | Model | Voltage | Hp | Rpm | Mounting Type | Service Factor | Frame | Phase | Motor Application | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B2983 | 230V AC | 1 1/2 hp, 1/6 hp | 3450/1725 RPM | Face | 1.47 | 56Y | 1 | Pool/Spa Motor | $950.96 | |

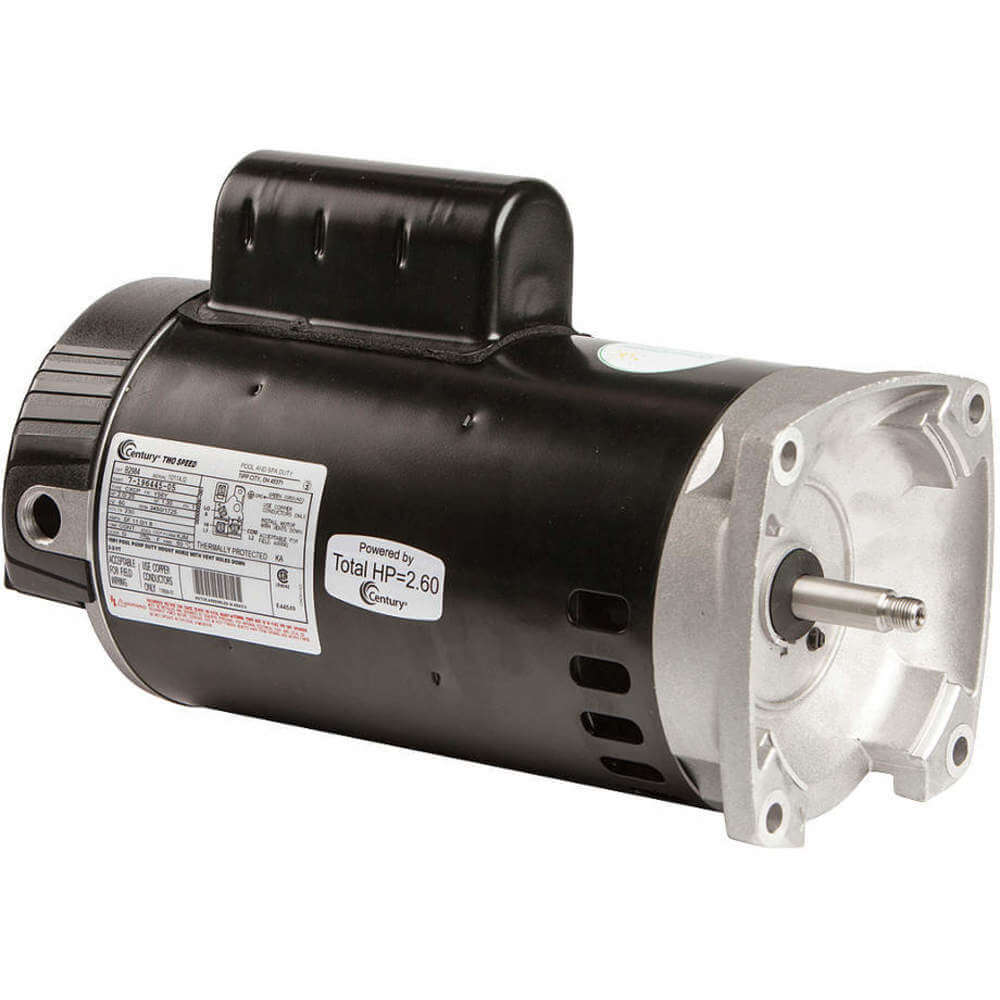

| B | B2984 | 230V AC | 2 hp, 1/4 hp | 3450/1725 RPM | Face | 1.3 | 56Y | 1 | Pump | $1,195.50 | |

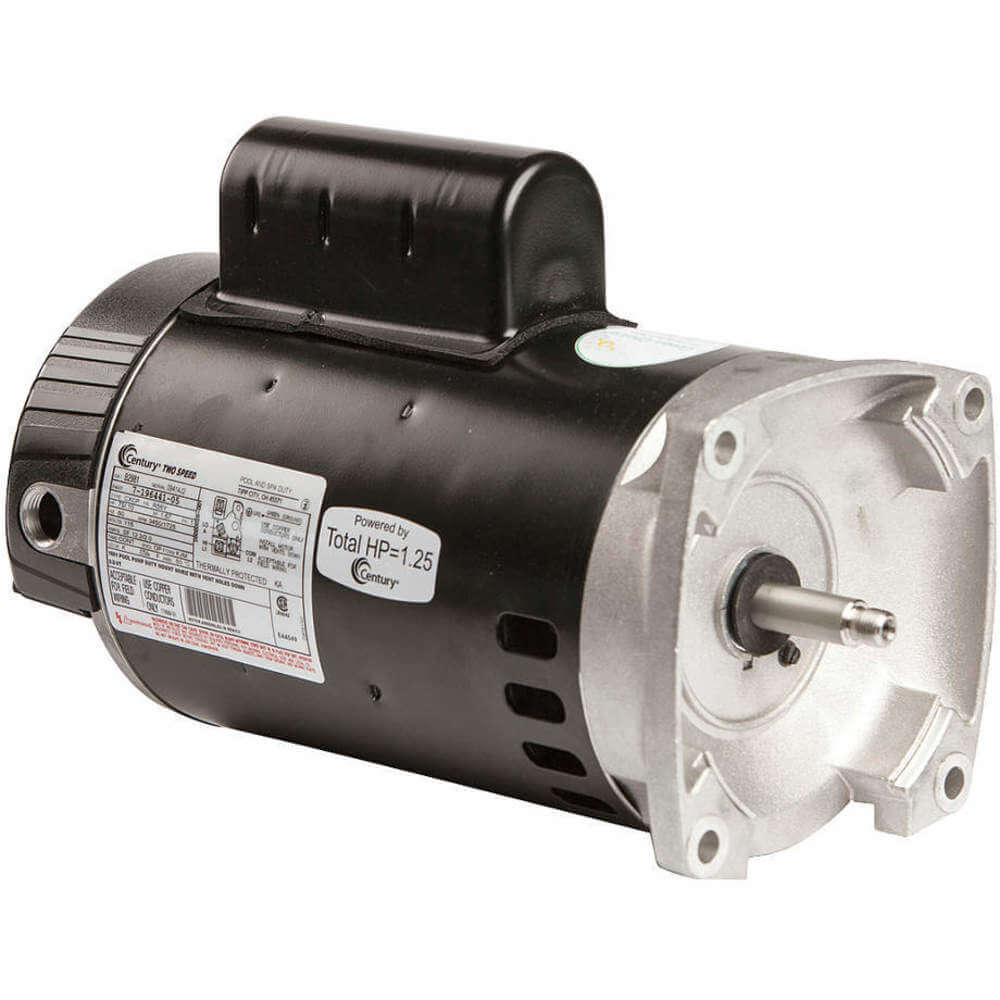

| C | B2981 | 115V AC | 3/4 hp, 1/10 hp | 3450/1725 RPM | Face | 1.67 | 56Y | 1 | Pump | $826.55 | |

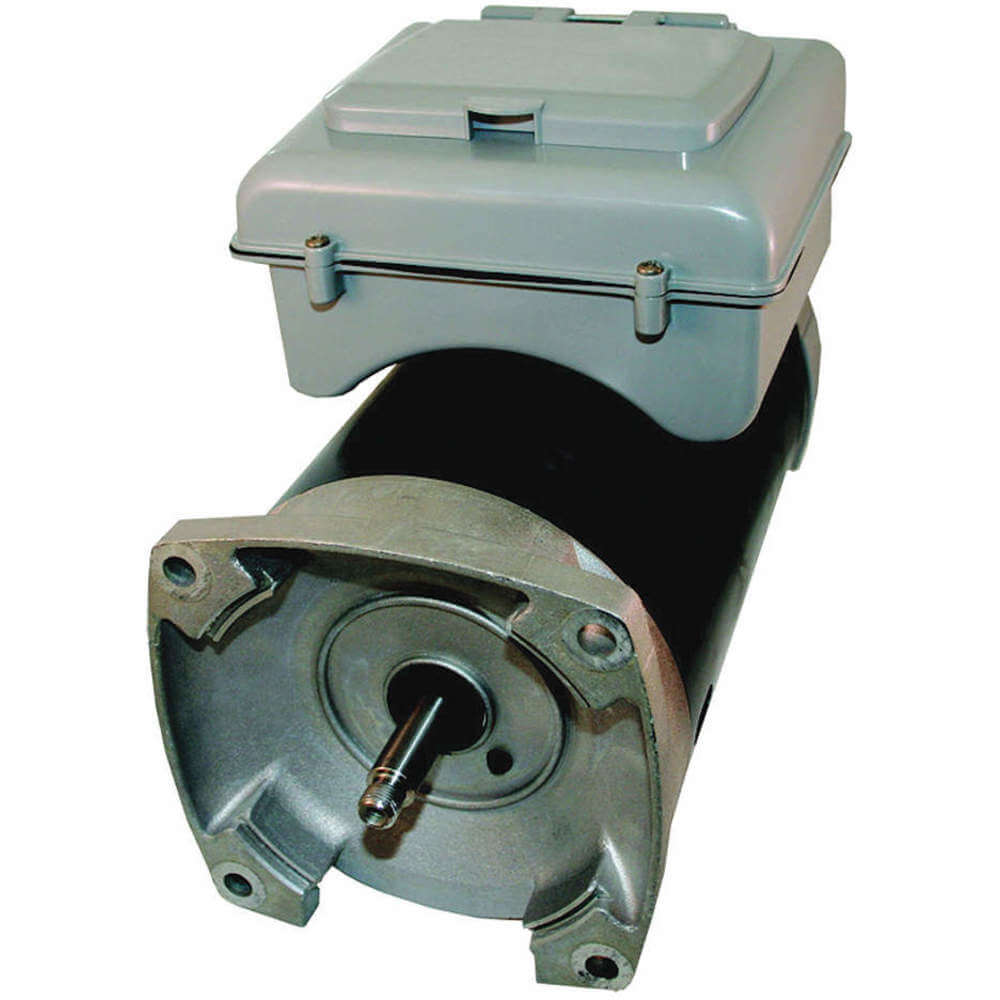

| D | B2982 | 230V AC | 1 hp, 1/10 hp | 3450/1725 RPM | Face | 1.65 | 56Y | 1 | Pump | $813.88 | |

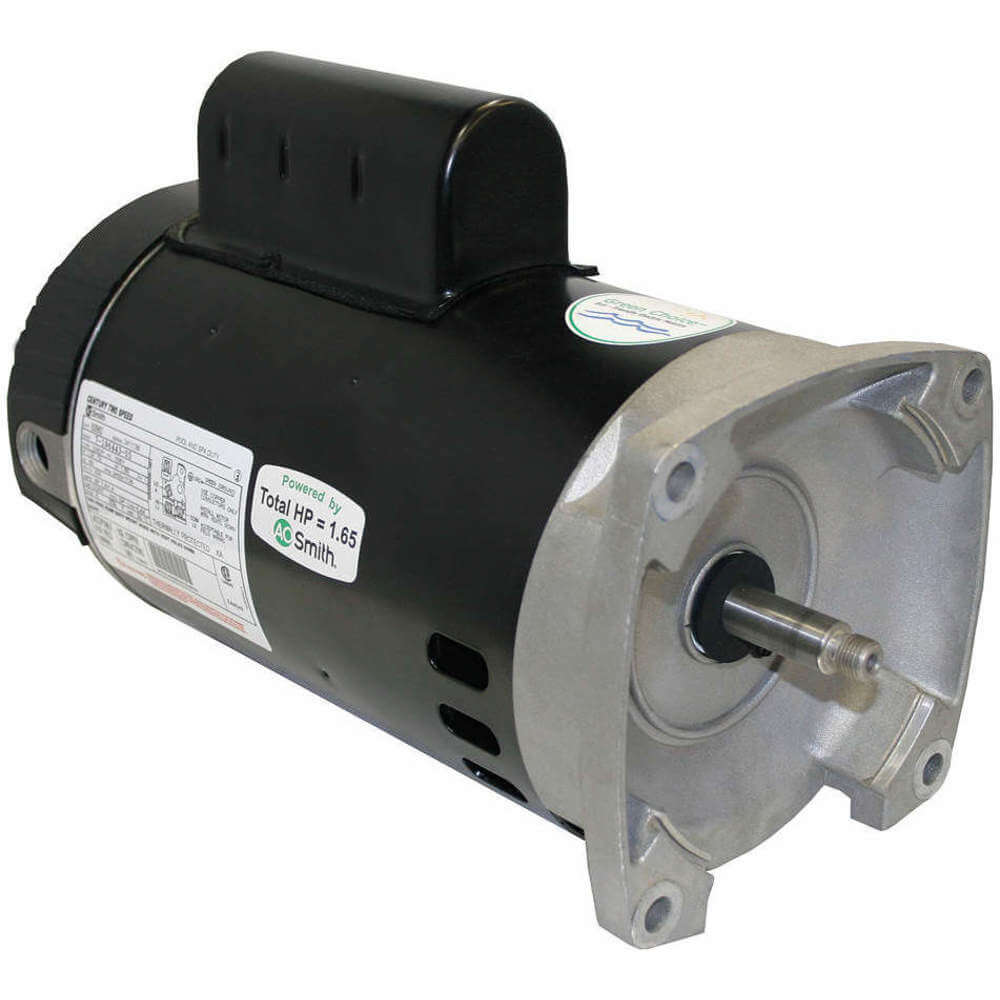

| E | B2980 | 230V AC | 3/4 hp, 1/10 hp | 3450/1725 RPM | Face | 1.67 | 56Y | 1 | Pump | $769.48 | |

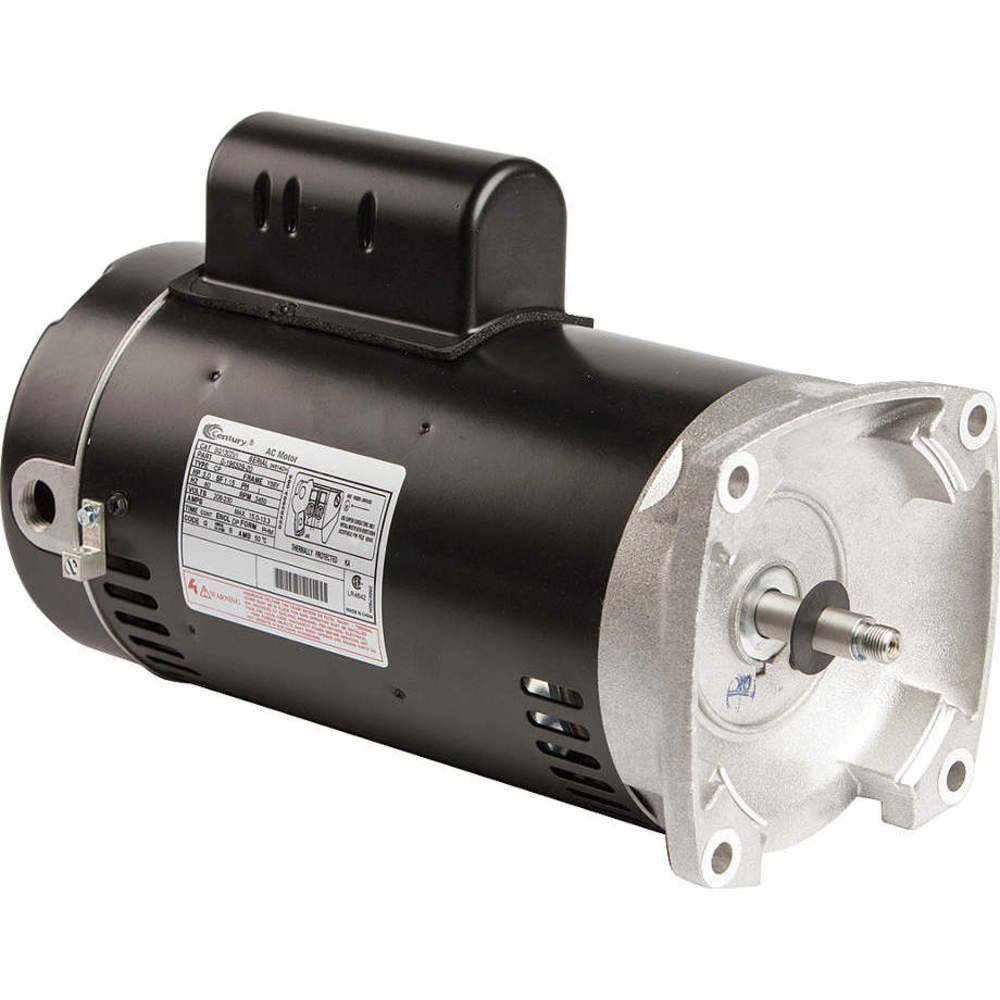

| F | SQ1302V1 | 208-230V AC | 3 hp | 3450 RPM | Face | 1.15 | 56Y | 1 | Pump | $1,093.11 | |

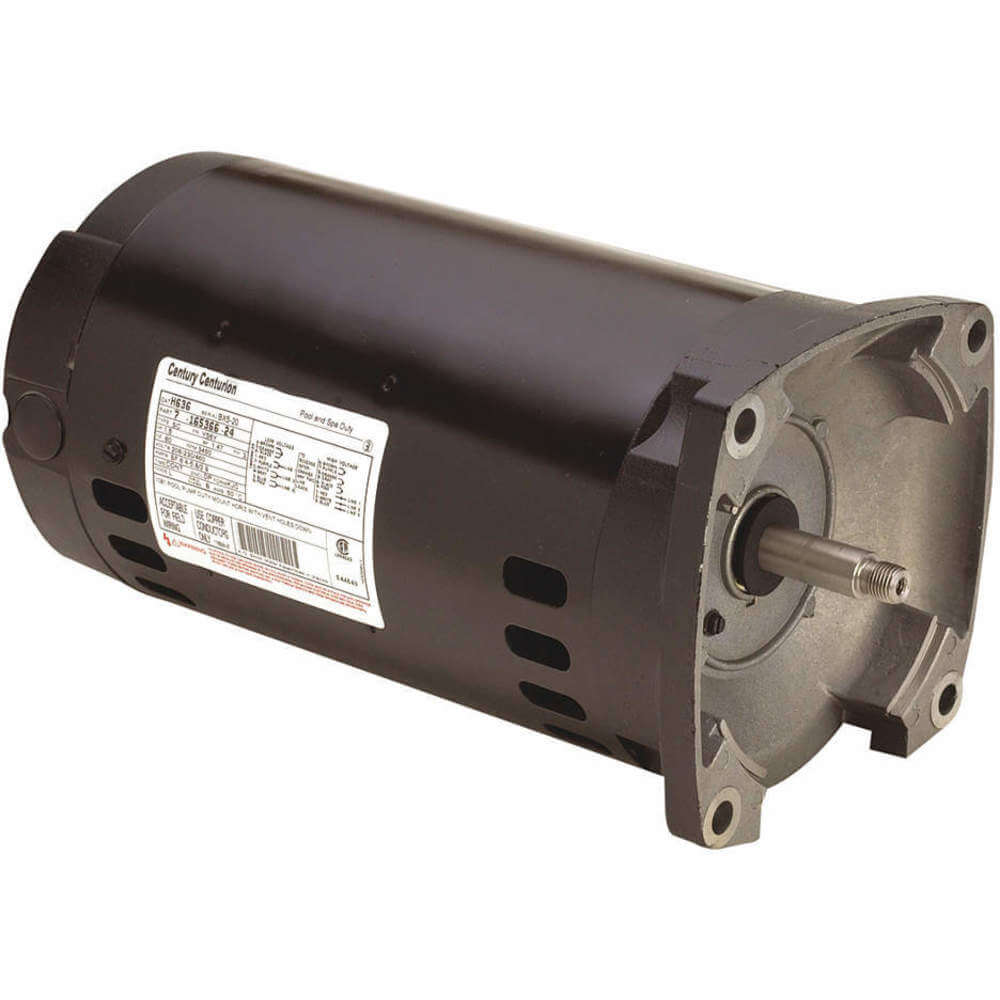

| G | H491 | 208-230/460V AC | 1/2 hp | 3450 RPM | Face | 1.9 | 56Y | 3 | Pump | $614.36 |
