| Item | Pool and Spa Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 5.7" |
| Bolt Circle Dia. | 5 3/16" |
| Color | Black |
| Conduit Box Position | F3 |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Finish | Black |
| Flange Material | Aluminum |
| Frame | 56Z |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10.7/3A |
| Height | 8 9/16" |
| Hp | 2 1/2 hp, 1/4 hp |
| Insulation Class | Class F |
| Length Less Shaft | 10 15/16" |
| Max. Ambient Temp. | 50°C |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
|---|---|
| Motor Shaft Design | Threaded |
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450/1725 RPM |
| No. Of Speeds | 2 |
| Number Of Speeds | 2 |
| Overall Height | 8 9/16" |
| Overall Length | 13 5/16" |
| Phase | 1 |
| Service Factor | 1 |
| Service Factor Amps | 10.7/3A |
| Shaft Dia. | 1/2" |
| Shaft Length | 2 3/8" |
| Shaft Material | Stainless Steel |
| Shaft Size | 1/2" |
| Shaft Thread Class | Class 2A |
| Shaft Thread Direction | Right Hand |
| Shaft Thread Size | 3/8"-16 |
| Shaft Thread Type | Coarse |
| Shaft Type | Threaded |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V AC |
| standard | CALIFORNIA ENERGY COMMISSION APPLIANCE REGULATIONS 2008, UL |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 24.13 |
| HS Code | 8501406040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 33 |
| Style | Model | Voltage | Hp | Nameplate Rpm | Frame | Motor Shaft Rotation | Service Factor Amps | Shaft Material | Max. Ambient Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

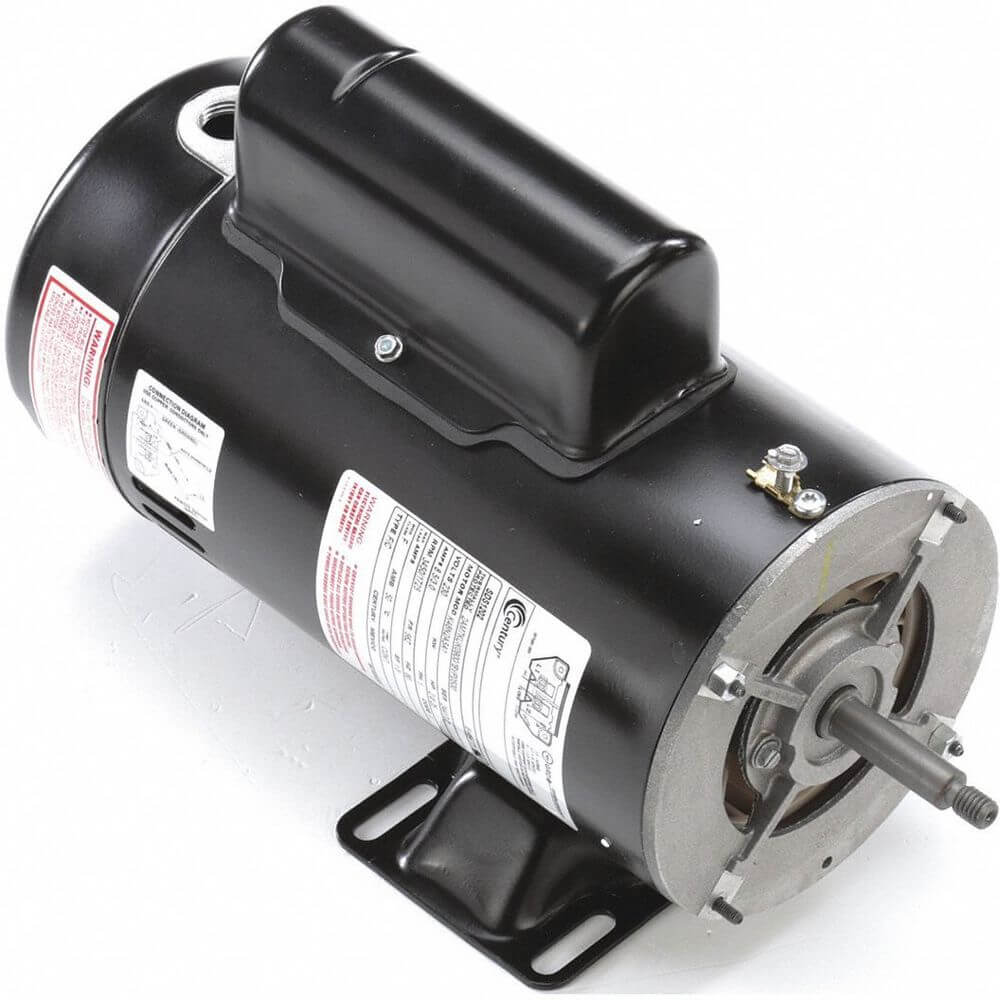

| A | SDS1202 | 230V AC | 2 hp, 1/4 hp | 3450/1725 RPM | 56Z | Counter Clockwise Shaft End | 8.5/3A | Stainless Steel | 50°C | $635.30 | |

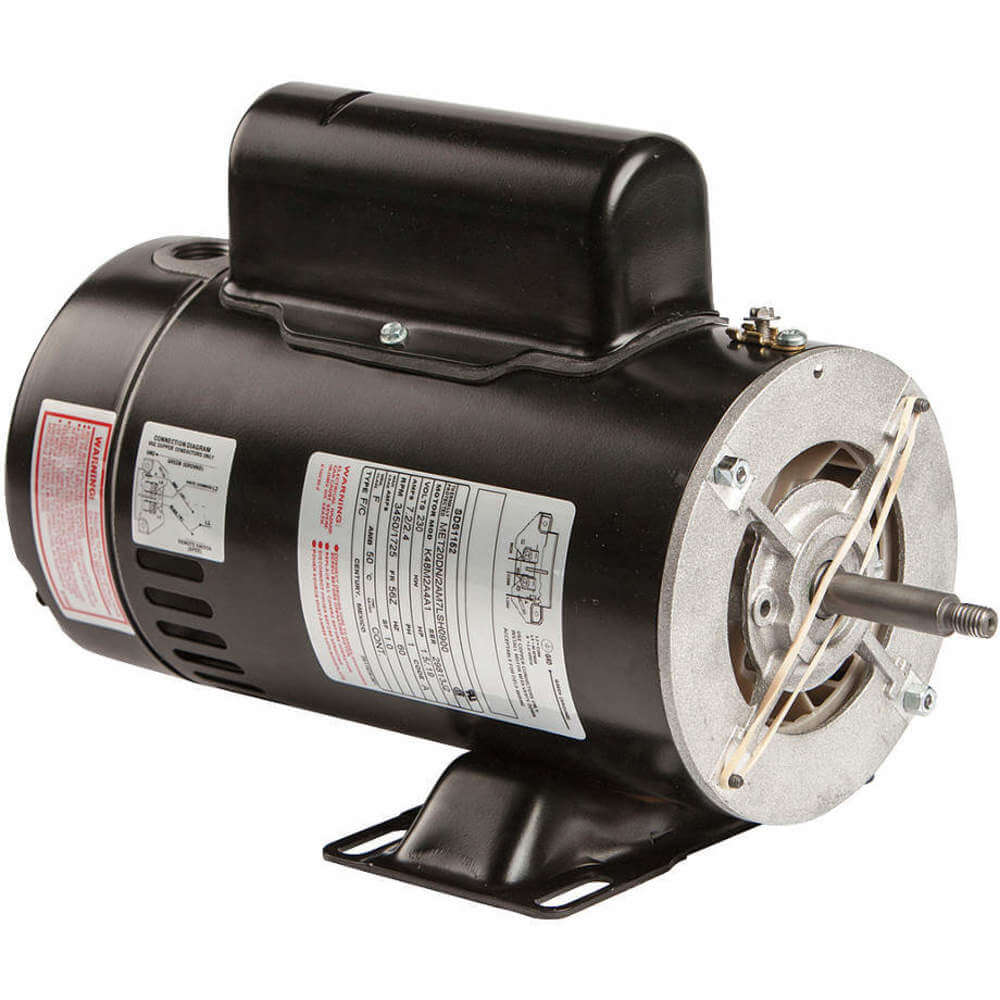

| B | SDS1152 | 230V AC | 1 1/2 hp, 1/6 hp | 3450/1725 RPM | 56Z | Counter Clockwise Shaft End | 7.2/2.4A | Stainless Steel | 50°C | $646.05 | |
| C | SDS1302 | 230V AC | 3 hp, 1/3 hp | 3450/1725 RPM | 56Z | Counter Clockwise Shaft End | 12/3.7A | Stainless Steel | 50°C | $826.44 | |

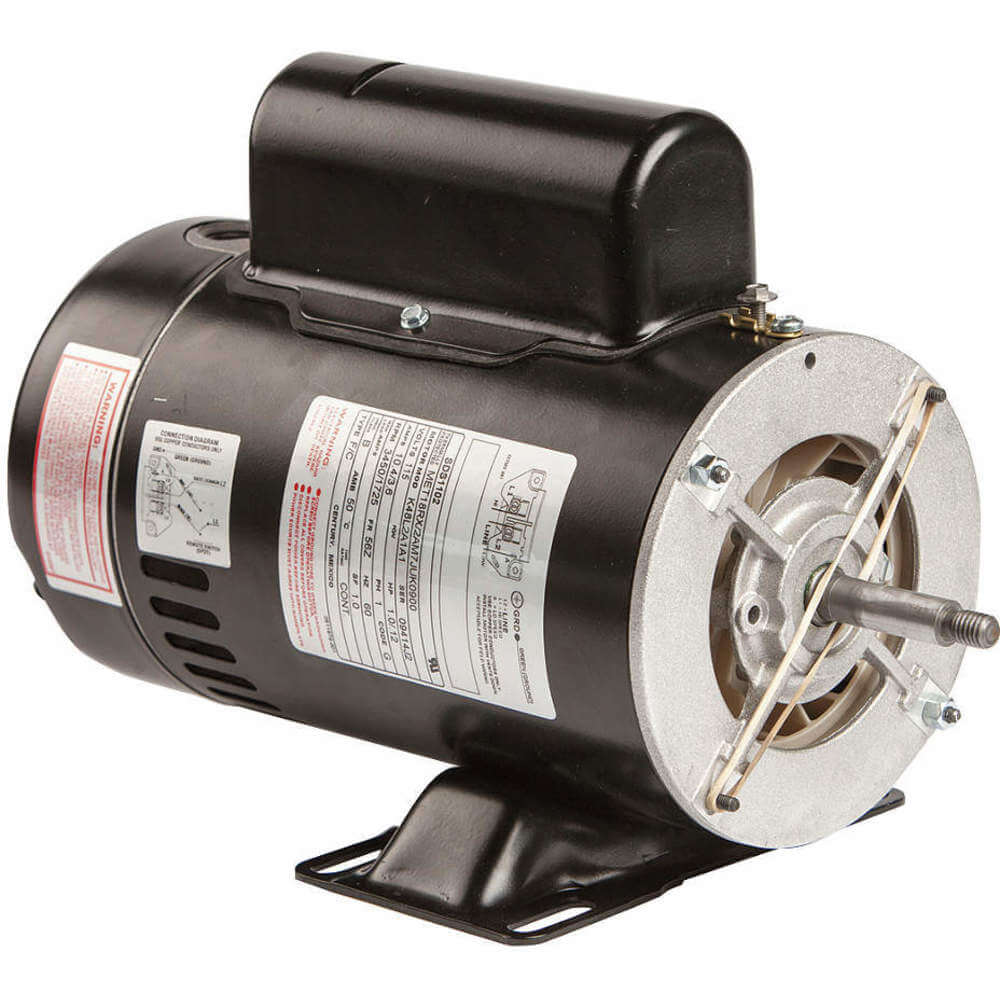

| D | SDS1102 | 115V AC | 1 hp, 1/10 hp | 3450/1725 RPM | 56Z | Counter Clockwise Shaft End | 10.4/3.6A | Stainless Steel | 50°C | $610.99 | |

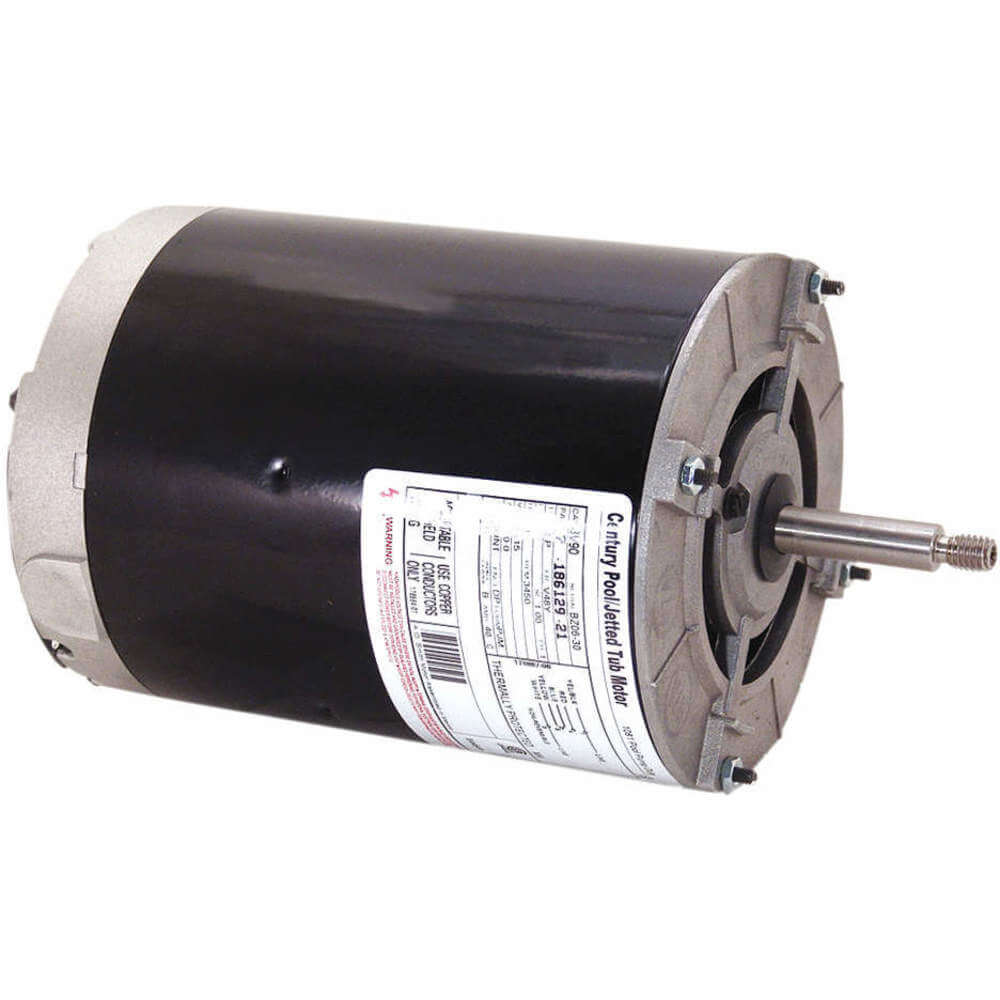

| E | BV91 | 115V AC | 1 hp | 3450 RPM | 48Y | Clockwise Shaft End | 9A | Steel | 40°C | $373.61 |
