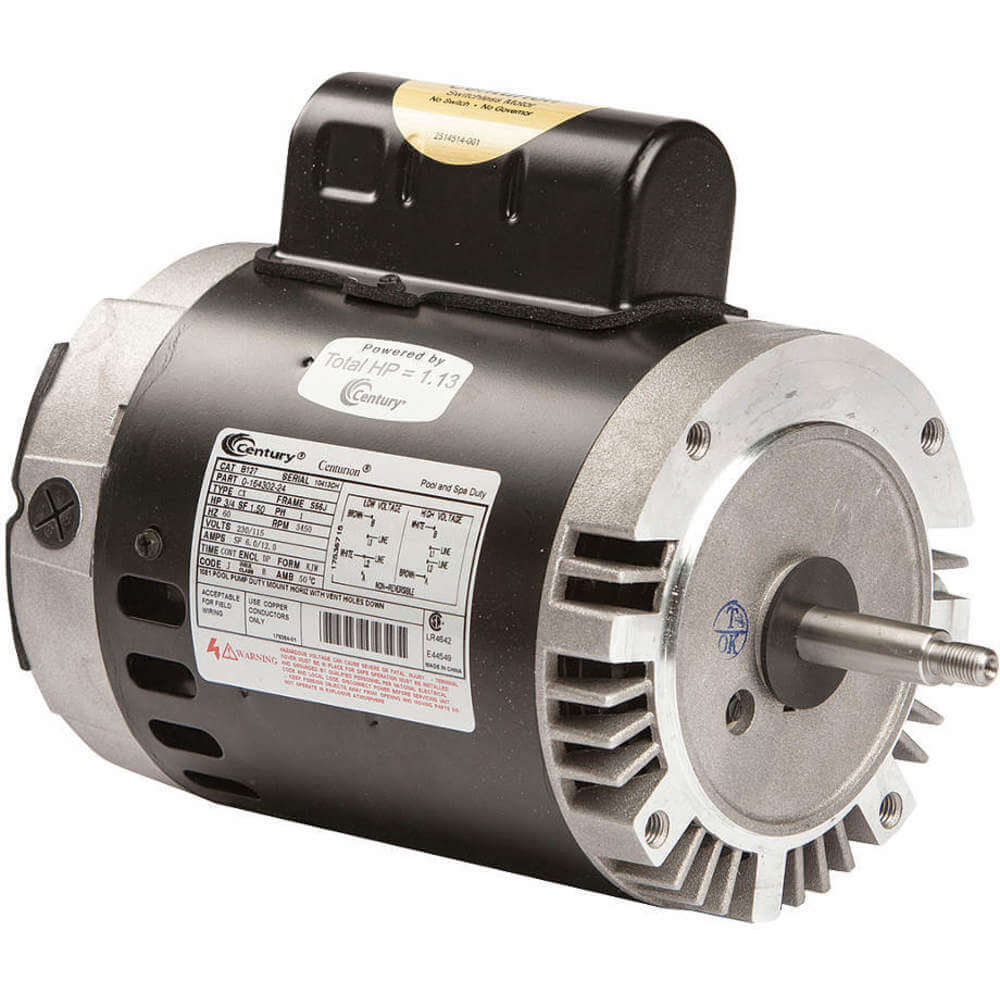

| Item | Pool and Spa Pump Motor |
|---|---|
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Color | Black |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Finish | Black |
| Flange Material | Aluminum |
| Frame | 56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.4/8.8A |
| Height | 11" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Length Less Shaft | 9 3/8" |
| Max. Ambient Temp. | 50°C |
| Max. Sf Amps | 8.8A |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Efficiency Group | Standard Efficient |
| Motor Enclosure Design | Open Dripproof |
| Motor Flange Material | Aluminum |
| Motor Frame Material | Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.6 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
|---|---|
| Motor Sub Application | Pool and Spa Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Height | 11" |
| Overall Length | 11 15/16" |
| Phase | 1 |
| Service Factor | 1.6 |
| Service Factor Amps | 8.8/4.4A |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/2" |
| Shaft Material | Stainless Steel |
| Shaft Material Grade | Grade 303 |
| Shaft Size | 5/8" |
| Shaft Thread Class | Class 2A |
| Shaft Thread Direction | Right Hand |
| Shaft Thread Size | 7/16"-20 |
| Shaft Thread Type | Fine |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| standard | CSA (LR43341/LR94643), UL (E44549/E25022), UL 1081 APPROVABLE |
| Height (cm) | 27.94 |
|---|---|
| Length (cm) | 40.64 |
| Width (cm) | 24.13 |
| HS Code | 8501404040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 22 |
| Style | Model | Service Factor | Frame | Voltage | Phase | Nameplate Rpm | Motor Shaft Rotation | Motor Application | Hp | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | USN1202 | 1.2 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 2 hp | $905.14 | |
| A | USN1152 | 1.25 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 1 1/2 hp | $810.81 | |
| B | SN1202 | 1.35 | 56J | 208-230V AC | 1 | - | Counter Clockwise Shaft End | Pump | 2 hp | $1,103.60 | |
| B | SN1152 | 1.6 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 1 1/2 hp | $966.30 | |
| B | SN1102 | 1.85 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 1 hp | $865.44 | |
| B | SN1072 | 1.85 | 56J | 115/208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 3/4 hp | $791.22 | |
| A | USN1302 | 1.2 | 56J | 208-230V AC | 1 | 3450 RPM | Counter Clockwise Shaft End | Pump | 3 hp | $1,460.68 |
