| Item | Lighted Rocker Switch |
|---|---|
| Ac Contact Rating | 10A @ 250V, 15A @ 125V |
| Body Color | Black |
| Color | Red |
| Contact Form | SPST |
| Dc Contact Rating | 20A @ 12V |
| Features | Removable Actuator |
| Horsepower | 1/2 hp @ 125-250V AC |
| Includes Lamp Module | No Lamp Module Included |
| Includes Lens | Lens Included |
| Ip Rating | IP66, IP68 |
| Lamp Bulb Type | Incandescent |
| Lamp Module Type | No Lamp Module Included |
| Lens Color | Red |
| Mounting Hole | 0.83" x 1.45" |
| Mounting Hole Length | 1.45" |
| Mounting Hole Width | 0.83" |
|---|---|
| Nema Enclosure Rating | No Enclosure |
| Number Of Connections | 3 |
| Number Of Positions | 2 |
| Operating Temperature - Maximum | 185°F |
| Operating Temperature - Minimum | -40°F |
| Operator Illumination | Illuminated |
| Product Type | Rocker Switch |
| Series | V Series |
| Special Features | Lighted |
| Standards | Csa, Ul Listed |
| Switch Action | On/Off |
| Switch Color | Red |
| Terminal Connection Type | Quick-Connect Tab Terminals |
| Terminal Size | 1/4" |
| Terminal Type | Tab |
| Height (cm) | 2.79 |
|---|---|
| Length (cm) | 15.24 |
| Width (cm) | 12.7 |
| HS Code | 8536509040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.0225 |
| Style | Model | Contact Form | Number Of Connections | Hp | Color | Mounting Hole | Ac Contact Rating | Dc Contact Rating | Switch Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

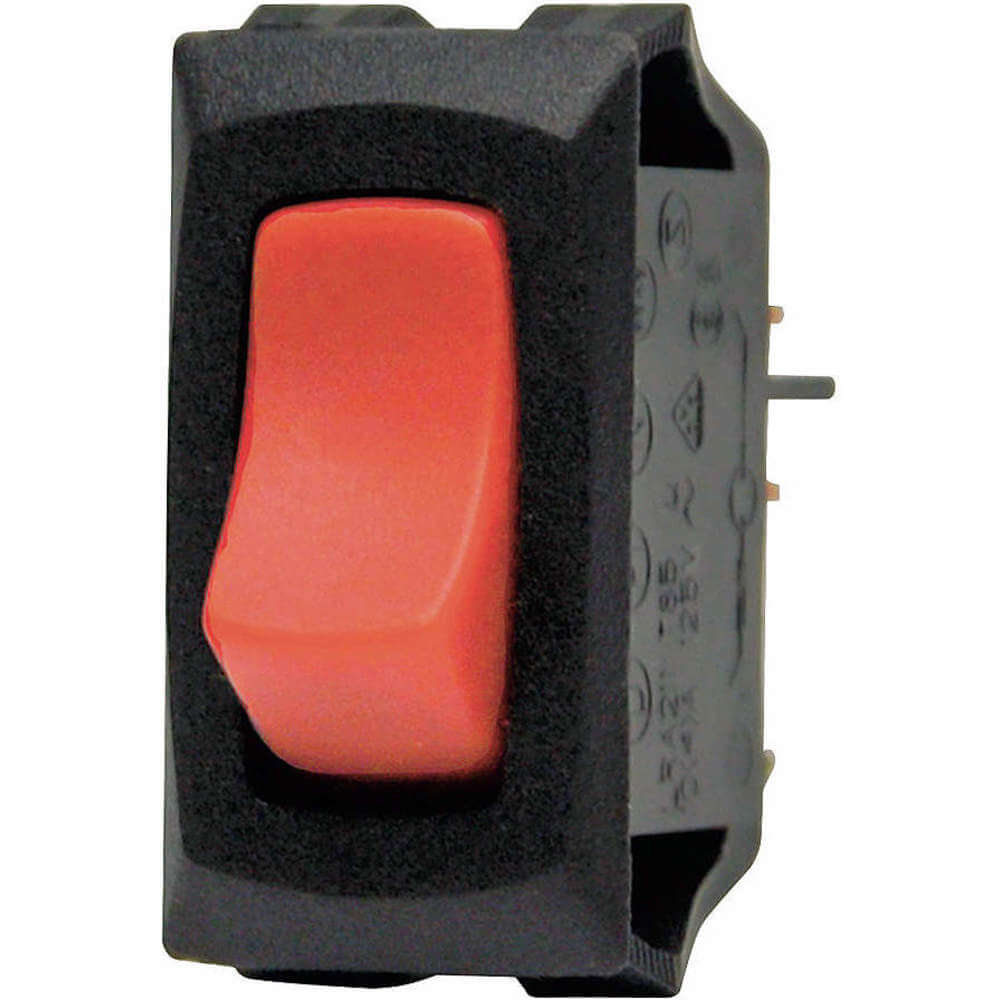

| A | LRA911-RS-B/120N | SPST | 3 | 3/4 hp | Red | 0.47" x 1.07" | 10A @ 250V, 16A @ 125V | - | Red | $2.69 | |

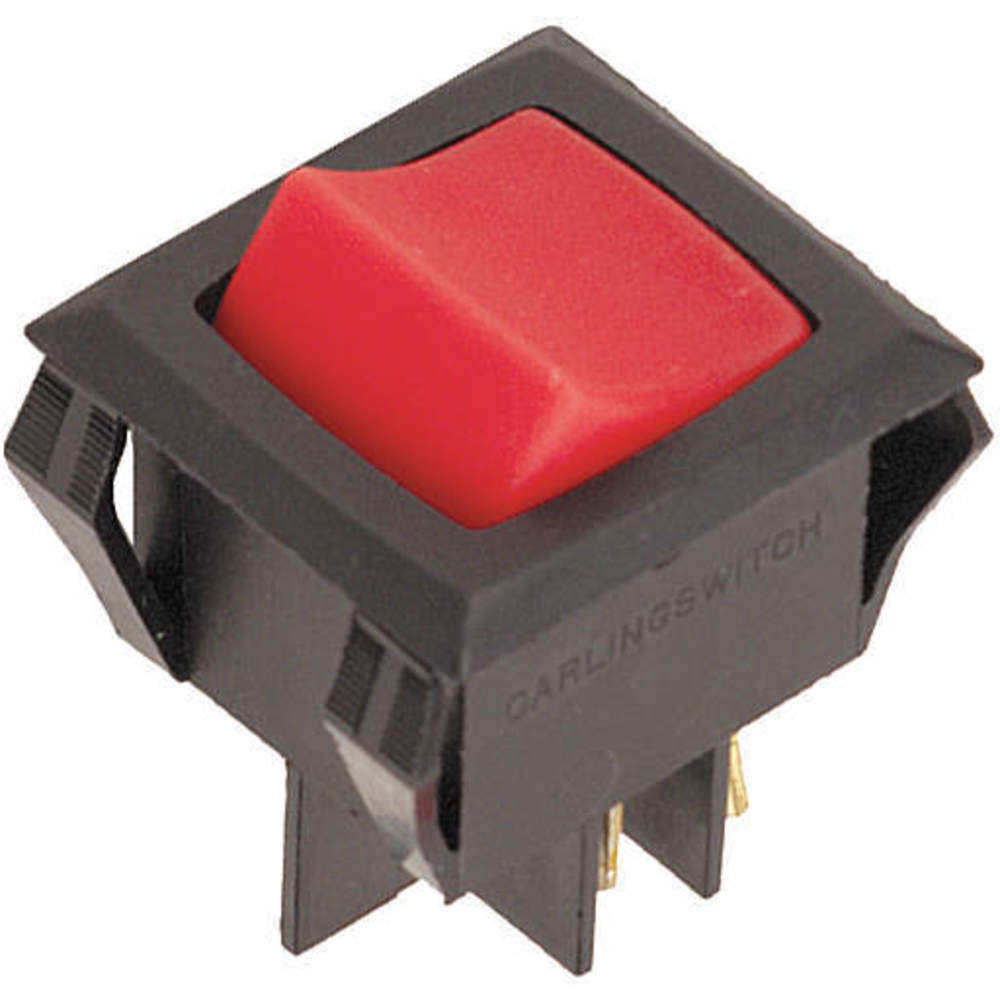

| B | LRGSCK611-RS-BO/125N | DPST | 4 | 3/4 hp @ 125 To 250V | Lighted Red | 0.86" x 1.07" | 15A @ 250V, 20A @ 125V | - | Red | $7.17 | |

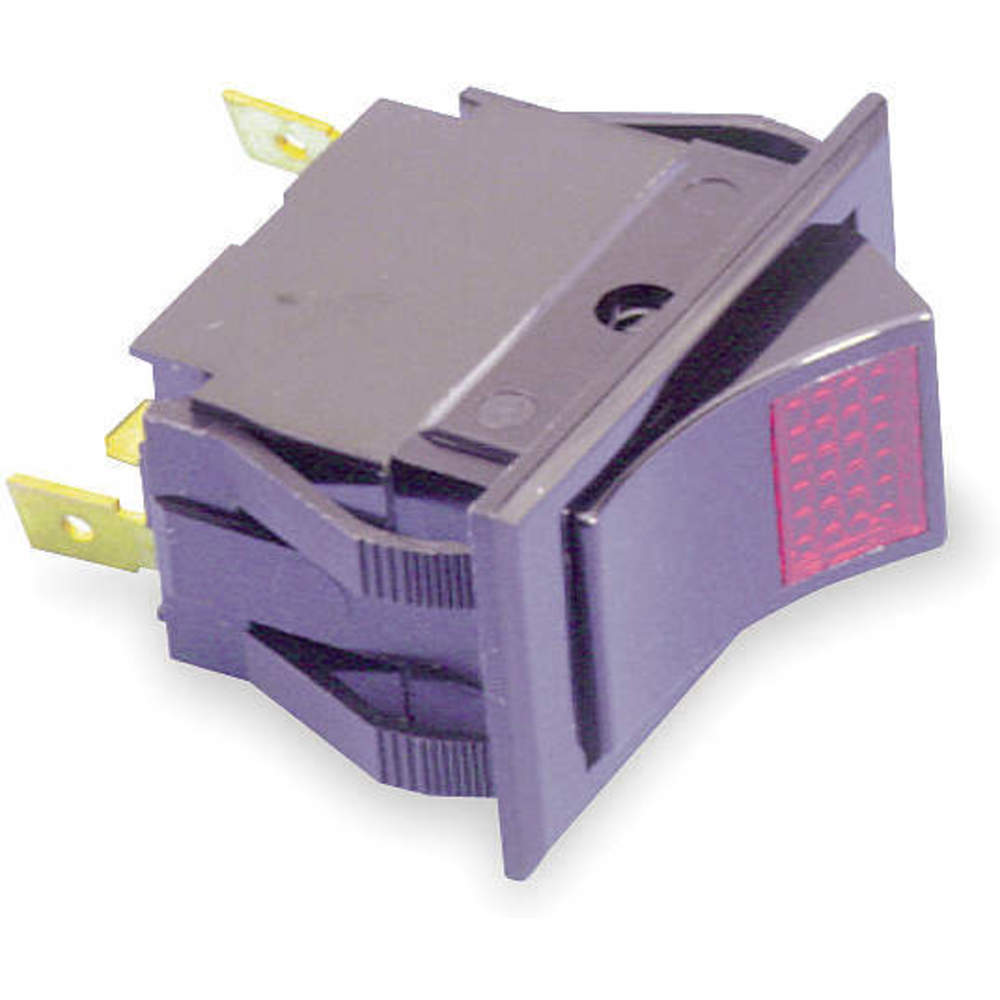

| C | LTILA51-6S-BL-RC-NBL/125N | SPST | 3 | 3/4 hp @ 125 To 250V | Red | 0.83" x 1.45" | 10A @ 250V, 15A @ 125V | 15A @ 15-28V | Red | $5.96 | |

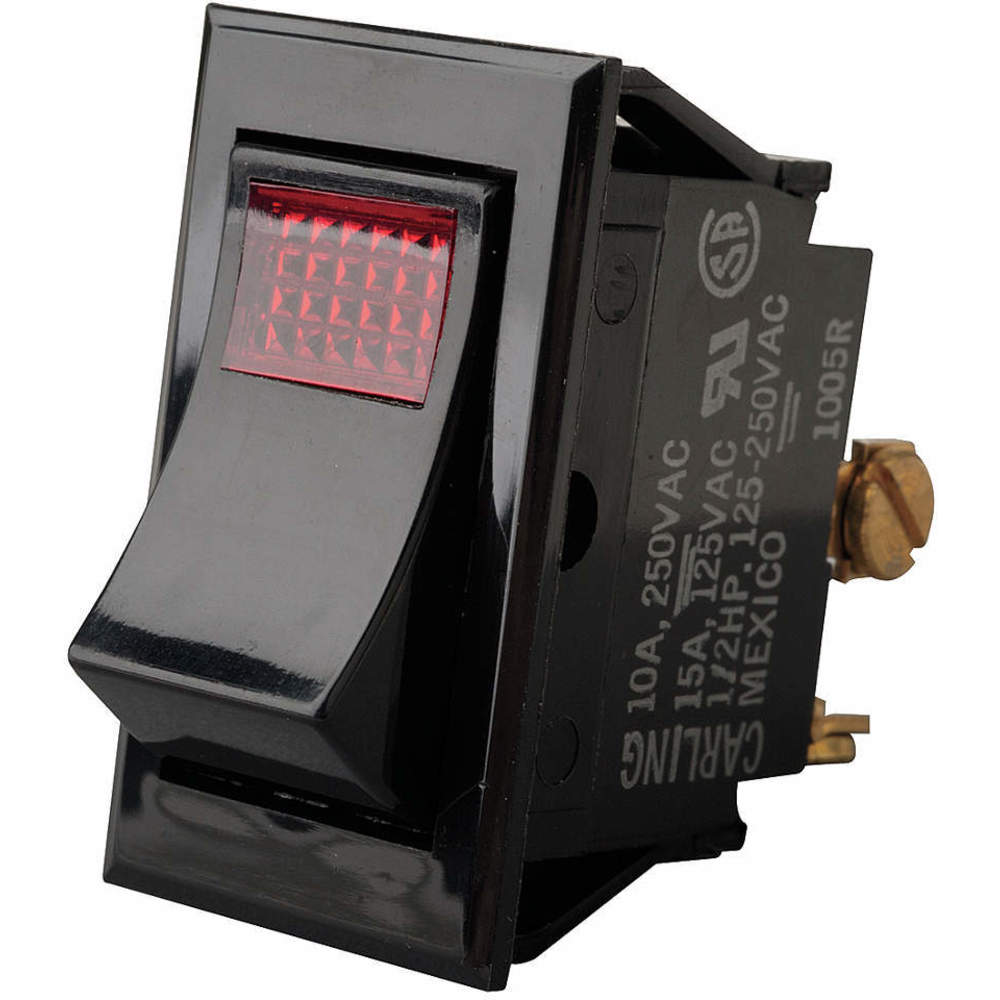

| D | LTILA54-6S-BL-RC-NBL/125N | SPST | 3 | 3/4 hp @ 125 To 250V | Red | 0.83" x 1.45" | 10A @ 250V, 15A @ 125V | 15A @ 15-28V | Red | $5.97 | |

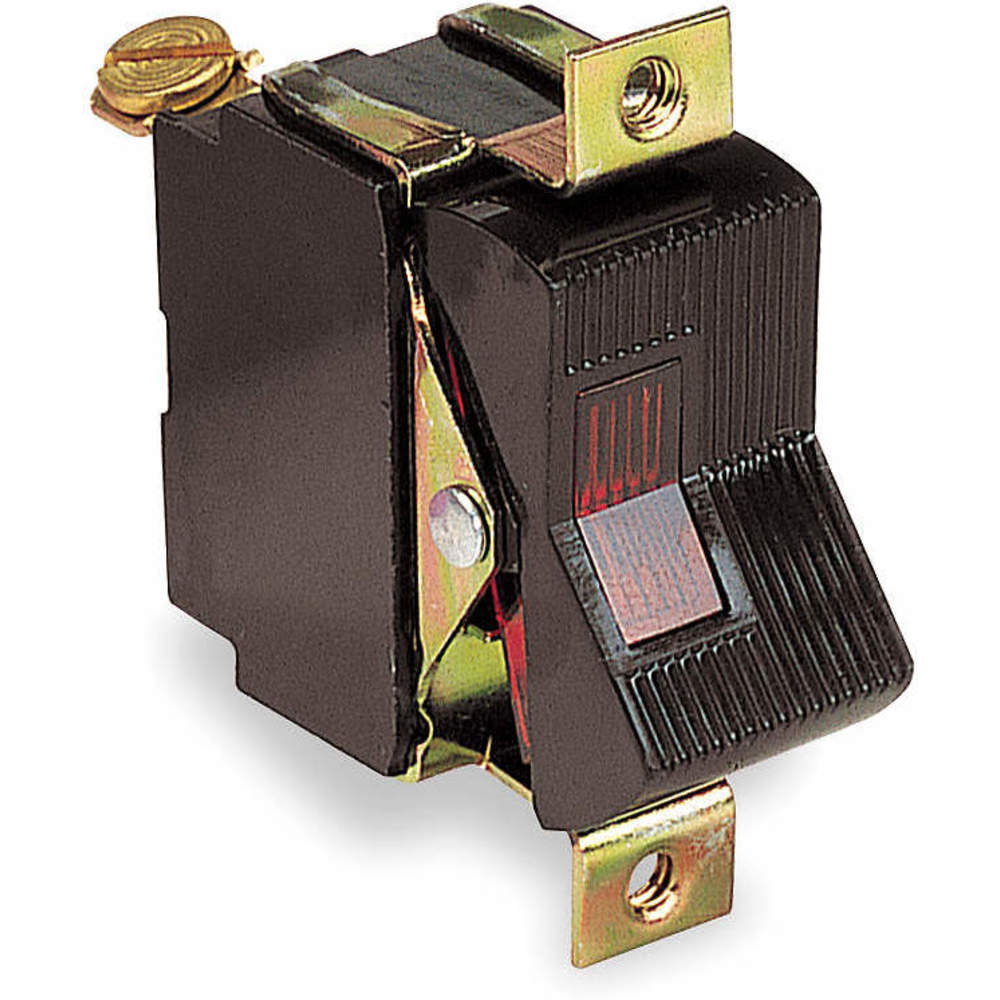

| E | LTILA54-1LBL-RC-A/125N | SPST | 3 | 3/4 hp @ 125 To 250V | Red | 0.625" x 1.625" | 10A @ 250V, 15A @ 125V | 15A @ 15-28V | Red | $5.23 |
