| Item | Fast Acting Midget Fuse |
|---|---|
| Amps | 30A |
| Body Material | Melamine |
| Body Style | Cartridge Fuses |
| Class | Midget |
| Compatible With | BMM, C2617, C5268, CHM, HEB, HPG, HPS Series |
| Dc Voltage | 600V DC |
| Diameter | 0.406" |
| Element | Single |
| Fuse Block Design | Non Rejection |
| Fuse Protection Type | Fast Blow |
|---|---|
| Indicating / Nonindicating | Non Indicating |
| Interrupt Rating | 100 kA at 600V AC, 50 kA at 600V DC |
| Length | 1 1/2" |
| Overall Diameter | 13/32" |
| Rejection / Nonrejection | Non Rejection |
| Series | Bussmann KLM, Littelfuse KLKD, Mersen ATM Series |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/600V DC |

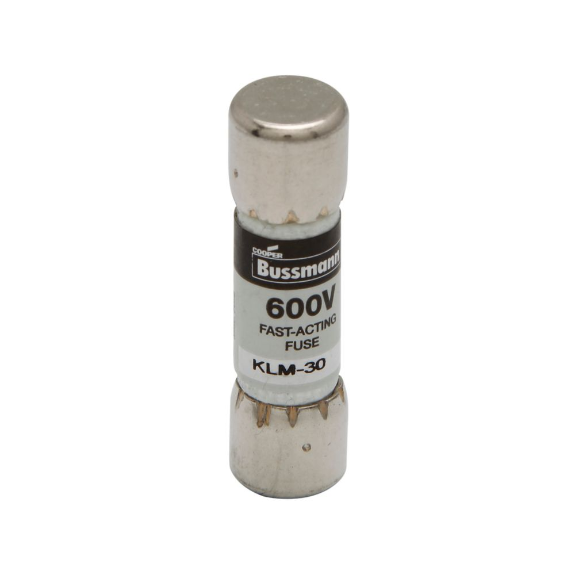

Bussmann KLM-30 fuse is a current-limiting, fast-acting fuse that protects electrical circuits and components from overcurrent conditions. It is useful in the power generation, automotive, telecommunications and oil & gas industries.
| HS Code | 8536100040 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.081 |
|---|
The I2t rating represents the energy-carrying capacity of a fuse. It is a measure of how much energy can pass through the fuse before it blows.
The time-current characteristics of a fuse refer to how the fuse responds to overcurrent conditions in terms of time.
One-time fuses, also called non-renewable fuses, are designed to operate only once and must be replaced after tripping. Time-delay fuses, on the other hand, have a delayed response to overcurrent, allowing temporary surges to pass without tripping.
| Style | Model | Amps | Diameter | Body Style | Voltage | Visual Indication | Body Material | Speed | Element | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | KLM-10 | 10A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $20.40 | |
| A | KLM-15 | 15A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $18.90 | |
| A | KLM-2 | 2A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $18.90 | |
| B | KLM-20 | 20A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $20.40 | |
| C | KLM-25 | 25A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $20.40 | |
| B | KLM-5 | 5A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $20.40 | |
| A | KLM-6 | 6A | 13/32" | Cylindrical | 600V AC/600V DC | Non Indicating | Melamine | Fast Acting | Single | $18.90 |
