| Item | Fuse Block |
|---|---|
| Ac Voltage Rating | 600V AC |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Compatible Fuse Series | JM60030 Series |
| Connector Type | Box Lug |
| Dc Voltage | 300V DC |
| Fits Fuse Type | Industrial |
| For Fuse Size | 2 1/4" x 13/16" Dia. |
| Fuse Block Design | Open |
| Fuse Block Style | Nonrejection |
| Fuse Current | 0-30A |
| Fuse Overall Diameter | 13/16" |
| Fuse Overall Length | 3 2/5" |
| Fuse Ul Class | Class J |
| Height | 2.3" |
| Housing Material | Thermoplastic |
| Indicating / Nonindicating | Non Indicating |
|---|---|
| Length | 3 2/5" |
| Material | Thermoplastic |
| Mounting Style | Bolt-Down, Din Rail |
| Mounting Type | Bolt Down, DIN Rail |
| Number Of Poles | 2 |
| Operating Amps | 0-30A |
| Spring Reinforced Clip | Yes |
| Standards | Ce, Csa Certified, Reach, Rohs, Ul Listed |
| Type | Fuse Block |
| Visual Indication | Non Indicating |
| Voltage | 600V AC/300V DC |
| Voltage Rating | 600V AC/300V DC |
| Width | 2 1/5" |
| Wire Range | 14 AWG to 2 AWG |
| Wire Size | 2 AWG to 14 AWG |
| Height (cm) | 9.91 |
|---|---|
| Length (cm) | 32.26 |
| Width (cm) | 22.1 |
| Country Of Origin | MX |
|---|---|
| Weight (kg) | 0.315 |
| Style | Model | Number Of Poles | Connector Type | Amp Range | Voltage Rating | Mounting Style | Fuse Block Design | Fits Fuse Type | Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

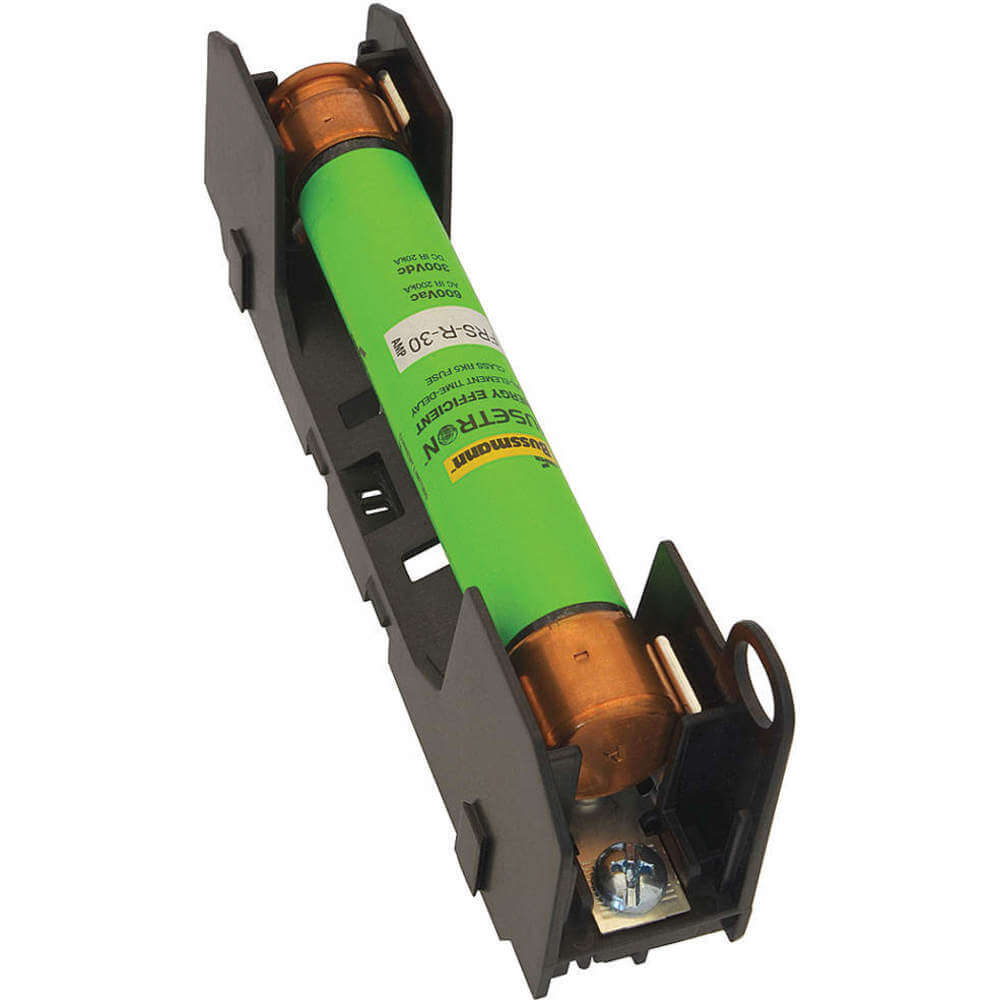

| A | JM60030-3SR | 3 | Screw | 0-30A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2.3" | $180.79 | |

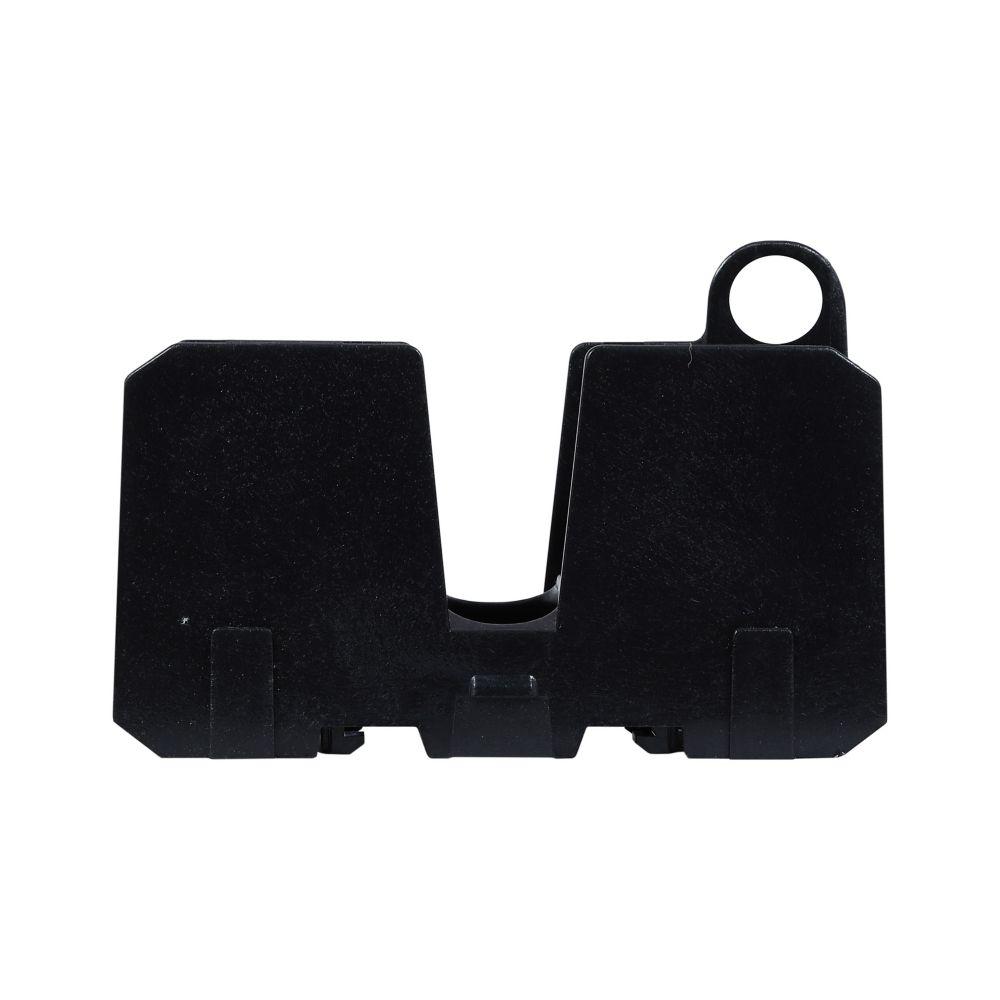

| B | JM60030-1CR | 1 | Box Lug | 0-30A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2.3" | $67.26 | |

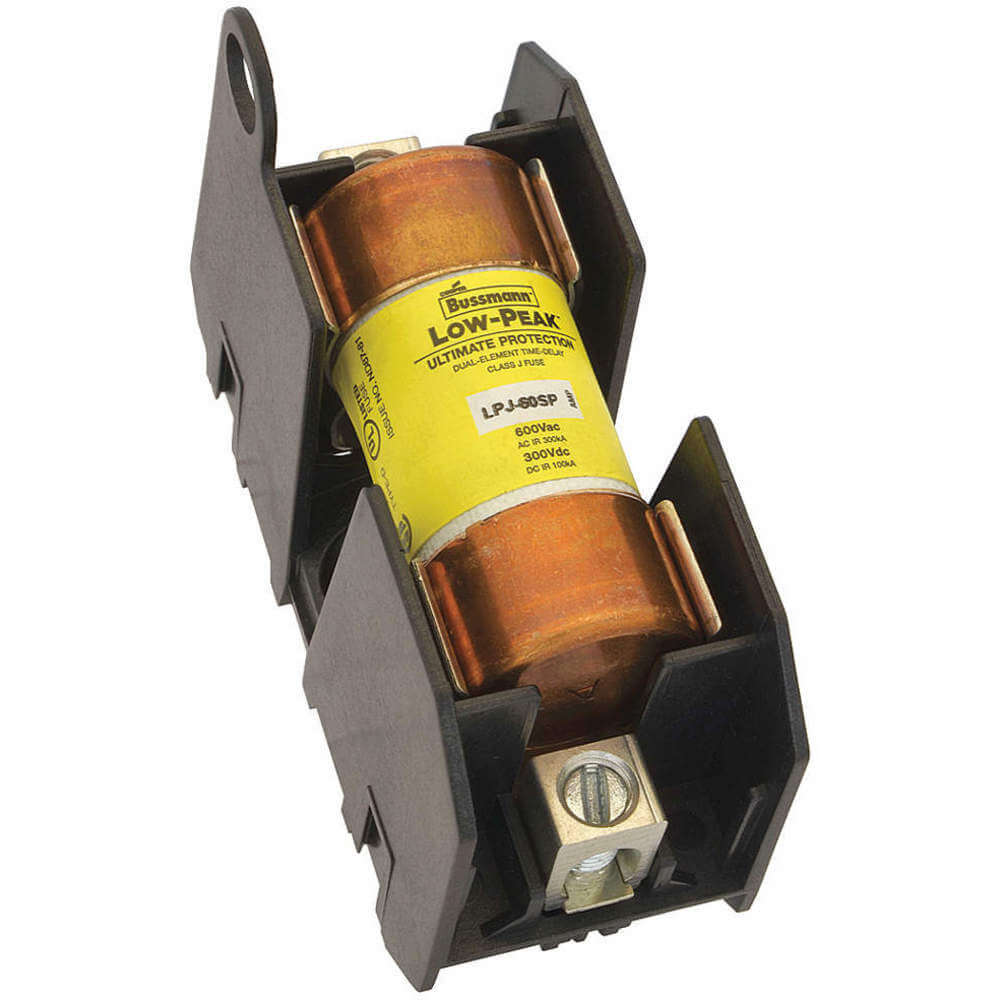

| C | JM60060-2CR | 2 | Box Lug | 31-60A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2 3/5" | $236.50 | |
| C | JM60060-1CR | 1 | Box Lug | 31-60A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2 3/5" | $76.34 | |
| C | JM60060-3CR | 3 | Box Lug | 31-60A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2 3/5" | $264.35 | |
| D | JM60030-2PR | 2 | Pressure Plate | - | - | - | Open | Industrial | 2.3" | $178.43 | |

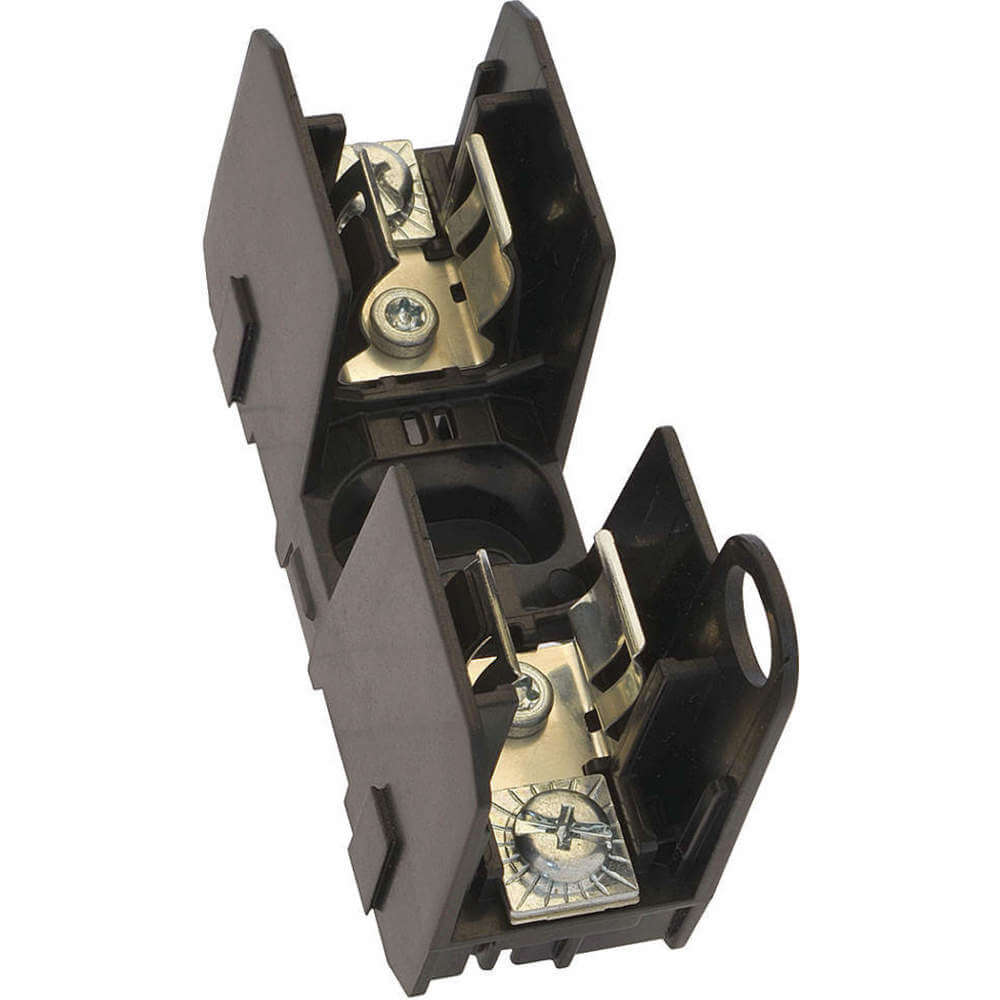

| D | JM60030-1PR | 1 | Pressure Plate | 0-30A | 600V AC/300V DC | Bolt-Down, Din Rail | Open | Industrial | 2.3" | $70.77 |
