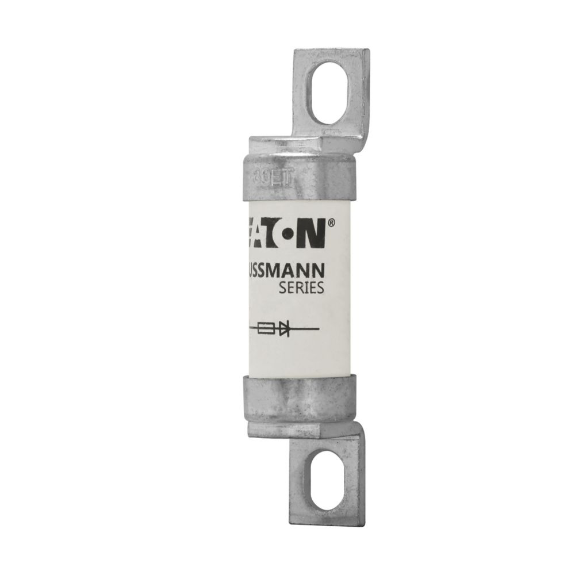

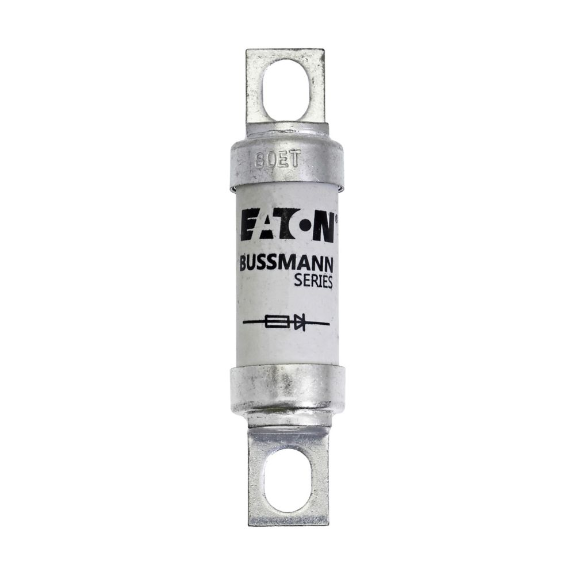

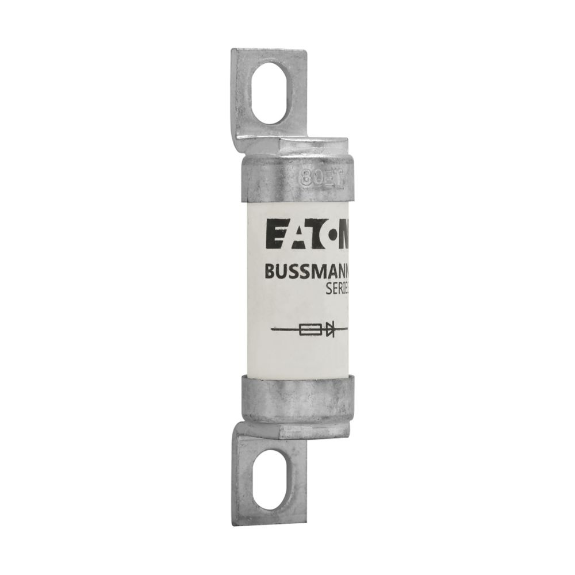

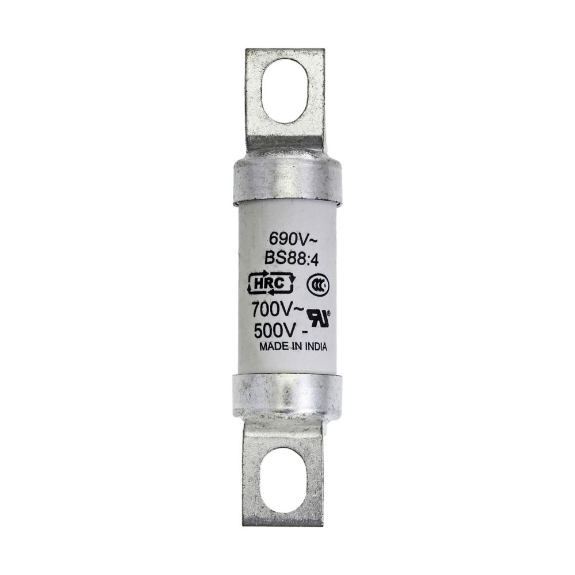

BUSSMANN 80ET Specialty Fuse, 80 A, 500 VAC

Q: What safety precautions should I take while using this fuse?

Always follow recommended installation guidelines.Ensure that the circuit is de-energized while replacing the fuse.Wear appropriate protective gear and consult the manufacturer's instructions for proper usage.

Item: BD2CXW

Model: 80ET

Check Availability

In Stock.

Get it by Monday, Feb 16

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Amps

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$224.39 /unit (ex. VAT)

Add To Cart

Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications
Product Details
Shipping Information
Working Mechanism
Features
FAQ′s

Specifications

Item	Fuse
Ac Voltage	500V AC
Amps	80A
Body Style	Cartridge Blade
Class	Class AR
Diameter	19.1 mm
Fuse Type	Fast Blow
Height	19.1 mm
Indicator Style	Without Indicator

Length	76 mm
Mounting Style	Stud
Packaging	Bulk
Series	ET
Termination Type	Bolt Down
Type	Fuse
Watt Losses	20 W
Width	12.7 mm

Product Details

Bussmann 80ET specialty fuse provides enhanced protection for critical circuits in industrial machinery, power distribution systems, electronic devices, automotive systems and renewable energy installations. This specialty fuse ensures reliable performance in demanding environments.

Shipping Information

Height (cm)	2
Length (cm)	7.6

Width (cm)	2
Weight (kg)	0.0403

Working Mechanism

When the current flowing through the circuit exceeds the rated threshold, the fuse detects the overcurrent condition.
The excess current causes the fuse's internal element to heat up rapidly.
As the element heats up, it melts and breaks the circuit path, interrupting the flow of current.
The broken circuit path isolates the faulty portion of the circuit from the rest, preventing further damage.

Features

It features a compact design, enabling easy integration into space-constrained electrical systems.
This fast-acting fuse offer quick response to overcurrent conditions, minimising potential damage to connected equipment.
It has a diameter of 19.1 mm, making it easy to integrate into tight spaces within electrical systems.
This fuse is equipped with a cartridge blade and offer a current rating of 80A, ensuring protection for circuits with substantial current needs.
It has bolt-down termination, providing a secure and stable connection for effective circuit protection.
This fuse offers stud-style mounting, ensuring secure and efficient installation onto compatible studs.

Documentation

Frequently Asked Questions

How do I install this Bussmann 80ET specialty fuse?

Turn off the power to the circuit to prevent any electrical hazards.
Select a Bussmann 80ET specialty fuse with the correct current rating for your application.
Verify that the circuit is de-energized and safe to work on.
Align the fuse onto the compatible studs, ensuring proper orientation.
Use appropriate tools to securely tighten the bolt-down termination, ensuring a stable connection.
Confirm that the fuse is correctly seated and secured in place.
Turn the power back on and test the circuit to ensure proper functionality.

What safety precautions should I take while using this fuse?

Always follow recommended installation guidelines.
Ensure that the circuit is de-energized while replacing the fuse.
Wear appropriate protective gear and consult the manufacturer's instructions for proper usage.

Can I find other ET fuses with different amperage ratings?

Yes, Raptor Supplies offers other Bussmann ET Series fuses, such as 15 ET, 20ET and 35ET fuses, having current ratings of 15, 20 and 35A, respectively.
