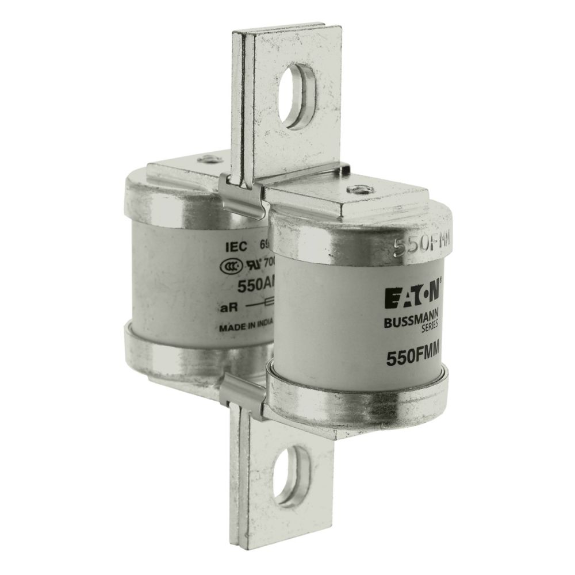

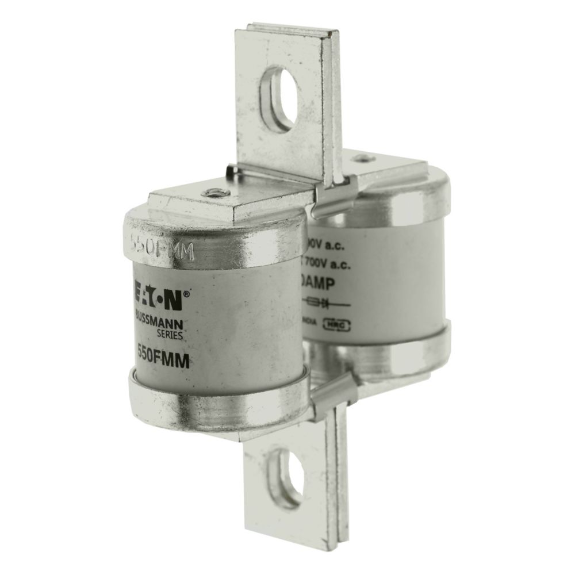

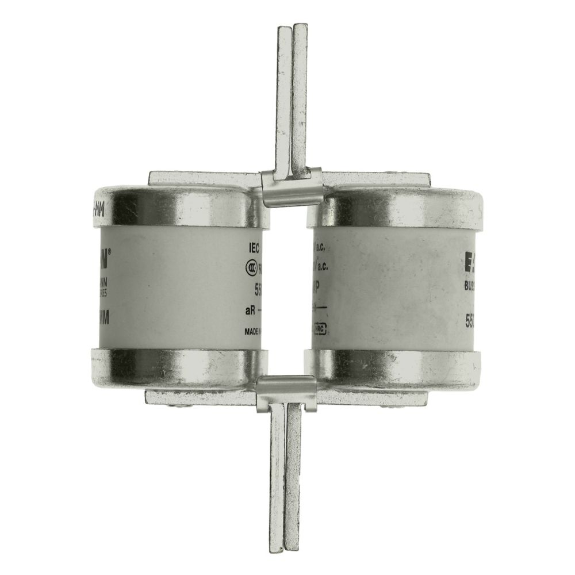

BUSSMANN 550FMM High Speed Fuse, 550 A, 690 VAC, Double Barrel

Item: BD3YJU

Model: 550FMM

Check Availability

In Stock.

Get it by Friday, Feb 13

£9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

Amps

We deliver to your doorstep under DAP terms. Customs clearance is for your account

$1,291.97 /unit (ex. VAT)

Add To Cart

Request Quote

Unlock 30-day payment terms

Business customers can apply for Net 30
No fees, No interest, Fast approval.

Apply Now

Payment

Delivery

Specifications
Product Details
Shipping Information
Working Mechanism
Features
FAQ′s

Specifications

Item	Semiconductor Fuse
Ac Voltage	500V AC
Amps	550A
Body Style	Cartridge Blade
Class	Class AR
Fuse Type	Fast Blow
Height	38 mm
Indicator Style	Without Indicator
Length	112 mm

Mounting Style	Stud
Packaging	Bulk
Product Type	High Speed Semiconductor Fuse
Series	FMM Series
Termination Type	Bolt Down
Type	High Speed Fuse
Watt Losses	100 W
Width	83 mm

Product Details

Bussmann 550FMM specialty fuse is used in heavy machinery and equipment, where electrical systems demand robust protection against overcurrent conditions. It is ideal for safeguarding high-energy circuits, preventing damage to sensitive components and ensuring operational safety. This fast blow fuse offers reliable protection where high current loads are essential, mitigating potential risks and maintaining system integrity.

Shipping Information

Height (cm)	3.8
Length (cm)	11.2

Width (cm)	3.9
Weight (kg)	0.4544

Working Mechanism

When the current in the circuit exceeds 550A, the fuse detects the overcurrent condition.
The fuse's internal component, known as the melting element, melts at a specific current threshold.
The fuse has a fast blow characteristic, causing the melting element to quickly melt when the overcurrent occurs.
Once the element melts, it creates an open circuit, effectively interrupting the current flow.
By interrupting the current flow, the fuse protects the circuit and connected devices from potential damage due to excessive current.
The fuse's quick response prevents overheating and potential hazards, ensuring the safety and integrity of the electrical system.

Features

This high speed semiconductor fuse features cartridge blade body for structural rigidity and durability.
It comes with a current rating of 550A and voltage rating of 500VAC.
This fast blow fuse offers stud mounting for ease of installation.
It has bolt down style termination without any indicator for operational safety.

Documentation

Frequently Asked Questions

How do I identify a faulty specialty fuse?

Look for physical damage like burns, discoloration or a visibly broken element within the fuse.
Use a multimeter to check for continuity across the fuse terminals. A reading of infinite resistance indicates a blown fuse.
Measure the voltage drop across the fuse when the circuit is active, a significant drop might suggest a faulty fuse.
If the circuit protected by the fuse is malfunctioning or not working at all, it could be due to a blown fuse.
Modern systems may display fault codes or indicators when a fuse is faulty.
Replace the fuse with a new one of the same specifications and see if the circuit functions properly.

Does Raptor Supplies offer other specialty fuses with higher current ratings?

Yes, customers looking for specialty fuses with higher current ratings can opt for Bussmann 630FMM and 700FMM specialty fuses having current ratings of 630A and 700A, respectively.

What factors should I consider while choosing this high speed semiconductor specialty fuse?

Ensure that the fuse's current rating is suitable for your circuit's maximum expected current.
Match the fuse's voltage rating with your circuit's voltage level.
Confirm that the fuse is designed for your specific application (e.g., high-power machinery).
Choose the appropriate blow speed (fast blow) for rapid overcurrent protection.
Check if the fuse's dimensions fit within your equipment's available space.
Ensure that the fuse can operate within your system's temperature range.
Opt for reputable brands for reliable performance.
Verify that the fuse complies with relevant safety standards for your industry.
