| Item | Distribution Block |
|---|---|
| Amps | 175A |
| Depth | 1 3/4" |
| Flammability Rating | V-0 |
| For Conductor Material | Aluminum, Copper |
| For Maximum Line Wire Size | 2/0 AWG |
| For Maximum Load Wire Size | 4 AWG |
| For Minimum Line Wire Size | 14 AWG |
| For Minimum Load Wire Size | 14 AWG |
| Housing Color | Black |
| Housing Material | Thermoplastic |
| Length | 2 22/25" |
| Line Connections/pole | 1 |
| Line Side Connection Type | Lug |
| Load Connections/pole | 4 |
| Load Side Connection Type | Lug |
|---|---|
| Max. Amps | 175A |
| Maximum Operating Temperature | 248°F |
| Maximum Voltage | 600V AC/DC |
| Number Of Poles | 3 |
| Overall Depth | 2.69" |
| Overall Length | 2.88" |
| Overall Width | 2.69" |
| Power Distribution Block Design | Open |
| Secondary Connection/pole | 4 |
| Standards | Csa Class 6228-01, Ul 1059 |
| Terminal Material | Aluminum, Copper |
| Voltage | 600V |
| Width | 2.7" |
| Height (cm) | 4.32 |
|---|---|
| Length (cm) | 7.37 |
| Width (cm) | 6.86 |
| HS Code | 8537109050 |
|---|---|
| Country Of Origin | MX |
| Weight (kg) | 0.18 |
| Style | Model | Line Connections/pole | For Maximum Line Wire Size | Load Connections/pole | For Maximum Load Wire Size | Depth | Amps | Overall Length | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 16204-3 | 1 | 2/0 AWG | 1 | 2/0 AWG | 1 3/4" | 175A | 3" | 3" | $81.47 | |
| B | 16321-3 | 1 | 2/0 AWG | 6 | 4 AWG | 3 8/25" | 175A | 5.5" | 4" | $252.11 | |

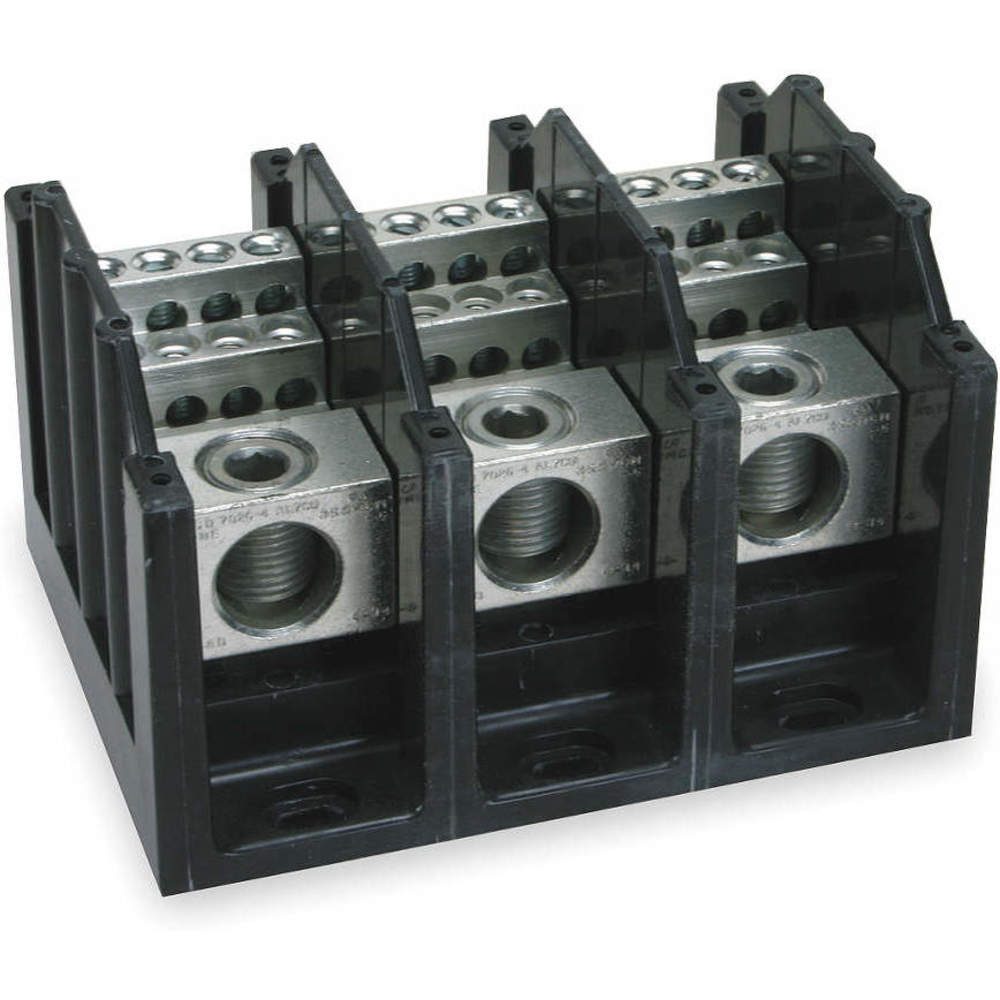

| C | 16370-3 | 1 | 350 kcmil | 12 | 4 AWG | 3 8/25" | 310A | 3.98" | 5" | $467.29 | |
| D | 16000-3 | 1 | 2/0 AWG | 1 | 14 AWG | 2 3/25" | 175A | 2" | 1" | $148.30 | |
| E | 16325-3 | 2 | 2/0 AWG | 6 | 4 AWG | 3 8/25" | 350A | 1" | 1" | $253.94 | |
| F | 16021-3 | 1 | 2/0 AWG | 6 | 4 AWG | 2 3/25" | 175A | 5.37" | 2 4/5" | $200.84 | |
| G | 16303-3 | - | - | - | - | 3 8/25" | 310A | - | - | $227.99 |
