| Item | V-Belt Sheave |
|---|---|
| Belt Series | 4L, A, 5L, B Series |
| Bore Dia. | 1" |
| Bore Type | Finished |
| Bushing Type | No Bushing |
| Face Width | 7/8" |
| Hub Projection | 21/32" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 7.9" |
| Min. Pitch Dia. | 7 1/2" |
| Min. Plain Bore | No |
|---|---|
| No. Of Grooves | 1 |
| Outside Dia. | 8 1/4" |
| Overall Length | 1 17/32" |
| Pitch Dia. (a) | 7.7" |
| Pitch Dia. (b) | 8 1/5" |
| Series | BK Series |
| Suitable For Use With | 4L/A And 5L/B Cross Section Belt |
| System Of Measurement | Imperial |
| Type | Type 3 |
| Height (cm) | 20.96 |
|---|---|
| Length (cm) | 3.89 |
| Width (cm) | 20.96 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 2.457 |
| Style | Model | Outside Dia. | Bore Dia. | Bore Type | Overall Length | Face Width | Type | Material | Color | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1028026 | 3.15" | 7/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | $56.58 | |

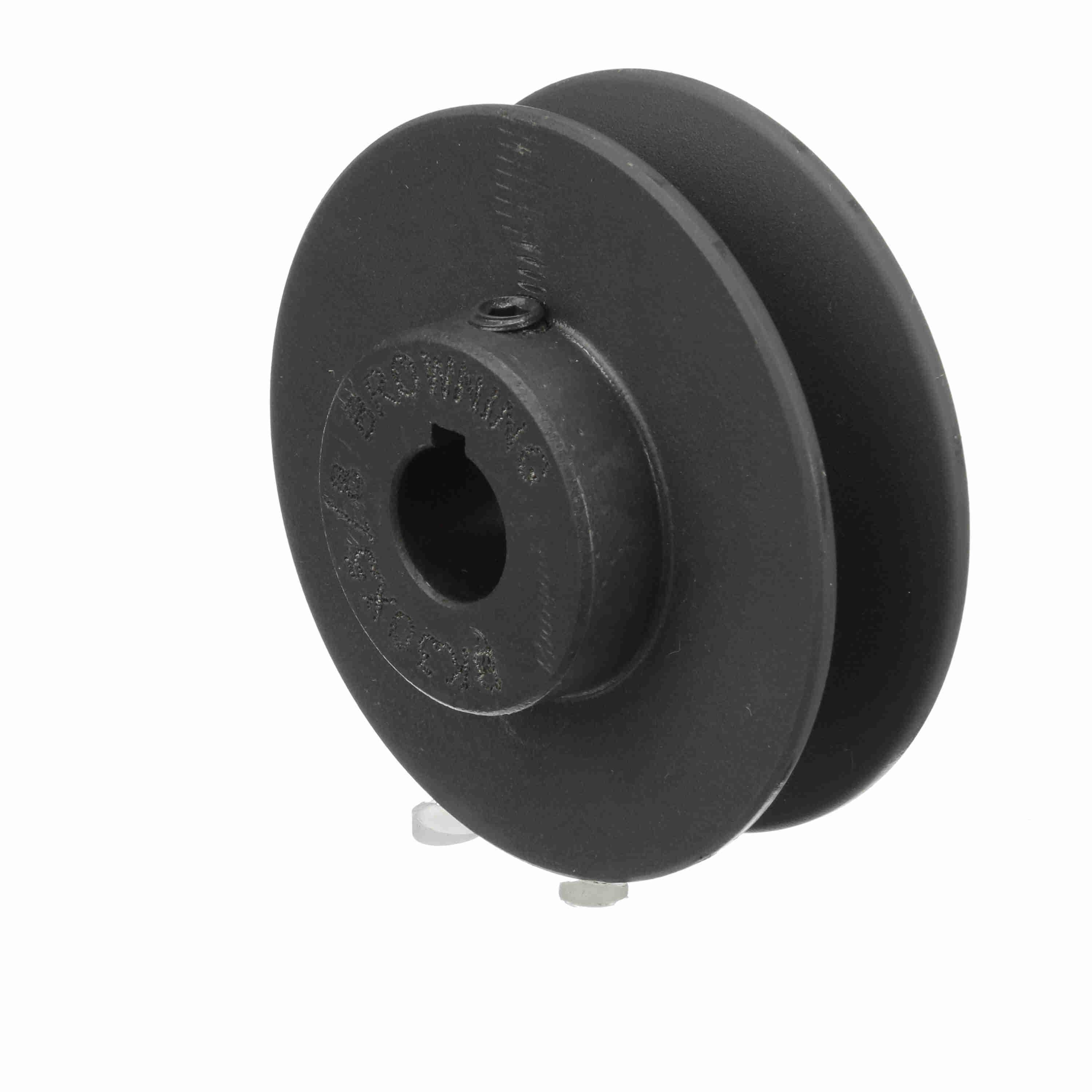

| B | 1028000 | 3.15" | 5/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | $56.58 | |

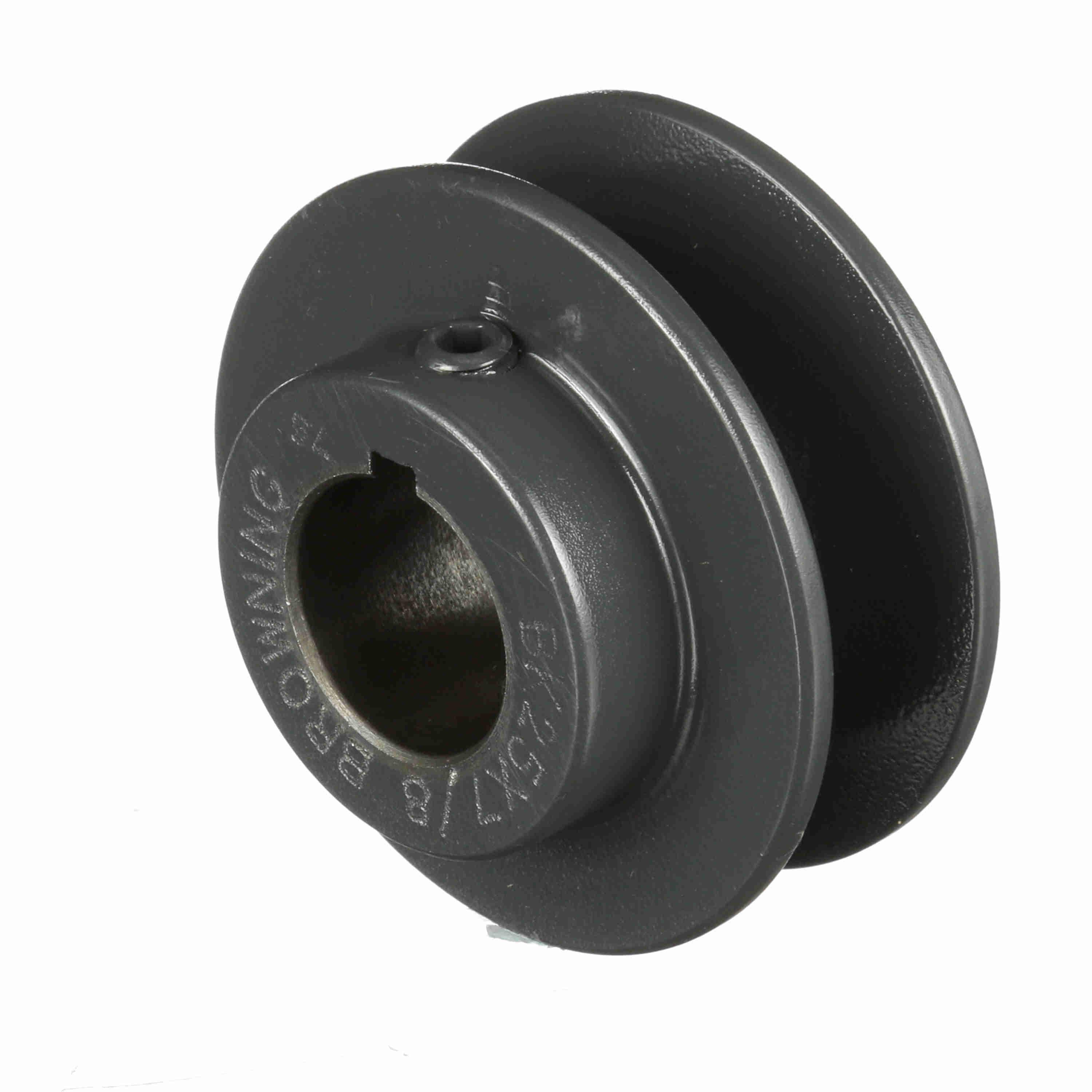

| C | 1027853 | 2 1/2" | 7/8" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | $57.60 | |

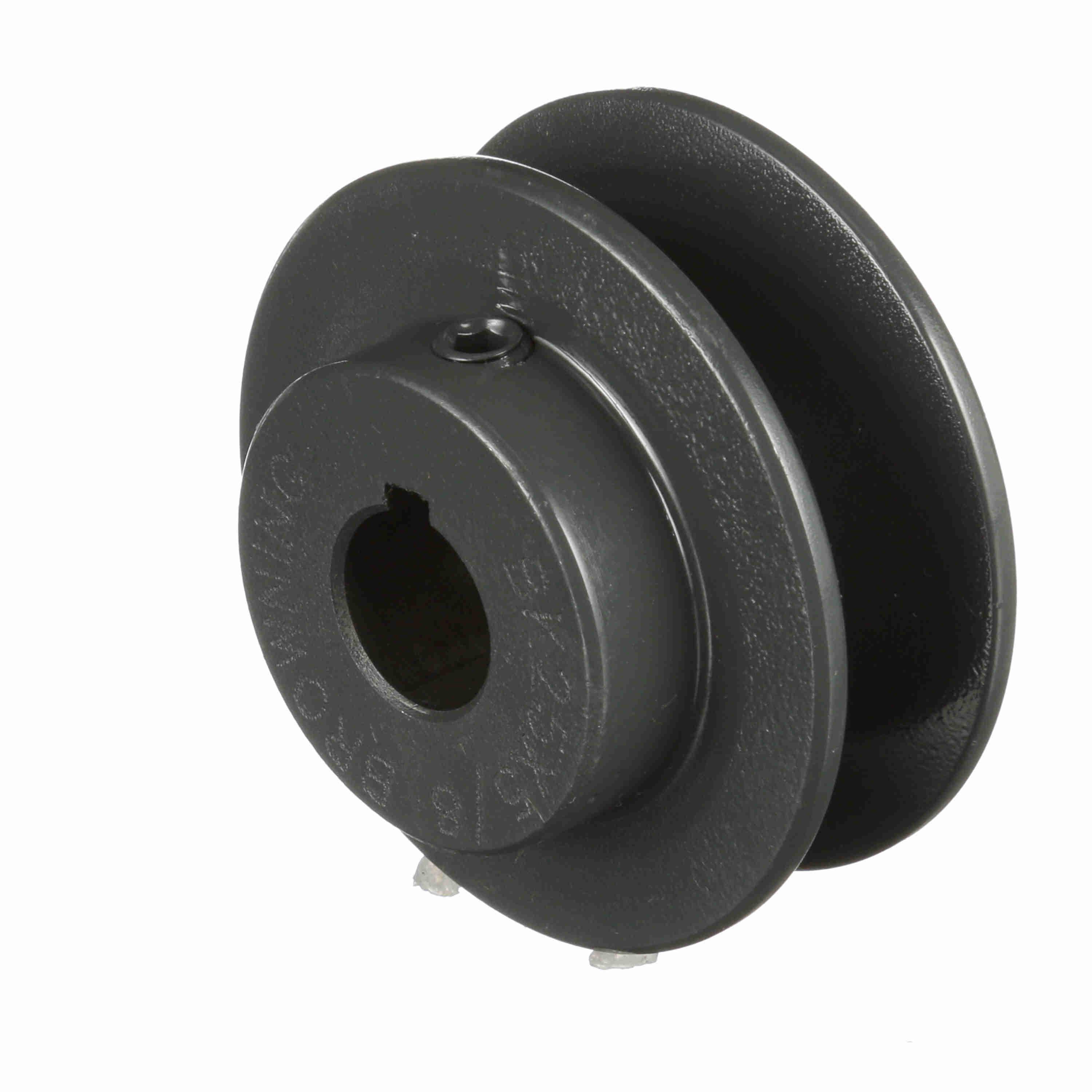

| D | 1027838 | 2 1/2" | 5/8" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | $57.60 | |

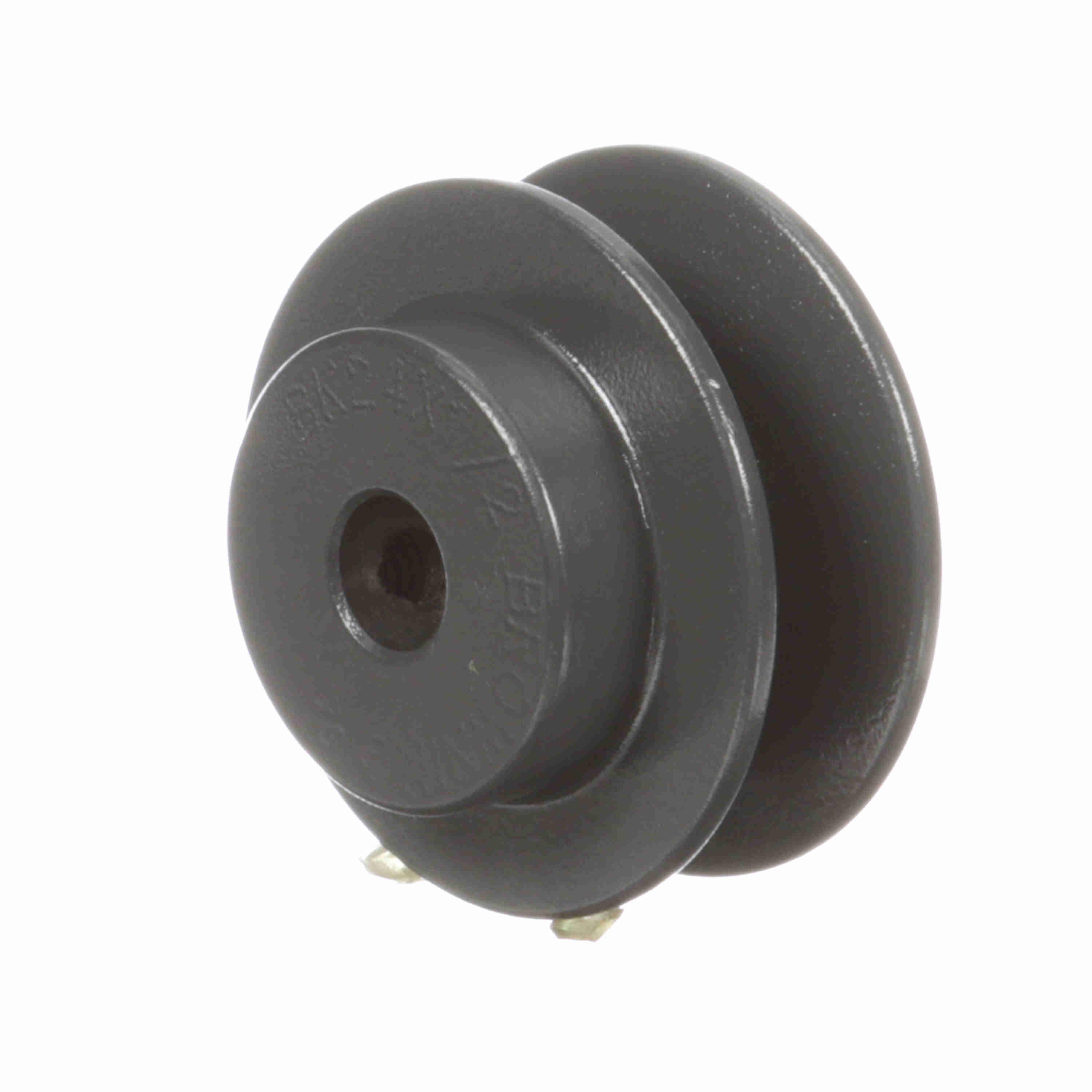

| E | 1027796 | 2 2/5" | 1/2" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | $71.12 | |

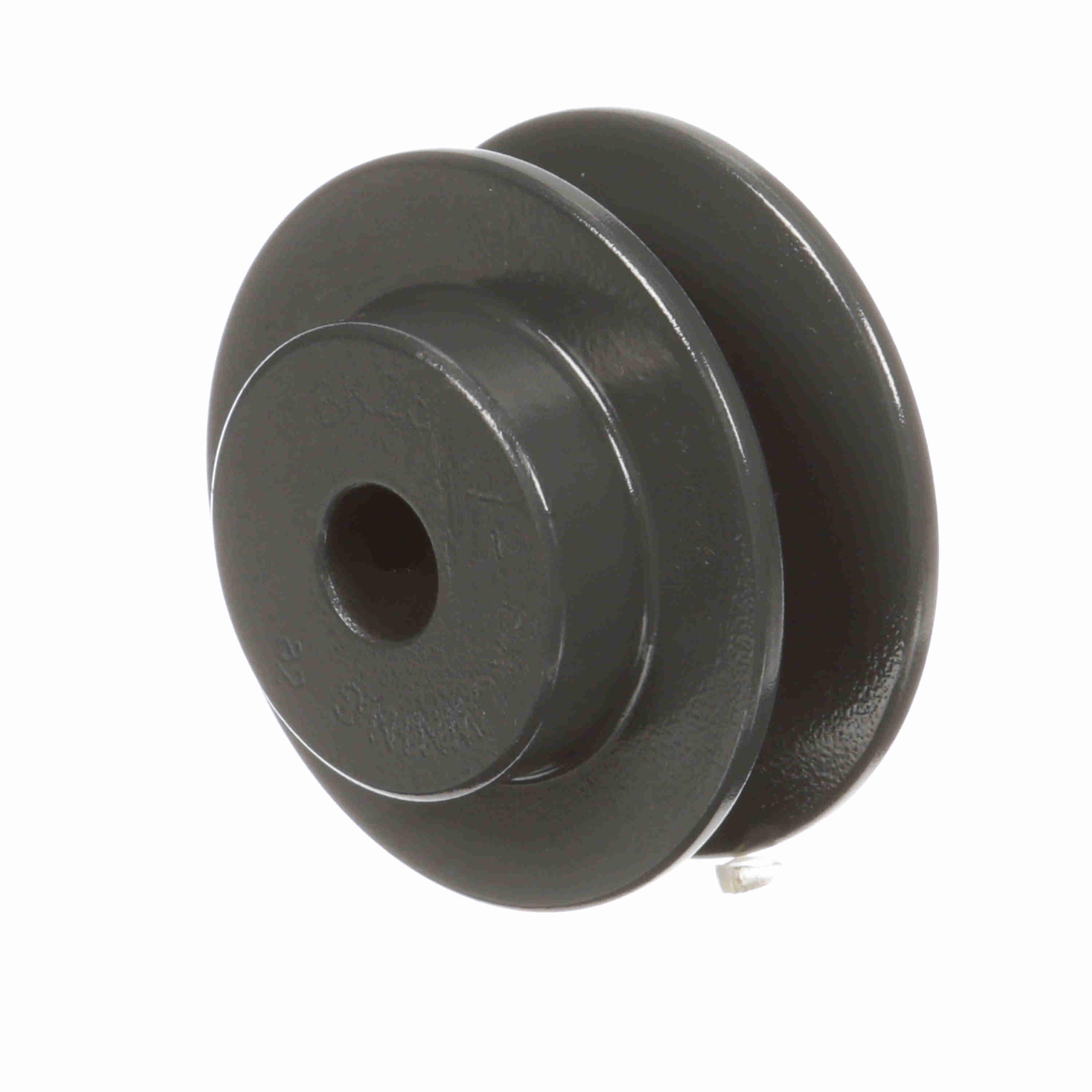

| F | 1027820 | 2 1/2" | 1/2" | Finished | 1 7/32" | 13/16" | Type 1 | Cast Iron | - | $67.90 | |

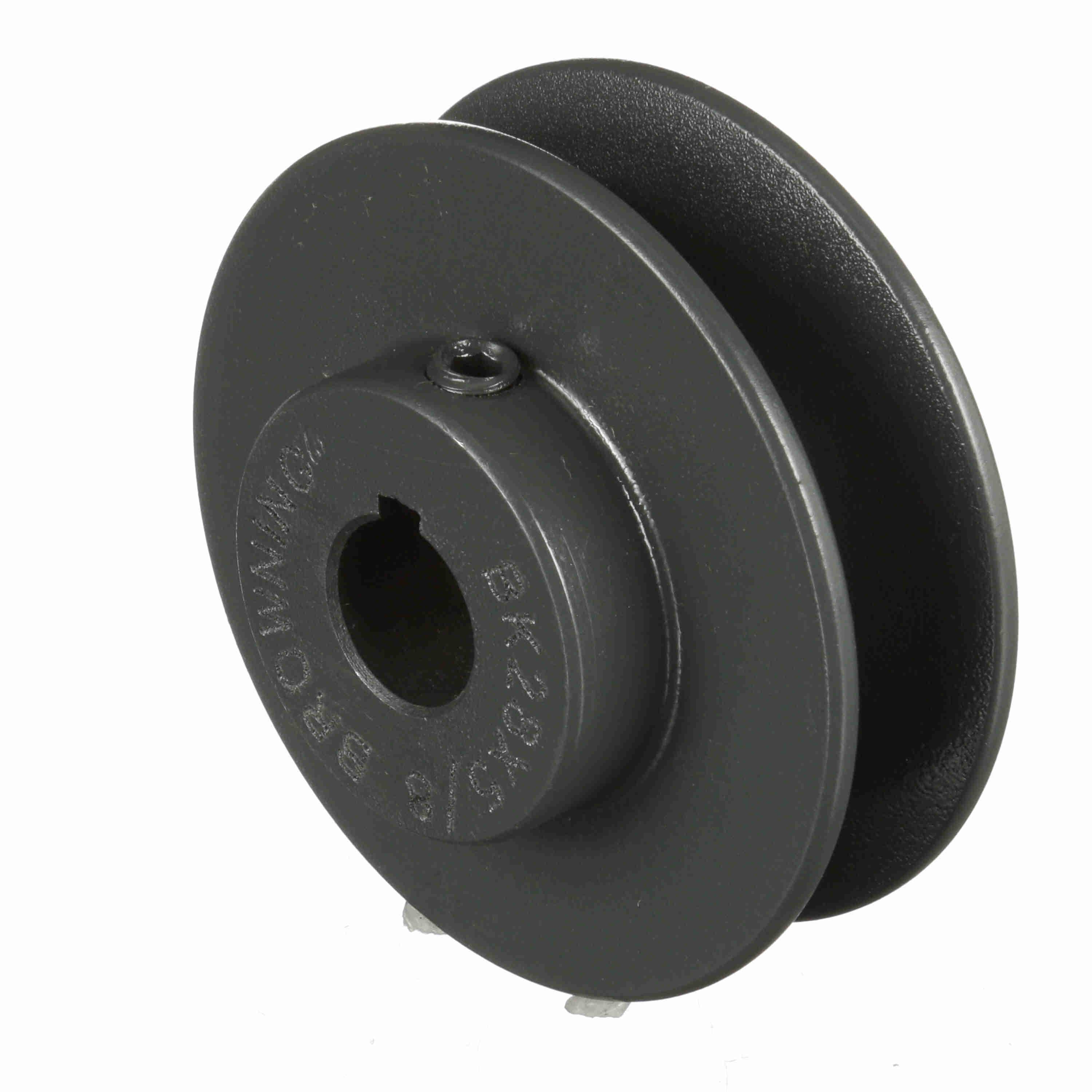

| G | 1027960 | 2.95" | 5/8" | Finished | 1 7/32" | 13/16" | Type 2 | Cast Iron | - | $63.37 |
