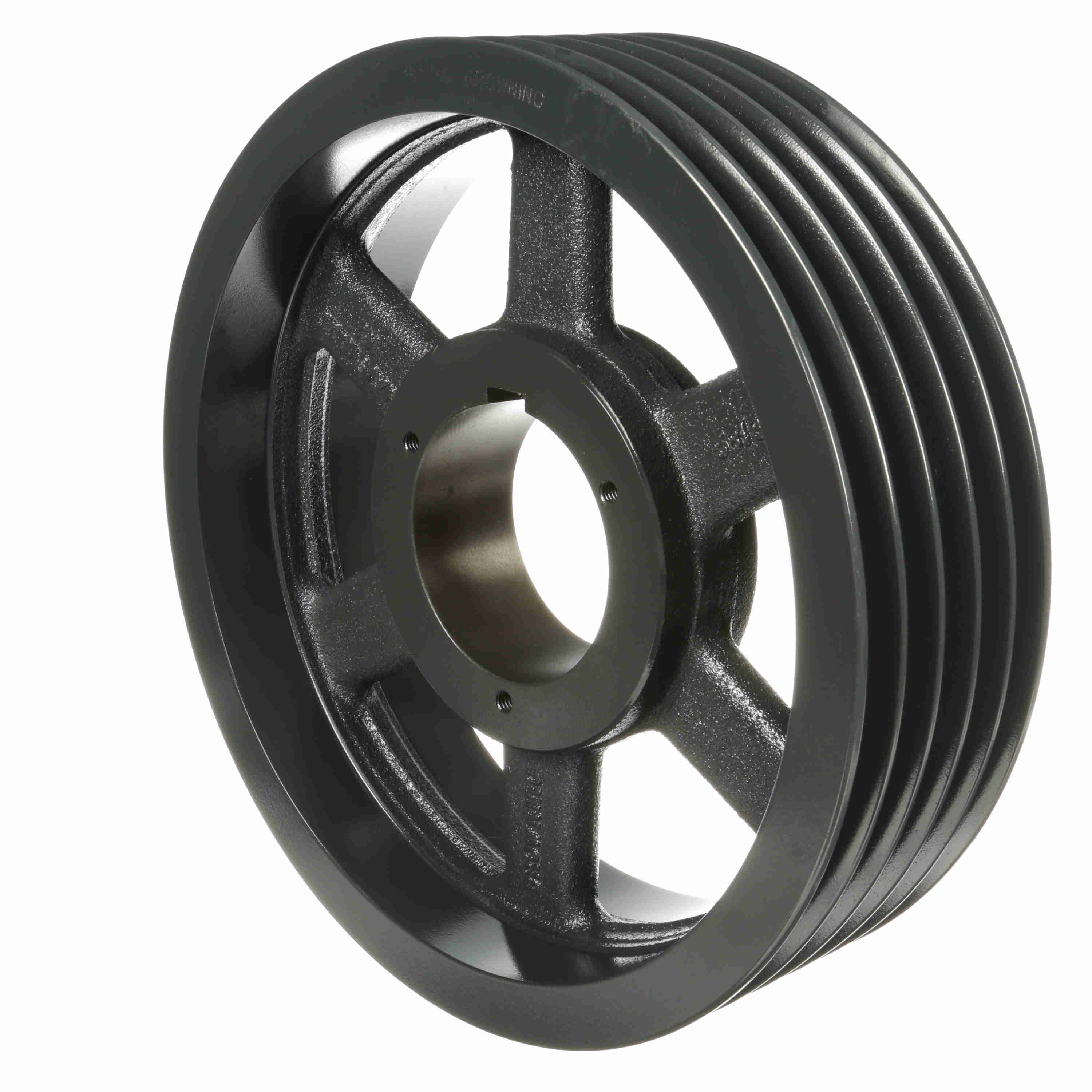

| Item | V-Belt Sheave |
|---|---|
| Belt Series | A, B Series |
| Bore Dia. | 1 1/8" to 3 3/4" |
| Bore Type | Split Taper |
| Bushing Type | R1 |
| Face Width | 4" |
| Hub Projection | 1/16" |
| Keyway | Yes |
| Material | Cast Iron |
| Max. Pitch Dia. | 13 3/5" |
| Min. Pitch Dia. | 13 1/5" |
| Min. Plain Bore | No |
|---|---|
| No. Of Grooves | 5 |
| Outside Dia. | 13.95" |
| Overall Length | 4 11/64" |
| Pitch Dia. (a) | 13 2/5" |
| Pitch Dia. (b) | 13.9" |
| Series | B Series |
| Suitable For Use With | AB Cross Section V-Belts |
| System Of Measurement | Imperial |
| Type | Arm Type 15 |
| Height (cm) | 35.43 |
|---|---|
| Length (cm) | 10.59 |
| Width (cm) | 35.43 |
| Country Of Origin | US |
|---|---|
| Weight (kg) | 18.5625 |
