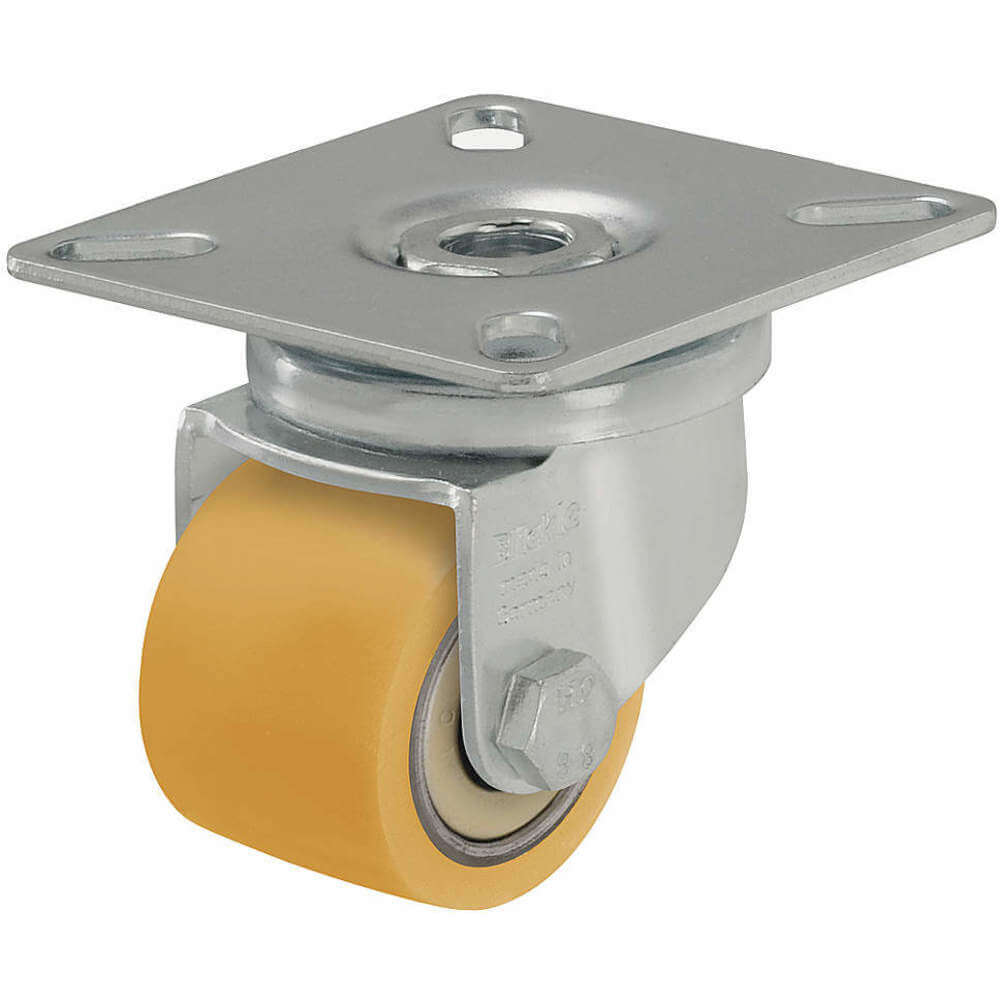

| Item | Swivel Plate Caster |
|---|---|
| Antistatic | No |
| Application | General / Industrial / Commercial / Institutional purpose |
| Bearing Type | Ball Bearing |
| Bolt Hole Diameter | 2/8" |
| Bolt Hole Spacing | 1 1/2" x 1 7/8" |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 0 lbs. to 299 lbs. |
| Caster Material | Polyurethane |
| Caster Product Group | Swivel Caster |
| Caster Sub-type | Swivel |
| Caster Type | Swivel |
| Caster Wheel Material | Polyurethane |
| Caster Wheel Shape | Standard |
| Core Color | Silver |
| Core Material | Polyurethane |
| Corrosion-resistant | No |
| Durometer | 92 Shore A |
| Electrically Conductive | No |
| Esd | No |
| Extended Lead | No |
| Features | Low Profile |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Heat-resistant | No |
| Hole Pattern | A |
| Includes Thread Guards | No |
| Inside Bolt Hole Spacing | 1 1/2" x 1 1/2" |
| Load Capacity (static) | 550 lbs. |
| Load Capacity At 1.9 Mph | 220 lbs. |
| Load Capacity At 3 Km/h | 100 Kg |
| Load Rating | 220 lbs. |
| Lock Type | No Lock Included |
| Mounting Height | 2" |
| Mounting Plate Bolt Hole Pattern | B |
| Mounting Plate Size | 2 3/8" x 2 3/8" |
| Mounting Plate Size & Bolt Hole Pattern | 2 3/8" X 2 3/8" ( B ) |
| Mounting Type | Top Plate |
| Non-marking | Yes |
|---|---|
| Non-staining | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Offset (f) | 9/16" |
| Operating Noise/floor Surface Preservation | Good |
| Outside Bolt Hole Spacing | 1 7/8" x 1 7/8" |
| Overall Height | 2.062" |
| Plate Size | 2 3/8" x 2 3/8" |
| Plate Type | D |
| Raceway Type | Double Ball |
| Replacement Wheel | VSTH 35/6K |
| Rolling Resistance | Very Good |
| Suitable For Autoclaves | No |
| Suitable For Machine Washing | No |
| Swivel Construction | Kingpin |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Double Ball |
| Swivel Radius | 0.0" |
| Temperature Resistance Max | 160°F |
| Temperature Resistance Min | -5°F |
| Total Height (h) | 2 1/16" |
| Tread And Tyre Hardness | 92 Shore A |
| Tread Hydrolysis-resistant | No |
| Tread Shape | Standard |
| Unit Weight | 0.7 lbs. |
| Wear Resistance | Excellent |
| Wheel Bearing Type | Precision Ball |
| Wheel Bearings | Precision Ball |
| Wheel Color | Yellow |
| Wheel Core Material | Polyurethane |
| Wheel Dia. | 1 3/8" |
| Wheel Diameter | 1 3/8" |
| Wheel Material | Polyurethane |
| Wheel Width | 1 1/16" |
| Wheel/tread Color | Yellow |
| Wheel/tread Hardness | 92 Shore A |
| Wheel/tread Hardness Rating | Firm |
| Wheel/tread Material | Polyurethane |
| Standards | DIN EN 12538, ISO 14001, ISO 5001, ISO 9001 |
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 6.35 |
| Width (cm) | 6.1 |
| HS Code | 8302200000 |
|---|---|
| Country Of Origin | DE |
| Weight (kg) | 0.1114 |
| Style | Model | Mounting Plate Bolt Hole Pattern | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Wheel/tread Material | Wheel Bearing Type | Load Rating | Mounting Height | Mounting Plate Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

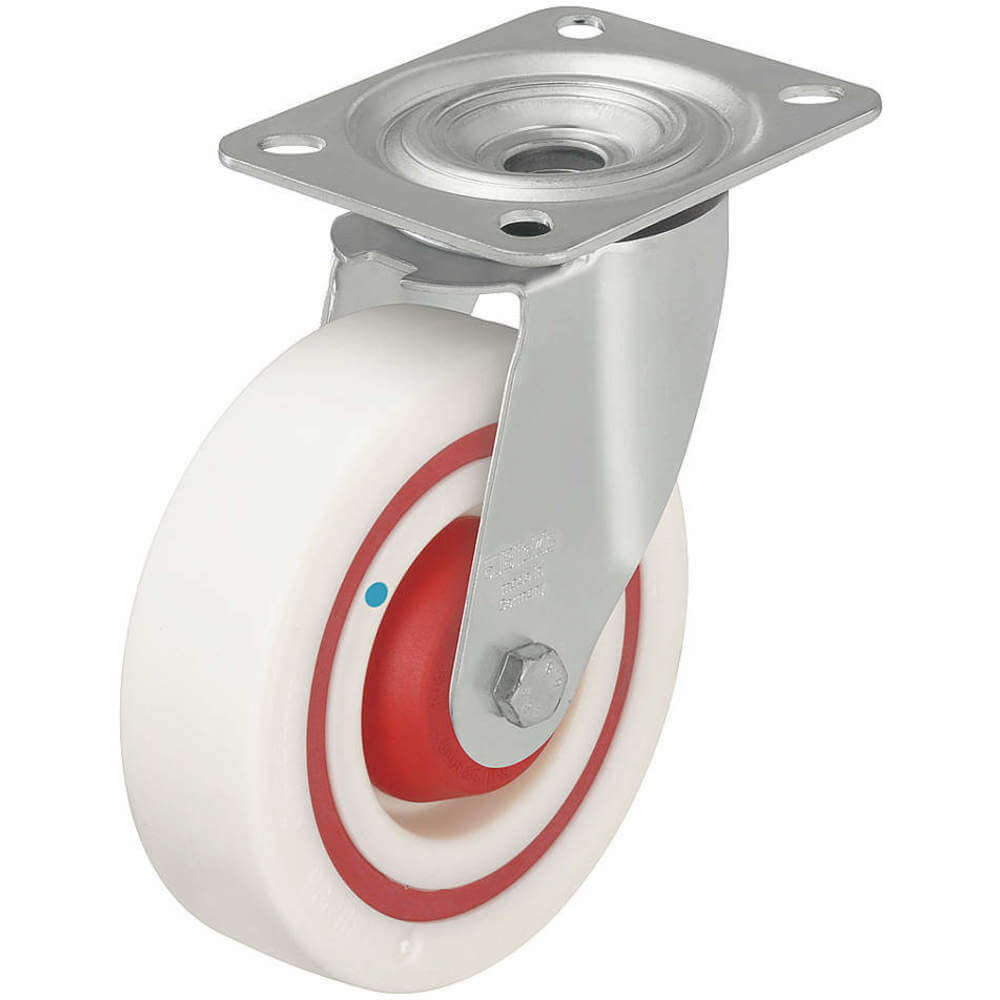

| A | LE-POW 100KF | D | 2 3/8" x 3 5/32" | 2 3/8" x 3 5/32" | Nylon | Precision Ball | 330 lbs. | 4 7/8" | 3 3/8" x 3 15/16" | $58.39 | |
| A | LE-POW 125KF | D | 2 3/8" x 3 5/32" | 2 3/8" x 3 5/32" | Nylon | Precision Ball | 330 lbs. | 5 7/8" | 3 3/8" x 3 15/16" | $67.11 | |
| B | LPXA-VPA 50G | B | 1 1/2" x 1 1/2" | 1 7/8" x 1 7/8" | Rubber | Plain | 85 lbs. | 2 13/16" | 2 3/8" x 2 3/8" | $56.72 | |
| B | LPXA-VPA 75G | B | 1 1/2" x 1 1/2" | 1 7/8" x 1 7/8" | Rubber | Plain | 130 lbs. | 3 7/8" | 2 3/8" x 2 3/8" | $64.11 | |

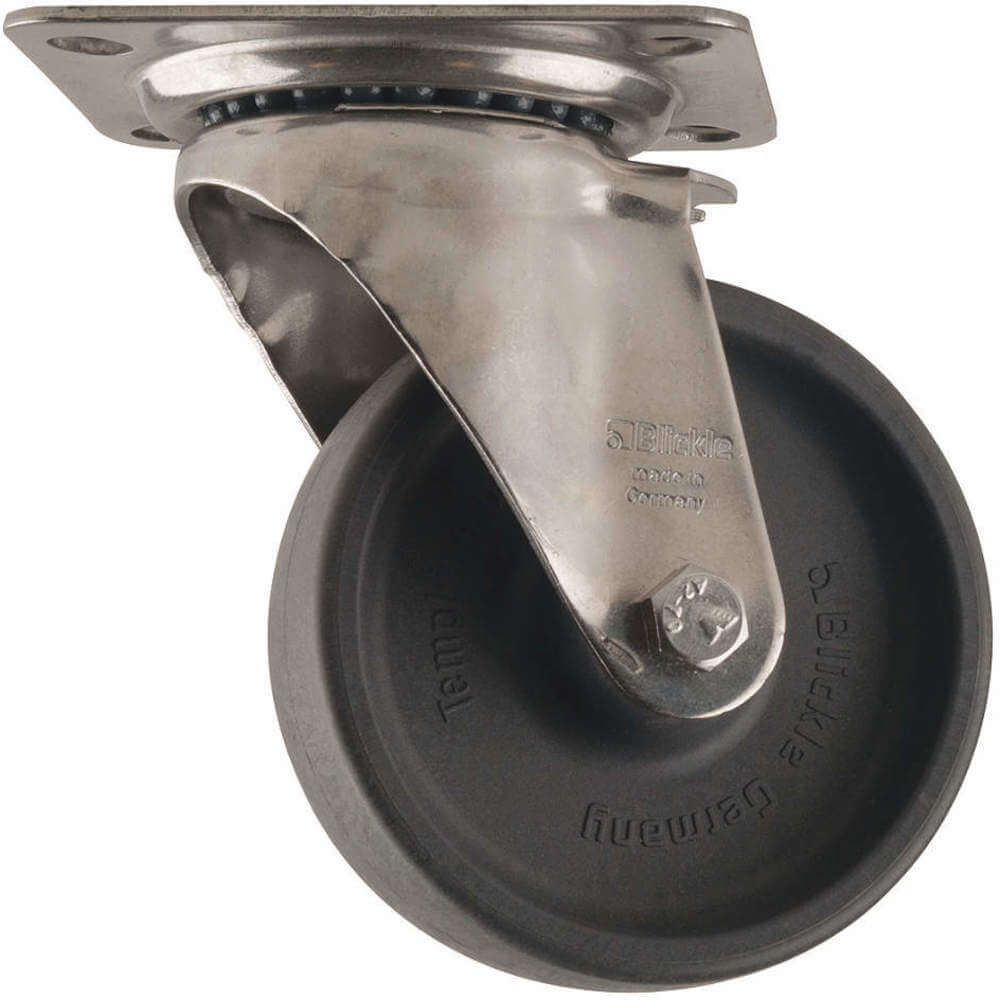

| C | LIX-POHI 100G | D | 2 3/8" x 3 5/32" | 2 3/8" x 3 5/32" | Nylon | Plain | 330 lbs. | 4 7/8" | 3 15/16" x 3 15/16" | $108.04 | |
| C | LIK-POHI 125G-1 | D | 2 3/8" x 3 5/32" | 2 3/8" x 3 5/32" | Nylon | Plain | 660 lbs. | 6 1/8" | 3 15/16" x 3 15/16" | $115.41 | |

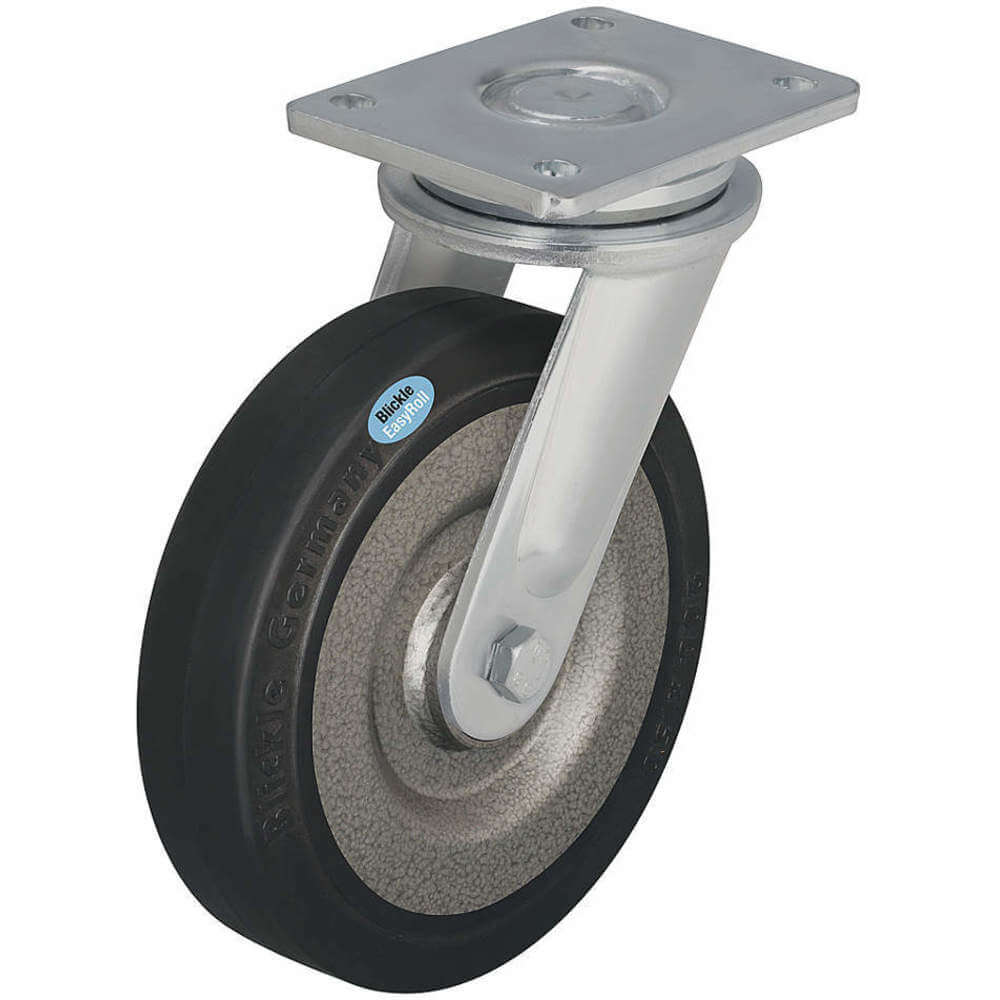

| D | LO-SE 125K | C | 2 15/16" x 4 1/8" | 3 5/32" x 4 9/64" | Rubber | Precision Ball | 705 lbs. | 6 11/16" | 4 5/16" x 5 1/2" | $238.72 |
