| Item | Centrifugal Pedestal Pump Head |
|---|---|
| Adapter Casing Material | Cast Iron |
| Application | General Purpose |
| Casing Adapter | Cast Iron |
| Check Valve Material | EPDM |
| Compatible Power Source | Electric, Gasoline |
| Connection Size | 2" x 2" |
| Discharge Dia. | 2" |
| Discharge Gender | Female |
| Discharge Size | 2" |
| Discharge Type | FNPT |
| Engine/motor Type | Electric |
| Flow Rate | 11400 GPH |
| Flow Rate @ 10 Ft. | 150 GPM |
| Flow Rate @ 10 Ft. Of Head | 150 GPM |
| Flow Rate @ 20 Ft. | 147 GPM |
| Flow Rate @ 20 Ft. Of Head | 147 GPM |
| Flow Rate @ 30 Ft. | 130 GPM |
| Flow Rate @ 40 Ft. | 115 GPM |
| Flow Rate @ 40 Ft. Of Head | 115 GPM |
| Flow Rate @ 50 Ft. | 90 GPM |
| Flow Rate @ 60 Ft. | 80 GPM |
| Flow Rate @ 60 Ft. Of Head | 80 GPM |
| Flow Rate @ 80 Ft. | 40 GPM |
| Flow Rate @ 80 Ft. Of Head | 40 GPM |
| Frame Material | Cast Iron |
| Height | 13" |
| Housing Material | Cast Iron |
| Hp | 5 hp |
| Impeller Design | Open |
| Impeller Material | Cast Iron |
| Impeller Type | Open |
| Inlet | 2" NPT |
| Inlet Dia. | 2" |
| Inlet Gender | Female |
|---|---|
| Inlet Size | 2" |
| Inlet Standard | NPT |
| Length | 13 1/2" |
| Material Of Construction | Cast Iron |
| Max. Diameter Solids | Clear Water |
| Max. Flow Rate | 190 GPM |
| Max. Head | 50 ft. |
| Max. Liquid Temp. | 150°F |
| Max. Operating Temp. | 32°F |
| Max. Pressure | 45 psi |
| Max. Self Priming Lift | 12 ft. |
| Max. Suction Lift | 15 ft. |
| Maximum Discharge Pressure | 45 psi |
| Maximum Self-priming Lift | 12 ft. |
| Number Of Impellers | 1 |
| Operating Temp. | +32°F to +150°F |
| Outlet | 2" Fnpt |
| Outlet Size | 2" |
| Outlet Type | NPT |
| Overall Height | 13" |
| Overall Length | 13 1/2" |
| Overall Width | 8 1/2" |
| Pump Mechanism | Centrifugal |
| Roll Bar Frame | None |
| Seal Material | Carbon Ceramic |
| Self Priming | Yes |
| Self-priming | Yes |
| Sensor Type | None |
| Temp. Range | +32°F to +150°F |
| Type | Engine Driven |
| Volute Material | Cast Iron |
| Volute/wear Plate | Cast Iron |
| Width | 8 1/2" |
| Height (cm) | 33.02 |
|---|---|
| Length (cm) | 34.29 |
| Width (cm) | 21.59 |
| HS Code | 8413919080 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 21.4875 |
| Style | Model | Hp | Housing Material | Impeller Type | Type | Height | Max. Pressure | Max. Suction Lift | Flow Rate @ 60 Ft. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

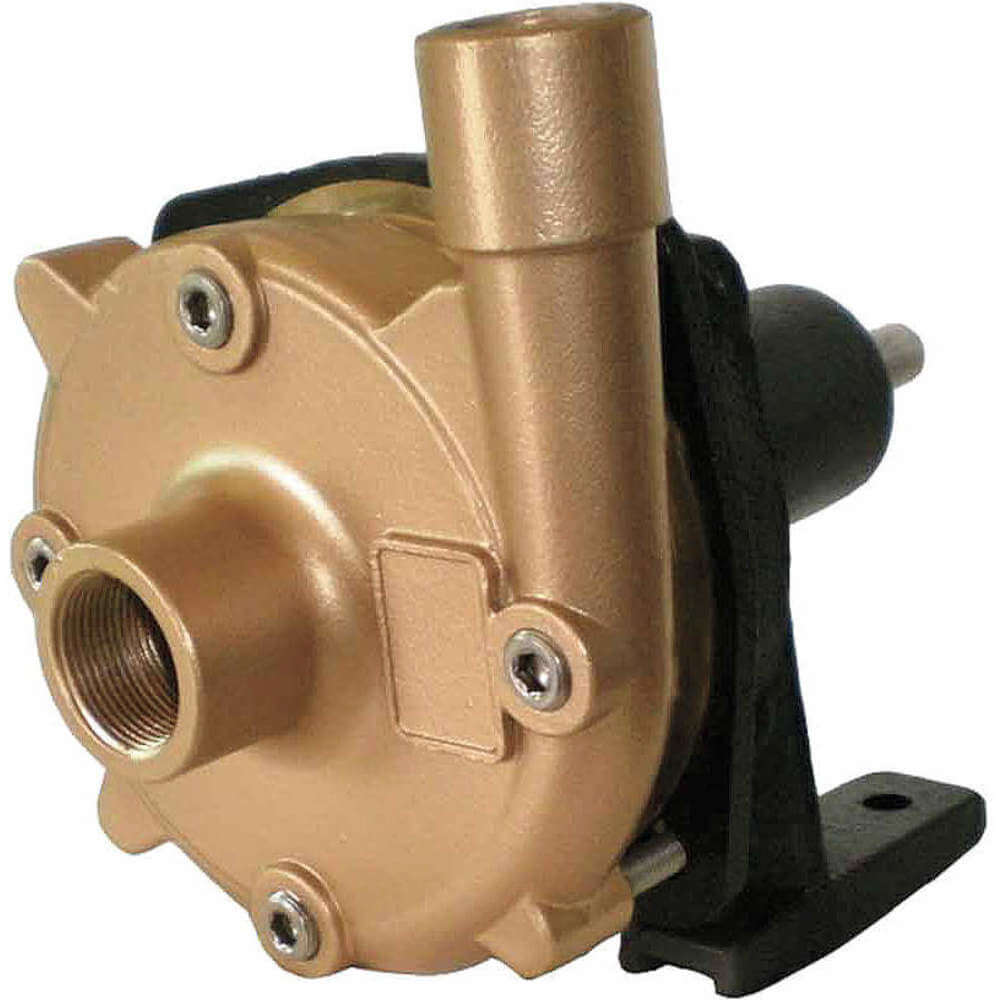

| A | 10X667 | 1 1/2 hp | Bronze | Closed | Chemical Transfer, Straight | 9" | 44 psi | Not Applicable | 37.6 GPM | $1,548.44 | |

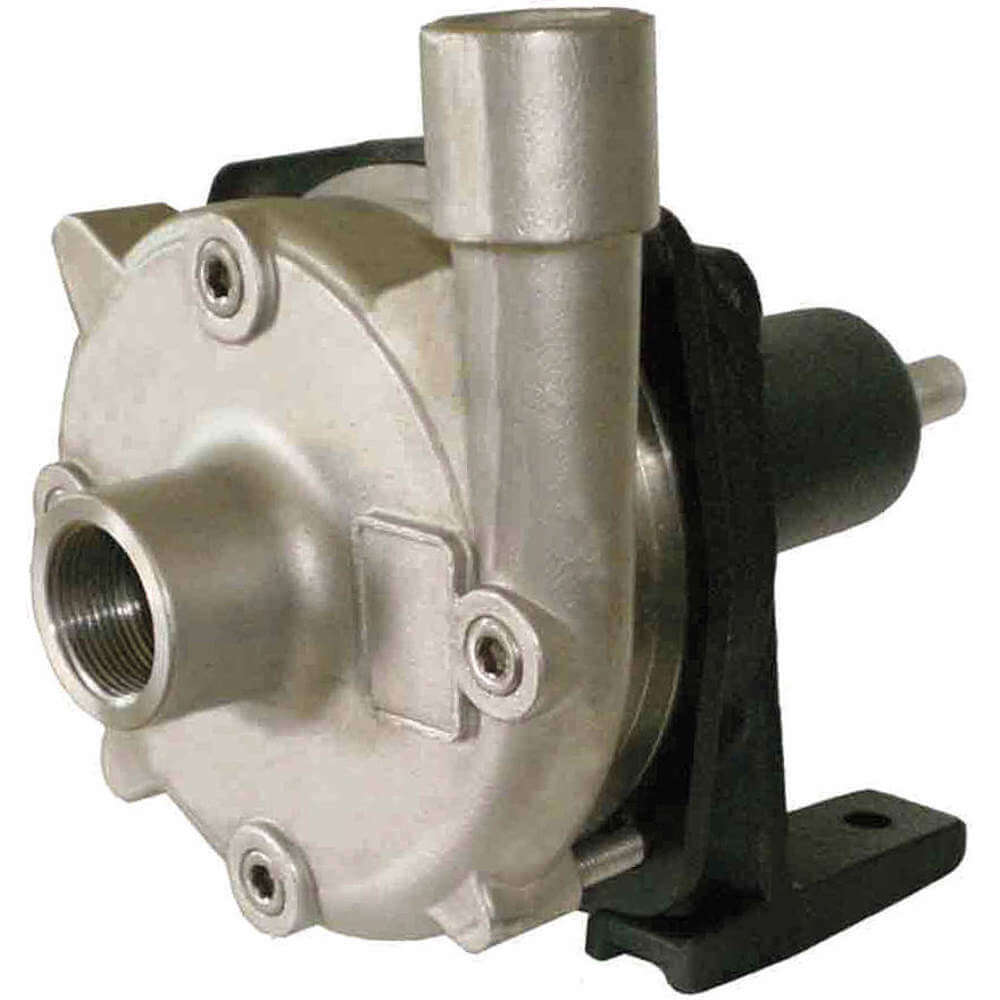

| B | 10X669 | 1 1/2 hp | Stainless Steel | Closed | Chemical Transfer, Straight | 9" | 44 psi | Not Applicable | 37.6 GPM | $1,729.56 | |

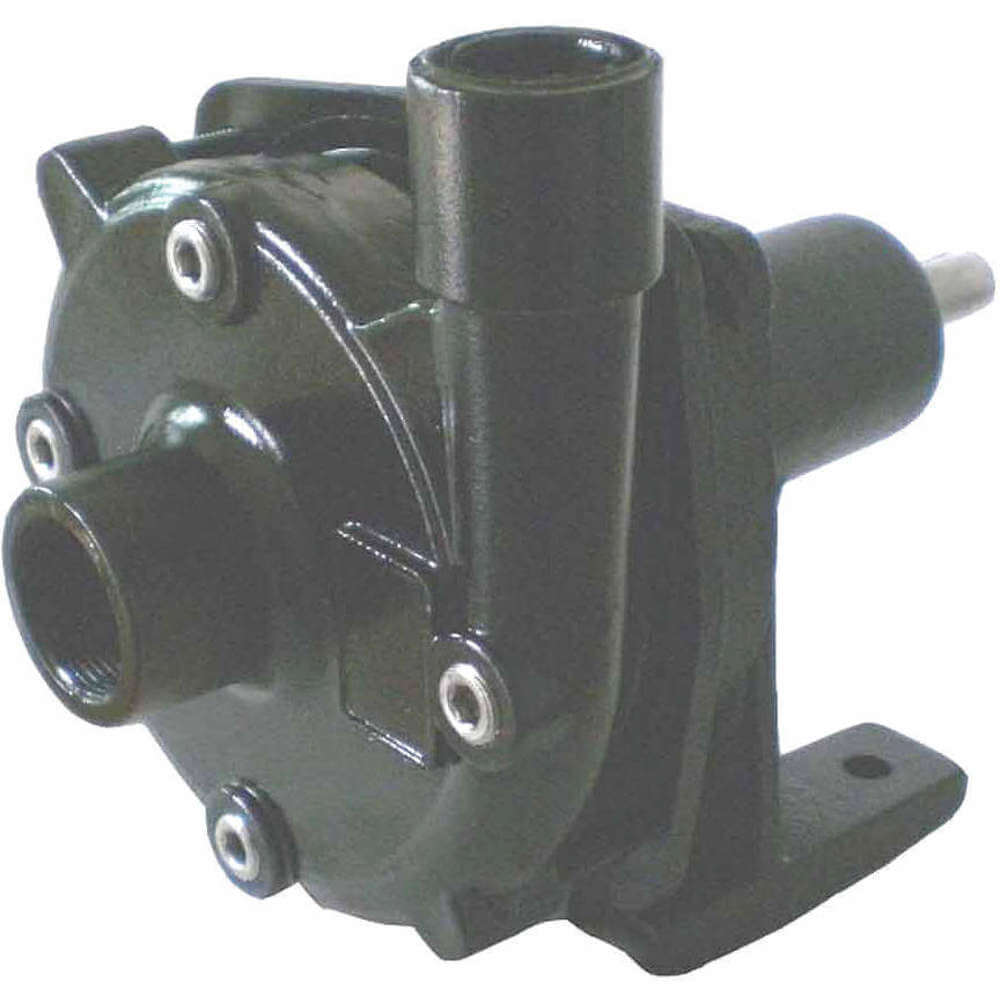

| C | 10X671 | 1 1/2 hp | Cast Iron | Closed | Chemical Transfer, Straight | 9" | 44 psi | Not Applicable | 37.6 GPM | $1,020.09 | |
| D | 200POI | 5 hp | Cast Iron | Open | Engine Driven | 13" | 45 psi | 15 ft. | 80 GPM | $1,048.59 | |

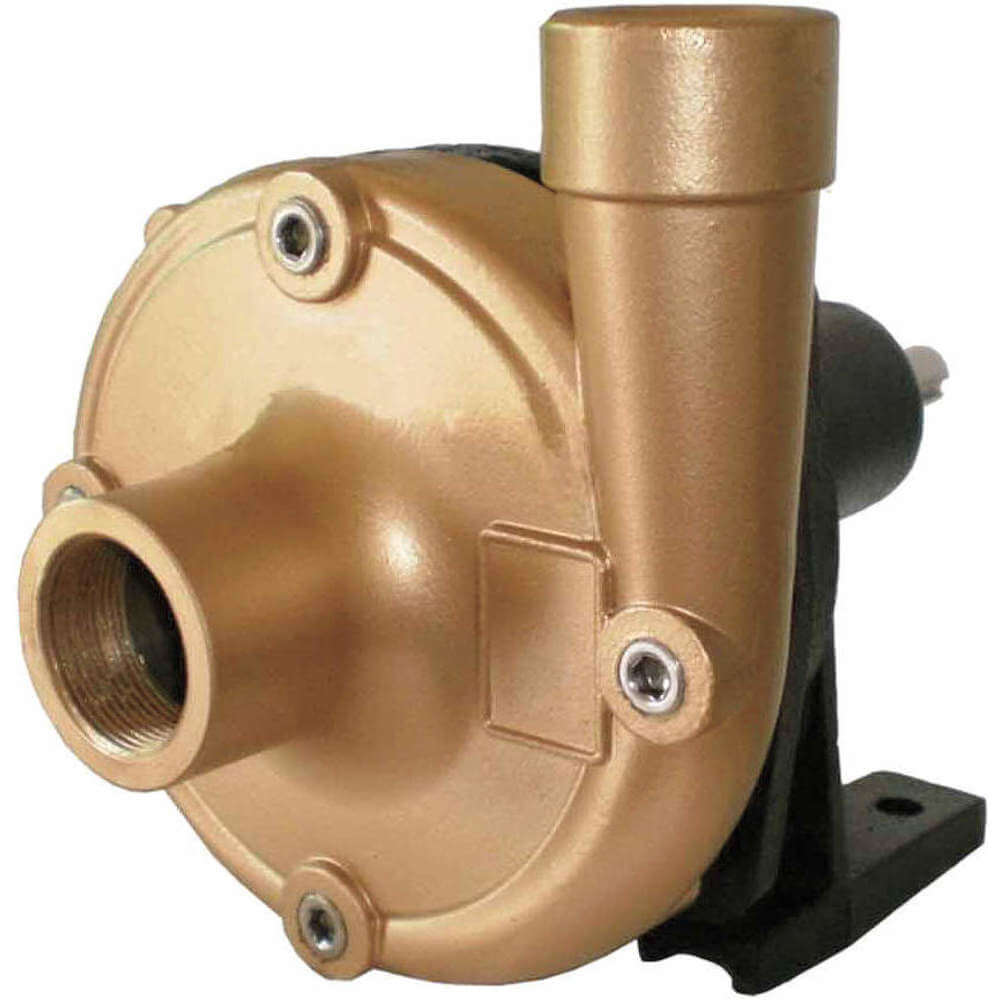

| E | 10X668 | 5 hp | Bronze | Closed | Chemical Transfer, Straight | 9" | 58 psi | Not Applicable | 82 GPM | $1,809.36 | |

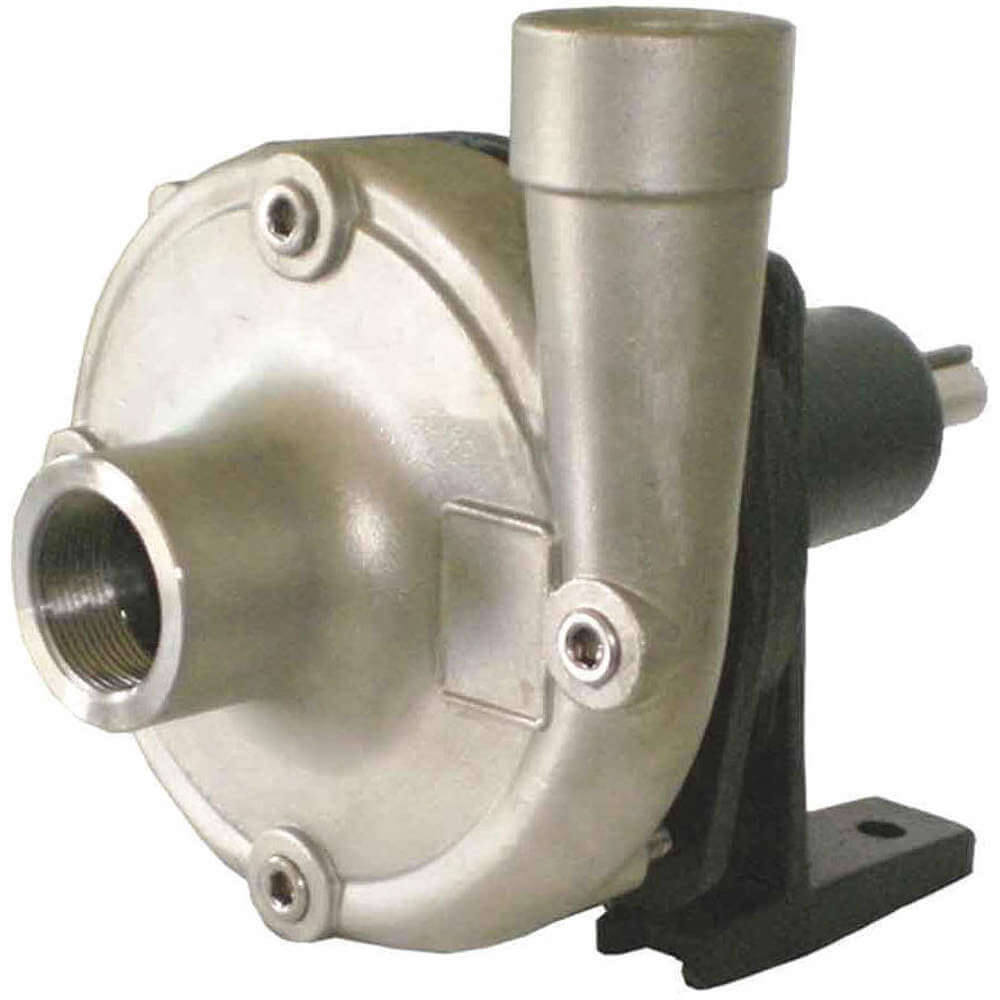

| F | 10X670 | 5 hp | Stainless Steel | Closed | Chemical Transfer, Straight | 9" | 58 psi | Not Applicable | 82 GPM | $1,947.78 | |

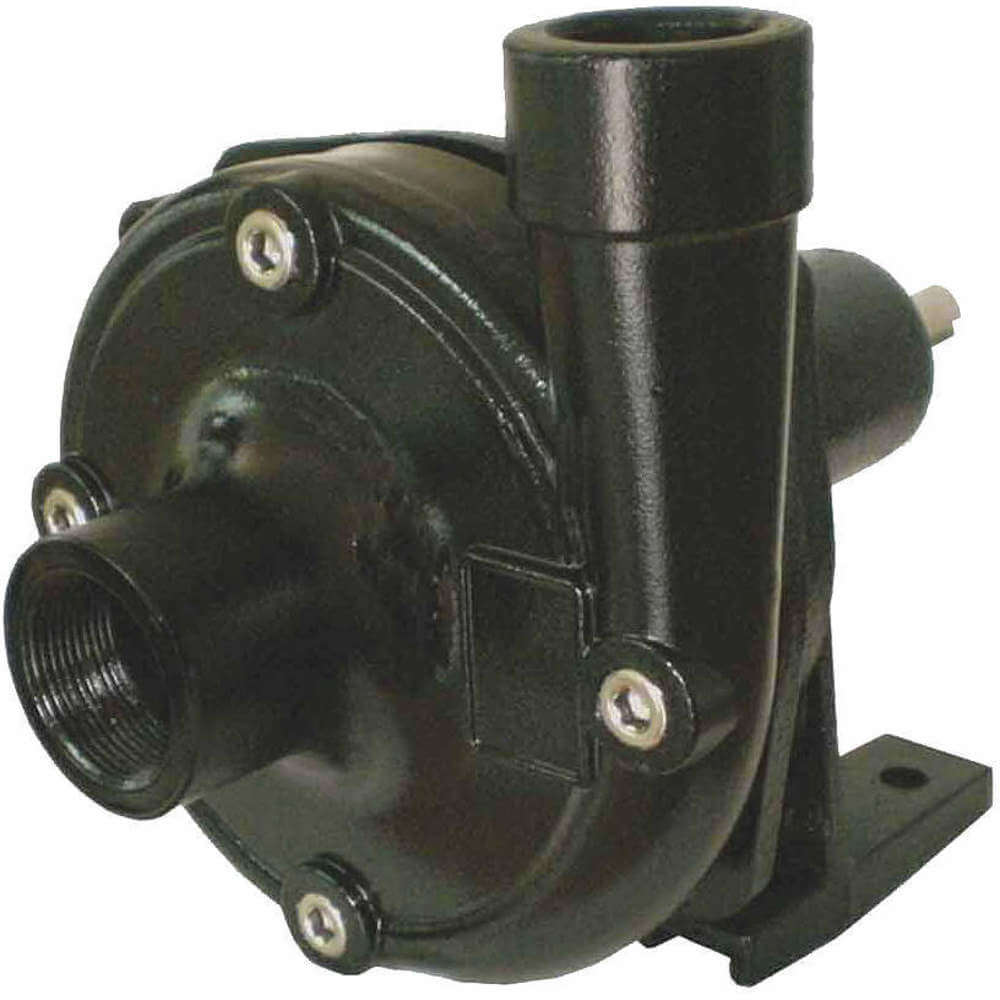

| G | 10X672 | 5 hp | Cast Iron | Closed | Chemical Transfer, Straight | 9" | 58 psi | Not Applicable | 82 GPM | $1,263.82 |
