| Item | Vector Motor |
|---|---|
| Ambient Temp. | 40°C |
| Base Indicator | Rigid |
| Base Rpm | 1800 RPM |
| Base Type | Rigid Base |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Constant Torque | 1000:1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEBC |
| Frame | 184TC |
| Frame Material | Iron |
| Frame Size | 184TC |
| Frequency | 60 Hz |
| Full Load Amps | 5.2A |
| Hp | 5 hp |
| Insulation Class | Class H |
| Inverter Code | Inverter Duty |
| Magnetizing Amps | 2.7A |
| Max. Rpm | 6000 RPM |
| Motor Enclosure Design | Totally Enclosed Blower Cooled |
| Motor Mounting Position | Horizontal |
|---|---|
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1750 RPM |
| Nema/iec | NEMA |
| No. Of Motor Leads | 3 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Overall Length | 21.71" |
| Phase | 3 |
| Power Factor | 80 |
| Pulley Face Code | C Face |
| Revision | U |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1 1/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1800 RPM |
| Type | 0640M |
| Voltage | 575V |
| Wire Size | 16 AWG |
| Height (cm) | 41.28 |
|---|---|
| Length (cm) | 67.63 |
| Width (cm) | 42.23 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 56.25 |
| Style | Model | Voltage | Hp | Frame | Full Load Amps | Nominal Efficiency | Nameplate Rpm | Max. Rpm | Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

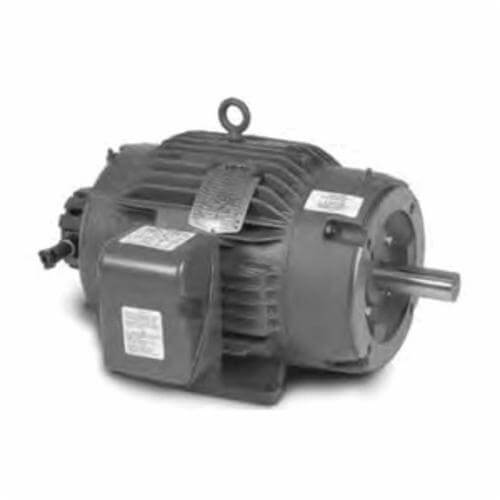

| A | ZDM2276T | 230/460V | 7 1/2 hp | 254TC | 21.4/10.7A | 91% | 1180 RPM | 5000 RPM | 0954M | $11,627.73 | |
| A | ZDM2332T | 230/460V | 10 hp | 256TC | 28.4/14.2A | 91.7% | 1180 RPM | 5000 RPM | 0960M | $13,628.96 | |
| A | ZDM2333T | 230/460V | 15 hp | 256TC | 36.2/18.1A | 92.4% | - | 5000 RPM | 0944M | $8,799.93 | |
| A | ZDM2333T-5 | 575V | 15 hp | 256TC | 14.5A | 92.4% | - | 5000 RPM | 0942M | $8,799.93 | |
| A | ZDM2334T | 230/460V | 20 hp | 256TC | 48/24A | 93% | - | 2700 RPM | 0952M | $9,225.19 | |
| A | ZDM2334T-5 | 575V | 20 hp | 256TC | 19A | 93% | - | 2700 RPM | 0948M | $9,225.19 | |
| A | ZDM3581T | 230/460V | 1 hp | 143TC | 3/1.5A | 87.5% | - | 6000 RPM | 0524M | $5,483.77 |
