| Item | Vector Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Base Indicator | Rigid |
| Base Rpm | 1800 RPM |
| Base Type | Rigid Base |
| Conduit Box Material | Steel |
| Conduit Box Position | F1 |
| Constant Torque | 1000:1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TENV |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.3/1.15A |
| Hp | 3/4 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Duty |
| Leads | 9#18 |
| Magnetizing Amps | 1.5/0.75A |
| Max. Rpm | 6000 RPM |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Type | Three Phase |
|---|---|
| Mounting Type | Rigid Base |
| Multiplier | E2 |
| Nameplate Rpm | 1750 RPM |
| Nema/iec | NEMA |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 84% |
| Overall Length | 13.84" |
| Phase | 3 |
| Power Factor | 74 |
| Proprietary | No |
| Pulley Face Code | C Face |
| Revision | K |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Synchronous Rpm | 1800 RPM |
| Type | 3517M |
| Voltage | 230/460V |
| Wire Size | 18 AWG |
| xp class/group | None |
| Height (cm) | 33.33 |
|---|---|
| Length (cm) | 49.21 |
| Width (cm) | 34.92 |
| HS Code | 85015100 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 16.2 |
| Style | Model | Voltage | Hp | Frame | Full Load Amps | Nominal Efficiency | Nameplate Rpm | Max. Rpm | No. Of Poles | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

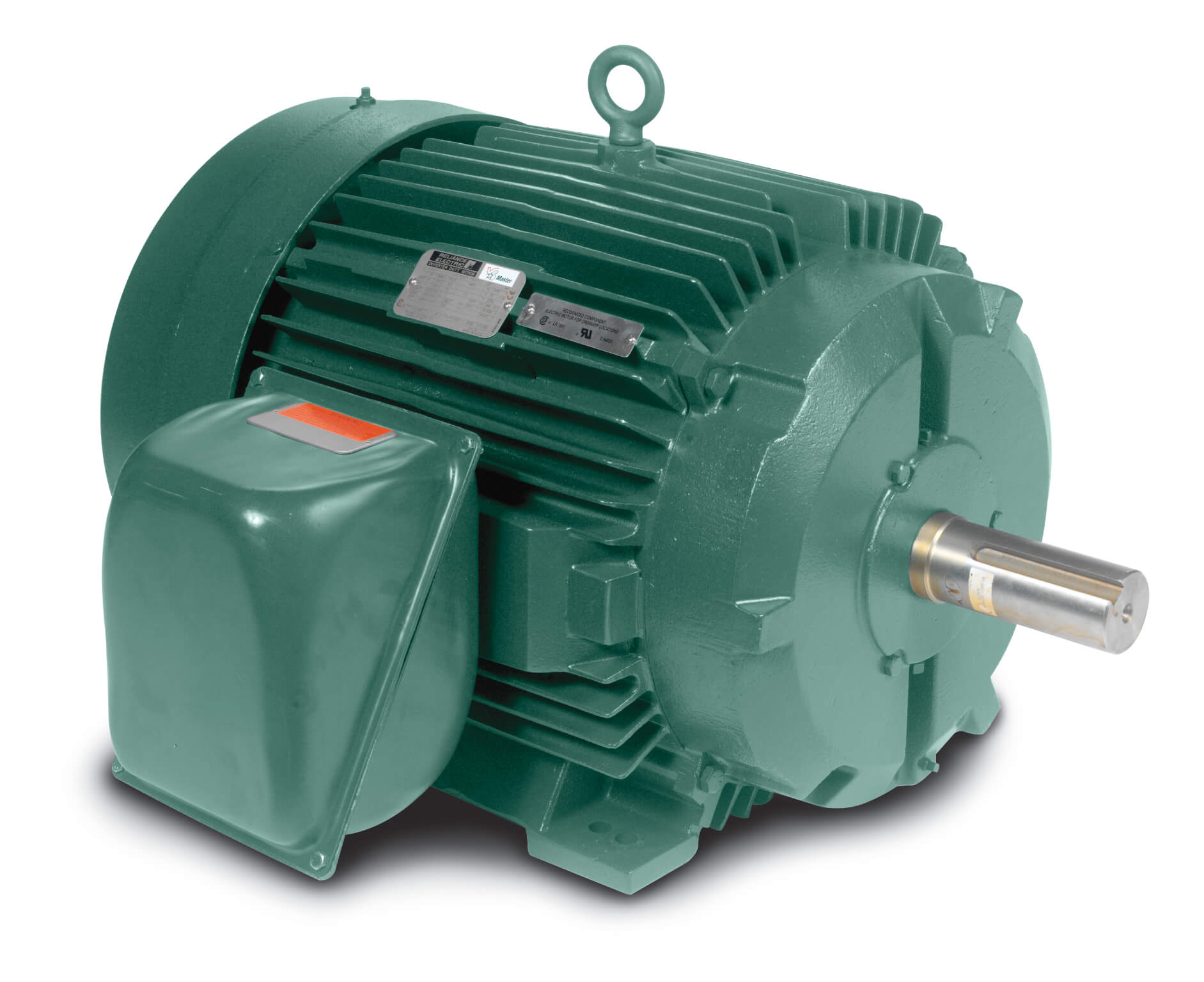

| A | IDVSM2333T | 230/460V | 15 hp | 254TC | 36/18A | 92.4% | - | 2700 RPM | 4 | $6,310.37 | |
| A | IDVSM2334T | 230/460V | 20 hp | 256TC | 48/24A | 93% | - | 2700 RPM | 4 | $6,841.13 | |
| A | IDVSM3661T | 230/460V | 3 hp | 182TC | 8.2/4.1A | 89.5% | - | 5400 RPM | 4 | $2,788.66 | |
| A | IDVSM3665T | 230/460V | 5 hp | L184TC | 12.8A | - | - | 4000 RPM | 4 | $3,233.49 | |
| A | IDVSM3770T | 230/460V | 7 1/2 hp | 213TC | 19/9.5A | 91.7% | 1770 RPM | 4000 RPM | 4 | $4,160.14 | |
| A | IDVSM3774T | 230/460V | 10 hp | 215TC | 25/12.5A | 92.4% | - | 4500 RPM | 4 | $5,423.96 | |
| A | IDVSM4103T | 230/460V | 25 hp | 284TC | 60/30A | 93.6% | 1775 RPM | 2700 RPM | 4 | $8,686.81 |
