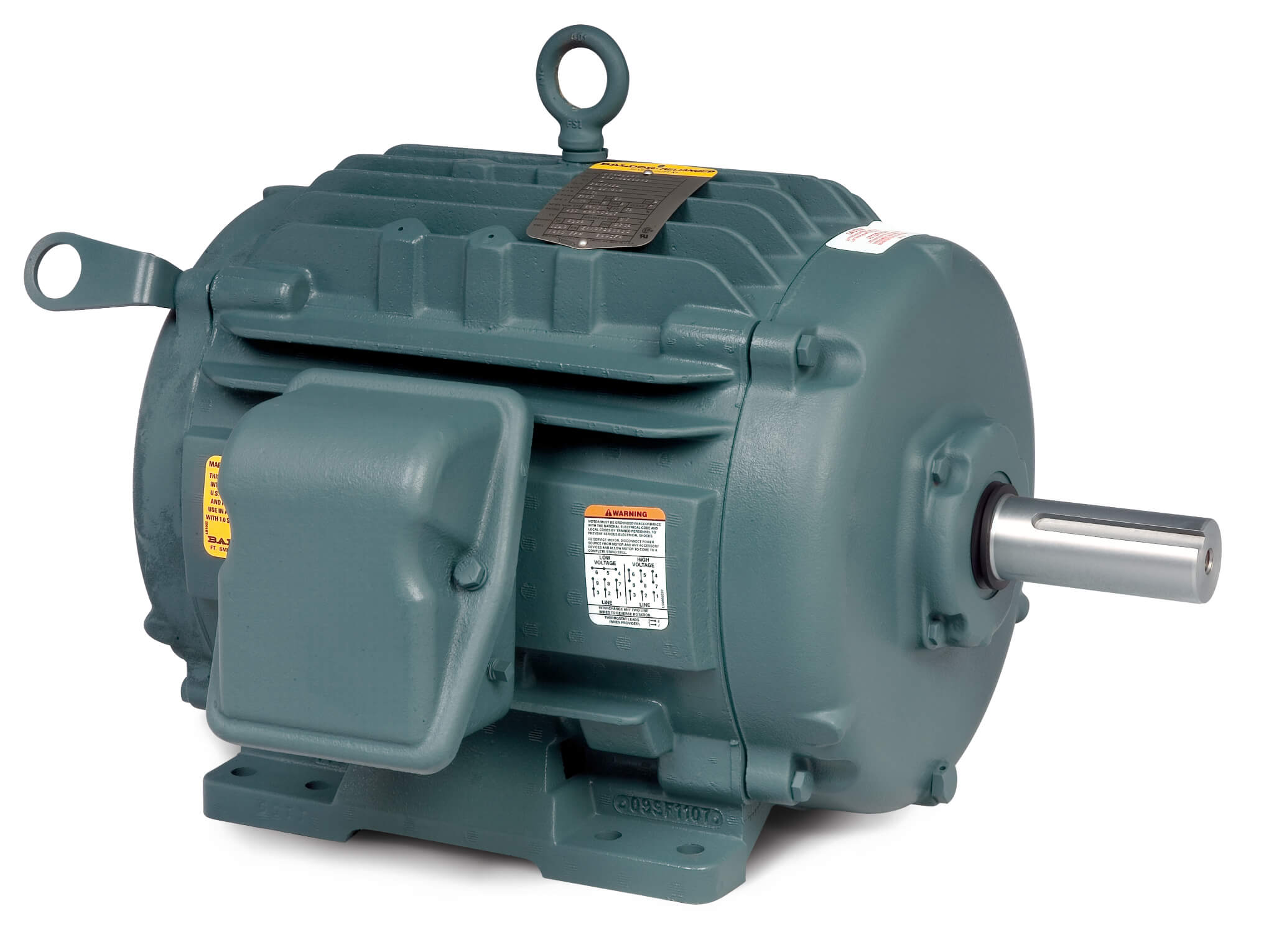

| Item | Cooling Tower Motor |
|---|---|
| Ac/dc | AC |
| Ambient Temp. | 40°C |
| Amps | 14-13.2/6.6A |
| Amps @ 208v | 14A |
| Base Indicator | Rigid |
| Base Type | Rigid Base |
| Break-down Torque | 48.3 lbs.-ft. |
| Class | Stock |
| Code | J |
| Conduit Box Material | Cast Iron |
| Conduit Box Position | F1 |
| Design Code | B |
| Duty | Continuous |
| Enclosure Design | TEAO |
| Enclosure Type | Totally Enclosed Air Over |
| Frame | 184T |
| Frame Material | Iron |
| Frame Size | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 14-13.2/6.6A |
| Full Load Torque | 15 lbs.-ft. |
| Hp | 5 hp |
| Insulation Class | Class F |
| Inverter Code | Inverter Ready |
| Lead | 9#16 |
| Line-line Res. @ 25° C | 2.47 ohms A Ph/0 ohms B Ph |
| Locked-rotor Torque | 33.4 lbs.-ft. |
| Multiplier | L1 |
| Nema/iec | NEMA |
|---|---|
| No Load Amps | 3.15A |
| No. Of Motor Leads | 9 |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 89.5% |
| Overall Length | 13.68" |
| Phase | 3 |
| Power Factor | 79 |
| Proprietary | No |
| Pull-up Torque | 28.7 lbs.-ft. |
| Pulley Face Code | Standard |
| Revision | D |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Start Configuration | DOL |
| Starting Amps | 45.5A |
| Synchronous Rpm | 1800 RPM |
| Temp. Rise | 64°C |
| Temp. Rise @ Rated Load | 52°C |
| Temp. Rise @ S. F. Load | 64°C |
| Type | 0641M |
| Voltage | 208-230/460V |
| Wire Size | 16 AWG |
| xp class/group | None |
| Height (cm) | 38.42 |
|---|---|
| Length (cm) | 54.93 |
| Width (cm) | 40.96 |
| HS Code | 85015220 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 48.6 |
| Style | Model | Hp | Voltage | Rpm | Frame | Full Load Amps | Wire Size | Revision | No. Of Motor Leads | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CTM2276T | 7 1/2 hp | 208-230/460V | 1100-1200 RPM | 254T | 10.9/21.8/24A | 14 AWG | F | 9 | $3,188.90 | |
| A | CTM2332T | 10 hp | 230/460V | 1100-1200 RPM | 256T | 28.8/14.4A | 12 AWG | M | 9 | $3,549.39 | |
| A | CTM2333T | 15 hp | 208-230/460V | 1700-1800 RPM | 254T | 18.5/37/4A | 14 AWG | K | 9 | $5,137.14 | |
| A | CTM2334T | 20 hp | 230/460V | 1700-1800 RPM | 256T | 50/25A | 10 AWG | G | 9 | $4,339.19 | |
| A | CTM3665T | 5 hp | 208-230/460V | 1700-1800 RPM | 184T | 14.9-13.8/6.9A | 16 AWG | C | 9 | $1,724.01 | |
| A | CTM3768T | 5 hp | 208-230/460V | 1100-1200 RPM | 215T | 16.3-15/7.5A | 14 AWG | C | 9 | $2,613.27 | |
| A | CTM3770T | 7 1/2 hp | 208-230/460V | 1700-1800 RPM | 213T | 22.3-20.6/10.3A | 14 AWG | C | 9 | $2,295.81 |
