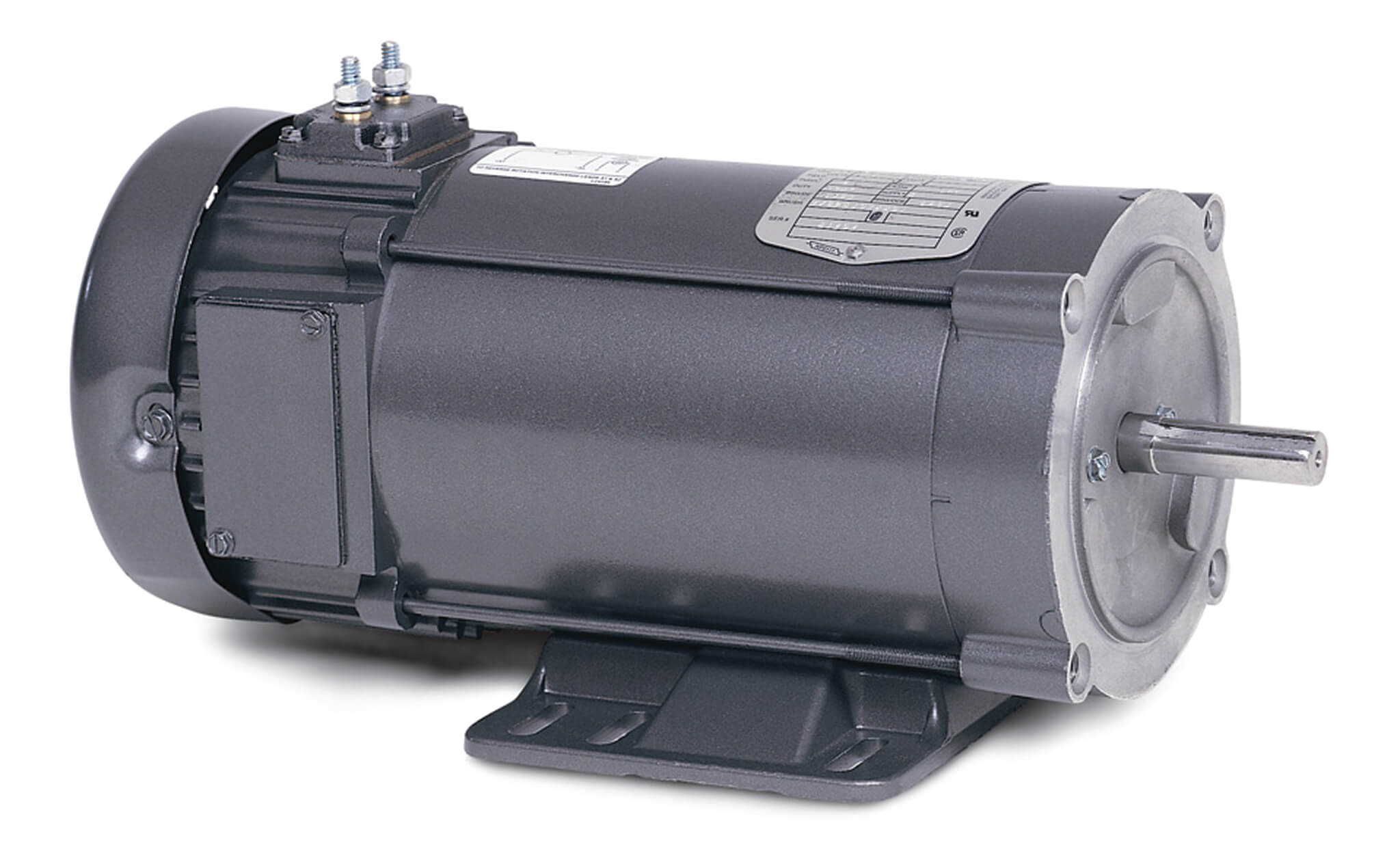

| Item | DC Permanent Magnet Motor |
|---|---|
| Ac/dc | DC |
| Ambient Temp. | 40°C |
| Armature Amps | 40.9A |
| Armature Inertia | 12.052 lbs.-sq. ft. |
| Armature Voltage | 24V |
| Base | Rigid Base |
| Base Indicator | Rigid |
| Base Rpm | 1800 RPM |
| Base Type | Rigid Base |
| Brushes | 2/BP5112AU01 |
| Class | Stock |
| Conduit Box Position | F3 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Enclosure Design | TEFC |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 56C |
| Frame Material | Steel |
| Frame Size | 56C |
| Hp | 1 hp |
|---|---|
| Insulation Class | Class F |
| Motor Mounting Position | Horizontal |
| Motor Type | Permanent Magnet DC |
| Mounting Type | C Face, Foot Mounted |
| Multiplier | K |
| Nema/iec | NEMA |
| Overall Length | 15.89" |
| Phase | 3 |
| Proprietary | No |
| Revision | F |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Ground Indicator | No Shaft Grounding |
| Shaft Rotation | Reversible |
| Type | 3435P |
| Voltage | 24V |
| Xp Class And Group | None |
A Permanent Magnet DC motor (PMDC motor) uses a permanent magnet to create the magnetic field & move the mechanical shaft for operating a direct current (DC) powered motor. It is generally used as a starter motor in washers, blowers, automobiles & powered windshields.
| Height (cm) | 32.55 |
|---|---|
| Length (cm) | 58.1 |
| Width (cm) | 31.12 |
| HS Code | 85015100 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 19.35 |
The main difference between a general-purpose DC motor and a permanent magnet DC (PMDC) motor is the stator construction. A PMDC motor stator is made of permanent magnets, whereas a DC motor stator is made of an electromagnet. PMDC motor stators do not need separate field excitation, whereas an ordinary DC motor stator comes with field windings to provide excitation to the electromagnet. A PMDC motor is also more efficient when compared to a DC motor due to the absence of field windings and the resulting copper loss.
