| Item | Air Regulator |
|---|---|
| Adjustment Knob | Standard |
| Adjustment Mechanism Material | Acetal |
| Adjustment Range | 0 psi to 140 psi |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/2" |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Body Material | Aluminum, Zinc |
| Duty Rating | Heavy Duty |
| For Fluid Type | Air |
| For Substance Type | Air |
| Includes | Panel Nut |
| Max. Flow Rate | 215 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 140°F |
| Maximum Flow Rate | 210 CFM |
|---|---|
| Maximum Operating Pressure | 250 psi |
| Maximum Regulated Pressure | 140 psi |
| Minimum Operating Temperature | 23°F |
| Minimum Regulated Pressure | 0 psi |
| Overall Depth | 3 1/8" |
| Overall Height | 5 1/2" |
| Overall Length | 2 3/4" |
| Overall Width | 3 1/8" |
| Pressure Gauge Included | No |
| Pressure Gauge Port Size | 1/8" |
| Pressure Gauge Port Type | NPT |
| Regulator Type | Relieving |
| Series | 2000 Series |
| Sight Gauge Included | No |
| Valve Design | Balanced |
| standard | ATEX DIRECTIVE 94/9/EEC OR 2014/34/EU, IRITS-1215-197 |
| Height (cm) | 13.97 |
|---|---|
| Length (cm) | 7.94 |
| Width (cm) | 7.94 |
| HS Code | 8481100040 |
|---|---|
| Country Of Origin | KR |
| Weight (kg) | 0.63 |
| Style | Model | Air Inlet Size | Max. Flow Rate | Pressure Gauge Included | Overall Width | Overall Length | Air Outlet Size | Pressure Gauge Port Size | Body Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

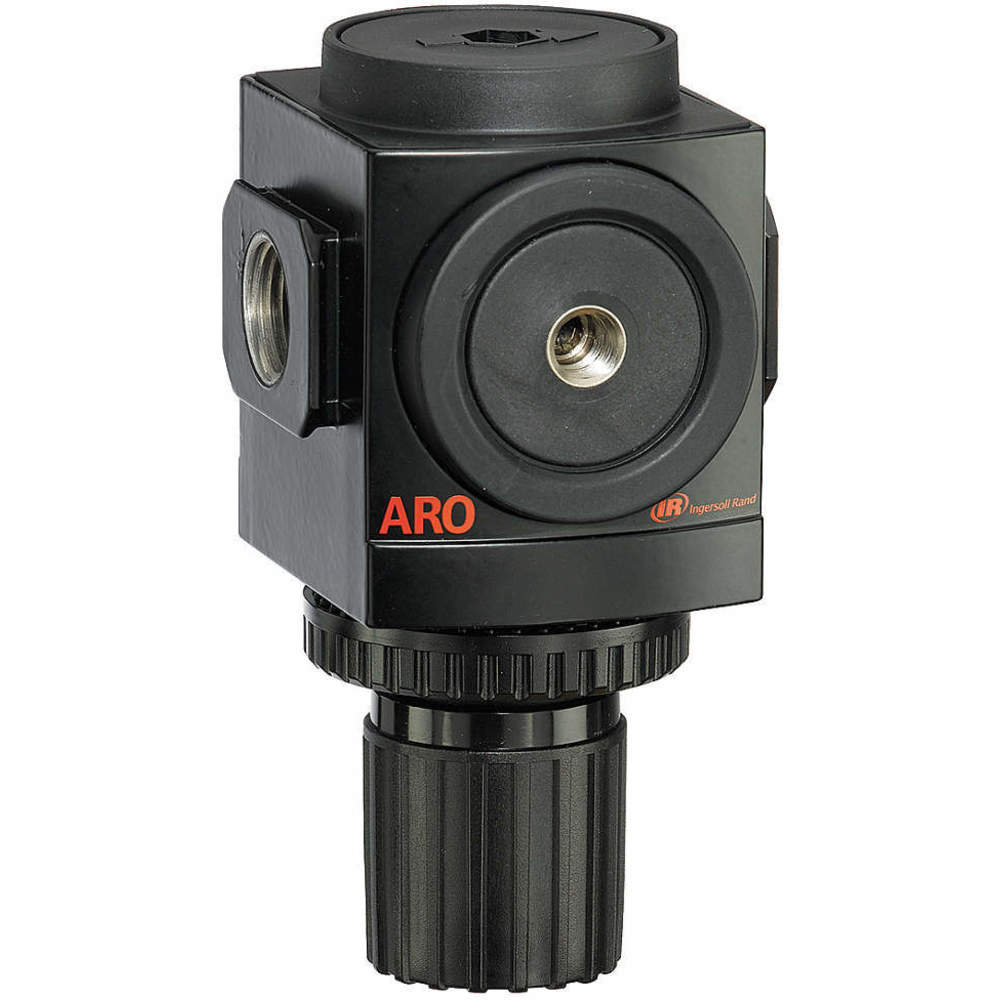

| A | R37331-100 | 3/8" | 179 CFM | No | 3 1/8" | 2 3/4" | 3/8" | 1/8" | Aluminum, Zinc | $148.44 | |
| B | R37351-100 | 3/4" | 210 CFM | No | 3 1/8" | 2 3/4" | 3/4" | 1/8" | Aluminum, Zinc | $153.37 | |

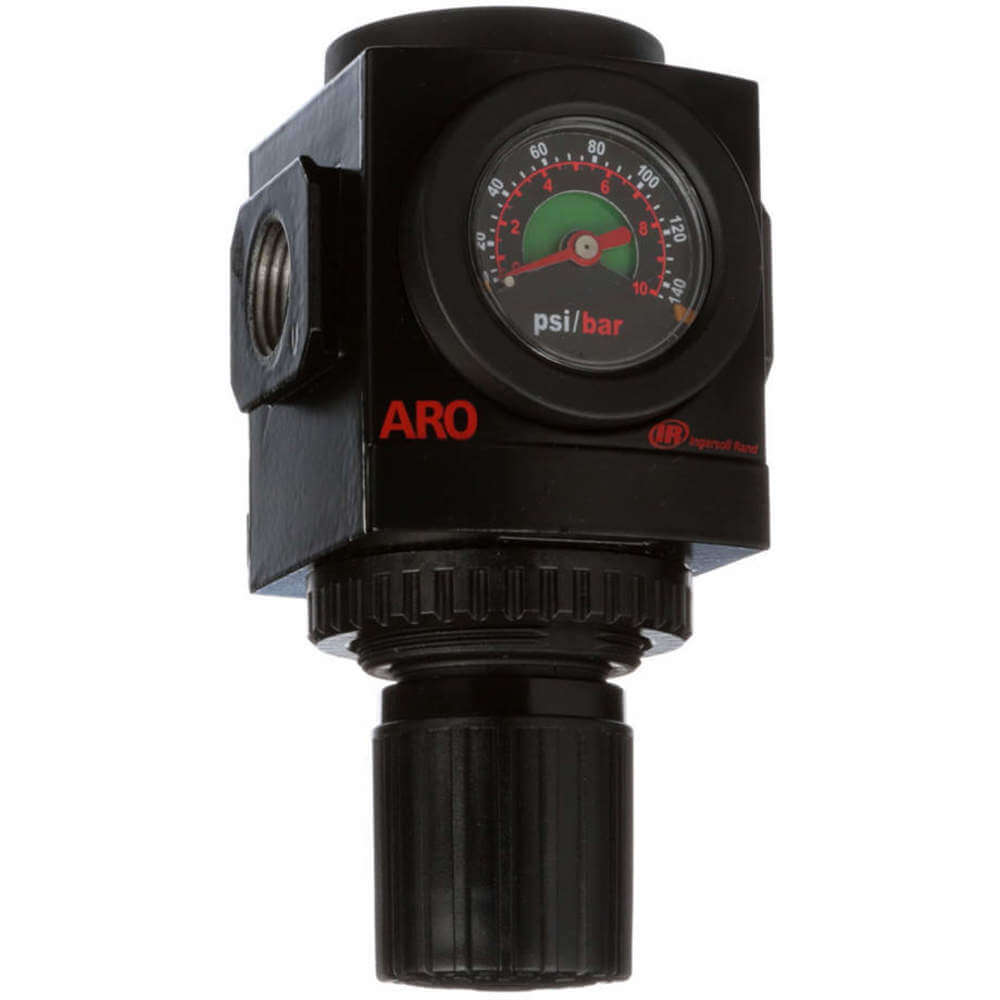

| C | R37341-600 | 1/2" | 210 CFM | Yes | 2 3/4" | 3.13" | 1/2" | 1/2" | Aluminum, Zinc | $204.37 |
