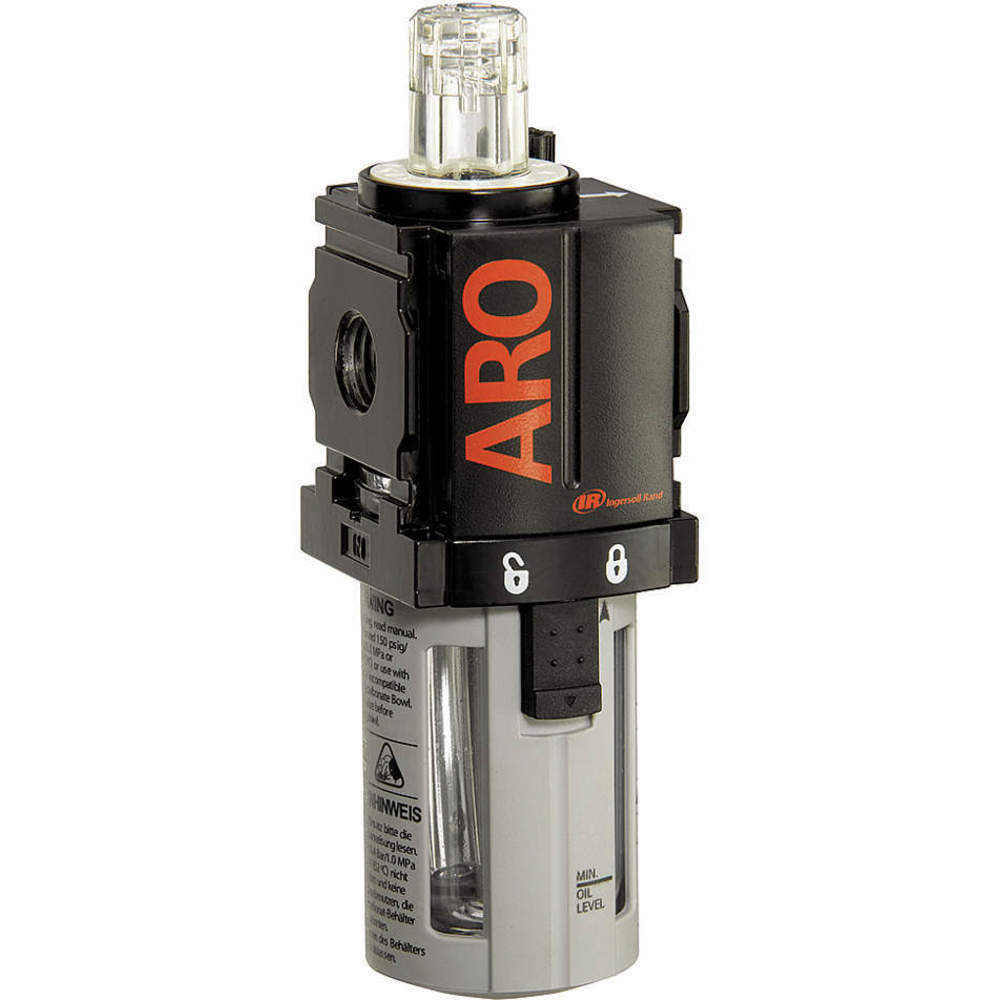

| Item | Modular Air Line Lubricator |
|---|---|
| Adjustment Mechanism | Screwdriver |
| Adjustment Type | Screwdriver |
| Air Inlet Size | 3/4" |
| Air Inlet Type | NPT |
| Air Outlet Size | 3/4" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Bowl Material | Metal |
| Bowl Size | 3.7 oz. |
| Connection Style | Air Line |
| Dome | Integral Sight |
| Duty Rating | Heavy Duty |
| For Fluid Type | Compressed Air |
| For Maximum Pipe Run | 25 ft. |
| For Substance Type | Air |
| Height | 9.99" |
| Inlet Size | 3/4 |
| Inlet Type | NPT |
| Knob | Adjustment |
| Length | 3.54" |
| Lubricator Bowl Capacity | 3.7 oz. |
| Lubricator Bowl Guard Included | No |
| Lubricator Bowl Material | Metal |
| Lubricator Type | Mist |
| Material | Aluminum |
|---|---|
| Max. Flow Rate | 330 CFM |
| Max. Pressure | 250 psi |
| Max. Temp. | 175°F |
| Maximum Operating Pressure | 250 psi |
| Minimum Operating Temperature | 23°F |
| Npt | 3/4" |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 3.7 oz. |
| Overall Depth | 3 7/8" |
| Overall Height | 10 1/8" |
| Overall Length | 3.54" |
| Overall Width | 3 9/16" |
| Pipe Runs | 25 ft. |
| Pipe Size | 3/4" |
| Pressure Drop | 7 psi |
| Recommended Lubricant | Lubricative Oil P/N 29665 |
| Seal Material | Nitrile Rubber |
| Series | 3000 Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| Type | Modular |
| Width | 3.86" |
| Height (cm) | 25.72 |
|---|---|
| Length (cm) | 9.84 |
| Width (cm) | 9.05 |
| HS Code | 8481100040 |
|---|---|
| Country Of Origin | KR |
| Weight (kg) | 1.4625 |
| Style | Model | Bowl Material | Air Inlet Size | Max. Flow Rate | Lubricator Bowl Capacity | Overall Width | Overall Length | Npt | Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | L36121-100 | Polycarbonate | 1/4" | 51 CFM | 0.6 oz. | 1 9/16" | 1.57" | 1/4" | 5 1/25" | $134.74 | |
| A | L36221-100 | Polycarbonate | 1/4" | 51 CFM | 1.9 oz. | 2 3/16" | 2 1/5" | 1/4" | 5.98" | $165.11 | |
| A | L36231-100 | Polycarbonate | 3/8" | 105 CFM | 1.9 oz. | 2 3/16" | 2 1/5" | 3/8" | 5.98" | $169.89 | |
| A | L36331-100 | Polycarbonate | 3/8" | 85 CFM | 4.3 oz. | 2 3/4" | 2 19/25" | 3/8" | 7.09" | $203.57 | |
| A | L36341-100 | Polycarbonate | 1/2" | 156 CFM | 4.3 oz. | 2 3/4" | 2 19/25" | 1/2" | 7.09" | $229.53 | |
| A | L36351-100 | Polycarbonate | 3/4" | 222 CFM | 4.3 oz. | 2 3/4" | 2 19/25" | 3/4" | 7.09" | $204.46 | |
| A | L36221-110 | Metal | 1/4" | 51 CFM | 1.5 oz. | 2 3/16" | 2 1/5" | 1/4" | 5.98" | $190.43 |
