| Item | Machine Screw |
|---|---|
| Class | Class 4.8 |
| Dimensional Standards | Din 85A, Din En Iso 1580 |
| Drive | Slotted |
| Drive Type | Slotted |
| Fastener Length | 10 mm |
| Finish | Zinc Plated |
| Hardness | Rockwell B71-B99 |
| Head Dia. | 5 mm |
| Head Height | 1.5 mm |
| Head Type | Pan |
| Length | 10 mm |
| Machine Screw Type | Standard Machine Screw |
| Material | Steel |
|---|---|
| Material Grade/class | 4.8 |
| Rockwell Hardness | B71 to B99 |
| Screw Size | M2.5 |
| System Of Measurement | Metric |
| Tensile Strength | 60900 psi |
| Thread Fit | 6G |
| Thread Length | 10 mm |
| Thread Pitch | 0.45 mm |
| Thread Size | M2.5 |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
| Height (cm) | 1.27 |
|---|---|
| Length (cm) | 10.16 |
| Width (cm) | 2.54 |
| HS Code | 7318156080 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.045 |
| Style | Model | Thread Size | Head Height | Thread Type | Head Dia. | Tensile Strength | Thread Length | Class | Drive Size | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1PXZ7 | #8-32 | 0.096" | - | 0.322" | - | 3/8" | - | 0.054" | 100 | $15.36 | |

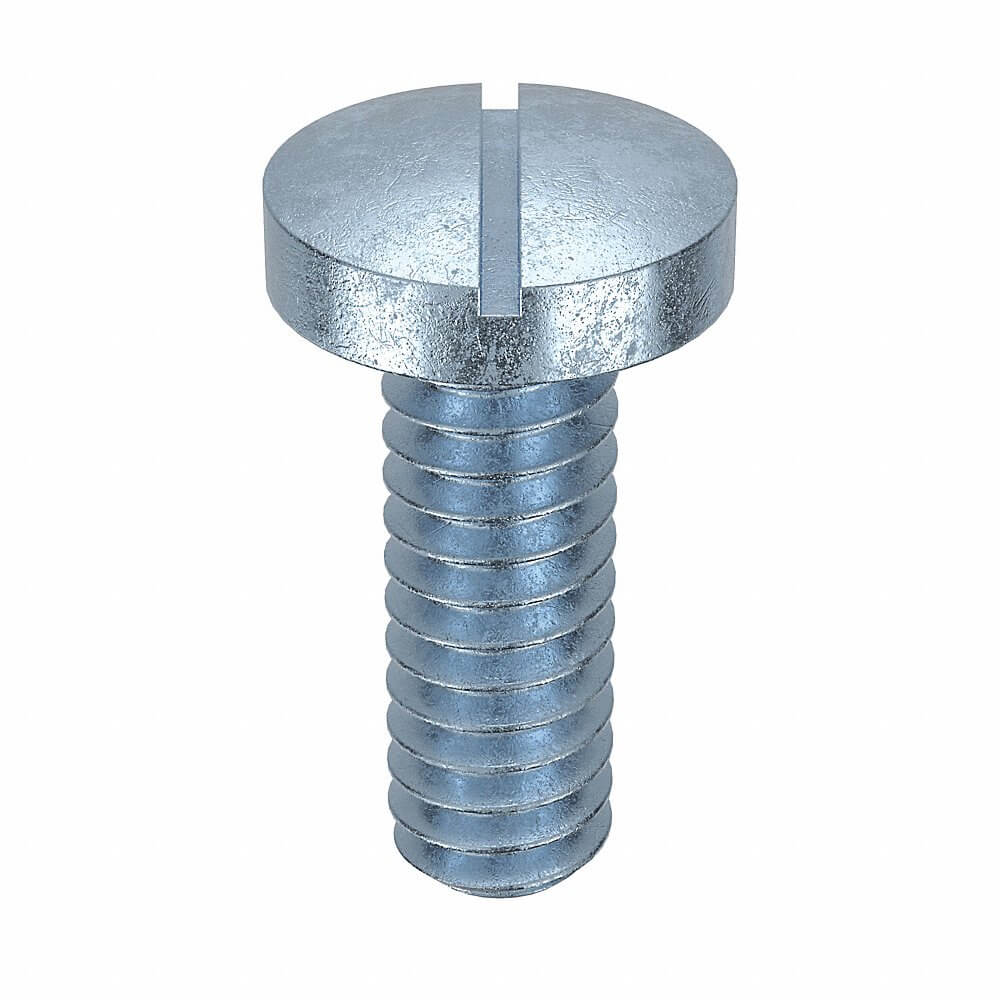

| B | U24520.008.0025 | #2-56 | 0.053" | Coarse | 0.162" | 60000 psi | 1/4" | Class 3A, Class 2A | 5/32" | 100 | $1.56 | |

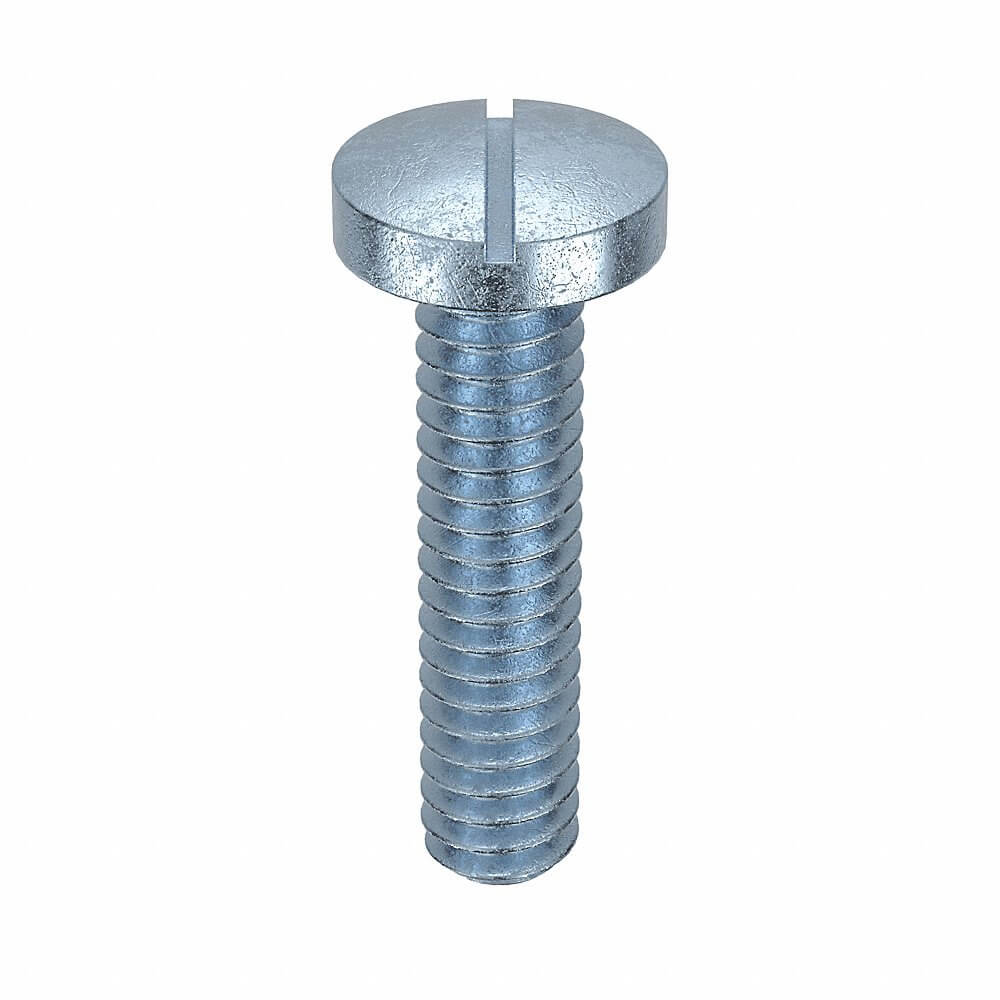

| C | U24520.008.0037 | #2-56 | 0.167" | Coarse | 0.162" | 60000 psi | 3/8" | Class 3A, Class 2A | 5/32" | 100 | $9.87 | |

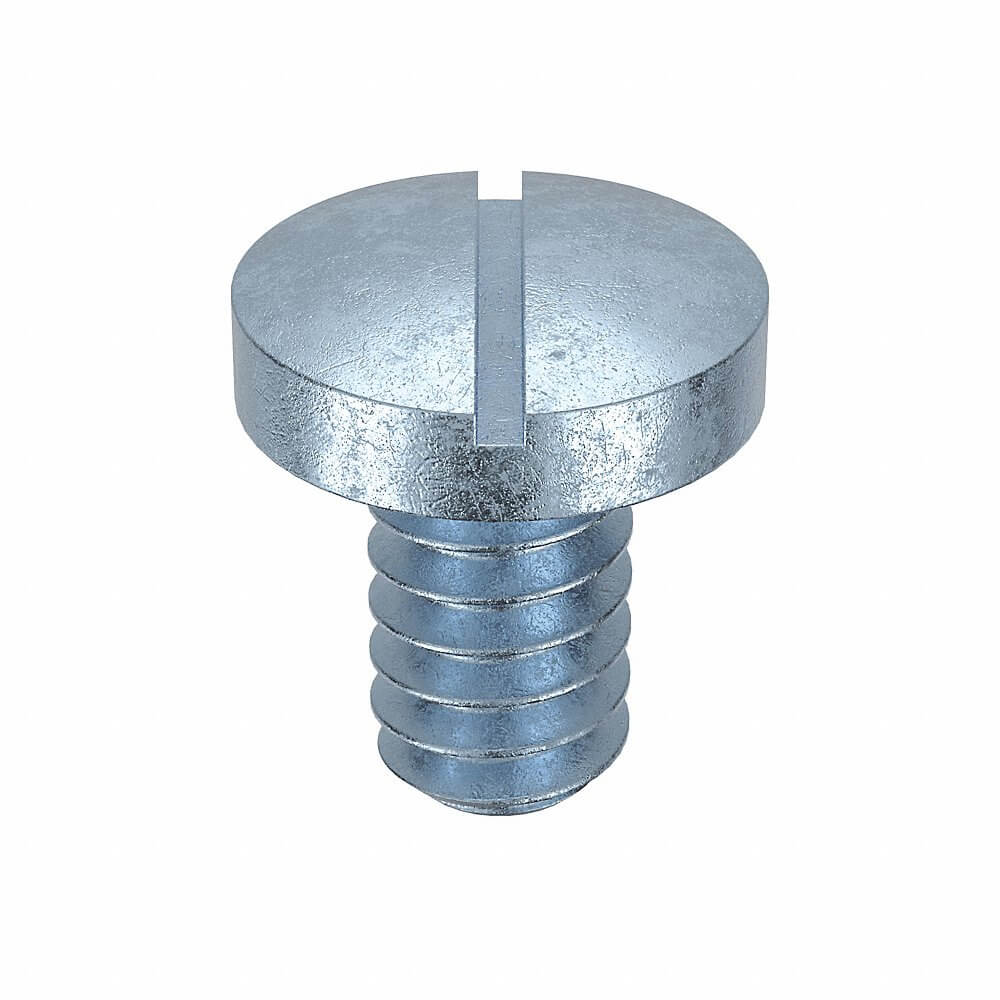

| D | U24520.011.0018 | #4-40 | 0.219" | Coarse | 0.212" | 60000 psi | 3/16" | Class 3A, Class 2A | 3/16" | 100 | $4.79 | |
| E | U24520.011.0025 | #4-40 | 0.219" | Coarse | 0.212" | 60000 psi | 1/4" | Class 3A, Class 2A | 3/16" | 100 | $3.91 | |

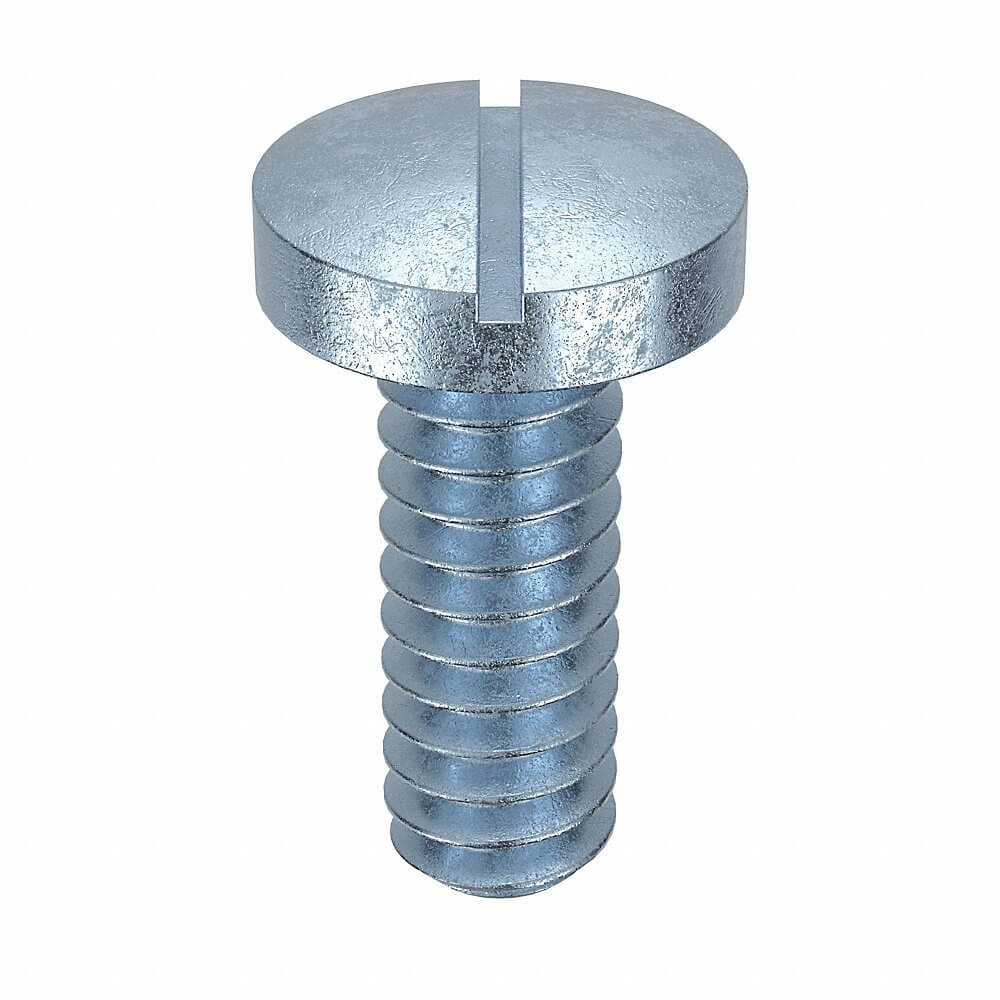

| F | U24520.011.0031 | #4-40 | 0.068" | Coarse | 0.212" | 60000 psi | 5/16" | Class 3A, Class 2A | 3/16" | 100 | $5.83 | |

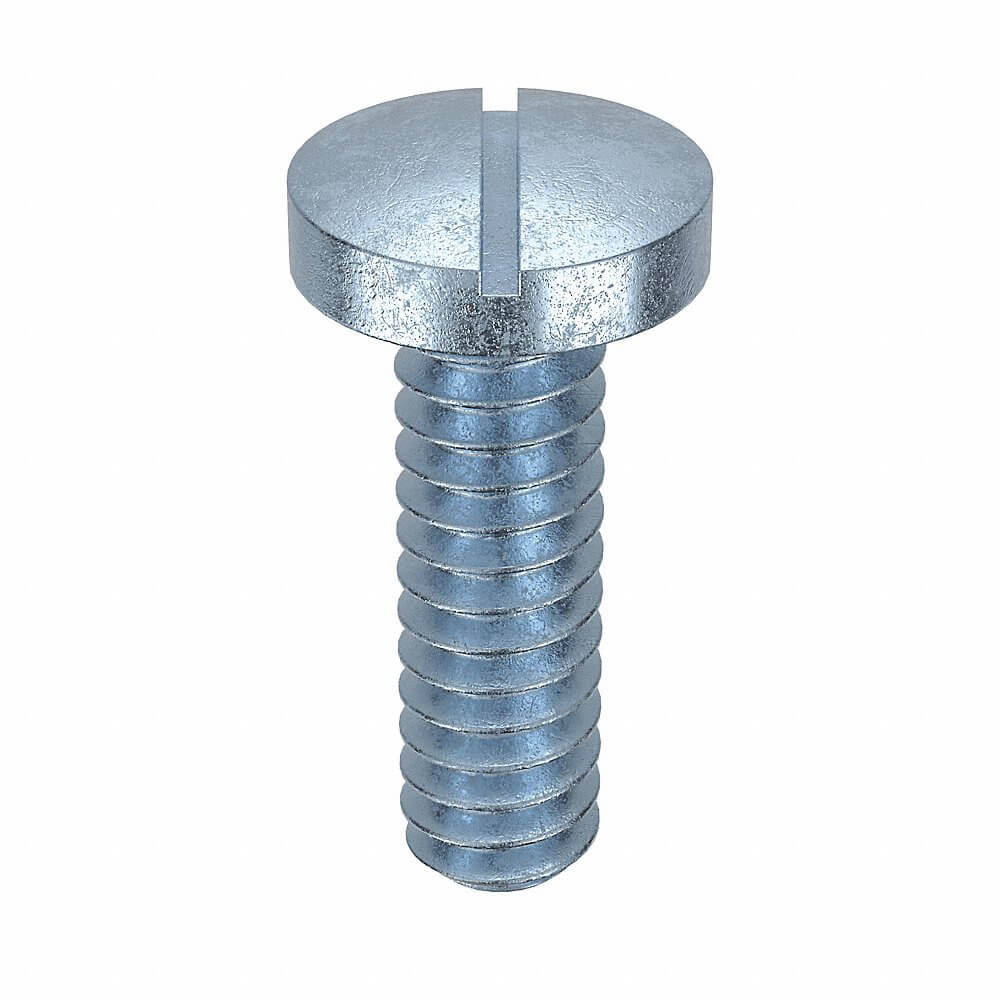

| G | U24520.011.0037 | #4-40 | 0.219" | Coarse | 0.212" | 60000 psi | 3/8" | Class 3A, Class 2A | 3/16" | 100 | $4.53 |
