| Item | Hex Nut |
|---|---|
| Color | Silver |
| Dimensional Standards | Din 934 |
| Finish | Plain |
| Grade | Grade 18-8 |
| Hardness | Brinell 170 |
| Height | 6.5 mm |
| Hex Height | 6.5 mm |
| Hex Type | Standard Hex |
| Hex Width | 13 mm |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Material Quality Standards | Astm A307A |
| Maximum Temperature | 302°F |
| Min. Temp. | -58°F |
|---|---|
| Minimum Yield Strength | 700 N/sq. mm |
| Nut Type | Standard Hex |
| Reach Compliant | Yes |
| Removable | No |
| Resistance Properties | High Temperature Resistant |
| Rohs Compliant | Yes |
| System Of Measurement | Metric |
| Tensile Strength | Not Applicable |
| Thread Direction | Right Hand |
| Thread Fit | 6H |
| Thread Size | M8 x 1.25 |
| Thread Type | Coarse |
| Width | 13 mm |
| Height (cm) | 12.7 |
|---|---|
| Length (cm) | 1.27 |
| Width (cm) | 16.99 |
| HS Code | 7318160085 |
|---|---|
| Country Of Origin | TW |
| Weight (kg) | 0.2394 |
| Style | Model | Thread Size | Thread Type | Height | Hardness | Thread Fit | Max. Temp. | Min. Temp. | Removable | Pkg. Qty. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | U51080.037.0001 | 3/8"-16 | Coarse | 21/64" | Rockwell B95-C35 | 2B | - | - | No | 100 | $29.83 | |
| B | U51080.062.0001 | 5/8"-11 | Coarse | 35/64" | Rockwell B80-C32 | 2B | 302°F | -58°F | No | 25 | $25.14 | |
| C | U51160.062.0002 | 5/8"-18 | Fine/Special | 35/64" | Rockwell B80-C32 | Class 2B | 302°F | -58°F | - | 25 | $38.04 | |

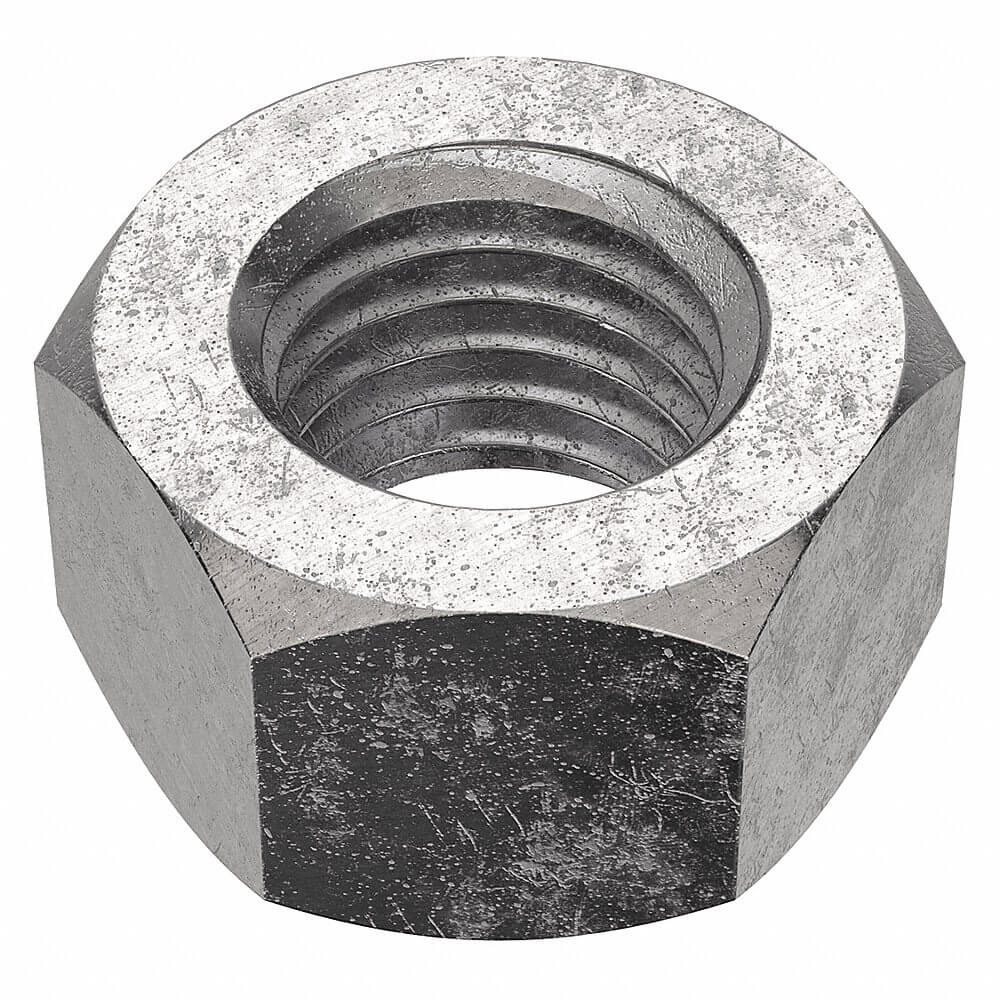

| D | U51080.075.0001 | 3/4"-10 | Coarse | 41/64" | Rockwell B80-C32 | 2B | 302°F | -58°F | No | 20 | $32.41 | |

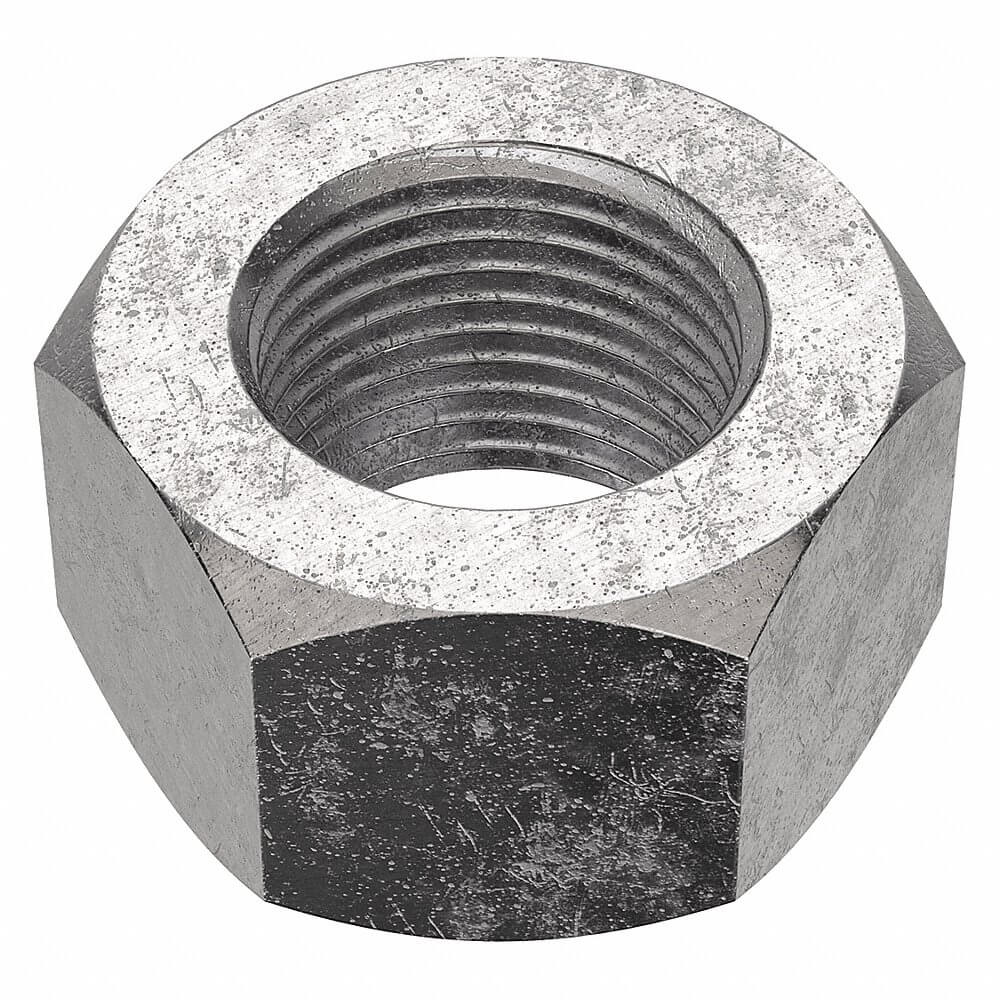

| E | U51160.087.0002 | 7/8"-14 | UNF, UNS | 3/4" | Rockwell B80-C32 | - | - | - | - | 5 | $19.36 | |
| F | U51080.100.0001 | 1"-8 | Coarse | 55/64" | Rockwell B80-C32 | 2B | 302°F | -58°F | No | 5 | $27.67 | |
| G | 1WB58 | 1"-12 | Fine | 55/64" | Rockwell B80 | - | - | - | Yes | 1 | $5.97 |
